    Hi, I've previously made a post here which helped me determine the likely cause of my booting issues to be the BCM4356. Since then I saw other people linking the orange screen and boot issues to the wifi chip as well. So my hopes were high to finally fix this.

    Since then I've first reflowed, and then replaced the wifi chip twice, but I'm not getting anywhere.

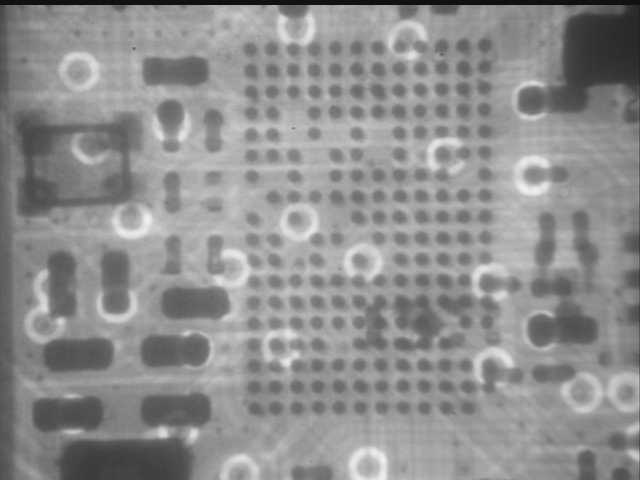

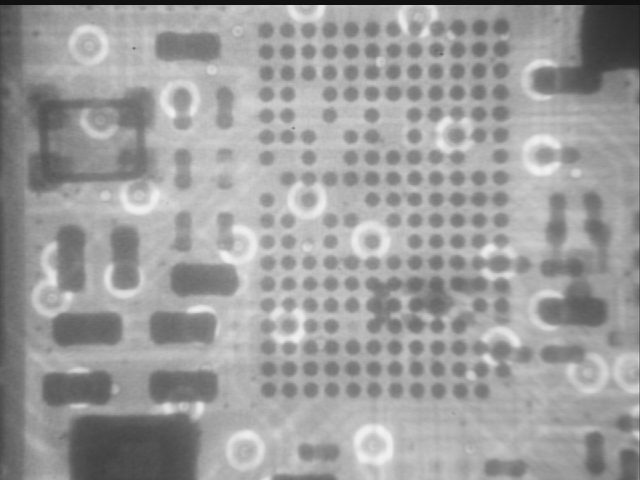

    To make sure the soldering went alright, I took some X-ray images of the chip and to me it looks good now. (The bottom one is a reference image from another board.)
    BCM4356_v2.png BCM4356_ref.png

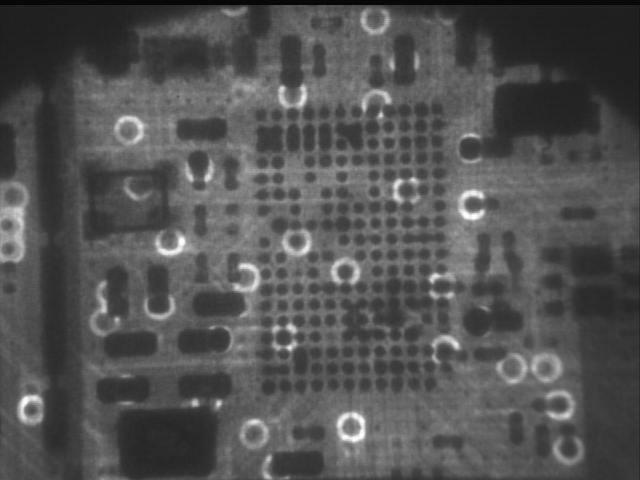

    Note that in my first (botched) attempt below you could clearly see some bridged solder balls. (In this state the switch wouldn't even power on.)

    But I guess I don't know enough to clearly say if the chip is on correctly. Yes there are no bridges, but does the image indicate that all solder balls made proper contact with the pads? Or would that look slightly different? The current symptom is back to being stuck on the boot logo. As I've stated in my first post, the rest of symptoms are: everything works hardware wise in Linux, except WiFi (but Bluetooth does).

    If you have any idea on how to proceed from here, I'd massively appreciate it.

    FXDX likes this.
  2. FXDX

    FXDX GBAtemp Regular
    Member

    Joined:
    Sep 15, 2019
    Messages:
    178
    Country:
    Dominican Republic
    Stuck on the boot logo has nothing to do with BCM4356, but rather with M92T36. I solved the orange screen with reflow on BCM4356. Did you have an orange screen and now after you replace BCM4356 is stuck on the boot logo?

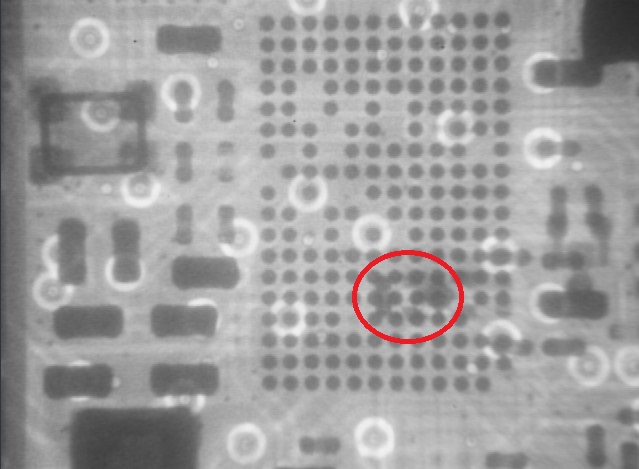

    I find something blurry in the red area........

    Last edited by FXDX, Mar 9, 2020
  3. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    Thanks for your reply, but I don't think that's true. Stuck on boot CAN be due to M92T36, but that usually comes with charging problems right?
    Either way there are more people who have made the connection between boot issues and BCM (see my original thread), or this guy whose switch flip flops between orange screen (when it does boot) and stuck on boot logo (). I think because the wifi chip issue is so intermittent for many people, it either craps out during boot (in which case you get stuck), or while it's running (in which case you get the orange screen).

    I had the orange screen in the very beginning when it first stopped working, after which it's always been stuck on boot. Then I started replacing the chip.

    FXDX likes this.
  4. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    1. How tf can you take X Ray photos of your switch?
    2. On which logo does it hang on?
    3. Does WiFi/Bluetooth work when you're running Android?

    FXDX likes this.
  5. FXDX

    FXDX GBAtemp Regular
    Member

    Joined:
    Sep 15, 2019
    Messages:
    178
    Country:
    Dominican Republic
    Possible that !

  6. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    :lol: There is an old X-ray inspection machine at my university. I think PCB assembly factories normally use those to check their boards.

    It hangs on the Nintendo Switch logo (not the first Nintendo one).

    As mentioned, Bluetooth worked when I tested it a while ago, while WiFi did not!

    ds34 and FXDX like this.
  7. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    Does it work when you're running Android?

  8. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    Yes good catch, but this seems to be always present (maybe from stuff underneath?) if you compare to the reference board (first image is mine, second is reference).

    — Posts automatically merged - Please don't double post! —

    I did try android originally as well, same deal WiFi was not working.

  9. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    Oof. You already mentioned that it's working when you're running Linux. What's up with that fuse above P13USB? A friend of mine told me that those cause this issue.

  10. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    Nono, WiFi does not work in any OS, at all. (everything else does though)
    Thanks for the tip, I'll try to find that one since I have never looked at it.

    FXDX likes this.
  11. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    Are you sure there is a fuse around P13USB? I couldn't find any.
    This high-res image shoud be great for referencing: https://switchbrew.org/w/images/7/70/Switchre_side2.jpg

  12. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    Sorry, I meant capacitor. Remove it and check for shorts.

  13. GrimDim

    OP GrimDim Advanced Member
    Newcomer

    Joined:
    Aug 16, 2019
    Messages:
    69
    Country:
    Germany
    Ah yeah the capacitor is fine, no shorts.

  14. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
  15. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    What about the components around the BCM chip? Where did your get the replacement chip?

  16. linuxares

    linuxares I'm not a generous god!
    Moderator

    Joined:
    Aug 5, 2007
    Messages:
    7,496
    Country:
    Sweden
    GrimDim and ds34 like this.
  17. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    Indeed. They might be able to help. Could this also be related to the SoC?

  18. linuxares

    linuxares I'm not a generous god!
    Moderator

    Joined:
    Aug 5, 2007
    Messages:
    7,496
    Country:
    Sweden
    I think it might be personally. I would go to the forum for Tronics Fix and ask. This is some really cool thing with the X-ray.

  19. linuxares

    linuxares I'm not a generous god!
    Moderator

    Joined:
    Aug 5, 2007
    Messages:
    7,496
    Country:
    Sweden
    @GrimDim can your switch boot in to example RCM mode? Or orange instantly?

  20. ds34

    ds34 GBAtemp Regular
    Member

    Joined:
    Jan 14, 2020
    Messages:
    268
    Country:
    Germany
    That's impossible. As far as I know screen the orange screen is caused by an kernel panic indicating a fault with the WiFi/Bluetooth chip.
    RCM mode doesn't require Horizon OS's kernel.
    Am I right?

    Last edited by ds34, Mar 10, 2020
