Gaming Dead Switch

[victhrash36]

Hi , I got a switch tablet from market place the seller told me it suddenly stopped charging and it wornt turn on, is there a way to tell if the switch is totally dead or can i do something?

If i connect the switch to the power adapter nothings happens
If i connect the switch to the pc it is recognized in RCM mode, tegrarcmgui recognizes it too and apparently i can inject payloads(im new to switch so i dont really know what that really means), but still the switch wont turn on or show anything on screen



Sorry if i posted itin the wrong section but i didnt knew where to post it



[menadwen]

Clean the usb-c port real good. Plug it to charger overnight.



[Lacius]

Do you happen to know if the Switch had AutoRCM installed to it?



[Adran_Marit]

I'm guessing it may be an ipatched console in RCM

Hold power button for 15 seconds and then power it on again?



[victhrash36]

i have no idea if it is patched or if it has any kind of hack, is there a way to get this info in the current state of the console?

Holding the power button and trying any other combinations of keys havent fixed the problem

the switch is currently connected to the charger but the screen is completly dark.

Do you know if the consoles that have hardware issues automatically enter the rcm mode? im curious that you can enter that mode even if the console doesnt show signs of life



[Deleted member 413168]

i have no idea if it is patched or if it has any kind of hack, is there a way to get this info in the current state of the console?

Holding the power button and trying any other combinations of keys havent fixed the problem

the switch is currently connected to the charger but the screen is completly dark.

Do you know if the consoles that have hardware issues automatically enter the rcm mode? im curious that you can enter that mode even if the console doesnt show signs of life

Try connect the switch to your pc, if you hear the device connected sound on your pc (windows, not sure about linux) then you at least know its A) alive and B) in rcm (i think).



[GCS]

i have no idea if it is patched or if it has any kind of hack, is there a way to get this info in the current state of the console?

Holding the power button and trying any other combinations of keys havent fixed the problem

the switch is currently connected to the charger but the screen is completly dark.

Do you know if the consoles that have hardware issues automatically enter the rcm mode? im curious that you can enter that mode even if the console doesnt show signs of life

You can check this site to learn if it is patched or not.



[victhrash36]

Try connect the switch to your pc, if you hear the device connected sound on your pc (windows, not sure about linux) then you at least know its A) alive and B) in rcm (i think).

the console is automatically detected in rcm mode when conneted to windows, but other than that no signs of live, no charging , no sound, no image

You can check this site to learn if it is patched or not.

i verified and it is not patched

--------------------- MERGED ---------------------------

well i followed this guide

gbatemp a-definitive-way-to-test-if-your-switch-is-patched-or-not-purchases-after-07-2018.512018 (cant post links)


an the screen turned on and showed a qr code



[GCS]

the console is automatically detected in rcm mode when conneted to windows, but other than that no signs of live, no charging , no sound, no image




i verified and it is not patched

- Download Hekate and copy the bootloader folder to a micro sd card. Plug the SD to your switch. Keep the Hekate bin file on your PC.
- Press the power button for 15 seconds.
- Click + and Power button at the same time.
- Plug your Switch into your PC and inject the Hekate bin file via Tegra
Can you say what happens when you do these steps?



[victhrash36]

- Download hekate and copy the bootloader folder to a micro sd card. Plug the SD to your switch. Keep the Hekate bin file on your PC.
- Press the power button for 15 seconds.
- Click + and Power button at the same time.
- Plug your Switch into your PC and inject the Hekate bin file via Tegra
Can you say what happens when you do these steps?

I'll try it

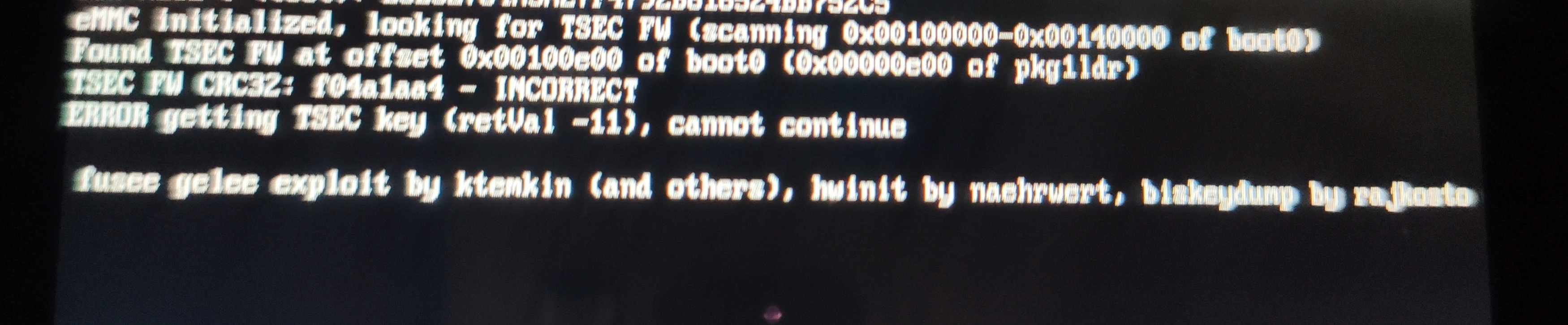

right now im seeing this on the screen when running the payload from the guide i shared



[GCS]

I'll try it


right now im seeing this on the screen when running the payload from the guide i shared

View attachment 239861

Your Switch is unpatched bec of the serial number. You don't need to follow the guide anymore that you sent.



[victhrash36]

the switch gave an error about the sd not being mounted, pressed any key and the hekate menu appered, i dissabled one option that said autorcm mode and not the switch finally turn on nomally, thank you all so much for you help.


So for what i can see this switch was hacked, is there any recomendation on what more should i verify ?



[GCS]

the switch gave an error about the sd not being mounted, pressed any key and the hekate menu appered, i dissabled one option that said autorcm mode and not the switch finally turn on nomally, thank you all so much for you help.


So for what i can see this switch was hacked, is there any recomendation on what more should i verify ?

While SD card is still in the switch, can you go into system settings and then Data management. Can you look if it sees your SD Card?



[victhrash36]

While SD card is still in the switch, can you go into system settings and then Data management. Can you look if it sees your SD Card?

while on the normal switch menu it gave me an error of sd format, and i formatted the sd card, in the data managment info it shows both the sd and the internal memory



[Deleted member 413168]

the switch gave an error about the sd not being mounted, pressed any key and the hekate menu appered, i dissabled one option that said autorcm mode and not the switch finally turn on nomally, thank you all so much for you help.


So for what i can see this switch was hacked, is there any recomendation on what more should i verify ?

glad that your switch booted. I'd recommend doing a nand backup using hekate btw



[GCS]

You can follow this guide. Make sure that your SD is at least 32 GB.



[victhrash36]

thank all you very much for your help, but now that the switch booted i have several questions

any recommendation on how should i format the console?

should i first do the nand backup and then the formatting process?

what happens if i format the console from the normal switch config? the whatever hack it had will dissapear?



[GCS]

thank all you very much for your help, but now that the switch booted i have several questions

any recommendation on how should i format the console?

should i first do the nand backup and then the formatting process?

what happens if i format the console from the normal switch config? the whatever hack it had will dissapear?

Format it from normal system settings and then back it up. Hack is hardware-based so it won't disappear.



[Adran_Marit]

thank all you very much for your help, but now that the switch booted i have several questions

any recommendation on how should i format the console?

should i first do the nand backup and then the formatting process?

what happens if i format the console from the normal switch config? the whatever hack it had will dissapear?

format sdcard to fat32 using guiformat, do nand backup + boot0/1 and run lockpick_rcm to get your keys, use hekate or atmosphere and profit



[Deleted member 413168]

I’d highly recommend using hekate to format the sdcard to fat32 over guiformat.

you can do so by selecting the partition option (I think it’s called that).
