    About this tutorial.
    I once semi-jokingly recommended that someone should make his own stylus pen out of chopsticks if he couldn't purchase a replacement for his n3DSXL.
    While that person may not have liked the suggestion, the proposed idea was a viable one given his financial means.

    This tutorial is for those out there who cannot acquire real Nintendo or 3rd party replica stylus pens. Or if they're into DIY accessory modding.

    For anyone who believes I'm :shit: posting, just for your info, all my posts ARE :shit: posts. :lol:

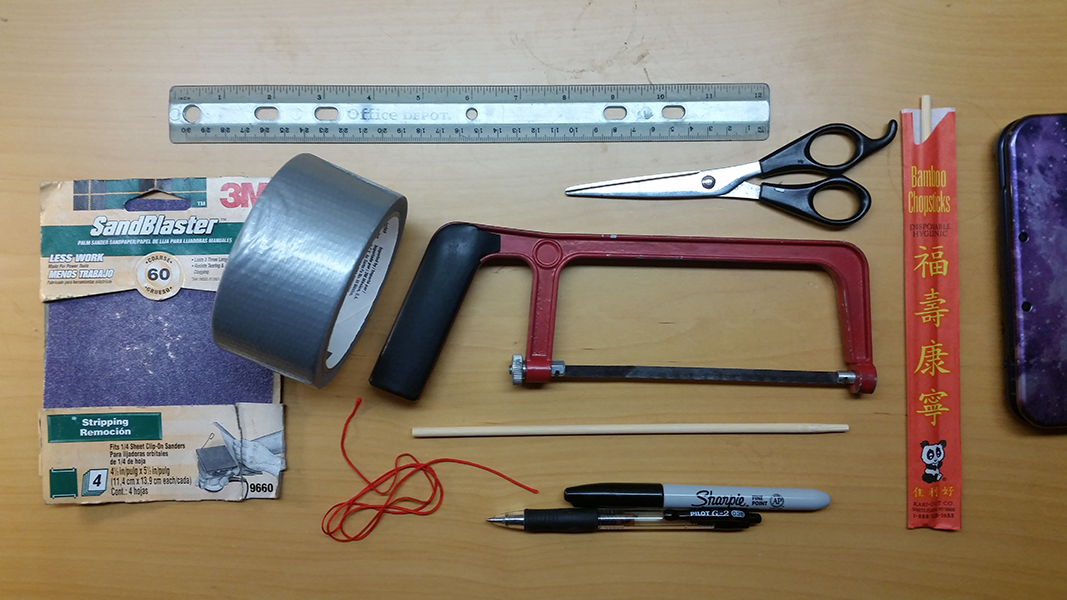

    Tools and Parts List
    Not everything on this list is necessary. Adjust and substitute your acquired goods to what is locally or regionally available to you.
    • wooden chopsticks (round profile)
    • mini hacksaw
    • scissors
    • sandpaper
    • duct tape
    • ruler
    • pen
    • permanent marker
    • string
    • superglue

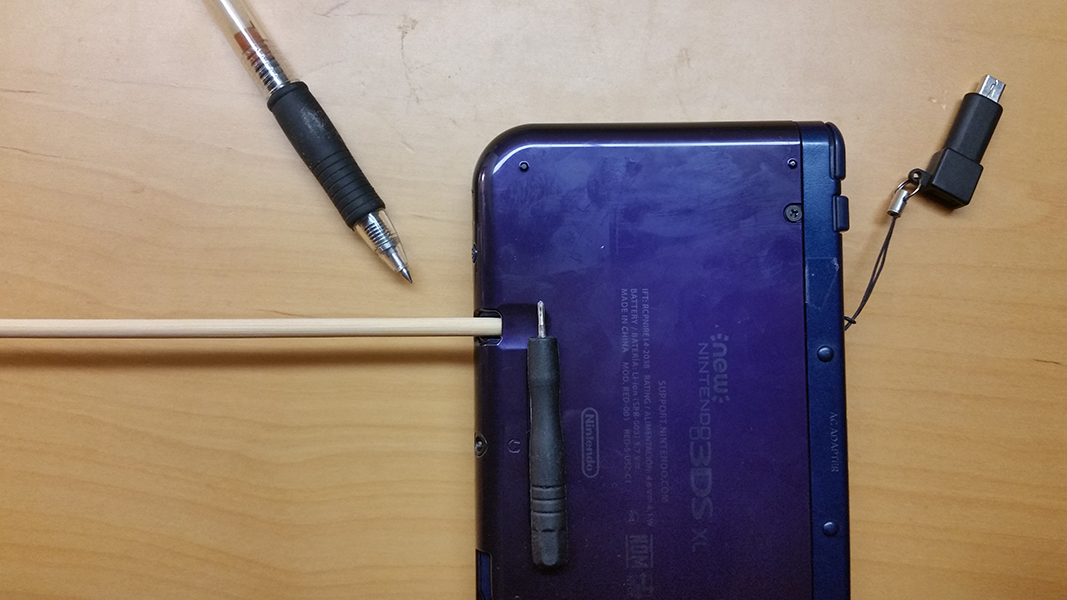

    Step 1. Measure the total length for the new stylus pen.
    Insert your chopstick into the n3DSXL stylus pen port, and mark where you plan to cut with the pen. Use the mini hacksaw to partially cut around that final length.

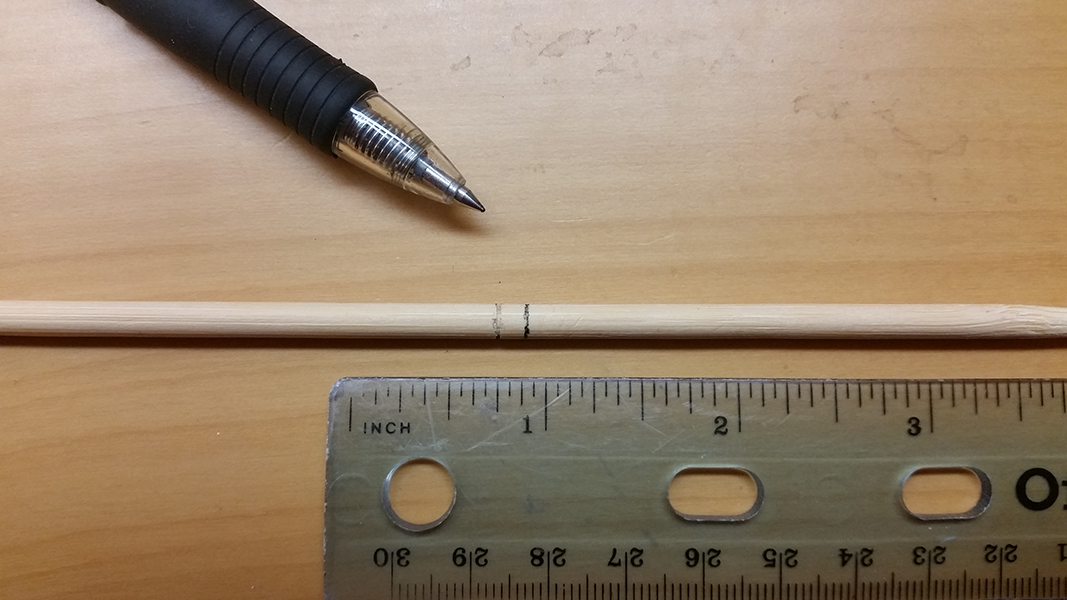

    Step 2. Cut a ring groove.
    Take a ruler and measure 0.25-inch below the final length. Mark that with the pen and cut a notch.

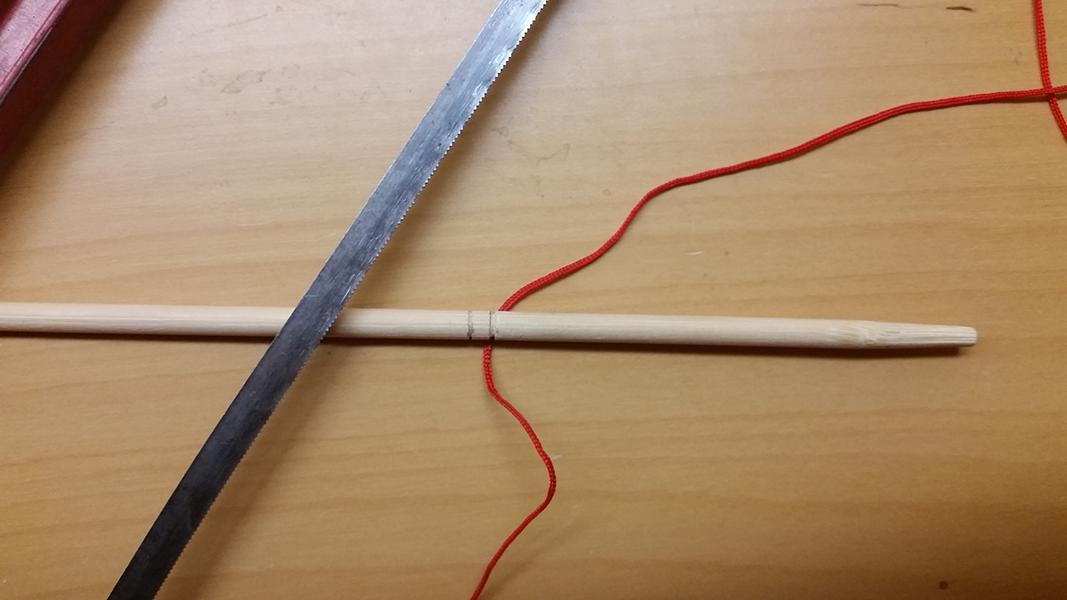

    Step 3. Test fit the string.
    Tie and loop the string within the ring groove. Saw the notch until satisfactory fitment.

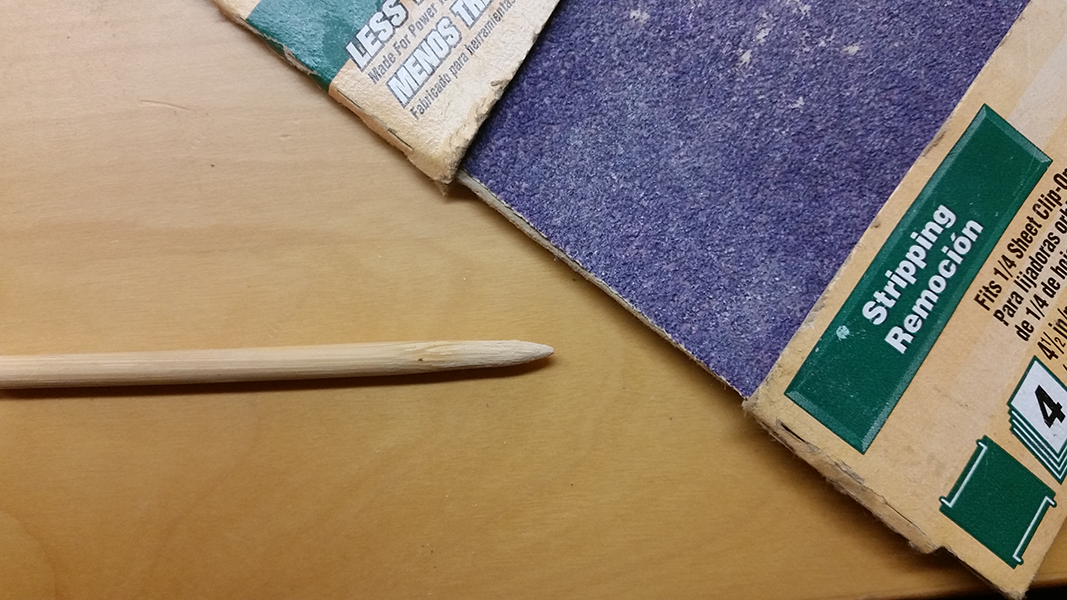

    Step 4. Sharpen the tip.
    Sand down the tapping end of the stick. We're not going for super pointy. If you want to do that, use a pencil sharpener.

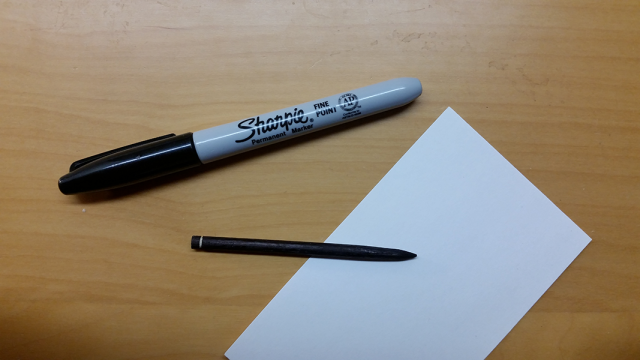

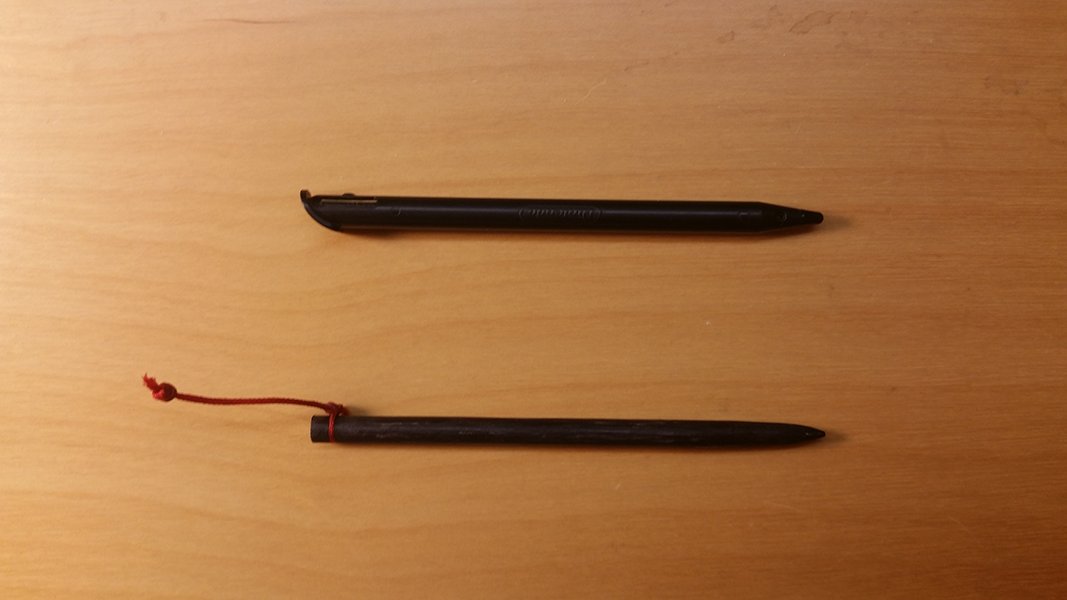

    Step 5. Color the pen.
    You can skip this step if you like the natural wood look. Black is not the only choice as permanent markers come in other colors.

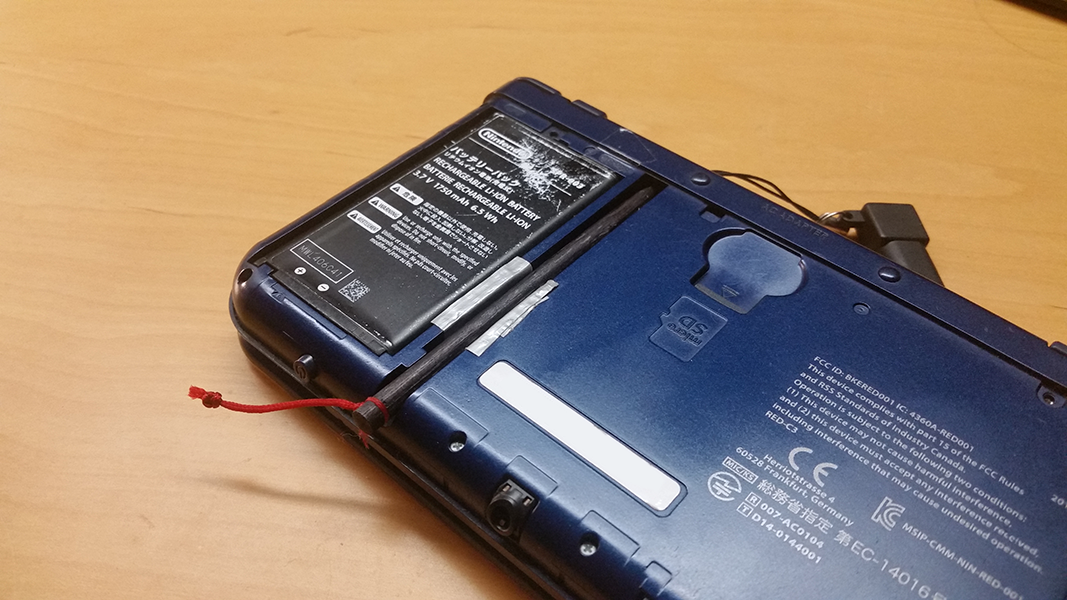

    Step 6. Tie a pull string.
    A string length of about 1-inch should sufficient. Add a ball knot to the end of the string for easy catching with your nails. If you suck at tying the string to the notch like me, you can cheat by adding a little super glue.

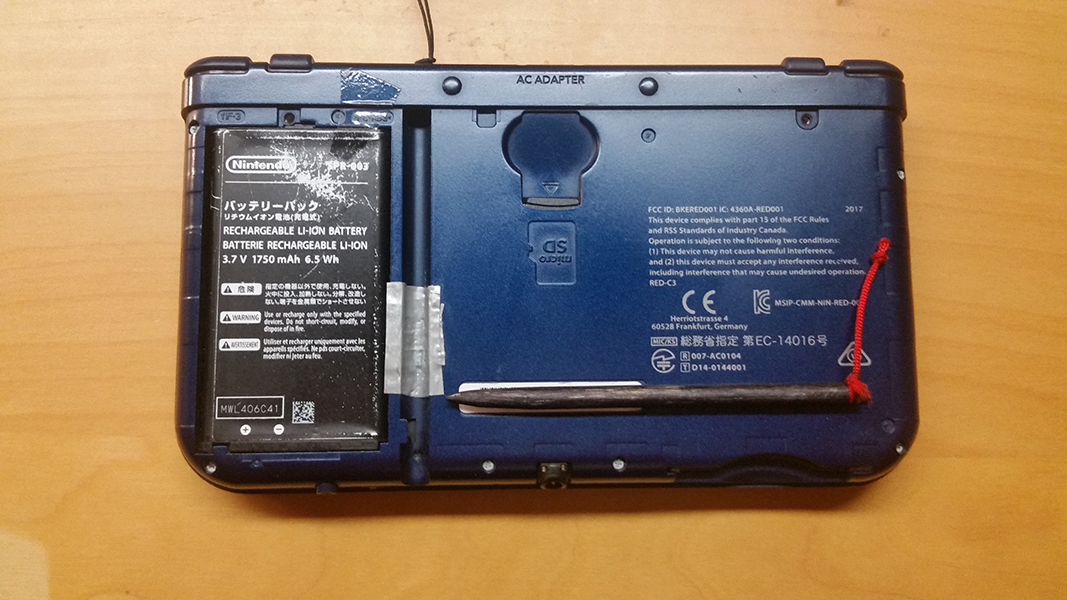

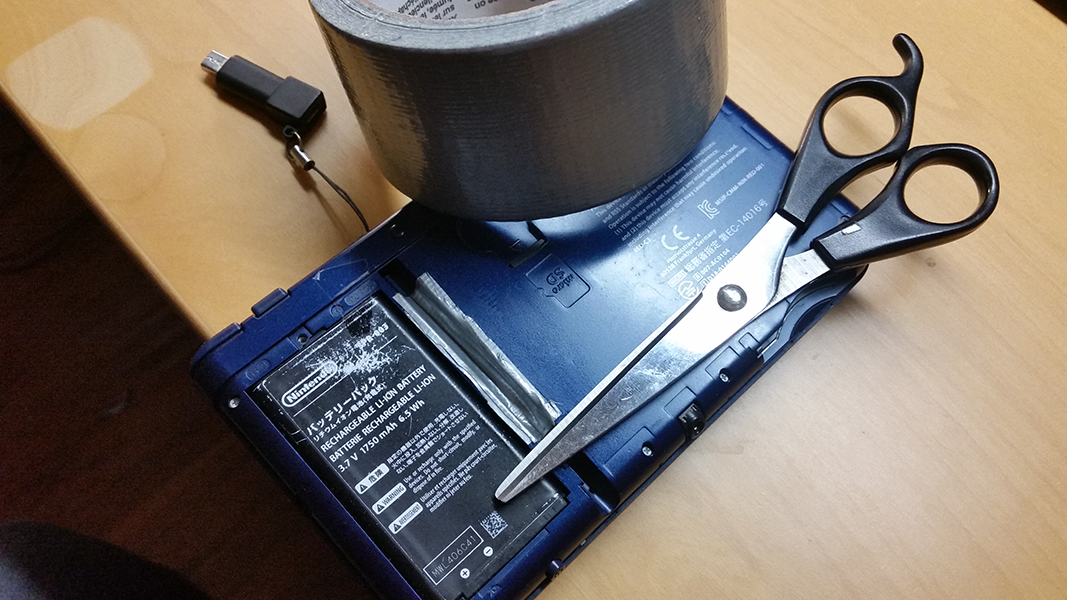

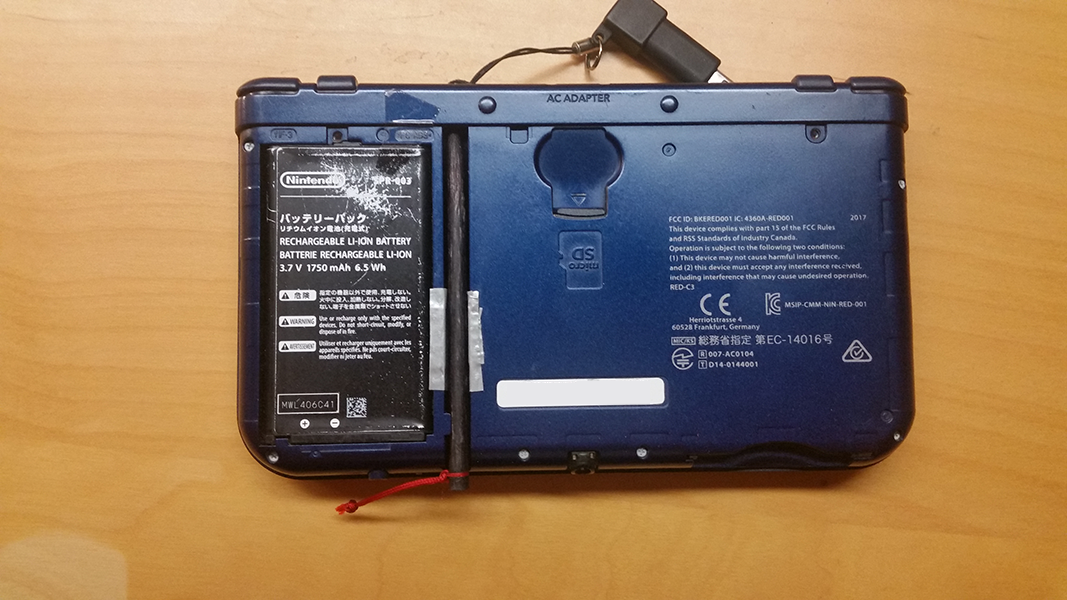

    Step 7. Adjust the pen port.
    Add some duck tape to narrow the hole size. This is probably the trickiest part as you'll need to stack about 3-5 layers of tape until it catches and holds the pen in place. My advice is that you don't cover the entire hole length (despite one of the pictures showing otherwise).

    Also, your last layer of tape should cover or overlay all the ones below it. The stylus pen can catch and unroll the stacked layers if their edges are exposed. This will cause the pen to jam.








    Last edited by TurdPooCharger, Oct 29, 2019 - Reason: Re-upload missing pictures.
  2. Orangy57

    Orangy57 bruh
    Member

    Joined:
    Aug 17, 2015
    Messages:
    613
    Country:
    United States
    Wow, this is actually pretty neat. This kinda makes me wish that there was some sort of DIY section on here for people to make cool accessories and show them off

  3. E1ite007
    This message by E1ite007 has been removed from public view by Quantumcat, Sep 2, 2018, Reason: Not image board.
    Sep 2, 2018 Show
  4. DinohScene

    DinohScene Feed Dino to the Sharks
    Moderator

    Joined:
    Oct 11, 2011
    Messages:
    20,296
    Country:
    Antarctica
    I feel I have to warn everyone before attempting such a thing.
    There's a very real possibility you can scratch up your touch screen if dirt or a sand particle gets snagged on the wood.

    I must say it's very creative!
    Not something I would do but interesting none the less.

  5. seren3

    seren3 GBAtemp Regular
    Member

    Joined:
    Jul 16, 2018
    Messages:
    112
    Country:
    United States
    You must have a lot of free time.

    Just buy a pack of new styli, they're like two bucks on aliexpress.

    j5c077 likes this.
  6. Ericthegreat

    Ericthegreat Not New Member
    Member

    Joined:
    Nov 8, 2008
    Messages:
    3,355
    Country:
    United States
    I think it's more for the project.

    TurdPooCharger likes this.
  7. tbb043

    tbb043 Member
    Member

    Joined:
    Jan 30, 2008
    Messages:
    1,755
    Country:
    United States
    pretty much my thoughts. I'll just be careful not to lose my original stylus, but this is a "neato" creative solution for the poor/cheapskate/crafty ypes

  8. TurdPooCharger

    OP TurdPooCharger Meh.
    Member

    Joined:
    Jan 1, 2018
    Messages:
    6,295
    Country:
    United States
    Update.

    I see that one of us is a master of reading the title but not the post, but that's okay. I'm guilty of doing this all the time when it comes to news articles. :wink:

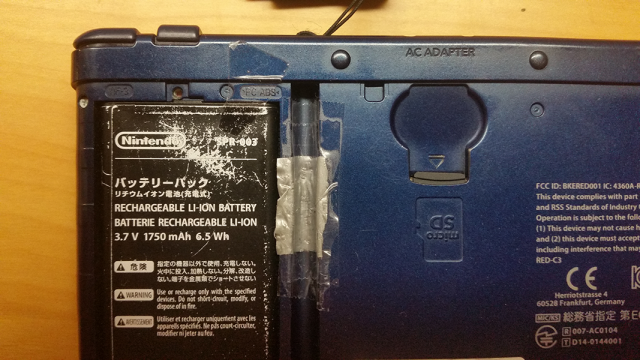

    The tape needed more adjustment. It's better to position it further back before the stylus starts to taper and to have the last layer made out of clear tape for better holding grip. The pen straightens the more it goes in, eliminating the chance of the tape edge from snagging. Also, there's less duration of resistance when it's pulled out.


    Other than that, I haven't experienced any scratching so far. The tip is very fine with little to no exposure time to hard/sand particle smaller than 1 mm when either in use or resting in the stylus holder, so the chance of embedding is ~zilch. Then again, my n3DSXL stays at home. This might be a possibility if I carried my n3DSXL in my pocket where there's pocket sand and lint, and if the tip accidentally gets wet from rain in outdoor play because wood absorbs water and plastic does not. Water + sand can stick to wood.

    Although I hardly use the stylus as I'm more of a thumb user and I don't play games much these days, I do prefer my dinky wood pen versus the OE stylus for it's finer tip.

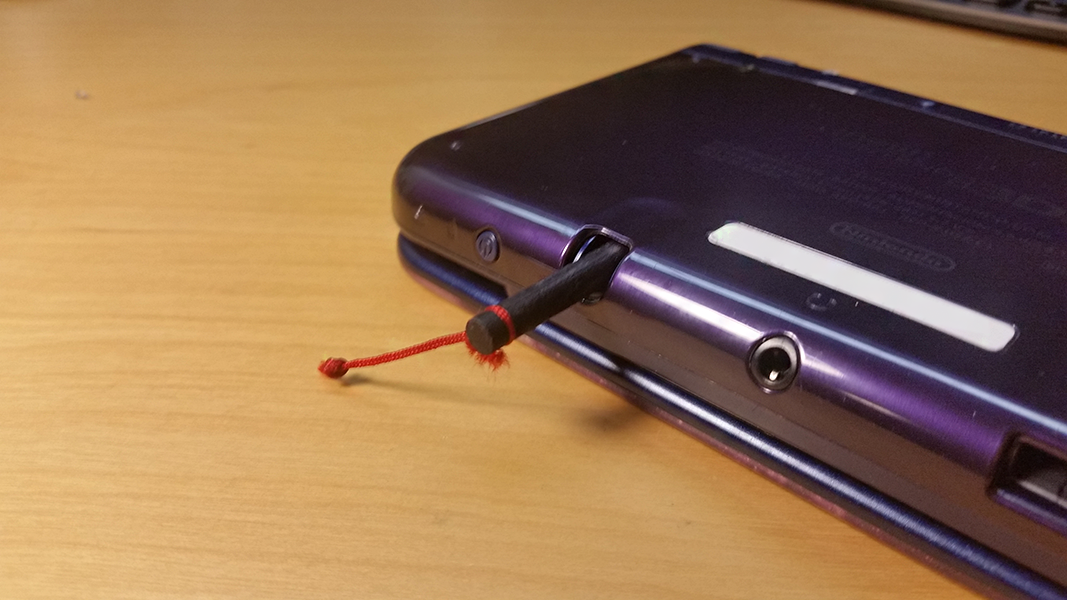

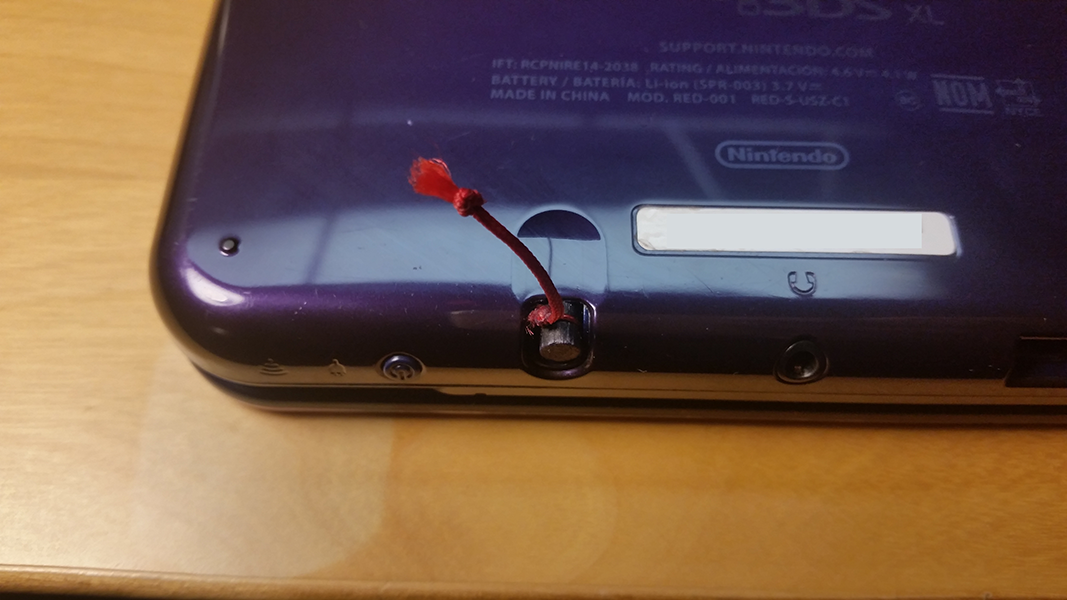

    Here's a shot of it fully inserted with the bottom cover in place.


    And a short video of the pen in action. You'll have to forgive my poor attempt at drawing tempy. I messed up his right eye, which is suppose to have 4 buttons. Recalling how he looks was done all from memory despite having GBAtemp forum right in front me on my TV monitor.


    Last edited by TurdPooCharger, Oct 29, 2019 - Reason: Re-upload missing pictures.
    Deleted-236924 and emuashui like this.
  9. Sliter

    Sliter GBAtemp Psycho!
    Member

    Joined:
    Dec 7, 2013
    Messages:
    3,253
    Country:
    Brazil
    this was actually very nice, well done xD

    TurdPooCharger likes this.
  10. Kyim

    Kyim Newbie
    Newcomer

    Joined:
    Sep 18, 2019
    Messages:
    7
    Country:
    United Kingdom
    This shouldn't be as cool as it is, but it is SO COOL! The wood would be so much more comfortable and less clammy, and the red string is exactly my aesthetic. A+ 10/10!
