Hardware Capacitor Identification for Proper replacement

OhItsSlick

New Member
OP
Newbie
Joined
Sep 17, 2021
Messages
3
Trophies
0
Age
18
XP
4
Country
United States

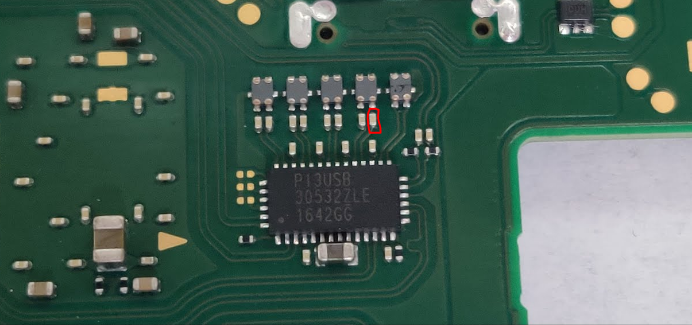

While I was replacing the P13 IC, I accidentally blew off the cap that is circled in red in the picture. How would I go about in finding a proper replacement? I've seen online that a 0201 cap rated at 0.1uF is what I need but I've also seen 0201 at 0.12pF being recommended, i'm totally lost.


Attachments

  • switch caprating.PNG
    switch caprating.PNG
    424.9 KB · Views: 19
Last edited by OhItsSlick,

CMDreamer

Well-Known Member
Member
Joined
Oct 29, 2014
Messages
1,071
Trophies
0
Age
36
XP
1,894
Country
Mexico
Measure the neighbour capacitors, and they will give you a clue, as they are being used for the same purpose between the IC and the EMI filters, they should be of the same value.


OhItsSlick

New Member
OP
Newbie
Joined
Sep 17, 2021
Messages
3
Trophies
0
Age
18
XP
4
Country
United States
Measure the neighbour capacitors, and they will give you a clue, as they are being used for the same purpose between the IC and the EMI filters, they should be of the same value.
Is there a specific mode I should use on my multimeter for this?


CMDreamer

Well-Known Member
Member
Joined
Oct 29, 2014
Messages
1,071
Trophies
0
Age
36
XP
1,894
Country
Mexico
Is there a specific mode I should use on my multimeter for this?

Capacitance measurement.

But you must remove a -working- capacitor from the board to get a correct reading. You can use an ESR meter or a pair of smart tweezers but they are expensive, so lets keep things simple (and cheap).


OhItsSlick

New Member
OP
Newbie
Joined
Sep 17, 2021
Messages
3
Trophies
0
Age
18
XP
4
Country
United States
Capacitance measurement.

But you must remove a -working- capacitor from the board to get a correct reading. You can use an ESR meter or a pair of smart tweezers but they are expensive, so lets keep things simple (and cheap).

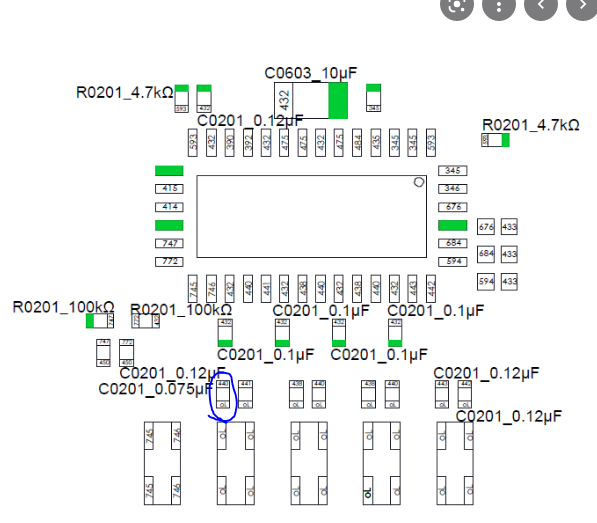

I don't think the multimeter I have (AstroAI AM33D) has a capacitance measurement mode. Take a look at the picture I attached, those these ratings seem accurate?


Attachments

  • switchcap.PNG
    77.7 KB · Views: 16
