[Broken 3DS] 3D button

Discussion in '3DS - Console, Accessories and Hardware' started by Gokudo Zerotsuke, Sep 24, 2015.

  1. Gokudo Zerotsuke
    OP

    Gokudo Zerotsuke Newbie

    Newcomer
    6
    0
    Mar 6, 2012
    France
    Hi, sorry for my bad english i'm french.

    A friend gave me a 3DS where the bottom LCD is broken (easy to repair) but i have problem with 3D button.

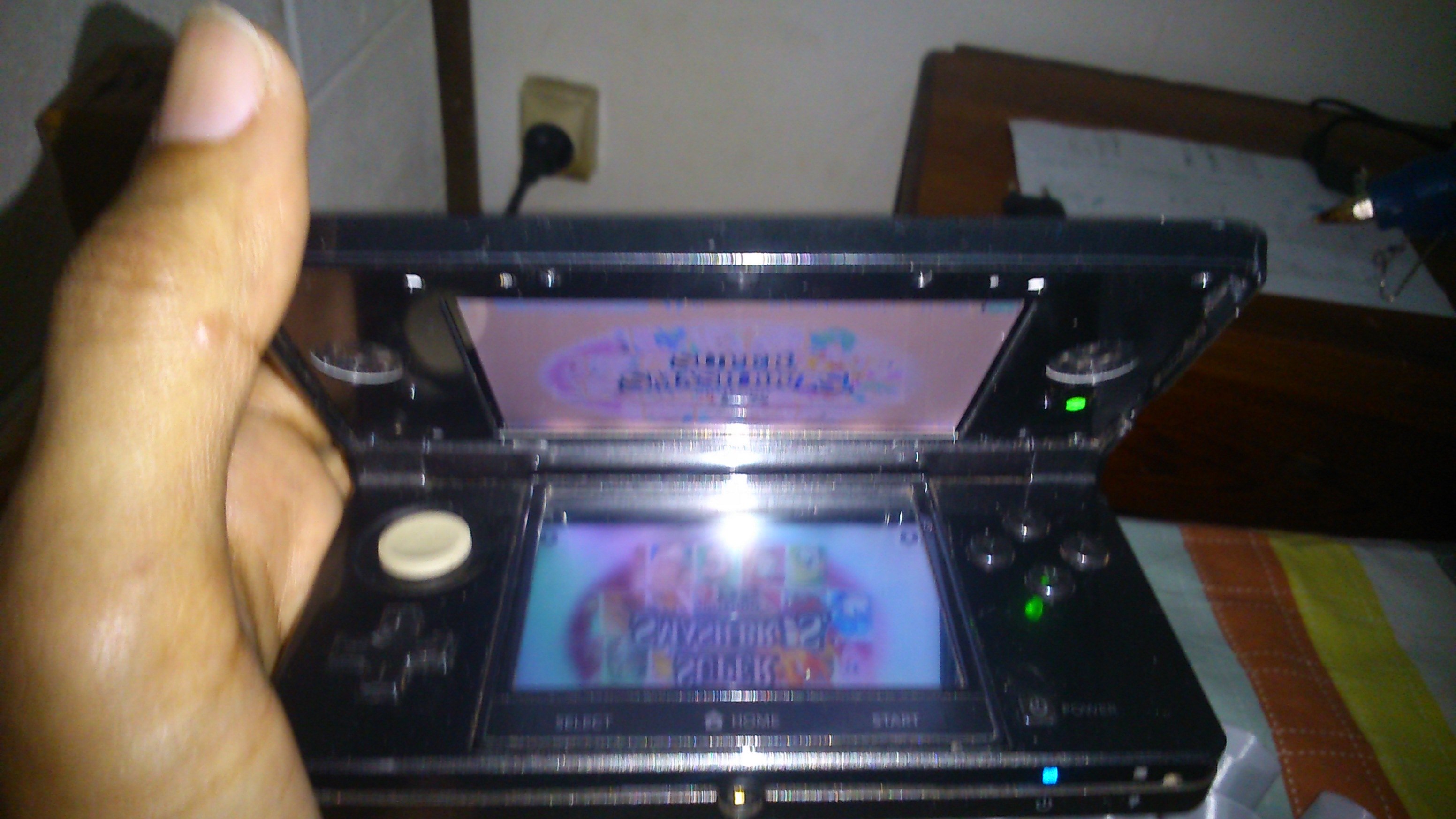

    Doesn't work and when you slide(turn on/off) that turn off the 3DS as when you fully open it, you can only turn on the console normaly half-opened. If i full open it flash and turn off when i try turn on. DSC_0007.JPG

    I read somewhere i must change the 3D ribbon cable but that really not easy, ribbon cable stick on printed circuit how i'm supposed to change 3D ribbon cable ?

    I tried to disconnect some ribbon cable to try work the console without 3D connected but nothing happen, seems it's more harder to fix than just disconnect any ribbon cable.
    Or ! I read that can be the top LCD, but it work very well (better than the bottom one) may it ribbon cable ? but how i'm supposed to change that ? hell, some help pls

    Source : http://www.dealgame.org/technique/J...Nintendo_3DS__3DSXL_[FAQ_DES_PANNES]_329.html

    "Votre console flash à l'allumage et s'éteind.
    >>> Le plus souvent, il peut s'agir d'un souci de Nappe de réglage de la 3D/Volume du Son.
    >>> Il peut s'agir d'un souci d'écran du haut.
    >>> Plus rarement il peut s'agir d'un souci de la nappe de la caméra.

    Astuce:
    Pour déterminer d'ou vient la panne, vous pouvez utiliser cette petite astuce. Entrouvrez la console légérement (sur 1 cm) et regardez si écran du haut s'allume. Si celui-ci s'allume, alors il s'agit très probablement d'un souci de la Nappe de réglage de la 3D/Volume du Son. Si celui-ci ne s'allume toujours pas, alors il vous faudra faire des tests en remplaçant élément par élément."

  2. piratesephiroth

    piratesephiroth I wish I could read

    Member
    3,017
    1,622
    Sep 5, 2013
    Brazil
    If it's a broken flex cable, you'll need to reaplce the top screen and doing that on a O3DS is a lot of work.

    It's cheaperr if you just buy another 3DS.

    kehkou likes this.
  3. kehkou

    kehkou does what Nintendon't

    Member
    696
    259
    Dec 19, 2009
    United States
    The Duke City
    I'd listen to piratesephiroth, its cost me $88 USD to send one to Nintendo, but i think I'll replace it. I couldn't fix mine; it would either turn off after a few minutes or the graphics would glitch out.

  4. SmileCitrus

    SmileCitrus GBAtemp Regular

    Member
    192
    67
    Mar 29, 2009
    United States

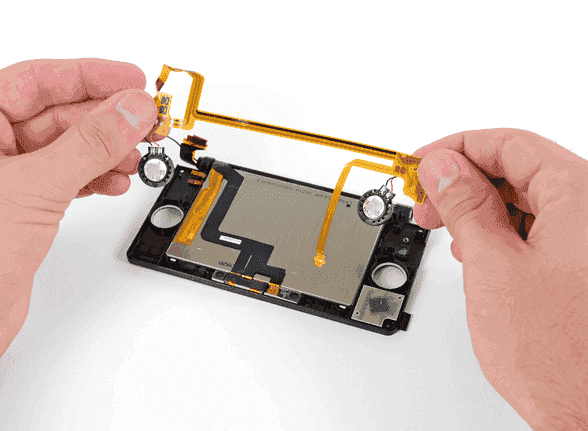

    It's not the top screen. It's the speaker/3D slider cable. A 3DS will run fine even if the upper LCD ribbon cable is torn. It just won't display anything. You could even run the 3DS with the cable for the upper LCD unplugged and it would still work.

    The flashing and turning off problem is due to either backlight being disconnected. The reason it turns off when you open the console all the way is because the cable has a very small tear in it that goes through only one or two conductors. When you open the hinge you stress the cable and the connection, which was tenuous to begin with due to the tear, is fully broken.

    It is indeed a difficult repair. But the parts are dirt cheap, so you don't have much to lose if you want to try it. Just don't use a third-party reproduction cable. Those are trash and will fail quickly.

    Last edited by SmileCitrus, Sep 25, 2015
  5. piratesephiroth

    piratesephiroth I wish I could read

    Member
    3,017
    1,622
    Sep 5, 2013
    Brazil
    Yeah, doing anything on the upper part on the small 3DS is very annoying.
    Even if you do a good job there's a high chance you'll get a dumb speck stuck there after you stick the front panel back in.
    You should try to prepare a dust free environment first.

    SmileCitrus likes this.
  6. Gokudo Zerotsuke
    OP

    Gokudo Zerotsuke Newbie

    Newcomer
    6
    0
    Mar 6, 2012
    France
    Hey, sorry for the late. Thanks for feedback, yeah it's the speaker/3D slider cable.. I already ordered it, it should deliver in this week !
    I already dismount overall the 3DS, i just wait to repair :D. The only thing is really boring is the resolder the Highspeaker because unfortunatelly i saw your post later after my order... Anyways, thanks that helpfull ! i didn't know it selled include solder HS. i got another 3DS to repair, i'll take the link you gave me !
    Thanks thanks thanks ^^
