Hacking Boot0 or boot1 won't mount to pc through hekate

GreenDuck65777

GreenDuck65777

Well-Known Member
Member
Level 3
Joined
Mar 5, 2023
Messages
101
Reaction score
14
Trophies
0
XP
269
Country
Russia
So yeah, I screwed up really big. My prod.keys are corrupted, when I try to mount emmc boot0/boot1 windows says "format it, cuz I don't know what is this you connecting to me", my backup corrupted too, can't go in folders in tegraexplorer in emmc cuz it says "no fat", I can't dump my firmware cuz again "no fat". But I can make SYSTEM folder and bis keys from some random donor prod.keys (from yuzu site) and already dumped 17.0.1 firmware that I downloaded from internet.

And now main questions: What should I do now? Do I need to format emmc itself through windows? Or can I use donor prod.keys and dumped donor fw to make mmc rebuild?

Hope someone can help me...


Small conclusion: In my case (corrupted prodinfo, no nand backup, corrupted prod.keys, no sd backup) it is impossible to restore. So I advise you to sell it for parts or leave it on bookshelf for better times.

Update: Now I have switch lite (coral pink) instead of switch 1 rev. I really hope that a software hack for lite will be released soon. Thanks everyone for everything you do to me for help❤️ I really appreciate it!


Attachments

  • IMG_20240226_015429.jpg
    3.4 MB · Views: 204
  • IMG_20240226_020418.jpg
    3.5 MB · Views: 78
  • IMG_20240226_021141_964.png
    8.2 KB · Views: 87
  • IMG_20240226_021147_341.png
    9.2 KB · Views: 79
Last edited by GreenDuck65777,
  • Sad
Reactions: Blythe93
GreenDuck65777 said:
So yeah, I screwed up really big. My prod.keys are corrupted, when I try to mount emmc boot0/boot1 windows says "format it, cuz I don't know what is this you connecting to me", my backup corrupted too, can't go in folders in tegraexplorer in emmc cuz it says "no fat", I can't dump my firmware cuz again "no fat". But I can make SYSTEM folder and bis keys from some random donor prod.keys (from yuzu site) and already dumped 17.0.1 firmware that I downloaded from internet.

And now main questions: What should I do now? Do I need to format emmc itself through windows? Or can I use donor prod.keys and dumped donor fw to make mmc rebuild?

Hope someone can help me...
Click to expand...
YOU CAN NO USE THE KEYS FROM ANOTHER CONSOLE, PERIOD.

I you formated the NAND the only way to recover IS USING A BACKUP OR A DONNER NAND AND YOUR ORIGINAL KEYS (THERE ARE TWO TUTORIALS HERE TO DO THAT.

Firts at all try to backup your SD Card and then format it using fat32 format (https://gbatemp.net/download/gui-format.33869/) then test your sd card using H2Testw (https://www.heise.de/download/product/h2testw-50539)


copy latetest hekate and atmosphère to the card tested ok and try to run the payloads again.

  • Like
Reactions: Blythe93
impeeza said:
YOU CAN NO USE THE KEYS FROM ANOTHER CONSOLE, PERIOD.

I you formated the NAND the only way to recover IS USING A BACKUP OR A DONNER NAND AND YOUR ORIGINAL KEYS (THERE ARE TWO TUTORIALS HERE TO DO THAT.

Firts at all try to backup your SD Card and then format it using fat32 format (https://gbatemp.net/download/gui-format.33869/) then test your sd card using H2Testw (https://www.heise.de/download/product/h2testw-50539)


copy latetest hekate and atmosphère to the card tested ok and try to run the payloads again.
Click to expand...
Chill, chill. You can just google phrase "prod keys Nintendo switch" and it gives site with prod.keys ONLY FOR EMULATOR YUZU OR OTHER EMULATOR. But if you read closer to main post you'll see that my own prod.keys are corrupted. When I try dump them again it gives me same corrupted prod.keys file.

Do you understand what I am talking about? Also I formatted my card with latest rufus and checked it, so sd is fine.

  • Sad
Reactions: Blythe93
Hayato213 said:
Impezza is right you need your own keys.
Click to expand...
Yeah I know, but did you read main post? I know that he is right. And you can't use not your prod.keys, I already knew it. I just tried to make mmc rebuild with my keys and it's said "can't make nca class" or smth like that (I mean in emmchaccgen)

GreenDuck65777 said:
Yeah I know, but did you read main post? I know that he is right. And you can't use not your prod.keys, I already knew it. I just tried to make mmc rebuild with my keys and it's said "can't make nca class" or smth like that (I mean in emmchaccgen)
Click to expand...

The rebuild won't work, you can rebuild your nand but you need your own keys as they are system unique.

  • Like
Reactions: impeeza
GreenDuck65777 said:
Chill, chill. You can just google phrase "prod keys Nintendo switch" and it gives site with prod.keys ONLY FOR EMULATOR YUZU OR OTHER EMULATOR. But if you read closer to main post you'll see that my own prod.keys are corrupted. When I try dump them again it gives me same corrupted prod.keys file.

Do you understand what I am talking about? Also I formatted my card with latest rufus and checked it, so sd is fine.
Click to expand...
If you don't have a backup of your keys you have a irreparable Brick.

read the tutorial:

https://gbatemp.net/threads/nand-rebuilding-for-no-backup-broken-emmc.593995/

Prod.Keys may be weight normally 1.04*10^-207 grams. and normally have a file size between 7300 and 15000 bytes approximately.
BUT, the only real different key between different consoles are:

bis_key_00
bis_key_01
bis_key_02
bis_key_03
device_key
device_key_4x
keyblob_key_00
keyblob_key_01
keyblob_key_02
keyblob_key_03
keyblob_key_04
keyblob_key_05
keyblob_mac_key_00
keyblob_mac_key_01
keyblob_mac_key_02
keyblob_mac_key_03
keyblob_mac_key_04
keyblob_mac_key_05
save_mac_key
sd_seed
secure_boot_key
tsec_key

If you have a cut down version of the file but you have those keys you can create a full Prod.key file using the values of another one.

  • Like
Reactions: jkyoho
impeeza said:
Prod.Keys may be weight normally 1.04*10^-207 grams. and normally have a file size between 7300 and 15000 bytes approximately.
BUT, the only real different key between different consoles are:

bis_key_00
bis_key_01
bis_key_02
bis_key_03
device_key
device_key_4x
keyblob_key_00
keyblob_key_01
keyblob_key_02
keyblob_key_03
keyblob_key_04
keyblob_key_05
keyblob_mac_key_00
keyblob_mac_key_01
keyblob_mac_key_02
keyblob_mac_key_03
keyblob_mac_key_04
keyblob_mac_key_05
save_mac_key
sd_seed
secure_boot_key
tsec_key

If you have a cut down version of the file but you have those keys you can create a full Prod.key file using the values of another one.
Click to expand...
I can merge my own cutted prod.keys file with any prod.keys file? So I can use keys file that only for emulator? Or am I just stupid?

GreenDuck65777 said:
I can merge my own cutted prod.keys file with any prod.keys file? So I can use keys file that only for emulator? Or am I just stupid?
Click to expand...
As far you have all the listed keys you can complement the file with the other ones from a random file, sharing that file is considered piracy, so by the rules of the forum you can not ask nor share it, but google will find a copy of that file easy.

Jayro said:
It's best to just use the community ones you find in google for the emulator(s).
Click to expand...
In general I already used file for emulator to make files using emmchaccgen. So what should I do next? Continue mmc rebuild instructions? Or I need to find new instructions?

impeeza said:
Prod.Keys may be weight normally 1.04*10^-207 grams. and normally have a file size between 7300 and 15000 bytes approximately.
BUT, the only real different key between different consoles are:

bis_key_00
bis_key_01
bis_key_02
bis_key_03
device_key
device_key_4x
keyblob_key_00
keyblob_key_01
keyblob_key_02
keyblob_key_03
keyblob_key_04
keyblob_key_05
keyblob_mac_key_00
keyblob_mac_key_01
keyblob_mac_key_02
keyblob_mac_key_03
keyblob_mac_key_04
keyblob_mac_key_05
save_mac_key
sd_seed
secure_boot_key
tsec_key

If you have a cut down version of the file but you have those keys you can create a full Prod.key file using the values of another one.
Click to expand...
I haven't got all this keys for some reason. I opened this file through Notepad on pc and I don't see any of this keys.

Edit: Also maybe because of this, Tegraexplorer not shows me dumped keys (show but only with zeros as you can see in attached file on main post)

Last edited by GreenDuck65777,

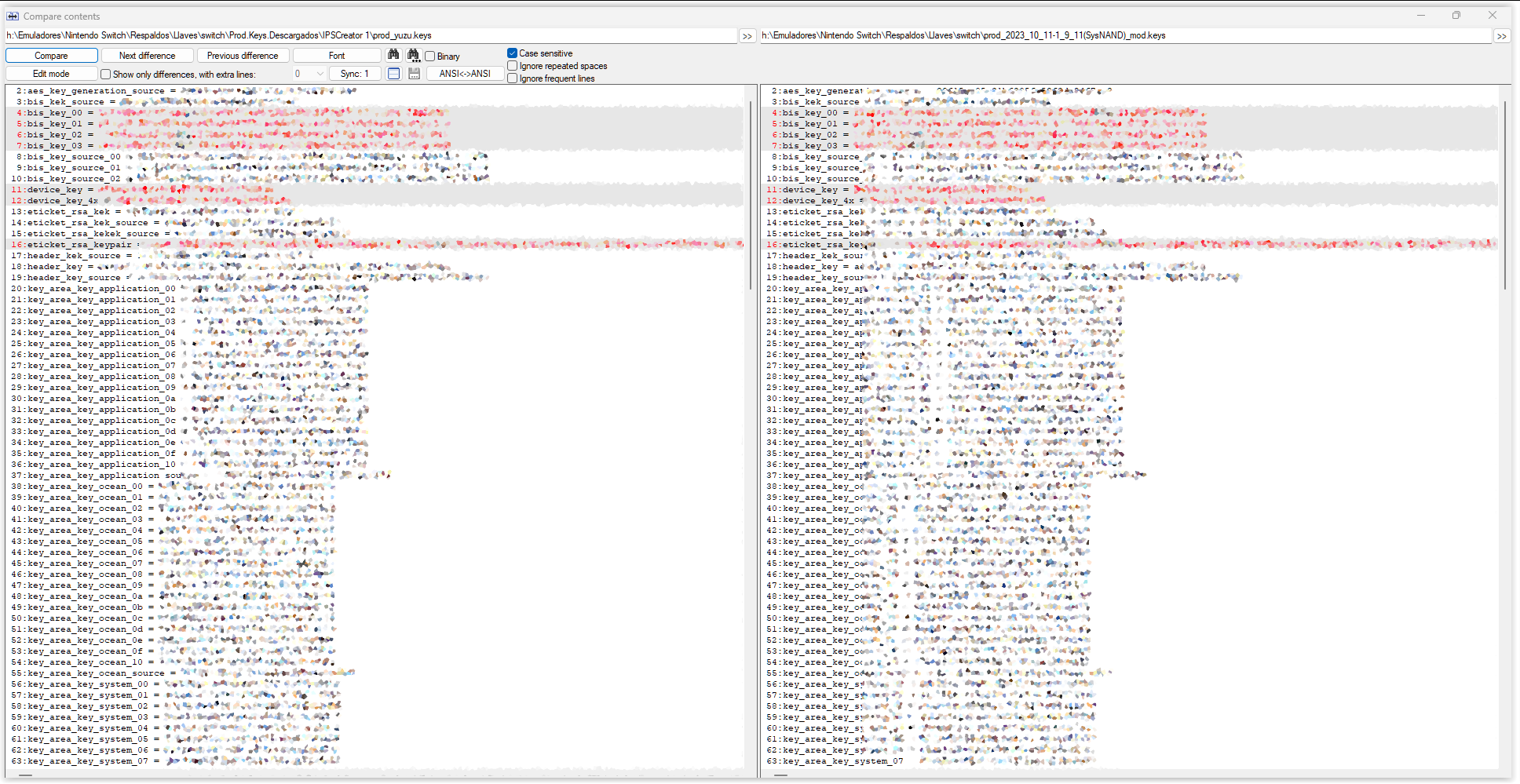

Ok, this is part of a comparision between the Yuzu Prod.keys file you can get using a web search engine and my personal prod.key just dumped from my 17.0.1 (rebootless) console:



as you can see only few keys are different between them.

In my case the keys with different value are:
bis_key_00 =
bis_key_01 =
bis_key_02 =
bis_key_03 =
device_key =
device_key_4x =
eticket_rsa_keypair =
keyblob_key_00 =
keyblob_key_01 =
keyblob_key_02 =
keyblob_key_03 =
keyblob_key_04 =
keyblob_key_05 =
keyblob_mac_key_00 =
keyblob_mac_key_01 =
keyblob_mac_key_02 =
keyblob_mac_key_03 =
keyblob_mac_key_04 =
keyblob_mac_key_05 =
save_mac_key =
sd_seed =
secure_boot_key =
ssl_rsa_key =
tsec_key =

At least you need the above keys in order to create a working file.


In order to do so, you need to create a file with a content like:

Code:
aes_kek_generation_source =  1234567890ABCDEF1234567890ABCDEF
aes_key_generation_source =  1234567890ABCDEF1234567890ABCDEF
bis_kek_source =  1234567890ABCDEF1234567890ABCDEF
bis_key_00 =  1234567890ABCDEF1234567890ABCDEF
bis_key_01 =  1234567890ABCDEF1234567890ABCDEF
bis_key_02 =  1234567890ABCDEF1234567890ABCDEF
bis_key_03 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_00 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_01 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_02 =  1234567890ABCDEF1234567890ABCDEF
device_key =  1234567890ABCDEF1234567890ABCDEF
device_key_4x =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kek =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kek_source =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kekek_source =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_keypair =  1234567890ABCDEF1234567890ABCDEF
header_kek_source =  1234567890ABCDEF1234567890ABCDEF
header_key =  1234567890ABCDEF1234567890ABCDEF
header_key_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_source =  1234567890ABCDEF1234567890ABCDEF
keyblob_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_source =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_05 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_06 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_07 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_08 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_09 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0a =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0b =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0c =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0d =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0e =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0f =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_10 =  1234567890ABCDEF1234567890ABCDEF
master_kek_00 =  1234567890ABCDEF1234567890ABCDEF
master_kek_01 =  1234567890ABCDEF1234567890ABCDEF
master_kek_02 =  1234567890ABCDEF1234567890ABCDEF
master_kek_03 =  1234567890ABCDEF1234567890ABCDEF
master_kek_04 =  1234567890ABCDEF1234567890ABCDEF
master_kek_05 =  1234567890ABCDEF1234567890ABCDEF
master_kek_08 =  1234567890ABCDEF1234567890ABCDEF
master_kek_09 =  1234567890ABCDEF1234567890ABCDEF
master_kek_0a =  1234567890ABCDEF1234567890ABCDEF
master_kek_0b =  1234567890ABCDEF1234567890ABCDEF
master_kek_0c =  1234567890ABCDEF1234567890ABCDEF
master_kek_0d =  1234567890ABCDEF1234567890ABCDEF
master_kek_0e =  1234567890ABCDEF1234567890ABCDEF
master_kek_0f =  1234567890ABCDEF1234567890ABCDEF
master_kek_10 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_06 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_07 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_08 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_09 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0a =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0b =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0c =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0d =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0e =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0f =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_10 =  1234567890ABCDEF1234567890ABCDEF
master_key_00 =  1234567890ABCDEF1234567890ABCDEF
master_key_01 =  1234567890ABCDEF1234567890ABCDEF
master_key_02 =  1234567890ABCDEF1234567890ABCDEF
master_key_03 =  1234567890ABCDEF1234567890ABCDEF
master_key_04 =  1234567890ABCDEF1234567890ABCDEF
master_key_05 =  1234567890ABCDEF1234567890ABCDEF
master_key_06 =  1234567890ABCDEF1234567890ABCDEF
master_key_07 =  1234567890ABCDEF1234567890ABCDEF
master_key_08 =  1234567890ABCDEF1234567890ABCDEF
master_key_09 =  1234567890ABCDEF1234567890ABCDEF
master_key_0a =  1234567890ABCDEF1234567890ABCDEF
master_key_0b =  1234567890ABCDEF1234567890ABCDEF
master_key_0c =  1234567890ABCDEF1234567890ABCDEF
master_key_0d =  1234567890ABCDEF1234567890ABCDEF
master_key_0e =  1234567890ABCDEF1234567890ABCDEF
master_key_0f =  1234567890ABCDEF1234567890ABCDEF
master_key_10 =  1234567890ABCDEF1234567890ABCDEF
master_key_source =  1234567890ABCDEF1234567890ABCDEF
package1_key_00 =  1234567890ABCDEF1234567890ABCDEF
package1_key_01 =  1234567890ABCDEF1234567890ABCDEF
package1_key_02 =  1234567890ABCDEF1234567890ABCDEF
package1_key_03 =  1234567890ABCDEF1234567890ABCDEF
package1_key_04 =  1234567890ABCDEF1234567890ABCDEF
package1_key_05 =  1234567890ABCDEF1234567890ABCDEF
package2_key_00 =  1234567890ABCDEF1234567890ABCDEF
package2_key_01 =  1234567890ABCDEF1234567890ABCDEF
package2_key_02 =  1234567890ABCDEF1234567890ABCDEF
package2_key_03 =  1234567890ABCDEF1234567890ABCDEF
package2_key_04 =  1234567890ABCDEF1234567890ABCDEF
package2_key_05 =  1234567890ABCDEF1234567890ABCDEF
package2_key_06 =  1234567890ABCDEF1234567890ABCDEF
package2_key_07 =  1234567890ABCDEF1234567890ABCDEF
package2_key_08 =  1234567890ABCDEF1234567890ABCDEF
package2_key_09 =  1234567890ABCDEF1234567890ABCDEF
package2_key_0a =  1234567890ABCDEF1234567890ABCDEF
package2_key_0b =  1234567890ABCDEF1234567890ABCDEF
package2_key_0c =  1234567890ABCDEF1234567890ABCDEF
package2_key_0d =  1234567890ABCDEF1234567890ABCDEF
package2_key_0e =  1234567890ABCDEF1234567890ABCDEF
package2_key_0f =  1234567890ABCDEF1234567890ABCDEF
package2_key_10 =  1234567890ABCDEF1234567890ABCDEF
package2_key_source =  1234567890ABCDEF1234567890ABCDEF
per_console_key_source =  1234567890ABCDEF1234567890ABCDEF
retail_specific_aes_key_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_kek_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_key =  1234567890ABCDEF1234567890ABCDEF
save_mac_key_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_sd_card_kek_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_sd_card_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_custom_storage_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_kek_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_nca_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_save_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_seed =  1234567890ABCDEF1234567890ABCDEF
secure_boot_key =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kek =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kek_source =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kekek_source =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_key =  1234567890ABCDEF1234567890ABCDEF
titlekek_00 =  1234567890ABCDEF1234567890ABCDEF
titlekek_01 =  1234567890ABCDEF1234567890ABCDEF
titlekek_02 =  1234567890ABCDEF1234567890ABCDEF
titlekek_03 =  1234567890ABCDEF1234567890ABCDEF
titlekek_04 =  1234567890ABCDEF1234567890ABCDEF
titlekek_05 =  1234567890ABCDEF1234567890ABCDEF
titlekek_06 =  1234567890ABCDEF1234567890ABCDEF
titlekek_07 =  1234567890ABCDEF1234567890ABCDEF
titlekek_08 =  1234567890ABCDEF1234567890ABCDEF
titlekek_09 =  1234567890ABCDEF1234567890ABCDEF
titlekek_0a =  1234567890ABCDEF1234567890ABCDEF
titlekek_0b =  1234567890ABCDEF1234567890ABCDEF
titlekek_0c =  1234567890ABCDEF1234567890ABCDEF
titlekek_0d =  1234567890ABCDEF1234567890ABCDEF
titlekek_0e =  1234567890ABCDEF1234567890ABCDEF
titlekek_0f =  1234567890ABCDEF1234567890ABCDEF
titlekek_10 =  1234567890ABCDEF1234567890ABCDEF
titlekek_source =  1234567890ABCDEF1234567890ABCDEF
tsec_key =  1234567890ABCDEF1234567890ABCDEF
tsec_root_key_02 =  1234567890ABCDEF1234567890ABCDEF

  • Like
Reactions: BigOnYa
impeeza said:
Ok, this is part of a comparision between the Yuzu Prod.keys file you can get using a web search engine and my personal prod.key just dumped from my 17.0.1 (rebootless) console:

View attachment 422338

as you can see only few keys are different between them.

In my case the keys with different value are:
bis_key_00 =
bis_key_01 =
bis_key_02 =
bis_key_03 =
device_key =
device_key_4x =
eticket_rsa_keypair =
keyblob_key_00 =
keyblob_key_01 =
keyblob_key_02 =
keyblob_key_03 =
keyblob_key_04 =
keyblob_key_05 =
keyblob_mac_key_00 =
keyblob_mac_key_01 =
keyblob_mac_key_02 =
keyblob_mac_key_03 =
keyblob_mac_key_04 =
keyblob_mac_key_05 =
save_mac_key =
sd_seed =
secure_boot_key =
ssl_rsa_key =
tsec_key =

At least you need the above keys in order to create a working file.


In order to do so, you need to create a file with a content like:

Code:
aes_kek_generation_source =  1234567890ABCDEF1234567890ABCDEF
aes_key_generation_source =  1234567890ABCDEF1234567890ABCDEF
bis_kek_source =  1234567890ABCDEF1234567890ABCDEF
bis_key_00 =  1234567890ABCDEF1234567890ABCDEF
bis_key_01 =  1234567890ABCDEF1234567890ABCDEF
bis_key_02 =  1234567890ABCDEF1234567890ABCDEF
bis_key_03 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_00 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_01 =  1234567890ABCDEF1234567890ABCDEF
bis_key_source_02 =  1234567890ABCDEF1234567890ABCDEF
device_key =  1234567890ABCDEF1234567890ABCDEF
device_key_4x =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kek =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kek_source =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_kekek_source =  1234567890ABCDEF1234567890ABCDEF
eticket_rsa_keypair =  1234567890ABCDEF1234567890ABCDEF
header_kek_source =  1234567890ABCDEF1234567890ABCDEF
header_key =  1234567890ABCDEF1234567890ABCDEF
header_key_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_application_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_ocean_source =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_00 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_01 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_02 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_03 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_04 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_05 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_06 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_07 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_08 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_09 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0a =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0b =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0c =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0d =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0e =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_0f =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_10 =  1234567890ABCDEF1234567890ABCDEF
key_area_key_system_source =  1234567890ABCDEF1234567890ABCDEF
keyblob_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_key_source_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_00 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_01 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_02 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_03 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_04 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_05 =  1234567890ABCDEF1234567890ABCDEF
keyblob_mac_key_source =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_05 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_06 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_07 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_08 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_09 =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0a =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0b =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0c =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0d =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0e =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_0f =  1234567890ABCDEF1234567890ABCDEF
mariko_master_kek_source_10 =  1234567890ABCDEF1234567890ABCDEF
master_kek_00 =  1234567890ABCDEF1234567890ABCDEF
master_kek_01 =  1234567890ABCDEF1234567890ABCDEF
master_kek_02 =  1234567890ABCDEF1234567890ABCDEF
master_kek_03 =  1234567890ABCDEF1234567890ABCDEF
master_kek_04 =  1234567890ABCDEF1234567890ABCDEF
master_kek_05 =  1234567890ABCDEF1234567890ABCDEF
master_kek_08 =  1234567890ABCDEF1234567890ABCDEF
master_kek_09 =  1234567890ABCDEF1234567890ABCDEF
master_kek_0a =  1234567890ABCDEF1234567890ABCDEF
master_kek_0b =  1234567890ABCDEF1234567890ABCDEF
master_kek_0c =  1234567890ABCDEF1234567890ABCDEF
master_kek_0d =  1234567890ABCDEF1234567890ABCDEF
master_kek_0e =  1234567890ABCDEF1234567890ABCDEF
master_kek_0f =  1234567890ABCDEF1234567890ABCDEF
master_kek_10 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_06 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_07 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_08 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_09 =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0a =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0b =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0c =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0d =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0e =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_0f =  1234567890ABCDEF1234567890ABCDEF
master_kek_source_10 =  1234567890ABCDEF1234567890ABCDEF
master_key_00 =  1234567890ABCDEF1234567890ABCDEF
master_key_01 =  1234567890ABCDEF1234567890ABCDEF
master_key_02 =  1234567890ABCDEF1234567890ABCDEF
master_key_03 =  1234567890ABCDEF1234567890ABCDEF
master_key_04 =  1234567890ABCDEF1234567890ABCDEF
master_key_05 =  1234567890ABCDEF1234567890ABCDEF
master_key_06 =  1234567890ABCDEF1234567890ABCDEF
master_key_07 =  1234567890ABCDEF1234567890ABCDEF
master_key_08 =  1234567890ABCDEF1234567890ABCDEF
master_key_09 =  1234567890ABCDEF1234567890ABCDEF
master_key_0a =  1234567890ABCDEF1234567890ABCDEF
master_key_0b =  1234567890ABCDEF1234567890ABCDEF
master_key_0c =  1234567890ABCDEF1234567890ABCDEF
master_key_0d =  1234567890ABCDEF1234567890ABCDEF
master_key_0e =  1234567890ABCDEF1234567890ABCDEF
master_key_0f =  1234567890ABCDEF1234567890ABCDEF
master_key_10 =  1234567890ABCDEF1234567890ABCDEF
master_key_source =  1234567890ABCDEF1234567890ABCDEF
package1_key_00 =  1234567890ABCDEF1234567890ABCDEF
package1_key_01 =  1234567890ABCDEF1234567890ABCDEF
package1_key_02 =  1234567890ABCDEF1234567890ABCDEF
package1_key_03 =  1234567890ABCDEF1234567890ABCDEF
package1_key_04 =  1234567890ABCDEF1234567890ABCDEF
package1_key_05 =  1234567890ABCDEF1234567890ABCDEF
package2_key_00 =  1234567890ABCDEF1234567890ABCDEF
package2_key_01 =  1234567890ABCDEF1234567890ABCDEF
package2_key_02 =  1234567890ABCDEF1234567890ABCDEF
package2_key_03 =  1234567890ABCDEF1234567890ABCDEF
package2_key_04 =  1234567890ABCDEF1234567890ABCDEF
package2_key_05 =  1234567890ABCDEF1234567890ABCDEF
package2_key_06 =  1234567890ABCDEF1234567890ABCDEF
package2_key_07 =  1234567890ABCDEF1234567890ABCDEF
package2_key_08 =  1234567890ABCDEF1234567890ABCDEF
package2_key_09 =  1234567890ABCDEF1234567890ABCDEF
package2_key_0a =  1234567890ABCDEF1234567890ABCDEF
package2_key_0b =  1234567890ABCDEF1234567890ABCDEF
package2_key_0c =  1234567890ABCDEF1234567890ABCDEF
package2_key_0d =  1234567890ABCDEF1234567890ABCDEF
package2_key_0e =  1234567890ABCDEF1234567890ABCDEF
package2_key_0f =  1234567890ABCDEF1234567890ABCDEF
package2_key_10 =  1234567890ABCDEF1234567890ABCDEF
package2_key_source =  1234567890ABCDEF1234567890ABCDEF
per_console_key_source =  1234567890ABCDEF1234567890ABCDEF
retail_specific_aes_key_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_kek_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_key =  1234567890ABCDEF1234567890ABCDEF
save_mac_key_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_sd_card_kek_source =  1234567890ABCDEF1234567890ABCDEF
save_mac_sd_card_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_custom_storage_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_kek_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_nca_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_card_save_key_source =  1234567890ABCDEF1234567890ABCDEF
sd_seed =  1234567890ABCDEF1234567890ABCDEF
secure_boot_key =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kek =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kek_source =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_kekek_source =  1234567890ABCDEF1234567890ABCDEF
ssl_rsa_key =  1234567890ABCDEF1234567890ABCDEF
titlekek_00 =  1234567890ABCDEF1234567890ABCDEF
titlekek_01 =  1234567890ABCDEF1234567890ABCDEF
titlekek_02 =  1234567890ABCDEF1234567890ABCDEF
titlekek_03 =  1234567890ABCDEF1234567890ABCDEF
titlekek_04 =  1234567890ABCDEF1234567890ABCDEF
titlekek_05 =  1234567890ABCDEF1234567890ABCDEF
titlekek_06 =  1234567890ABCDEF1234567890ABCDEF
titlekek_07 =  1234567890ABCDEF1234567890ABCDEF
titlekek_08 =  1234567890ABCDEF1234567890ABCDEF
titlekek_09 =  1234567890ABCDEF1234567890ABCDEF
titlekek_0a =  1234567890ABCDEF1234567890ABCDEF
titlekek_0b =  1234567890ABCDEF1234567890ABCDEF
titlekek_0c =  1234567890ABCDEF1234567890ABCDEF
titlekek_0d =  1234567890ABCDEF1234567890ABCDEF
titlekek_0e =  1234567890ABCDEF1234567890ABCDEF
titlekek_0f =  1234567890ABCDEF1234567890ABCDEF
titlekek_10 =  1234567890ABCDEF1234567890ABCDEF
titlekek_source =  1234567890ABCDEF1234567890ABCDEF
tsec_key =  1234567890ABCDEF1234567890ABCDEF
tsec_root_key_02 =  1234567890ABCDEF1234567890ABCDEF
Click to expand...
But what can I do if my own prod.keys don't have keys that are different for all consoles?

GreenDuck65777 said:
But what can I do if my own prod.keys don't have keys that are different for all consoles?
Click to expand...
Then you don't have your unique console keys and you have a big trouble, as adviced by @Jayro take a new SD Card, format it FAT32, inject a recently downloaded Picklock_RCM_1_9_11 from https://gbatemp.net/threads/lockpick_rcm-payload-official-thread.532916/post-10266016 and try to get your keys again.

also prepare your SD Card with LATEST Atmosphère and Hekate files and try to get into NYX (Vol- pressed while injecting payload)

impeeza said:
Then you don't have your unique console keys and you have a big trouble, as adviced by @Jayro take a new SD Card, format it FAT32, inject a recently downloaded Picklock_RCM_1_9_11 from https://gbatemp.net/threads/lockpick_rcm-payload-official-thread.532916/post-10266016 and try to get your keys again.

also prepare your SD Card with LATEST Atmosphère and Hekate files and try to get into NYX (Vol- pressed while injecting payload)
Click to expand...
Ok, I'll try when I get home. But what if the keys will be the same corrupted?


Site & Scene News

Go to forum More news

Popular threads in this forum

GTA V port?

Emulation  Vita3K - PlayStation Vita

Homebrew game Project  [Release] The Minish Cap – Alek's Ultimate NX Edition | Dual Screen, FLIP GRIP SUPPORT, Touch, RetroAchievements

Homebrew Homebrew game  PES 2021 - Switch Port

Homebrew  sys-HDR: HDR tonemapping sysmodule for Switch, works in all games/apps!

Homebrew Homebrew app  [Release] Switify – Native Spotify app and background playback overlay for Nintendo Switch

Diddy Kong Racing (Golden Balloon) - Switch Port

Homebrew Homebrew game Project  The Legend of Zelda: A Link to the Past - ALEK'S Ultimate NX
