Atari xl mylar replacement!

[Deleted member 668561]

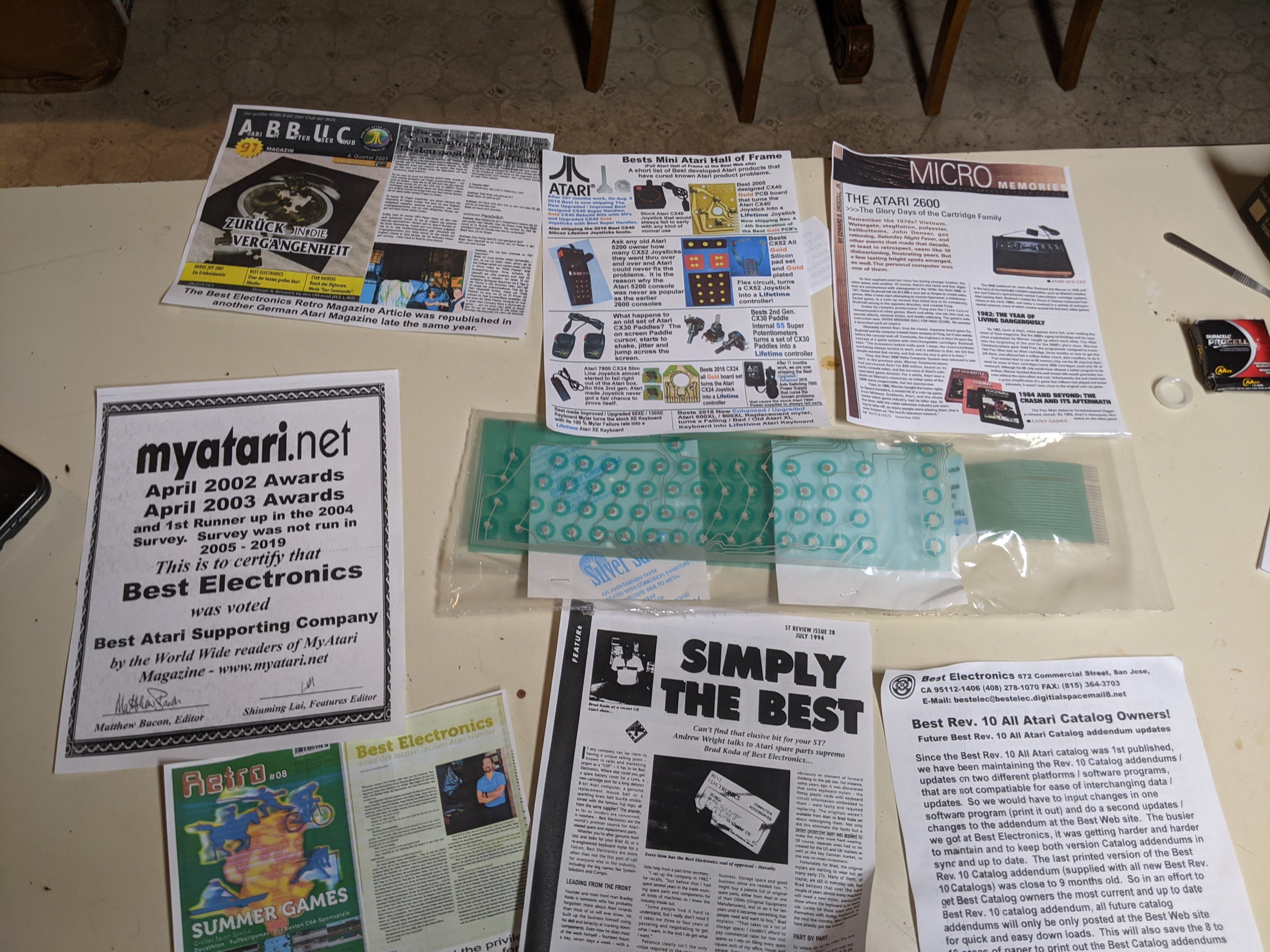

http://www.best-electronics-ca.com/

Took about 3 days to ship:

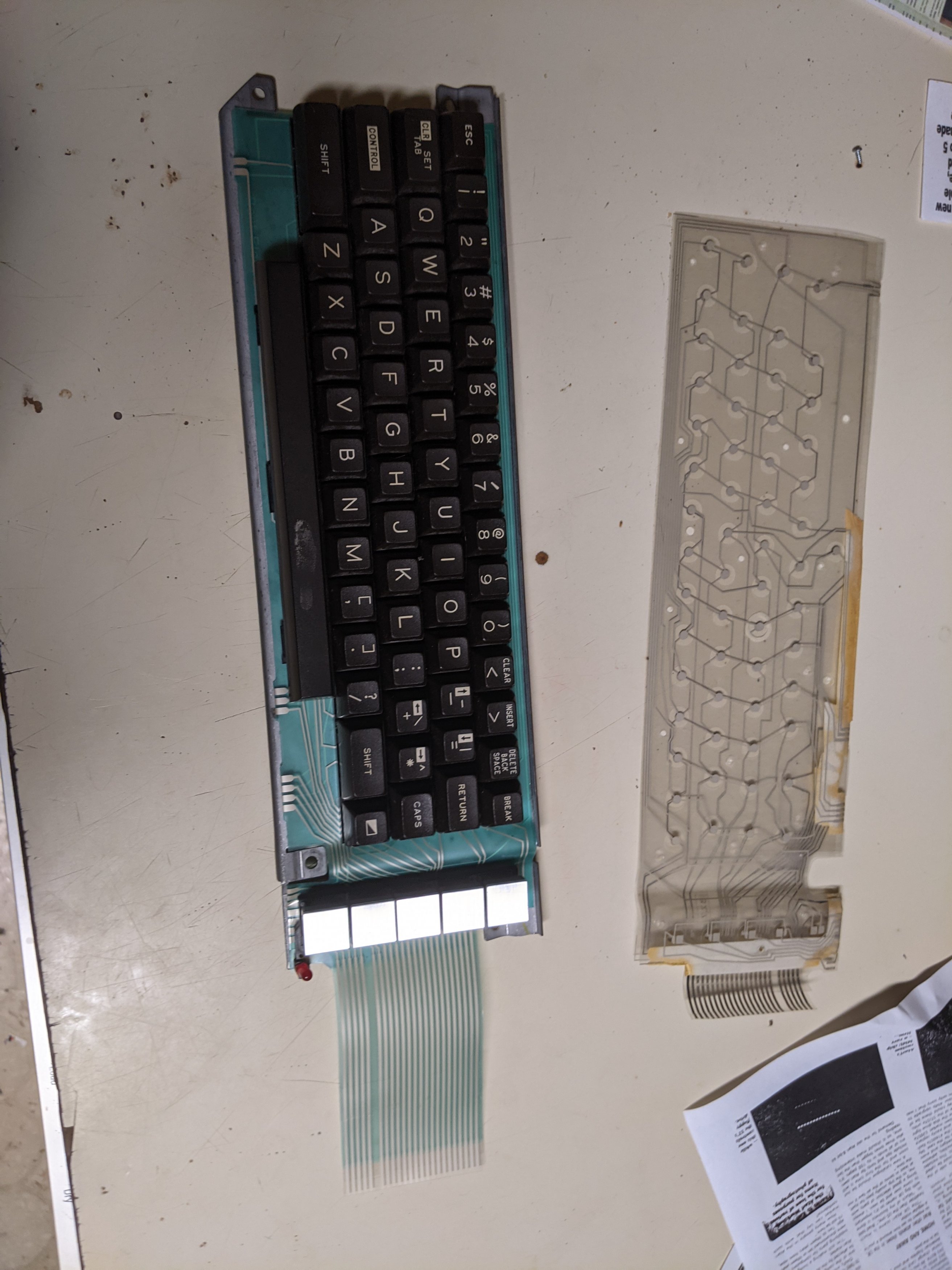

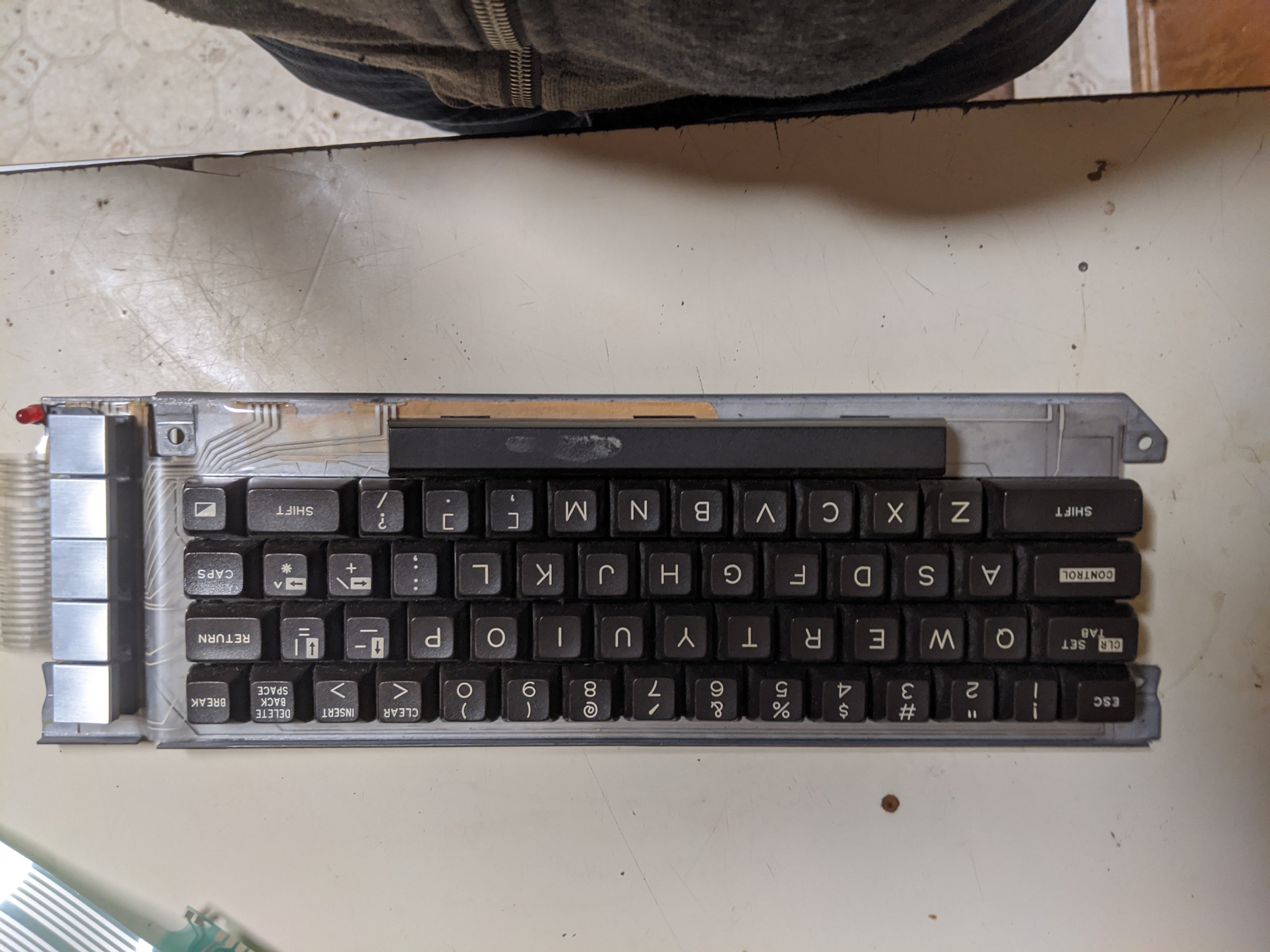

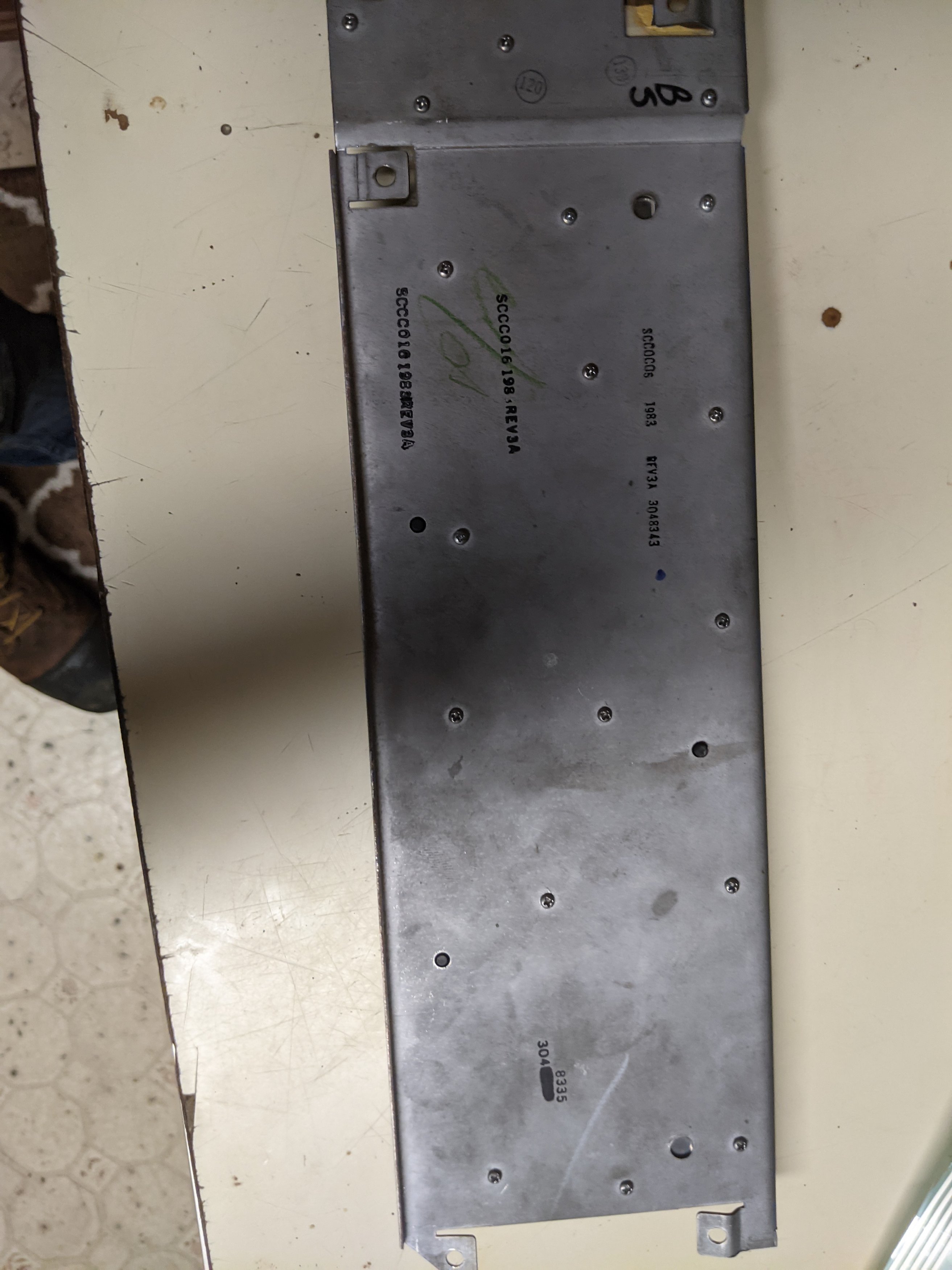

Replacement is simple remove keyboard, and remove backplate, DO NOT FLIP KEY ASSEMBLIES AFTER REMOVING PLATE, ALL KEYS HAVE SPRINGS THAT MAKE CONTACT WITH MYLAR, THEY WILL FALL OUT IF DO NOT KEEP THE KEYBOARD FACING DOWN!!

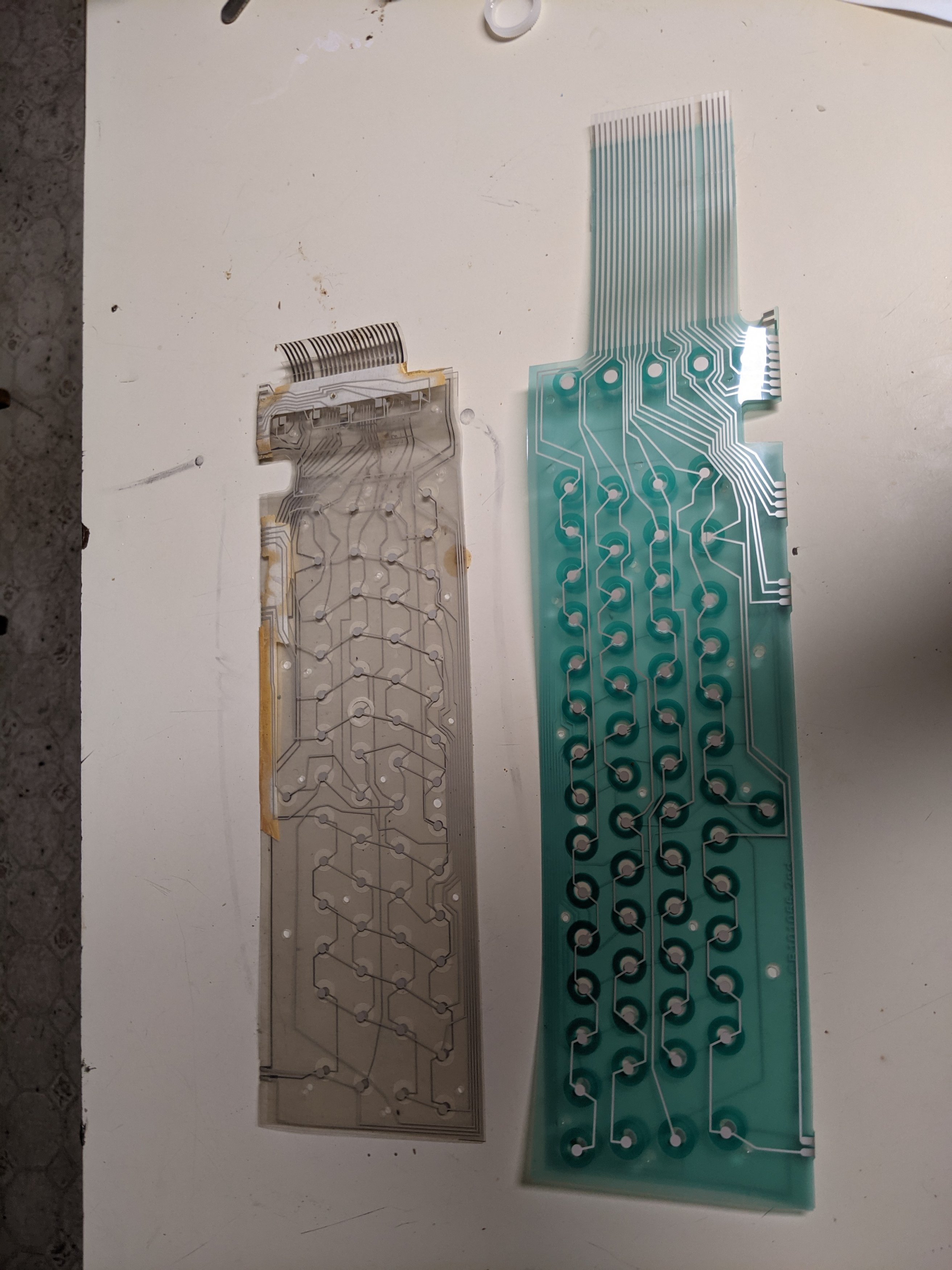

Swap mylar, and reassemble and done!



[Alexander1970]

http://www.best-electronics-ca.com/

Took about 3 days to ship:

Replacement is simple remove keyboard, and remove backplate, DO NOT FLIP KEY ASSEMBLIES AFTER REMOVING PLATE, ALL KEYS HAVE SPRINGS THAT MAKE CONTACT WITH MYLAR, THEY WILL FALL OUT IF DO NOT KEEP THE KEYBOARD FACING DOWN!!

Swap mylar, and reassemble and done!


View attachment 241034 View attachment 241035 View attachment 241036 View attachment 241037 View attachment 241038 View attachment 241039 View attachment 241040

Great work,my Friend.
Nice to see we have now 2 People working an Atari XL Computer.

Thank you for Sharing.



[Deleted member 668561]

View attachment 241062 View attachment 241063

Great work,my Friend.
Nice to see we have now 2 People working an Atari XL Computer.View attachment 241064 View attachment 241064

Thank you for Sharing.

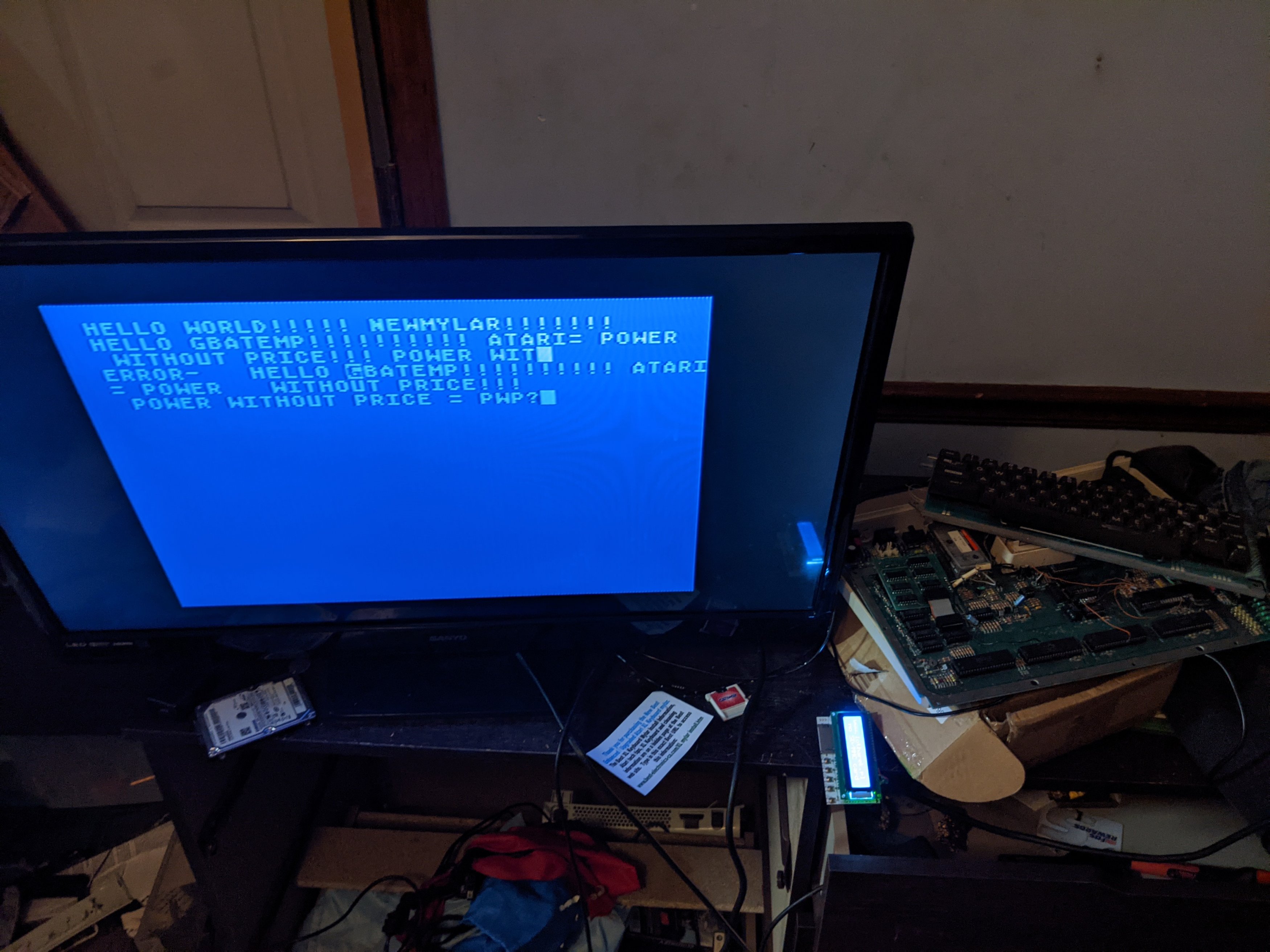

Well it was working, it just needed a new mylar, as you see by the length of the connector, it doesn't matter how much you retrim, plus via dos and sio2sd i can load games and programs using a joystick

Plays good music too(btw video is in stereo too):
