3DS Xl Bugered Hinge

Discussion in '3DS - Flashcards & Custom Firmwares' started by mijuu, Jul 13, 2016.

  1. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010

    Attached Files:

  2. Boogieboo6

    Boogieboo6 @realDonaldTrump

    Member
    945
    1,278
    Jul 30, 2015
    United States
    The pictures for that item show that it has the hinge parts on it. I don't see why it wouldn't work for you.

  3. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010
    Thats whats im thinking but i dont want to spend the fiver and then realise I need to get the entire thing.

    That sort of shit happens all the time...

  4. suparnemo

    suparnemo GBAtemp Regular

    Member
    151
    20
    Jul 10, 2016
    United States
    You can do JUST the hinges, but it's a pain in the ass.

    https://www.ifixit.com/Guide/Nintendo+3DS+Cameras+Replacement/6175

    If you look at this guide, they do remove the hinges during the repair process, so you could follow up to that step to see if you think you could do it, or if you want to just get the whole top case bit.

  5. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010
    Id rather just replace the entire middle part that includes the hinges.

    That looks like a right ball ache.
    have a funny feeling though that

    http://www.ebay.co.uk/itm/3DS-XL-Re...772647?hash=item3abe4c4527:g:xKcAAOSwDuJW0A33

    only includes the plastic shell surround and not the hinges...

  6. suparnemo

    suparnemo GBAtemp Regular

    Member
    151
    20
    Jul 10, 2016
    United States
    To be completely honest, it might be hard to find an assembled top half. It's a bit annoying to find the entire part already assembled. I'll look for some links.

    edit: Just saw your edit, yes that does not include hinges.

  7. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010
  8. suparnemo

    suparnemo GBAtemp Regular

    Member
    151
    20
    Jul 10, 2016
    United States
    I don't see those parts having the hinges either. These bare shells require you to transplant EVERYTHING. so you'd have to rip out every component and probably move the hinges over when you swap the screens

    edit: does your hinge work? As in can you open the top half and let it swing around outside of the broken bottom half? It looks like to me your actual hinge is NOT broken. I hand't looked at the picture. so the only thing you need is the bottom half

    Last edited by suparnemo, Jul 13, 2016
  9. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010

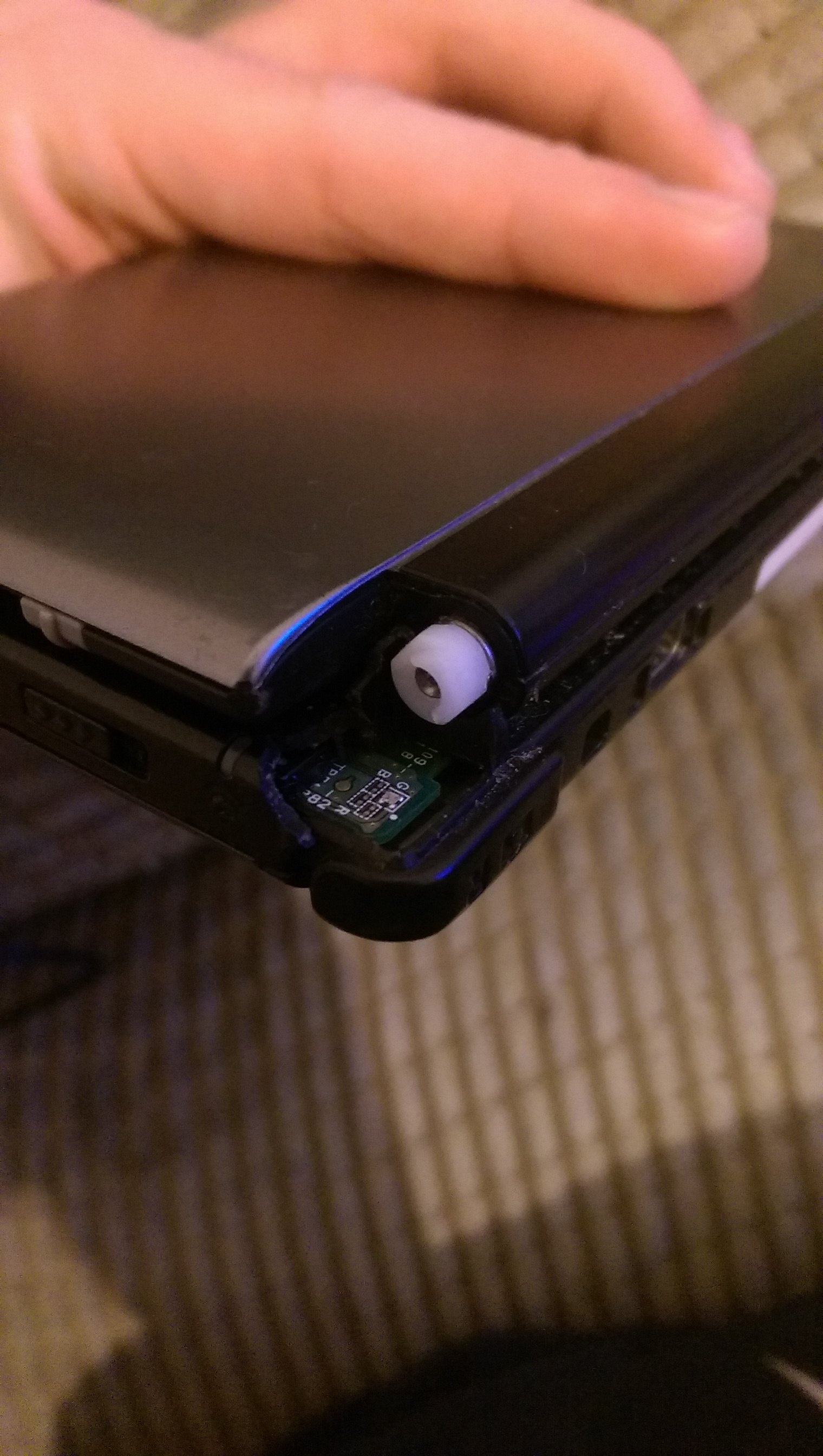

    http://gbatemp.net/attachments/imag0809-jpg.56059/

    My hinge seems intact?

  10. suparnemo

    suparnemo GBAtemp Regular

    Member
    151
    20
    Jul 10, 2016
    United States
    Right! I just saw that. Since your hinge is good, I'd bet you can just swap the bottom housing so that WOULD work for you. For some reason I was thinking that you had an actual broken hinge. That bottom part will work for you since that's the only bit thats busted.

  11. mijuu
    OP

    mijuu GBAtemp Fan

    Member
    372
    19
    Jan 9, 2010
    So I should be able to get away with just replacing this

    http://www.ebay.co.uk/itm/3DS-XL-Re...772647?hash=item3abe4c4527:g:xKcAAOSwDuJW0A33

    Does the entire thing still have to come completely apart to replace it, pretty sure it does...

  12. suparnemo

    suparnemo GBAtemp Regular

    Member
    151
    20
    Jul 10, 2016
    United States

    Yes it does.

    http://www.ign.com/wikis/nintendo-3ds/3DS_XL_Shell_Swapping
    That's a link to a decent-ish guide. A video would probably be better.

    By the way, if you wanted ifixit also has the entire part as an option for much more money, but you have to swap everything still. https://www.ifixit.com/Store/Parts/Nintendo-3DS-XL-Mid-Frame-and-Digitizer-Assembly/IF258-000-1
