Need Help with my WiiU
- Thread starter xesdemitri
- Start date
- Views 3,367
- Replies 43
last time used was in 2019 not sure when, but if it has any software installed I am pretty sure it could be 5.5.4 or less
Post automatically merged:
Yes I am sure because my TV at that time changed to the input automatically, and I did not want to disturb anyone
Post automatically merged:
I think then I need to take it to some repair shop I don't have the tools to solder it
Last edited by xesdemitri,
Hello Again I tried UDPIH but my consolei still shows nothing, I also tried the alternate version of the "recovery menu" that works with WiiU that does not show image on the screen in my case only shows an image that resemble "static" is there any chance that I am making some mistake? or it is probably that I have to do de-fuse?
You were right, now which option do you recommend, "DEFUSE" or "NAND-AID? Like I said earlier, already got the raspberry pico.
Post automatically merged:
There is a 4:3 white screen with a lot of random pixels on it, the LED turns purple, I tried to do the dump following the menu on several sites to guide me, but it did not work, I will take a phone of the screen later today I missed it last time I tied to do it, I don't know if that matters but the SD Card was an SDHC
The last time I used was around the end 2018 or may be at the beginning of 2019. Around April or may that year I put it in its box, but I did not play it again (lack of time), it should have installed automatically the latest version at that time.
Last edited by xesdemitri,
That means that UDPIH is working. If you use the recovery linked in any of the tutorials, it should also have a patch which prevents crashing.
I would recommend you first try to install ISFShax.
Alright i will try later today, and send you also the picture of the pixel screen in case needed
I am in the ISFShax menu I already Dump SEEPROM & OTP, Dump SLC.RAW and Dump Sys crash logs
Post automatically merged:
Choosing display crash log it shows me this message: wiiu iospanic(): illegal instruction:tid=32,pid=0,pc=0x27f0023c,sp=0x
I installed ISFSHax, and backed up the SLC file, I believe I should install Tiramisu now
Post automatically merged:

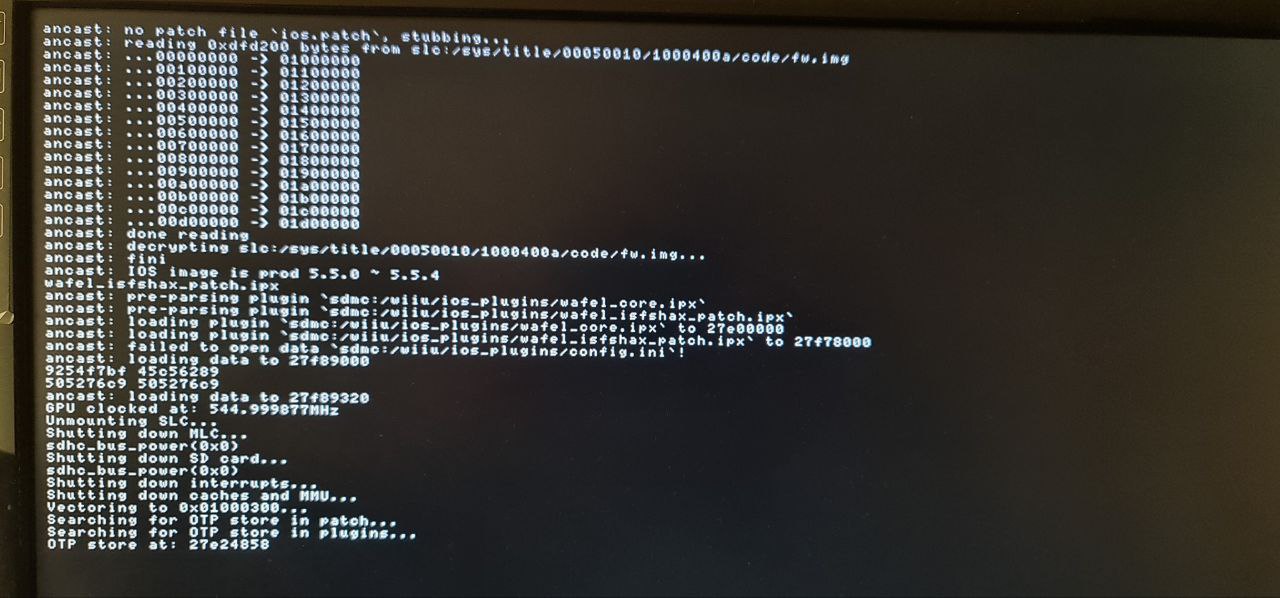

I believe i am doing something wrong, the console stops at the point in the image after I select Patch (sd) and boot IOS (slc) @SDIO a little help?
Post automatically merged:
is it normal that the MLC and SD Card shuts down?
Attachments
Last edited by xesdemitri,
Can you show the crash log? And also try downloading and copying the ios_plugins again to the SD, maybe one of them got corrupted.
Also you don't have the lastest OSv10 installed. You can also use JNUS to download the latest OSv10 title 000500101000400A and take the fw.img from that, rename it to ios_orig.img, put it on the SD and chose the minute entry to boot that. Maybe a patch doesn't line up with the old IOSU and causes the illegal instruction crash.
Also make sure all the wireless modules are connected.
Also check if it writes new logs, to make sure we are not just seeing an old unrelated log.
Post automatically merged:
Also you don't have the lastest OSv10 installed. You can also use JNUS to download the latest OSv10 title 000500101000400A and take the fw.img from that, rename it to ios_orig.img, put it on the SD and chose the minute entry to boot that. Maybe a patch doesn't line up with the old IOSU and causes the illegal instruction crash.
Also make sure all the wireless modules are connected.
Also check if it writes new logs, to make sure we are not just seeing an old unrelated log.
I tried to download all the plugins again same thing, here are the logs, meanwhile I will try to download the latest iosu version
I am not using the same hotspot, I have not the one used before
How do I know that?
I mean the 3 wireless modules of the Wii U, attached to the Mainboard (BT, 2.4GHz Wifi, 5GHz DRC)
If I look at the latest log (41.log) I see that it is crashing because of corruption on the mlc:
Code:
00:00:05:468: FSA: ### DATA CORRUPTION ERROR ###, dev:mlc01, err:-1245211, cmd:25, path:/sys/title/0005001b/10050000/code/app.xml
00:00:05:559: FSA: ### DATA CORRUPTION ERROR ###, dev:mlc01, err:-1245211, cmd:25, path:/sys/title/0005001b/10058000/code/app.xmlTry to boot again, then dump logs again and see if it wrote a new one
I have not opened it yet
attached the new ones
I imagine that I can delete it from back up and restore, at this point it does not matter about the games and files on it, if I am able to make it work again that's fine even if I add a CFW which I believe would be the option
I have not tested this yet, I wan to confirm with you if this is the right OS because my console is US
Post automatically merged:
-UPDATE- I tried to patch sd and boot ios_orig.img same thing, so I will try doing redNAND, thing is I do not have an extreme SD however I will give it a shot
Last edited by xesdemitri,
One question can I try this first and then change the destination to an ssd? Or a more robust sd ie an extreme one? Also currently I am only testing with a 64 gb sd so if it works I will update to have an ssd, don't know if it worth it yet...
Last edited by xesdemitri,
SanDisk Max Endurance cards should last longer than your SLC, so live longer than your Wii U, and aren't that expensive.
//EDIT: For switching later: you can either do a raw 1:1 copy to a same size storage medium or reformat on a different size one.
Hello Thanks for the info like I said I need to test if it comes to life with the regular SD that I already have
