Hardware Wiiu 5.5.3U try to Update 5.5.6U then Brick

Shadowthecanine · Mar 19, 2024

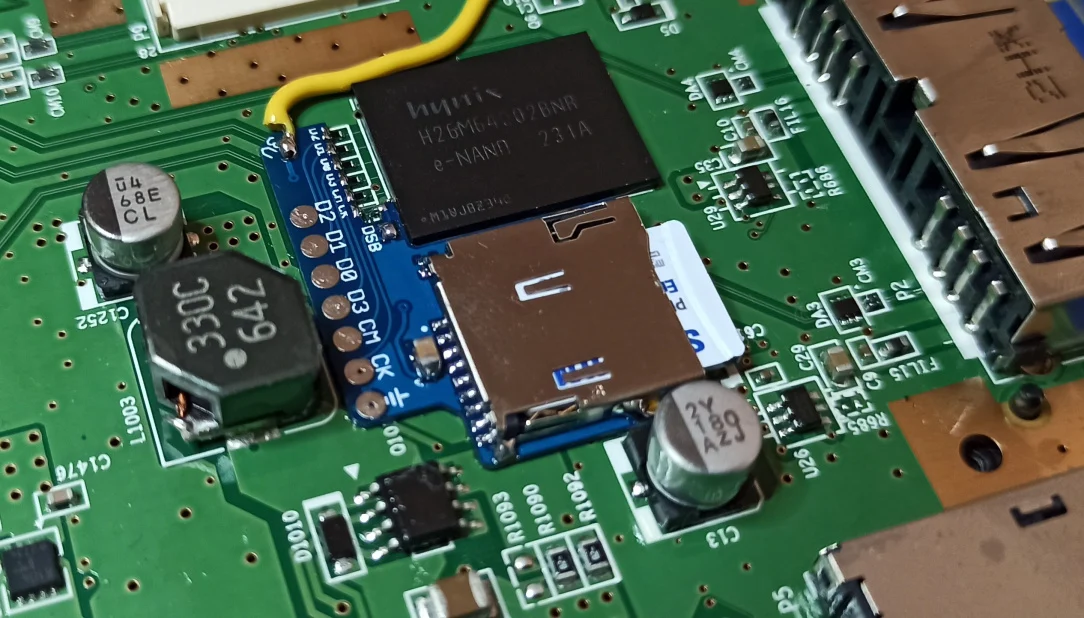

SDIO said:
a larger one would also work

I've arrived at MLC, I see it faster, I think that for almost 30 minutes it was faster than the time last time...
If it doesn't finish within an hour, I will change the memory... I will empty the 256GB MicroSd, which is the only one I have available...

edit:
3 and a half hours later... I'll leave it overnight...

edit2:

Shadowthecanine · Mar 20, 2024

SDIO said:
After formatting you can try if you can boot the redNAND with this stroopwafel https://github.com/jan-hofmeier/stroopwafel/releases and this minute/rednand.ini:

Code:

[partitions] slccmpt=false slc=ture mlc=true [scfm] disable=false allow_sys=false

SDIO said:
Ok for the saves we need to dump the eMMC, but for that we need a newer minute because the old one you have, has a bug. And we need to flash the boot1 to slccmpt, so we can use a 64gb or larger SD for the dump.
Get the boot1.img and the fw.img from here: https://github.com/jan-hofmeier/minute_minute/releases/tag/sderase-v1.1
Rename the boot1.img to boot1_slccmpt.img and copy it on your current defuse SD.
Then go to backup and restore in minute and flash the boot_slccmpt.img to slccmpt.
After that we can use any FAT32 formatted SD and don't need to flash the boot1.img to it.
So grab an SD with at least 64gb, make sure it is FAT32 and put the new fw.img on it.
The card will be formatted, so make sure nothing important is on it.

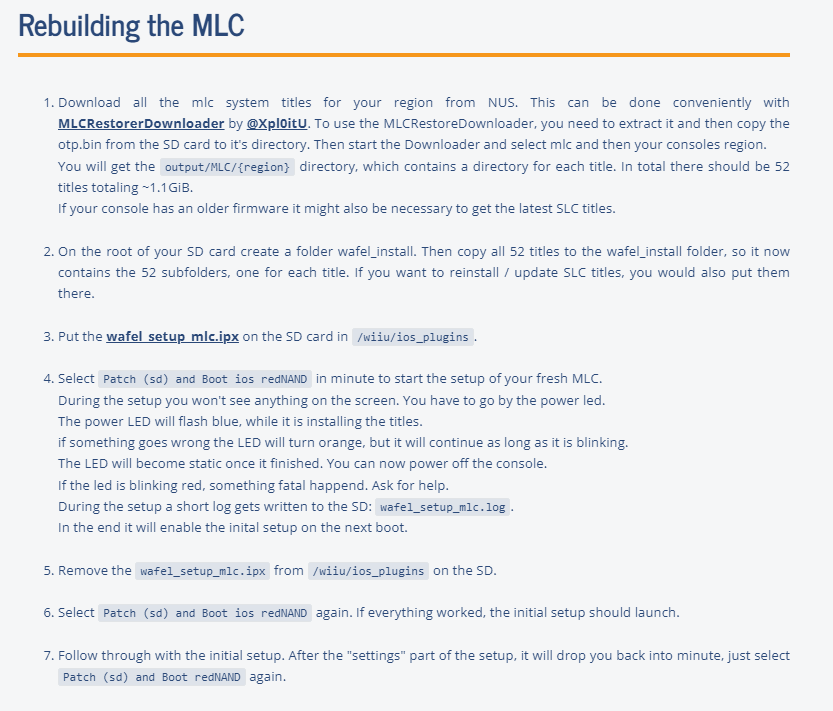

Then boot the new SD and go to backup and restore and do format redNAND. That will take a while and clone the mlc to the SD card from where we can then extract the saves using wfs-extract

So in the 64GB memory is everything backed up? No? Or do I need to add the "ini"?
oh can I go directly to wfs-extract? how is it used?
Then you can delete everything from the eMMC and reinstall 5.5.6, right?

SDIO · Mar 20, 2024

Try if you can boot the redNAND with that ini

Shadowthecanine · Mar 21, 2024

SDIO said:
Try if you can boot the redNAND with that ini

I already added it, what should happen? Is something automatic activated?

SDIO · Mar 21, 2024

There is an option in minute to boot redNAND

Shadowthecanine · Mar 21, 2024

SDIO said:
There is an option in minute to boot redNAND

I think it's not there... but, Will it be somewhere else?
everything seems similar to me due to lack of experience...

SDIO · Mar 21, 2024

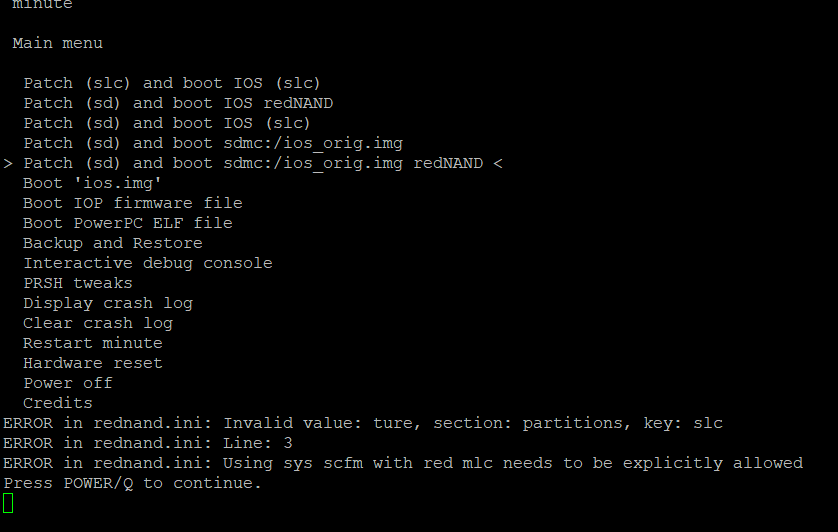

There was a typo in the ini. I updated the post

Shadowthecanine · Mar 22, 2024

SDIO said:
There was a typo in the ini. I updated the post

Code:

 minute

 Main menu

  Patch (slc) and boot IOS (slc)
> Patch (sd) and boot IOS redNAND <
  Patch (sd) and boot IOS (slc)
  Patch (sd) and boot sdmc:/ios_orig.img
  Patch (sd) and boot sdmc:/ios_orig.img redNAND
  Boot 'ios.img'
  Boot IOP firmware file
  Boot PowerPC ELF file
  Backup and Restore
  Interactive debug console
  PRSH tweaks
  Display crash log
  Clear crash log
  Restart minute
  Hardware reset
  Power off
  Credits
Rednand Config:
 slccmpt: 0
 slc: 1048576
 mlc: 60948480
 disable scfm: 0
Mount redslc: 0
Mount redslccmpt: -1
ancast: no patch file `ios.patch`, stubbing...
ancast: reading 0xdfd200 bytes from redslc:/sys/title/00050010/1000400a/code/fw.img
ancast: ...00000000 -> 01000000
ancast: ...00100000 -> 01100000
ancast: ...00200000 -> 01200000
ancast: ...00300000 -> 01300000
ancast: ...00400000 -> 01400000
ancast: ...00500000 -> 01500000
ancast: ...00600000 -> 01600000
ancast: ...00700000 -> 01700000
ancast: ...00800000 -> 01800000
ancast: ...00900000 -> 01900000
ancast: ...00a00000 -> 01a00000
ancast: ...00b00000 -> 01b00000
ancast: ...00c00000 -> 01c00000
ancast: ...00d00000 -> 01d00000
ancast: done reading
ancast: decrypting redslc:/sys/title/00050010/1000400a/code/fw.img...
ancast: fini
ancast: IOS image is prod 5.5.5+
ancast: pre-parsing plugin `sdmc:/wiiu/ios_plugins/wafel_core.ipx`
ancast: loading plugin `sdmc:/wiiu/ios_plugins/wafel_core.ipx` to 27e00000
ancast: failed to open data `sdmc:/wiiu/ios_plugins/config.ini`!
ancast: loading data to 27f78000
prsh: checksum header: old=9254f7bf new=45ca7289
prsh: checksum prst: old=505276c9 new=505276c9
ancast: loading data to 27f78320
ancast: loading data to 27f78640
prsh: checksum header: old=45ca7289 new=f136fa9d
prsh: checksum prst: old=505276c9 new=505276c9
GPU clocked at: 544.999877MHz
Unmounting SLC...
Shutting down MLC...
sdhc_bus_power(0x0)
Shutting down SD card...
sdhc_bus_power(0x0)
Shutting down interrupts...
Shutting down caches and MMU...
Vectoring to 0x01000300...
Searching for OTP store in patch...
Searching for OTP store in plugins...
OTP store at: 27e24f74
we in here kern 0x27e014a0, base 0x27e00000
Inserted 27e00000 before e0000000 and after 20000000!
Inserted 27e00000 before e0000000 and after 27e00000!
Inserted 27e00000 before e0000000 and after 05200000!
  Type           Offset   VirtAddr   PhysAddr   FileSiz    MemSiz     Flg      Align
  PHDR           0x000034 0x1d000000 0x1d000000 0x00000960 0x00000960 0x000000 0x4
  NOTE           0x000934 0x1d000960 0x1d000960 0x000002ac 0x000002ac 0x000000 0x4
  LOAD           0x000034 0x1d000000 0x1d000000 0x00000c0c 0x02b00000 0x000000 0x4000
  LOAD           0x000be0 0x04000000 0x08280000 0x00017020 0x00017020 0x300005 0x4
  LOAD           0x017c00 0x04020000 0x082a0000 0x00003f70 0x00003f70 0x300004 0x4
  LOAD           0x01bb70 0x04024000 0x082a4000 0x00000ed4 0x00000ed4 0x300006 0x40
  LOAD           0x01ca44 0x04025000 0x082a5000 0x00000000 0x000095c0 0x300006 0x40
  LOAD           0x01ca44 0x05000000 0x081c0000 0x000598f0 0x000598f0 0x100005 0x4
  LOAD           0x076334 0x05060000 0x08220000 0x0000ffc4 0x0000ffc4 0x100004 0x40
  LOAD           0x0862f8 0x05070000 0x08230000 0x00003420 0x00003420 0x100006 0x40
  LOAD           0x089718 0x05074000 0x08234000 0x00000000 0x00048574 0x100006 0x40
  LOAD           0x089718 0x05100000 0x13d80000 0x00015d6c 0x00015d6c 0x100005 0x4
  LOAD           0x09f484 0x08120000 0x08120000 0x00015000 0x00015000 0x000005 0x10
  LOAD           0x0b4484 0x08140000 0x08140000 0x00002478 0x00002478 0x000004 0x10
  LOAD           0x0b68fc 0x08143000 0x08143000 0x0000d000 0x0000d000 0x000006 0x10
  LOAD           0x0c38fc 0x08150000 0x08150000 0x00000000 0x00061230 0x000006 0x4000
  LOAD           0x0c38fc 0x10000000 0x10000000 0x00000000 0x00100000 0x100006 0x1
  LOAD           0x0c38fc 0x10100000 0x10100000 0x000312d0 0x000312d0 0x400005 0x4
  LOAD           0x0f4bcc 0x10140000 0x10140000 0x00004694 0x00004694 0x400004 0x4
  LOAD           0x0f9260 0x10145000 0x10145000 0x000000dc 0x000000dc 0x400006 0x4
  LOAD           0x0f933c 0x10146000 0x10146000 0x00000000 0x0037f4e8 0x400006 0x20
  LOAD           0x0f933c 0x10700000 0x10700000 0x000f81c4 0x000f81c4 0x500005 0x4
  LOAD           0x1f1500 0x10800000 0x10800000 0x00033b6c 0x00033b6c 0x500004 0x20
  LOAD           0x22506c 0x10834000 0x10834000 0x000005d0 0x000005d0 0x500006 0x4
  LOAD           0x22563c 0x10835000 0x10835000 0x00000000 0x01406554 0x500006 0x200
  LOAD           0x22563c 0x11f00000 0x11f00000 0x00085770 0x00085770 0x600005 0x4
  LOAD           0x2aadac 0x11fc0000 0x11fc0000 0x000140b0 0x000140b0 0x600004 0x4
  LOAD           0x2bee5c 0x11fd5000 0x11fd5000 0x00023234 0x00023234 0x600006 0x4
  LOAD           0x2e2090 0x11ff9000 0x11ff9000 0x00000000 0x0015f41c 0x600006 0x1000
  LOAD           0x2e2090 0x12300000 0x12300000 0x00131844 0x00131844 0x700005 0x4
  LOAD           0x4138d4 0x12440000 0x12440000 0x000288e8 0x000288e8 0x700004 0x4
  LOAD           0x43c1bc 0x12469000 0x12469000 0x000000e4 0x000000e4 0x700006 0x4
  LOAD           0x43c2a0 0x1246a000 0x1246a000 0x0005b31d 0x0005b31d 0x700006 0x4
  LOAD           0x4975c0 0x124c6000 0x124c6000 0x00000000 0x003c7028 0x700006 0x40
  LOAD           0x4975c0 0x1fb00000 0x1fb00000 0x00300000 0x00300000 0x700006 0x4
  LOAD           0x7975c0 0x1fe00000 0x1fe00000 0x00014ef4 0x00014ef4 0x100006 0x20
  LOAD           0x7ac4b4 0x1fe40000 0x1fe40000 0x00000000 0x001c0000 0x100006 0x1
  LOAD           0x7ac4b4 0x20000000 0x20000000 0x00000000 0x07e00000 0x500006 0x1
  LOAD           0x000000 0x27e00000 0x27e00000 0x00200000 0x00200000 0x100007 0x1
  LOAD           0x000000 0x05200000 0x27e00000 0x00000000 0x00100000 0x100007 0x1
  LOAD           0x000000 0x10600000 0x27e00000 0x00000000 0x00100000 0x100007 0x1
  LOAD           0x7ac4b4 0xe0000000 0x12900000 0x000db65c 0x000db65c 0x800005 0x4
  LOAD           0x887b10 0xe0100000 0x12a00000 0x0002088c 0x0002088c 0x800004 0x4
  LOAD           0x8a839c 0xe0121000 0x12a21000 0x00000124 0x00000124 0x800006 0x4
  LOAD           0x8a84c0 0xe0122000 0x12a22000 0x00000650 0x00000650 0x800006 0x4
  LOAD           0x8a8b10 0xe0123000 0x12a23000 0x00000000 0x0013ef10 0x800006 0x40
  LOAD           0x8a8b10 0xe1000000 0x12bc0000 0x00090dd8 0x00090dd8 0x900005 0x4
  LOAD           0x9398e8 0xe10c0000 0x12c80000 0x000213b4 0x000213b4 0x900004 0x4
  LOAD           0x95ac9c 0xe10e2000 0x12ca2000 0x00001734 0x00001734 0x900006 0x4
  LOAD           0x95c3d0 0xe10e4000 0x12ca4000 0x00000000 0x002043b8 0x900006 0x20
  LOAD           0x95c3d0 0xe2000000 0x12ec0000 0x002651e0 0x002651e0 0xb00005 0x4
  LOAD           0xbc15b0 0xe2280000 0x13140000 0x00048934 0x00048934 0xb00004 0x4
  LOAD           0xc09ee4 0xe22c9000 0x13189000 0x00000264 0x00000264 0xb00006 0x4
  LOAD           0xc0a148 0xe22ca000 0x1318a000 0x00000604 0x00000604 0xb00006 0x4
  LOAD           0xc0a74c 0xe22cb000 0x1318b000 0x00000000 0x003fd9f0 0xb00006 0x40
  LOAD           0xc0a74c 0xe3000000 0x13640000 0x0016ba14 0x0016ba14 0xc00005 0x4
  LOAD           0xd76160 0xe3180000 0x137c0000 0x0002c78c 0x0002c78c 0xc00004 0x4
  LOAD           0xda28ec 0xe31ad000 0x137ed000 0x00000150 0x00000150 0xc00006 0x4
  LOAD           0xda2a3c 0xe31ae000 0x137ee000 0x000009d0 0x000009d0 0xc00006 0x4
  LOAD           0xda340c 0xe31af000 0x137ef000 0x00000000 0x0014da94 0xc00006 0x40
  LOAD           0xda340c 0xe4000000 0x13a40000 0x00019704 0x00019704 0xd00005 0x4
  LOAD           0xdbcb10 0xe4040000 0x13a80000 0x00005ae8 0x00005ae8 0xd00004 0x4
  LOAD           0xdc25f8 0xe4046000 0x13a86000 0x0000005c 0x0000005c 0xd00006 0x4
  LOAD           0xdc2654 0xe4047000 0x13a87000 0x00000000 0x0011123c 0xd00006 0x20
  LOAD           0xdc2654 0xe5000000 0x13c00000 0x0000fd64 0x0000fd64 0xa00005 0x4
  LOAD           0xdd23b8 0xe5040000 0x13c40000 0x0000328c 0x0000328c 0xa00004 0x4
  LOAD           0xdd5644 0xe5044000 0x13c44000 0x000006e4 0x000006e4 0xa00006 0x4
  LOAD           0xdd5d28 0xe5045000 0x13c45000 0x00000000 0x00029900 0xa00006 0x20
  LOAD           0xdd5d28 0xe6000000 0x13cc0000 0x00010a80 0x00010a80 0x200005 0x4
  LOAD           0xde67a8 0xe6040000 0x13d00000 0x00001b90 0x00001b90 0x200004 0x4
  LOAD           0xde8338 0xe6042000 0x13d02000 0x00004990 0x00004990 0x200006 0x4
  LOAD           0xdeccc8 0xe6047000 0x13d07000 0x00000000 0x000011f4 0x200006 0x4
  LOAD           0xdeccc8 0xe7000000 0x082c0000 0x00001000 0x00001000 0x200006 0x4
  LOAD           0xdedcc8 0xeff00000 0xfff00000 0x00000000 0x00008000 0x100006 0x1
  LOAD           0xdedcc8 0xffff0000 0xffff0000 0x0000eb0c 0x0000eb0c 0x000007 0x4
kern_main symbol at: 27e014a0
our module mem size is: 00178000
skipping data: 27f78000
skipping data: 27f78320
skipping data: 27f78640
skipping data: 27f78000
skipping data: 27f78320
skipping data: 27f78640
00: boot_info
01: stroopwafel_config
02: rednand
Found stroopwafel_config PRSH:
; Test config file
[test]
test=1

Found redNAND config
wafel_core: found OTP read pattern 1 at 08120290...
wafel_core: found OTP read at 08120248.
Patch size: 0xc
Patch size: 0x18
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x8
Patch size: 0x10
Patch size: 0xc
Patch size: 0xc
Patch size: 0xc
Patch size: 0xc
Patch size: 0x8
Patch size: 0x8
Patch size: 0x2
Patch size: 0x2
Patch size: 0x2
Patch size: 0x4
Patch size: 0x2
Patch size: 0x4
Patch size: 0x8
Patch size: 0x4
Patch size: 0x1a
Patch size: 0xc
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x8
Patch size: 0x2
Patch size: 0x4
Patch size: 0x4
Patch size: 0x2
Patch size: 0x8
Patch size: 0x8
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x4
Patch size: 0x8
Patch size: 0x4
Enabeling SLC/SLCCMPT redirection
Patch size: 0x4
Enabeling MLC redirection
Setting mlc size to: 60948480 LBAs
Patch size: 0x10
Patch size: 0x8
skipping data: 27f78000
skipping data: 27f78320
skipping data: 27f78640
stroopwafel kern_main done
region starting at virtual address 0xffff0000:
        size    = 0x00010000
        paddr   = 0xffff0000
        domain  = 0x00000000
        attributes: Kernel-Only, cached
region starting at virtual address 0x08120000:
        size    = 0x000a0000
        paddr   = 0x08120000
        domain  = 0x00000000
        attributes: Kernel-Only, cached
region starting at virtual address 0x1d000000:
        size    = 0x02b00000
        paddr   = 0x1d000000
        domain  = 0x00000000
        attributes: Read/Write, cached
region starting at virtual address 0x08000000:
        size    = 0x00100000
        paddr   = 0x08000000
        domain  = 0x0000000f
        attributes: Read/Write, cached
region starting at virtual address 0x08100000:
        size    = 0x00020000
        paddr   = 0x08100000
        domain  = 0x00000000
        attributes: Read/Write, cached
region starting at virtual address 0x00000000:
        size    = 0x00001000
        paddr   = 0x00000000
        domain  = 0x00000000
        attributes: Kernel-Only, cached
region starting at virtual address 0x00001000:
        size    = 0x01fff000
        paddr   = 0x00001000
        domain  = 0x00000000
        attributes: Read/Write, cached
region starting at virtual address 0x14000000:
        size    = 0x09000000
        paddr   = 0x14000000
        domain  = 0x00000000
        attributes: Read/Write, cached
region starting at virtual address 0x27c00000:
        size    = 0x00400000
        paddr   = 0x27c00000
        domain  = 0x00000000
        attributes: Read/Write, cached
region starting at virtual address 0x28000000:
        size    = 0xa8000000
        paddr   = 0x28000000
        domain  = 0x00000000
        attributes: Read/Write, cached
IOS_KERNEL: Built 02/04/21 16:05:36, SRAM Utilization 91%, MEM Utilization 90%.
region starting at virtual address 0x05000000:
        size    = 0x0005a000
        paddr   = 0x081c0000
        domain  = 0x00000001
        attributes: Read-Only, cached
region starting at virtual address 0x05060000:
        size    = 0x00010000
        paddr   = 0x08220000
        domain  = 0x00000001
        attributes: Read-Only, cached
region starting at virtual address 0x05070000:
        size    = 0x00004000
        paddr   = 0x08230000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x05074000:
        size    = 0x00049000
        paddr   = 0x08234000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x04000000:
        size    = 0x00018000
        paddr   = 0x08280000
        domain  = 0x00000003
        attributes: Read-Only, cached
region starting at virtual address 0x04020000:
        size    = 0x00004000
        paddr   = 0x082a0000
        domain  = 0x00000003
        attributes: Read-Only, cached
region starting at virtual address 0x04024000:
        size    = 0x00001000
        paddr   = 0x082a4000
        domain  = 0x00000003
        attributes: Read/Write, cached
region starting at virtual address 0x04025000:
        size    = 0x0000a000
        paddr   = 0x082a5000
        domain  = 0x00000003
        attributes: Read/Write, cached
region starting at virtual address 0xe7000000:
        size    = 0x00001000
        paddr   = 0x082c0000
        domain  = 0x00000002
        attributes: Read/Write, cached
region starting at virtual address 0x10000000:
        size    = 0x00100000
        paddr   = 0x10000000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x10100000:
        size    = 0x00032000
        paddr   = 0x10100000
        domain  = 0x00000004
        attributes: Read-Only, cached
region starting at virtual address 0x10140000:
        size    = 0x00005000
        paddr   = 0x10140000
        domain  = 0x00000004
        attributes: Read-Only, cached
region starting at virtual address 0x10145000:
        size    = 0x00001000
        paddr   = 0x10145000
        domain  = 0x00000004
        attributes: Read/Write, cached
region starting at virtual address 0x10146000:
        size    = 0x00380000
        paddr   = 0x10146000
        domain  = 0x00000004
        attributes: Read/Write, cached
region starting at virtual address 0x10700000:
        size    = 0x000f9000
        paddr   = 0x10700000
        domain  = 0x00000005
        attributes: Read-Only, cached
region starting at virtual address 0x10800000:
        size    = 0x00034000
        paddr   = 0x10800000
        domain  = 0x00000005
        attributes: Read-Only, cached
region starting at virtual address 0x10834000:
        size    = 0x00001000
        paddr   = 0x10834000
        domain  = 0x00000005
        attributes: Read/Write, cached
region starting at virtual address 0x10835000:
        size    = 0x01407000
        paddr   = 0x10835000
        domain  = 0x00000005
        attributes: Read/Write, cached
region starting at virtual address 0x11f00000:
        size    = 0x00086000
        paddr   = 0x11f00000
        domain  = 0x00000006
        attributes: Read-Only, cached
region starting at virtual address 0xd1f00000:
        size    = 0x00086000
        paddr   = 0x11f00000
        domain  = 0x00000006
        attributes: Read-Only, un-cached
region starting at virtual address 0x11fc0000:
        size    = 0x00015000
        paddr   = 0x11fc0000
        domain  = 0x00000006
        attributes: Read-Only, cached
region starting at virtual address 0xd1fc0000:
        size    = 0x00015000
        paddr   = 0x11fc0000
        domain  = 0x00000006
        attributes: Read-Only, un-cached
region starting at virtual address 0x11fd5000:
        size    = 0x00024000
        paddr   = 0x11fd5000
        domain  = 0x00000006
        attributes: Read/Write, cached
region starting at virtual address 0xd1fd5000:
        size    = 0x00024000
        paddr   = 0x11fd5000
        domain  = 0x00000006
        attributes: Read/Write, un-cached
region starting at virtual address 0x11ff9000:
        size    = 0x00160000
        paddr   = 0x11ff9000
        domain  = 0x00000006
        attributes: Read/Write, cached
region starting at virtual address 0xd1ff9000:
        size    = 0x00160000
        paddr   = 0x11ff9000
        domain  = 0x00000006
        attributes: Read/Write, un-cached
region starting at virtual address 0x12300000:
        size    = 0x00132000
        paddr   = 0x12300000
        domain  = 0x00000007
        attributes: Read-Only, cached
region starting at virtual address 0x12440000:
        size    = 0x00029000
        paddr   = 0x12440000
        domain  = 0x00000007
        attributes: Read-Only, cached
region starting at virtual address 0x12469000:
        size    = 0x00001000
        paddr   = 0x12469000
        domain  = 0x00000007
        attributes: Read/Write, cached
region starting at virtual address 0x1246a000:
        size    = 0x0005c000
        paddr   = 0x1246a000
        domain  = 0x00000007
        attributes: Read/Write, cached
region starting at virtual address 0x124c6000:
        size    = 0x003c8000
        paddr   = 0x124c6000
        domain  = 0x00000007
        attributes: Read/Write, cached
region starting at virtual address 0xe0000000:
        size    = 0x000dc000
        paddr   = 0x12900000
        domain  = 0x00000008
        attributes: Read-Only, cached
region starting at virtual address 0xe0100000:
        size    = 0x00021000
        paddr   = 0x12a00000
        domain  = 0x00000008
        attributes: Read-Only, cached
region starting at virtual address 0xe0121000:
        size    = 0x00001000
        paddr   = 0x12a21000
        domain  = 0x00000008
        attributes: Read/Write, cached
region starting at virtual address 0xe0122000:
        size    = 0x00001000
        paddr   = 0x12a22000
        domain  = 0x00000008
        attributes: Read/Write, cached
region starting at virtual address 0xe0123000:
        size    = 0x0013f000
        paddr   = 0x12a23000
        domain  = 0x00000008
        attributes: Read/Write, cached
region starting at virtual address 0xe1000000:
        size    = 0x00091000
        paddr   = 0x12bc0000
        domain  = 0x00000009
        attributes: Read-Only, cached
region starting at virtual address 0xe10c0000:
        size    = 0x00022000
        paddr   = 0x12c80000
        domain  = 0x00000009
        attributes: Read-Only, cached
region starting at virtual address 0xe10e2000:
        size    = 0x00002000
        paddr   = 0x12ca2000
        domain  = 0x00000009
        attributes: Read/Write, cached
region starting at virtual address 0xe10e4000:
        size    = 0x00205000
        paddr   = 0x12ca4000
        domain  = 0x00000009
        attributes: Read/Write, cached
region starting at virtual address 0xe2000000:
        size    = 0x00266000
        paddr   = 0x12ec0000
        domain  = 0x0000000b
        attributes: Read-Only, cached
region starting at virtual address 0xe2280000:
        size    = 0x00049000
        paddr   = 0x13140000
        domain  = 0x0000000b
        attributes: Read-Only, cached
region starting at virtual address 0xe22c9000:
        size    = 0x00001000
        paddr   = 0x13189000
        domain  = 0x0000000b
        attributes: Read/Write, cached
region starting at virtual address 0xe22ca000:
        size    = 0x00001000
        paddr   = 0x1318a000
        domain  = 0x0000000b
        attributes: Read/Write, cached
region starting at virtual address 0xe22cb000:
        size    = 0x003fe000
        paddr   = 0x1318b000
        domain  = 0x0000000b
        attributes: Read/Write, cached
region starting at virtual address 0xe3000000:
        size    = 0x0016c000
        paddr   = 0x13640000
        domain  = 0x0000000c
        attributes: Read-Only, cached
region starting at virtual address 0xe3180000:
        size    = 0x0002d000
        paddr   = 0x137c0000
        domain  = 0x0000000c
        attributes: Read-Only, cached
region starting at virtual address 0xe31ad000:
        size    = 0x00001000
        paddr   = 0x137ed000
        domain  = 0x0000000c
        attributes: Read/Write, cached
region starting at virtual address 0xe31ae000:
        size    = 0x00001000
        paddr   = 0x137ee000
        domain  = 0x0000000c
        attributes: Read/Write, cached
region starting at virtual address 0xe31af000:
        size    = 0x0014e000
        paddr   = 0x137ef000
        domain  = 0x0000000c
        attributes: Read/Write, cached
region starting at virtual address 0xe4000000:
        size    = 0x0001a000
        paddr   = 0x13a40000
        domain  = 0x0000000d
        attributes: Read-Only, cached
region starting at virtual address 0xe4040000:
        size    = 0x00006000
        paddr   = 0x13a80000
        domain  = 0x0000000d
        attributes: Read-Only, cached
region starting at virtual address 0xe4046000:
        size    = 0x00001000
        paddr   = 0x13a86000
        domain  = 0x0000000d
        attributes: Read/Write, cached
region starting at virtual address 0xe4047000:
        size    = 0x00112000
        paddr   = 0x13a87000
        domain  = 0x0000000d
        attributes: Read/Write, cached
region starting at virtual address 0xe5000000:
        size    = 0x00010000
        paddr   = 0x13c00000
        domain  = 0x0000000a
        attributes: Read-Only, cached
region starting at virtual address 0xe5040000:
        size    = 0x00004000
        paddr   = 0x13c40000
        domain  = 0x0000000a
        attributes: Read-Only, cached
region starting at virtual address 0xe5044000:
        size    = 0x00001000
        paddr   = 0x13c44000
        domain  = 0x0000000a
        attributes: Read/Write, cached
region starting at virtual address 0xe5045000:
        size    = 0x0002a000
        paddr   = 0x13c45000
        domain  = 0x0000000a
        attributes: Read/Write, cached
region starting at virtual address 0xe6000000:
        size    = 0x00011000
        paddr   = 0x13cc0000
        domain  = 0x00000002
        attributes: Read-Only, cached
region starting at virtual address 0xe6040000:
        size    = 0x00002000
        paddr   = 0x13d00000
        domain  = 0x00000002
        attributes: Read-Only, cached
region starting at virtual address 0xe6042000:
        size    = 0x00005000
        paddr   = 0x13d02000
        domain  = 0x00000002
        attributes: Read/Write, cached
region starting at virtual address 0xe6047000:
        size    = 0x00002000
        paddr   = 0x13d07000
        domain  = 0x00000002
        attributes: Read/Write, cached
region starting at virtual address 0x05100000:
        size    = 0x00016000
        paddr   = 0x13d80000
        domain  = 0x00000001
        attributes: Read-Only, cached
region starting at virtual address 0x1fb00000:
        size    = 0x00300000
        paddr   = 0x1fb00000
        domain  = 0x00000007
        attributes: Read/Write, cached
region starting at virtual address 0x1fe00000:
        size    = 0x00015000
        paddr   = 0x1fe00000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x1fe40000:
        size    = 0x001c0000
        paddr   = 0x1fe40000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x20000000:
        size    = 0x07e00000
        paddr   = 0x20000000
        domain  = 0x00000005
        attributes: Read/Write, cached
region starting at virtual address 0x05200000:
        size    = 0x00100000
        paddr   = 0x27e00000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0x10600000:
        size    = 0x00100000
        paddr   = 0x27e00000
        domain  = 0x00000001
        attributes: Read/Write, cached
region starting at virtual address 0xeff00000:
        size    = 0x00008000
        paddr   = 0xfff00000
        domain  = 0x00000001
        attributes: Read/Write, cached
Creating main() thread for IOS-BSP:
        priority=125    stackSize=4096  stackPtr=0xe7000000     entry=0xe600f848        memPermMask=0x00100000
IOS-BSP: Built 02/04/21 16:02:14, Image Utilization 37%.
Creating main() thread for IOS-MCP:
        priority=124    stackSize=8192  stackPtr=0x050ba4a0     entry=0x05056718        memPermMask=0x000c0030
Creating main() thread for IOS-CRYPTO:
        priority=123    stackSize=4096  stackPtr=0x04028628     entry=0x04015ea4        memPermMask=0x000c0030
Creating main() thread for IOS-USB:
        priority=107    stackSize=16384 stackPtr=0x104b92c8     entry=0x1012e9e8        memPermMask=0x00038600
Creating main() thread for IOS-FS:
        priority=85     stackSize=16384 stackPtr=0x1114117c     entry=0x107f6830        memPermMask=0x001c5870
Creating main() thread for IOS-PAD:
        priority=117    stackSize=8192  stackPtr=0x1214ab4c     entry=0x11f82d94        memPermMask=0x00008180
Creating main() thread for IOS-NET:
        priority=80     stackSize=16384 stackPtr=0x12804498     entry=0x123e4174        memPermMask=0x00002000
Creating main() thread for IOS-ACP:
        priority=50     stackSize=16384 stackPtr=0xe0125390     entry=0xe00d8290        memPermMask=0x00000000
Creating main() thread for IOS-NSEC:
        priority=50     stackSize=4096  stackPtr=0xe12e71a4     entry=0xe108e930        memPermMask=0x00000000
Creating main() thread for IOS-AUXIL:
        priority=70     stackSize=16384 stackPtr=0xe506a900     entry=0xe500d720        memPermMask=0x00000000
Creating main() thread for IOS-NIM-BOSS:
        priority=50     stackSize=16384 stackPtr=0xe22cb000     entry=0xe22602fc        memPermMask=0x00000000
Creating main() thread for IOS-FPD:
        priority=50     stackSize=16384 stackPtr=0xe31af000     entry=0xe3166b34        memPermMask=0x00000000
Creating main() thread for IOS-TEST:
        priority=75     stackSize=8192  stackPtr=0xe415623c     entry=0xe40168a4        memPermMask=0x00000000
we in here MCP 0x5202db4
skipping data: 27f78000
skipping data: 27f78320
skipping data: 27f78640
stroopwafel mcp_main done
IOS-PAD: Built 02/04/21 16:02:14, Image Utilization 58%.
IOS-CRYPTO: Built 02/04/21 16:02:14, Image Utilization 72%.
CRYPTO Open, clientPid=1 nodeId 00000000 titleId 0000000000000000 perm=0xffffffff
IOSC Initialize -- IOSC library build time 09/27/12 19:28:40
IOS-USB: Built 02/04/21 16:02:14, Image Utilization 62%.
00:00:00:218: MMC(0): initializing Controller 0, Slot 0 base 0x0D070000
00:00:00:220: MMC(3): initializing Controller 2, Slot 0 base 0x0D100000
00:00:00:222: MMC(4): initializing Controller 3, Slot 0 base 0x0D110000
IOS-NET: Built 02/04/21 16:02:14, Image Utilization 92%.
USB Trace: Activating root hubs @ uptime 0.285 s with options 0x40000.
00:00:00:287: USB Trace: Activating root hubs @ uptime 0.285 s with options 0x40000.
UHS0 Trace: DevFsm(EHCI-0/L0/P0): Creating device, speed=HIGH.
00:00:00:301: UHS0 Trace: DevFsm(EHCI-0/L0/P0): Creating device, speed=HIGH.
UHS0 Trace: DevFsm(OHCI-0:0/L0/P0): Creating device, speed=FULL.
00:00:00:306: UHS0 Trace: DevFsm(OHCI-0:0/L0/P0): Creating device, speed=FULL.
USB Info: UhsServerAddHc 0 OK.
00:00:00:309: USB Info: UhsServerAddHc 0 OK.
UHS0 Trace: DevFsm(EHCI-1/L0/P0): Creating device, speed=HIGH.
00:00:00:320: UHS0 Trace: DevFsm(EHCI-1/L0/P0): Creating device, speed=HIGH.
UHS0 Trace: DevFsm(OHCI-1:0/L0/P0): Creating device, speed=FULL.
00:00:00:326: UHS0 Trace: DevFsm(OHCI-1:0/L0/P0): Creating device, speed=FULL.
USB Info: UhsServerAddHc 1 OK.
00:00:00:329: USB Info: UhsServerAddHc 1 OK.
IOS-TEST: Built 02/04/21 16:02:14, Image Utilization 76%.
TEST Info: localProcessHeap OK.
TEST Info: crossProcessHeap OK.
00:00:00:337: TEST Info: crossProcessHeap OK.
IOS-AUXIL: Built 02/04/21 16:02:14, Image Utilization 57%.
AUXIL Info: localProcessHeap OK.
AUXIL Info: crossProcessHeap OK.
00:00:00:342: AUXIL Info: crossProcessHeap OK.
UHS0 Trace: Powering on root hub group 0.
00:00:00:345: UHS0 Trace: Powering on root hub group 0.
IOS-NSEC: Built 02/04/21 16:02:14, Image UtilIOS-FPD: Built 02/04/21 16:02:14, Image Utilization 74%.
UHS0 Trace: Powering on root hub group 1.
00:00:00:362: UHS0 Trace: Powering on root hub group 1.
00:00:00:364: AHCI_MGR Trace: Turning on drive power.
00:00:00:366: AHCI_MGR Trace: Turning on drive power.
ization 96%.
00:00:00:371: AHCI_MGR Trace: Initializing phy.
00:00:00:373: AHCI_MGR Trace: Initializing phy.
00:00:00:374: AHCI_DRV Trace: Initiating cold open.
00:00:00:375: AHCI_DRV Trace: Initiating cold open.
00:00:00:377: AHCI_DRV Trace: Resetting HBA.
00:00:00:378: AHCI_DRV Trace: Resetting HBA.
AUXIL Info: Net OK.
00:00:00:381: AUXIL Info: Net OK.
IOS-ACP: Built 02/04/21 16:02:14, Image Utilization 86%.
IOS-NIM-BOSS: Built 02/04/21 16:02:14, Image Utilization 90%.
act_main.cpp,Start,17400:00:00:429: AHCI_DRV Trace: HBA Reset OK.
00:00:00:431: AHCI_DRV Trace: HBA Reset OK.
00:00:00:432: AHCI_DRV Trace: link ready, speed is GEN 1.
00:00:00:433: AHCI_DRV Trace: link ready, speed is GEN 1.
00:00:00:986: AHCI_DRV Trace: device ready.
00:00:00:987: AHCI_DRV Trace: device ready.
00:00:00:988: AHCI_DRV Trace: port operational.
00:00:00:989: AHCI_DRV Trace: port operational.
CRYPTO Open, clientPid=5 nodeId 00000000 titleId 00000000100000f1 perm=0xffffffff
00:00:00:997: ODM: ODM: Successfully configured preload cache
00:00:00:999: ODM odm_fsm.c(856): ODM: Successfully configured preload cache
00:00:01:537: ISFS: FAT INFO (ch WUP): slot 8 / seq 935050 (Each FAT slot has been updated 14610 times in avr)
00:00:01:540: ISFS: fs_fat.c(545)FAT INFO (ch WUP): slot 8 / seq 935050 (Each FAT slot has been updated 14610 times in avr)
00:00:01:543: FSA: [uptime 1.543 s]: Attached volume to slc01 (isfs): Capacity 511 MB, 262016 logical blocks of size 2048 B.
00:00:01:631: ISFS: FAT INFO (ch RVL Compat): slot 12 / seq 52638 (Each FAT slot has been updated 3289 times in avr)
00:00:01:634: ISFS: fs_fat.c(545)FAT INFO (ch RVL Compat): slot 12 / seq 52638 (Each FAT slot has been updated 3289 times in avr)
00:00:01:638: FSA: [uptime 1.638 s]: Attached volume to slccmpt01 (isfs): Capacity 511 MB, 261632 logical blocks of size 2048 B.
00:00:01:647: SCFM:Start init. BUILD_TIME:[16:02:03]
00:00:01:651: SCFM:FSAInit
00:00:01:652: SCFM:AddClient
00:00:01:654: SCFM:scfmMountSlc
00:00:01:655: SCFM:scfmLoad
00:00:01:655: SCFM:Done init.
00:00:01:657: PCFS: Disabled because we are in PROD mode.
00:00:01:659: MCP: booting from NAND
00:00:01:660: MCP: Boot PM flags - PON_COLDBOOT
00:00:01:679: MCP: Cafe OS SDK Version 2.13.01 Build 69088 Branch sdk_2_13
00:00:01:681: MCP: Booting on Espresso (0x0000700100000201), Latte (0x25100028), RTC (0x00)
00:00:01:684: MCP: Platform - boardType(CF), boardRevision(11), devicePresence(0x00000000), sataDevice(3), consoleType(1)
00:00:01:693: FSA: [uptime 1.693 s]: Attached volume to sdcard01 (fat): Capacity 59200 MB, 121241600 logical blocks of size 512 B.
00:00:01:698: ISFS: FAT block entries check start
00:00:01:699: ISFS: fs_ops.c(2215)FAT block entries check start
00:00:01:705: ISFS: FAT block entries check finished.
00:00:01:706: ISFS: fs_ops.c(2292)FAT block entries check finished.
00:00:01:722: FSA: [uptime 1.722 s]: Attached volume to mlc01 (wfs): Capacity 29760 MB, 60948480 logical blocks of size 512 B.
00:00:01:728: FSA: [uptime 1.727 s]: Attached volume to ramdisk01 (raw): Capacity 125 MB, 129022 logical blocks of size 1024 B.
00:00:01:732: MCP: Formatting Device ramdisk to wfs
00:00:01:876: FSA: [uptime 1.876 s]: Attached volume to ramdisk01 (wfs): Capacity 125 MB, 129022 logical blocks of size 1024 B.
00:00:01:879: MCP: Format Complete
00:00:04:347: ISFS: FAT block entries check start
00:00:04:349: ISFS: fs_ops.c(2215)FAT block entries check start
00:00:04:354: ISFS: FAT block entries check finished.
00:00:04:356: ISFS: fs_ops.c(2292)FAT block entries check finished.
00:00:09:440: [ES] checkOwnedTitleUpdateFlags: no delete in progress
00:00:09:442: [ES] checkOwnedTitleUpdateFlags: no import in progress
alive
00:00:10:178: MCP: File loading from ramdisk cache is enabled
00:00:10:845: MCP: Master title 0005001010040100 os 000500101000400a from mlc01 flags 0004
2018-09-07 05:34:56
Cafe OS SDK Version 2.13.01 Build 69088 Branch sdk_2_13
Espresso:       0x0000700100000201
Latte:          0x0000409f
System mode:    0x100000
Boot flags:     0x10000
Security Level: 0x1e
Key Type:       0xfffffffc
Prod Version:   0x5
Serial:         411353849
Model:          WUP-101(02)
Prod Area:      0x2
Game Area:      0x2
5GHz Code:      0x7
00:00:11:569: MCP: no valid title list found, rebuilding...
00:00:11:576: MCP: os version 10 NDEBUG (0x000500101000400a)
00:00:11:579: MCP: FSA volume on device /dev/mlc01 (wfs) attached @ uptime 11.579 s.
00:00:13:944: ISFS: fs_ops.c(3733)Can not change the owner Id of a non-empty file
00:00:13:946: ISFS: fs_ops.c(3733) Can not change the owner Id of a non-empty file
00:00:13:949: ISFS: fs_ops.c(6719)Could not set attribute, rc=-524312
00:00:13:950: ISFS: fs_ops.c(6719) Could not set attribute, rc=-524312
00:00:19:185: MCP: found master title 5001010040100 on mlc01 at 19.185 s
00:00:19:920: MCP: FSA volume on device /dev/ramdisk01 (wfs) attached @ uptime 19.920 s.
00:00:19:923: MCP: Titles scanned (dev_state 0006) on device /dev/ramdisk01 (wfs) @ uptime 19.923 s.
00:00:19:927: MCP: FSA volume on device /dev/sdcard01 (fat) attached @ uptime 19.926 s.
00:00:19:929: MCP: Titles scanned (dev_state 0006) on device /dev/sdcard01 (fat) @ uptime 19.929 s.
00:00:19:932: MCP: FSA volume on device /dev/slc01 (isfs) attached @ uptime 19.932 s.
00:00:19:935: MCP: FSA volume on device /dev/slccmpt01 (isfs) attached @ uptime 19.935 s.
00:00:19:937: MCP: Titles scanned (dev_state 0006) on device /dev/slccmpt01 (isfs) @ uptime 19.937 s.
alive
00:00:20:702: MCP: Titles scanned (dev_state 000e) on device /dev/slc01 (isfs) @ uptime 20.702 s.
alive
00:00:39:286: MCP: ECO mode is disabled
00:00:39:288: [+-* DK is ready for console input *-+]
00:00:39:289: MCP: syslog mask is set to 0xffffffff
00:00:39:297: W2C: Does not need W2C-reflection
alive
$IOSVersion: OHCI1: 02/04/21 16:01:32 $
UHS1 Trace: DevFsm(EHCI-2/L0/P0): Creating device, speed=HIGH.
00:00:41:348: UHS1 Trace: DevFsm(EHCI-2/L0/P0): Creating device, speed=HIGH.
UHS1 Trace: DevFsm(OHCI-2:0/L0/P0): Creating device, speed=FULL.
00:00:41:353: UHS1 Trace: DevFsm(OHCI-2:0/L0/P0): Creating device, speed=FULL.
00:00:41:355: CCR_MAIN: activating root hub.
CRYPTO Open, clientPid=1 nodeId 00000000 titleId 0000000000000000 perm=0xffffffff
00:00:41:433: FS_MAIN: UMS Server Created.
AUXIL Info: resumed.
00:00:41:439: AUXIL Info: resumed.
[ACP]INFO:mxmlAcpPortInitialize:81: Create lo00:00:41:466: NET: Applied interface MTU (wl0:1400 eth0:1400).
[NET] Init: Nintendo Wii U
Dongle Host Driver, version 5.91.153.64
IOPOS board:11  asic:21/cafe0050  clk:248625000/1942382
Host Controller version 1.0, Vendor Revision: 0x00
sdstd_start_clock:now, divided clk is: 24000000 Hz
sdstd_client_init:SDHOST3-legacy
High-speed clocking mode disabled.
sdstd_start_clock:now, divided clk is: 24000000 Hz
sd_map_dma: Mapped DMA Buffer 4095bytes @virt/phys: 0x1280b000/0x1280b000
sd_map_dma: Mapped ADMA2 Descriptor Buffer 4095bytes @virt/phys: 0x1280c000/0x1280c000
Unknown DMA Descriptor Table Format.
DHD: dongle ram size is set to 245760(orig 245760)
OHCI1 NOT READY: waiting for OhciPath=/dev/usb/oh1/57e/305
OHCI1 NOT READY: waiting for OhciPath=/dev/usb/oh1/57e/305
OHCI1: USB device at port 0, vid: 0x057e pid: 0x0305
00:00:41:656: BT: BTA/BTE/STACK now operational
UHS1 Trace: DevFsm(EHCI-2/L1/P1): Creating device, speed=HIGH.
00:00:41:661: UHS1 Trace: DevFsm(EHCI-2/L1/P1): Creating device, speed=HIGH.
UHS1 Trace: DevFsm: There are now a total of 1 connected devices.
00:00:41:665: UHS1 Trace: DevFsm: There are now a total of 1 connected devices.
Host Controller version 1.0, Vendor Revision: 0x00
sdstd_start_clock:now, divided clk is: 24000000 Hz
sdstd_client_init:SDHOST3-legacy
High-speed clocking mode disabled.
sdstd_start_clock:now, divided clk is: 24000000 Hz
Chip 43362a2 detected
UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.698 s.
00:00:41:700: UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.698 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.704 s.
00:00:41:706: UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.704 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF2): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.710 s.
00:00:41:712: UHS1 Trace: CltIfFsm(V057e|P0341|IF2): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.710 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.716 s.
00:00:41:718: UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.716 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF4): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.722 s.
00:00:41:724: UHS1 Trace: CltIfFsm(V057e|P0341|IF4): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.722 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.727 s.
00:00:41:730: UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.727 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF6): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.733 s.
00:00:41:736: UHS1 Trace: CltIfFsm(V057e|P0341|IF6): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.733 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.739 s.
00:00:41:742: UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.739 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF8): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.745 s.
00:00:41:748: UHS1 Trace: CltIfFsm(V057e|P0341|IF8): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.745 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.751 s.
00:00:41:754: UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.751 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF10): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.757 s.
00:00:41:760: UHS1 Trace: CltIfFsm(V057e|P0341|IF10): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.757 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.763 s.
00:00:41:766: UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Device EHCI-2/L1/P1/A01 entering probing state @ uptime 41.763 s.
UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Acquired by client in pid 6.
00:00:41:771: UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Enable endpoints 0x00080000.
00:00:41:775: UHS1 Trace: CltIfFsm(V057e|P0341|IF0): Enable endpoints 0x00080000.
00:00:41:818: __ccr_hid_attach_add_interface: idx 0 ep 3
UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Acquired by client in pid 6.
00:00:41:822: UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Enable endpoints 0x00100000.
00:00:41:826: UHS1 Trace: CltIfFsm(V057e|P0341|IF1): Enable endpoints 0x00100000.
00:00:41:869: __ccr_hid_attach_add_interface: idx 1 ep 4
UHS1 Trace: CltIfFsm(V057e|P0341|IF2): Acquired by client in pid 6.
00:00:41:872: UHS1 Trace: CltIfFsm(V057e|P0341|IF2): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Acquired by client in pid 6.
00:00:41:876: UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Activating bAlternateSetting 0.
00:00:41:881: UHS1 Trace: CltIfFsm(V057e|P0341|IF3): Activating bAlternateSetting 0.
UHS1 Trace: CltIfFsm(V057e|P0341|IF4): Acquired by client in pid 6.
00:00:41:887: UHS1 Trace: CltIfFsm(V057e|P0341|IF4): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Acquired by client in pid 6.
00:00:41:891: UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Activating bAlternateSetting 0.
00:00:41:895: UHS1 Trace: CltIfFsm(V057e|P0341|IF5): Activating bAlternateSetting 0.
UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Acquired by client in pid 6.
00:00:41:902: UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Enable endpoints 0x08001000.
00:00:41:906: UHS1 Trace: CltIfFsm(V057e|P0341|IF7): Enable endpoints 0x08001000.
UHS1 Trace: CltIfFsm(V057e|P0341|IF8): Acquired by client in pid 6.
00:00:41:911: UHS1 Trace: CltIfFsm(V057e|P0341|IF8): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Acquired by client in pid 6.
00:00:41:915: UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Activating bAlternateSetting 0.
00:00:41:919: UHS1 Trace: CltIfFsm(V057e|P0341|IF9): Activating bAlternateSetting 0.
UHS1 Trace: CltIfFsm(V057e|P0341|IF10): Acquired by client in pid 6.
00:00:41:925: UHS1 Trace: CltIfFsm(V057e|P0341|IF10): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Acquired by client in pid 6.
00:00:41:929: UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Acquired by client in pid 6.
UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Activating bAlternateSetting 0.
00:00:41:933: UHS1 Trace: CltIfFsm(V057e|P0341|IF11): Activating bAlternateSetting 0.
00:00:41:938: DRH chip revision 00000040
00:00:41:939: DRH firmware version 190c0117
00:00:41:940: DRH cdc version 00080000
00:00:41:942: DRH wifi module id a8e502d0
00:00:41:943: DRH SPL id 00001c58
FW(chk):43362a2-roml/sdio-nin-keepalive 5.91.153.64 2013/12/09 03:54:26
dhd_wlfc_init(): successfully disabled bdcv2 tlv signaling, 0
Dongle MAC address = 34:AF:2C:75:90:B2
CRYPTO Open, clientPid=6 nodeId 00000000 titleId 00000000100000f2 perm=0xffffffff
USBETH Trace: Created interface 100.
00:00:42:193: USBETH Trace: Created interface 100.
IP address of wl0 : 0.0.0.0
cal heap 35 for mxml.
00:00:42:214: WUD_BCMFWCheck ==> chipname 20702A1 build 517 from SERIAL FLASH
BT:             0x205
00:00:42:218: BT: BTRM now Active (WUD Operational)
00:00:42:269: MCP: boot1 version 2.11.09
BOOT1:          0x20b9
00:00:42:277: MCP: loaded and parsed 'preload.txt' at '/vol/system/title/00050010/1000400a/code'
00:00:42:296: MCP: Wake 0 signal
00;00;41;379: COSREPORT: Set level:1 from syslog level
00;00;41;379:
----------------------------------------------- BPERF: (0/41380075) PPC Init.
00:00:42:316: DRH using runtime generated WLAN data
00:00:42:317: Setting DRH to Normal mode
00:00:42:320: setting DRH system time to 05:35:27
00:00:42:323: sending DRC WOWL wake
00;00;41;379: Cafe OS SDK Version 2.13.01 Build 69088 Branch sdk_2_13
00;00;41;379: PPC NDEBUG Kernel Build date - Feb  4 2021 16:37:45
RM loop: Msg type 7 invalid!
00;00;41;379: BUILT AS OS_VERSION_MAJOR 000500101000800A MINOR 0x3DE8
00;00;41;379: core=1 COLD BOOT
00;00;41;379: SOFT INTERRUPT MODE
00;00;41;379: -----------------------------------------------

00;00;41;380: KiCblRegisterBlocks() completed with status 0:-4.
00;00;41;380: PROD Mode - don't even try to load kdebug.elf
00;00;41;380: title id: 5001010040100, app type 90000001
00;00;41;380:
00;00;41;380: ---------------------------------------
00;00;41;381: OS VERSION ID     0x000500101000400A
00;00;41;381: MASTER TITLE ON   00:00:42:409: ccr_admin_wowl_wake_drc() returned 0
DRH:            0x190c
FLASH
00;00;41;381: ---------------------------------------
00;00;41;381:
00;00;41;429: DIAG:+KiRPLLoaderSetup
00;00;41;429: DIAG:-KiRPLLoaderSetup: before no-return call to KiLoadContext (0xEFE09400) (0x01003FFC)
00;00;42;494: DIAG:+KiProcess_FinishInitAndPreload
urn call to KiLoadContext (0xEFE09400) (0x01003FFC)
00;00;42;494: KiCblRegisterBlocks() completed with status 0:-4.
00;00;42;511: Kernel is loading shared data...
CRYPTO Open, clientPid=9 nodeId 00000000 titleId 00000000100000f4 perm=0xffffffff
CRYPTO Open, clientPid=12 nodeId 00000000 titleId 00000000100000f7 perm=0xffffffff
00:00:43:474: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:00:43:476: [WD]>>>> Linkup msg from Net
00:00:43:487: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:00:43:492: NET: Change admin state (0 -> 2)(iface:1 link:2)
00:00:43:494: IFNET_ETH: Configuring link adminState to DOWN.
00:00:43:497: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:00:43:503: ACT: Current account is #1.
00:00:43:612: [WD]>>>> Linkup msg from Net
00:00:43:621: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00;00;44;293: DIAG:-KiProcess_FinishInitAndPreload: before no-return call to KiInitKernelFinish
00;00;44;293: DIAG:+KiInitKernelFinish
pleted with status 0:-4.
00:00:44:436: MCP: Heartbeat Enabled
00;00;44;318: VVVVVVV----- PPC Kernel Waiting -----VVVVVVV
:-4.
00;00;44;318: ^^^^^^^----- PPC Kernel Release -----^^^^^^^
no-return call to KiInitKernelFinish
00;00;44;318: DIAG:-KiInitKernelFinish: before no-return call to KiProcess_Launch
E09400) (0x01003FFC)
00;00;44;318:
--------------------
-----------------
00;00;44;318: PROCESS  1 STARTING
00;00;44;318: SYSLOG_LEVEL 1:   Warnings Enabled VERSION ID     0x000500101000400A

0;00;41;380: ---------------------------------------
00;00;44;318: UserMode Core & Thread Initialization (3 Cores)
00;00;44;318:   Core 1 Complete, Default Thread 0x100457E0
00;00;44;320:   Core 0 Complete, MSR 0x00005072, Default Thread 0x10045140
00;00;44;321:   Core 2 Complete, MSR 0x00005072, Default Thread 0x10045E80
00;00;44;321: Clearing Process MEM2 Arena...
----------------

00;00;44;335: MEM2 Arena clear complete, size 23 MB, 13ms
00;00;44;360: UserMode OS library build date: Feb  4 2021 16:38:58
00;00;44;360: __AppFlags: 0x00000200

00:00:44:632: NET: Change admin state (1 -> 2)(iface:0 link:2)
00;00;44;361: OSBlockThreadsOnExit default for sdk version 21301
3DE8
00;00;44;431: OSSetting_SynchronousPrinting DISABLED
00;00;44;436: OSSetting_CrashDumpType 0, MINI dump after crash
00;00;44;439: TCL(1): init DONE
n 2.13.01 Build 69088 Branch sdk_2_13
00;00;44;630: VPADInit() depricated, no need to call
457E0
00;00;44;631: VPAD Init end, BPERF: (0/44750492) Title PID=1
sdk_2_13
00:00:45:104: CDC_SIGNAL_STA_ASSOCIATED_NOTIFY
00:00:45:112: ccr_hid_input_start: idx 0 controller: 0, ep 3 int req --> 0
00;00;44;993: port 0 attached
PERF: (0/44750492) Title PID=1
sdk_2_13
00;00;46;484: ROOT: Read restart value 0
750492) Title PID=1
sdk_2_13
00;00;46;486: ROOT: Read audio relaunch value 0
call
457E0
00;00;46;486: ROOT: OSID 0x000500101000400A
00;00;46;666: Info: Calculating cold boot font CRCs on core:0
d 0x10045140
00;00;46;667: WPAD: Master Init
0101000400A
00;00;46;667: VPADInit() depricated, no need to call
457E0
COSREPORT: Using syslog level:1
 value 0
750492) Title PID=1
sdk_2_13
COSREPORT: Set upid_mask:ffffffffffffffff module_mask:ffffffffffffffff level:1
00;00;46;767: TV mode before transition = 0
DISABLED
00;00;46;767: DRC mode before transition = 1
ule_mask:ffffffffffffffff level:1
00;00;46;767: ROOT: Got audio buffer from foreground bucket @ e2c00000 len = 9437184
00:00:46:965: MCP: PID 14 requested to disable power transitions
00;00;46;825:


Querying BSP for Hardware Information...
t @ e2c00000 len = 9437184
00:00:47:028: MCP: loaded and parsed 'preload.txt' at '/vol/storage_mlc01/sys/title/00050030/1001110a/code'
00:00:47:031: MCP: Preparing error.rpx
00:00:47:039: MCP: Mapping /vol/content to /vol/storage_mlc01/sys/title/00050030/1001110a/content
+0x000500301001110a:0x00000064
00;00;46;826:   It is not Holly/Bolly-Wood
 1
ule_mask:ffffffffffffffff level:1
00;00;46;826:   It is Latte A2x or later
= 0
DISABLED
00;00;46;826: using DSP memory parameters:
d to call
457E0
00;00;46;826:     DROM_BASE: 0x3000
000400A
00;00;46;826:     IRAM_SIZE: 0x2000
efault for sdk version 21301
3DE8
00;00;46;826:     DRAM_SIZE: 0x3000


00;00;46;826: Info: Cold boot processing font CRCs on core:1
38:58
00;00;46;848: DIAG:Issued KiPrepareTitleAsync(0x000500301001110A)
00;00;46;920: DIAG:Result PrepareTitle(0x000500301001110A) came back with cosxml(0x000500301001110A)
00;00;46;925: TitleId 0x000500301001110A Version 0x00000064 Built On SDK 21204
00;00;46;985: port 0 detached
-----------------------
00;00;47;026: ------------------PROCESS 1 LOST FOREGROUND--------------------
00;00;47;027: DIAG: PhysAlloc(6, 0x00800000, 0x00000000, 0x00000000, 0x00140000, 0x00000001)
00;00;47;027: DIAG: InitAddrSpace
itle(0x000500301001110A) came back with cosxml(0x000500301001110A)
00;00;47;027: DIAG: Switch(New)
areTitleAsync(0x000500301001110A)
00;00;47;027: DIAG:+Loader(1, 6)
cessing font CRCs on core:1
38:58
00;00;47;027: DIAG:+KiRPLLoaderSetup

00;00;47;027: DIAG:-KiRPLLoaderSetup: before no-return call to KiLoadContext (0xEFE09400) (0x01003FFC)
00;00;47;027: Title Loc is 0
0x3000
000400A
00:00:47:185: MCP: PID 14 requested to enable power transitions
00;00;47;066: DIAG:-Loader(1, 6)
00
000400A
00;00;47;066: DIAG: SetFG(6)
erSetup: before no-return call to KiLoadContext (0xEFE09400) (0x01003FFC)
00;00;47;066: KiCblRegisterBlocks() completed with status 0:-4.
00;00;47;066: ------------------PROCESS 6 GAIN FOREGROUND--------------------
00;00;47;069: SYSLOG_LEVEL 1: )
areTitleAsync(0x000500301001110A)
Warnings EnabledAG: InitAddrSpace
itle(0x000500301001110A) came back with cosxml(0x000500301001110A)

0;00;47;027: DIAG: PhysAlloc(6, 0x00800000, 0x00000000, 0x00000000, 0x00140000, 0x00000001)
00;00;47;069: UserMode Core & Thread Initialization (3 Cores)
---------------
00;00;47;069:   Core 1 Complete, Default Thread 0x100457E0
00:00:47:267: MCP: PID 14 requested to disable power transitions
00;00;47;071:   Core 0 Complete, MSR 0x00005072, Default Thread 0x10045140
00;00;47;073:   Core 2 Complete, MSR 0x00005072, Default Thread 0x10045E80
00;00;47;095: UserMode OS library build date: Feb  4 2021 16:38:58
00;00;47;095: __AppFlags: 0x00002200

ood
 1
ule_mask:ffffffffffffffff level:1
00;00;47;096: OSBlockThreadsOnExit default for sdk version 21204
00000 len = 9437184
00;00;47;146: ------------------PROCESS 6 LOST FOREGROUND--------------------
00;00;47;147: KiCblRegisterBlocks() completed with status 0:-4.
00:00:47:356: MCP: loaded and parsed 'preload.txt' at '/vol/storage_mlc01/sys/title/00050030/1001010a/code'
00:00:47:359: MCP: Preparing hbm.rpx
00:00:47:365: MCP: Mapping /vol/content to /vol/storage_mlc01/sys/title/00050030/1001010a/content
+0x000500301001010a:0x000000c5
00;00;47;147: ------------------PROCESS 1 GAIN FOREGROUND--------------------
00;00;47;150: DIAG:Issued KiPrepareTitleAsync(0x000500301001010A)
00;00;47;246: DIAG:Result PrepareTitle(0x000500301001010A) came back with cosxml(0x000500301001010A)
)
00;00;47;251: TitleId 0x000500301001010A Version 0x000000C5 Built On SDK 21211
InitKernelFinish
00;00;47;251: ------------------PROCESS 1 LOST FOREGROUND--------------------
00;00;47;251: DIAG: PhysAlloc(5, 0x08000000, 0x00000000, 0x00000000, 0x02000000, 0x00000001)
00;00;47;251: DIAG: InitAddrSpace
:1 from syslog level
00;00;47;251: DIAG: Switch(New)
00;00;47;251: DIAG:+Loader(1, 5)
00;00;47;251: DIAG:+KiRPLLoaderSetup
00;00;47;252: DIAG:-KiRPLLoaderSetup: before no-return call to KiLoadContext (0xEFE09400) (0x01003FFC)
00;00;47;252: Title Loc is 0
00:00:47:562: MCP: PID 14 requested to enable power transitions
00;00;47;443: DIAG:-Loader(1, 5)
Default Thread 0x100457E0
00;00;47;443: DIAG: SetFG(5)
00;00;47;443: KiCblRegisterBlocks() completed with status 0:-4.
iLoadContext (0xEFE09400) (0x01003FFC)
00;00;47;443: ------------------PROCESS 5 GAIN FOREGROUND--------------------
00;00;47;446: SYSLOG_LEVEL 1: 5)
Warnings EnabledAG: Switch(New)

0;00;47;251: DIAG: InitAddrSpace
:1 from syslog level
00;00;47;446: UserMode Core & Thread Initialization (3 Cores)
00000, 0x02000000, 0x00000001)
00;00;47;446:   Core 1 Complete, Default Thread 0x100457E0
------------------
00:00:47:641: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:00:47:644: [WD]>>>> Linkup msg from Net
00:00:47:662: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00;00;47;448:   Core 0 Complete, MSR 0x00005072, Default Thread 0x10045140
00;00;47;448:   Core 2 Complete, MSR 0x00005072, Default Thread 0x10045E80
00;00;47;471: UserMode OS library build date: Feb  4 2021 16:38:58
n SDK 21211
InitKernelFinish
00;00;47;471: __AppFlags: 0x00000200

(0x000500301001010A) came back with cosxml(0x000500301001010A)
)
00;00;47;471: OSBlockThreadsOnExit default for sdk version 21211

00;00;47;826: SYSAPP: RPL Load
, Default Thread 0x100457E0
------------------
00;00;47;858: OSSetting_SynchronousPrinting DISABLED
457E0
------------------
00;00;47;862: OSSetting_CrashDumpType 0, t for sdk version 21211

MINI dump after crash
gs: 0x00000200

(0x000500301001010A) came back with cosxml(0x000500301001010A)
)
00:00:48:020: ccr_hid_input_start: idx 0 controller: 0, ep 3 int req --> 0
00;00;47;897: TCL(5): init DONE
0200

(0x000500301001010A) came back with cosxml(0x000500301001010A)
)
00;00;47;900: VPADInit() depricated, no need to call
rsion 21211

00;00;47;900: port 0 attached
onousPrinting DISABLED
457E0
------------------
00;00;47;903: VPAD Init end, BPERF: (0/48022915) Title PID=5
38:58
n SDK 21211
InitKernelFinish
[ACP]INFO:GetApplicationInfoForPdm:641: Loading meta.xml for getting is play event.
00;00;47;906: __UVDReadOSRelaunchMode FAILED: returned 9
res)
00000, 0x02000000, 0x00000001)
WLC_E_SET_SSID: result 3  aid 0  bssid m
00;00;47;958:    ACP_AutoInit: start
from syslog level
00;00;47;959:    ACP_AutoInit: ACPInitialize complete
00;00;47;959:    ACP_AutoInit: ACPSaveDataInit complete
00;00;47;966:    ACP_AutoInit: ACPNotifyPlayEvent complete
------------------
00;00;48;171:    ACP_AutoInit: NDMInitialize complete
tus 0:-4.
iLoadContext (0xEFE09400) (0x01003FFC)
00;00;48;171: ACP: initialized
00;00;48;172: [barista-Process] Product {:program=>38956, :message=>43332, :programProj=>39097, :root=>39136, :sead=>37528, :resource=>39136}
00;00;48;172: [barista-Process] Cafe OS SDK Version 2.12.11 Build 66642 Branch

00;00;48;232: WPAD: Application Init
ompleted with status 0:-4.
00:00:48:496: IFNET_ETH: Link DOWN.
00:00:48:675: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
[ACP]INFO:ClearApplicationBoxCacheForBoss:6353: ClearApplicationBoxCacheForBoss failed due to result.GetValue() = -1607403008
00:00:50:726: MCP: PID 14 requested to disable power transitions
00;00;50;609: ProcUI: Received Release Foreground message
0:-4.
00;00;50;614: ProcUI: Releasing foreground
 Version 2.12.11 Build 66642 Branch

00;00;50;697: port 0 detached
g foreground
 Version 2.12.11 Build 66642 Branch

00:00:50:858: MCP: PID 14 requested to enable power transitions
00:00:50:860: MCP: PID 14 requested to disable power transitions
00;00;50;738: ------------------PROCESS 5 LOST FOREGROUND--------------------


00;00;50;739: KiCblRegisterBlocks() completed with status 0:-4.
00;00;50;739: ------------------PROCESS 1 GAIN FOREGROUND--------------------
ogramProj=>39097, :root=>39136, :sead=>37528, :resource=>39136}
00;00;50;741:


-----------------------------
ROOT IS STARTING MASTER TITLE
-----------------------------

00;00;50;741: TEST COOKIE: YOSHI-1992-11-21-00-00-00

tus 0:-4.
iLoadContext (0xEFE09400) (0x01003FFC)
00;00;50;743: DIAG:Issued KiPrepareTitleAsync(0x0005001010040100)
-----------
00:00:51:677: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:00:51:679: [WD]>>>> Linkup msg from Net
00:00:51:689: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:00:52:695: NET: Change admin state (1 -> 2)(iface:0 link:2)
00;00;52;792: ---Waiting in process 1 to be ready to switch to 0

-----------
00:00:54:365: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:00:54:367: [WD]>>>> Linkup msg from Net
00:00:54:376: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:00:54:382: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:00:54:384: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:00:54:488: [WD]>>>> Linkup msg from Net
00:00:54:498: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00;00;54;841: ---Waiting in process 1 to be ready to switch to 0

-----------
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:00:55:503: NET: Change admin state (1 -> 2)(iface:0 link:2)
00;00;56;889: ---Waiting in process 1 to be ready to switch to 0

-----------
00:00:58:506: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:00:58:508: [WD]>>>> Linkup msg from Net
00:00:58:517: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00;00;58;938: ---Waiting in process 1 to be ready to switch to 0

-----------
00:00:59:523: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00;01;00;987: ---Waiting in process 1 to be ready to switch to 0

-----------
00:01:02:525: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:02:527: [WD]>>>> Linkup msg from Net
00:01:02:537: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:01:02:910: MCP: Titles scanned (dev_state 0004) on device /dev/mlc01 (wfs) @ uptime 62.910 s.
WLC_E_SET_SSID: result 3  aid 0  bssid m
00;01;03;036: ---Waiting in process 1 to be ready to switch to 0

-----------
00:01:03:543: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:04:133: MCP: loaded and parsed 'preload.txt' at '/vol/storage_mlc01/sys/title/00050010/10040100/code'
00:01:04:136: MCP: Preparing men.rpx
00;01;04;020: DIAG:Result PrepareTitle(0x0005001010040100) came back with cosxml(0x0005001010040100)
00:01:04:335: MCP: Mapping /vol/content to /vol/storage_mlc01/sys/title/00050010/10040100/content
00:01:04:340: MCP: Warning title:0x0005001010040100 does not have ramdisk read capability (forcing)
00:01:09:366: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:09:368: [WD]>>>> Linkup msg from Net
00:01:09:378: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:01:09:383: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:01:09:385: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:01:09:489: [WD]>>>> Linkup msg from Net
00:01:09:499: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
alive
00:01:10:505: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:13:507: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:13:509: [WD]>>>> Linkup msg from Net
00:01:13:519: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:14:525: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:17:527: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:17:529: [WD]>>>> Linkup msg from Net
00:01:17:539: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:18:545: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00:01:24:367: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:24:369: [WD]>>>> Linkup msg from Net
00:01:24:379: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:01:24:384: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:01:24:386: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:01:24:490: [WD]>>>> Linkup msg from Net
00:01:24:500: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:25:506: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:28:508: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:28:510: [WD]>>>> Linkup msg from Net
00:01:28:519: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:29:526: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00:01:32:528: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:32:530: [WD]>>>> Linkup msg from Net
00:01:32:540: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:33:545: NET: Change admin state (1 -> 2)(iface:0 link:2)
00;01;39;020: ***PrepareTitle(async) of 0x0005001010040100 returned error -32 (0xFFFFFFE0)
10040100)
00:01:39:368: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:39:370: [WD]>>>> Linkup msg from Net
00:01:39:379: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:01:39:384: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:01:39:387: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:01:39:491: [WD]>>>> Linkup msg from Net
00:01:39:504: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
alive
00:01:40:511: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:41:310: MCP: Titles scanned (dev_state 000c) on device /dev/mlc01 (wfs) @ uptime 101.310 s.
00:01:43:442: MCP: Titles scanned (dev_state 0006) on device /dev/mlc01 (wfs) @ uptime 103.442 s.
00:01:43:513: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:43:515: [WD]>>>> Linkup msg from Net
00:01:43:531: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:44:537: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:47:539: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:47:543: [WD]>>>> Linkup msg from Net
00:01:47:553: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:48:559: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00:01:54:369: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:54:371: [WD]>>>> Linkup msg from Net
00:01:54:380: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:01:54:387: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:01:54:389: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:01:54:494: [WD]>>>> Linkup msg from Net
00:01:54:504: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:55:510: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:01:58:512: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:01:58:514: [WD]>>>> Linkup msg from Net
00:01:58:524: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:01:59:530: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00:02:02:532: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:02:534: [WD]>>>> Linkup msg from Net
00:02:02:544: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:02:03:549: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:09:370: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:09:372: [WD]>>>> Linkup msg from Net
00:02:09:381: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:02:09:387: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:02:09:389: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:02:09:493: [WD]>>>> Linkup msg from Net
00:02:09:504: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
alive
00:02:10:510: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:13:512: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:13:514: [WD]>>>> Linkup msg from Net
00:02:13:524: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00;02;14;020: ***Could not start master title on device type 0 due to error -32. [5359]=Switch to error.
00;02;14;020: SystemFatal(core1)
1992-11-21-00-00-00

tus 0:-4.
iLoadContext (0xEFE09400) (0x01003FFC)
00;02;14;020: Aborting/Abandoning Driver "KPAD" (master 5)
TING MASTER TITLE
-----------------------------

00;02;14;020: Aborting/Abandoning Driver "WBC" (master 5)
-------------------
ogramProj=>39097, :root=>39136, :sead=>37528, :resource=>39136}
00;02;14;020: Aborting/Abandoning Driver "FS" (master 5)
 0:-4.
00;02;14;020: Aborting/Abandoning Driver "SND" (master 5)
-------------------


00;02;14;020: Aborting/Abandoning Driver "UVD" (master 5)
00;02;14;020: Aborting/Abandoning Driver "ACP" (master 5)
00;02;14;020: Aborting/Abandoning Driver "GX2" (master 1)
00;02;14;020: Aborting/Abandoning Driver "WPAD" (master 1)
s)
00000, 0x02000000, 0x00000001)
00;02;14;020: Aborting/Abandoning Driver "PAD" (master 1)
=5
38:58
n SDK 21211
InitKernelFinish
00;02;14;020: Aborting/Abandoning Driver "CLIPBOARD" (master 1)
-------------
00;02;14;020: Aborting/Abandoning Driver "BUTTON" (master 1)
211

00;02;14;020: Aborting/Abandoning Driver "ACPLOAD" (master 1)
e back with cosxml(0x000500301001010A)
)
00;02;14;020: Aborting/Abandoning Driver "TEST" (master 1)
------------------
00;02;14;020: Aborting/Abandoning Driver "INPT" (master 1)
21204
00000 len = 9437184
00;02;14;020: Aborting/Abandoning Driver "SETTING" (master 1)
ffffffff level:1
00;02;14;020: Aborting/Abandoning Driver "IPC" (master 1)
16:38:58
00;02;14;020: Aborting/Abandoning Driver "CACHE" (master 1)
)
---------------
00;02;14;020: Aborting/Abandoning Driver "MEM" (master 1)
x00000000, 0x00140000, 0x00000001)
00;02;14;020: Aborting/Abandoning Driver "NETWORK" (master 1)
e back with cosxml(0x000500301001110A)
00;02;14;020: Aborting/Abandoning Driver "NSYSUVD" (master 1)
0A)
00;02;14;020: Aborting/Abandoning Driver "AVM" (master 1)
-------------------
00;02;14;020: Aborting/Abandoning Driver "DC" (master 1)
 0:-4.
00;02;14;020: Aborting/Abandoning Driver "TCL" (master 1)
l to KiLoadContext (0xEFE09400) (0x01003FFC)
00;02;14;020: Aborting/Abandoning Driver "TVE" (master 1)
00;02;14;020: Aborting/Abandoning Driver "VPAD" (master 1)
00;02;14;020: Aborting/Abandoning Driver "CCR" (master 1)
INFO: nn::ipc avoided busy close on /dev/acp_main (moduleId = 301, tag = 0) from pid = 19
INFO: nn::ipc avoided busy close on /dev/acp_main (moduleId = 301, tag = 0) from pid = 19
00:02:14:530: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:17:532: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:17:534: [WD]>>>> Linkup msg from Net
00:02:17:544: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:02:18:550: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00;02;22;119: IPCKDriver_CloseAll Timeout: proc 5, fd 0x0012200C
00:02:24:372: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:24:374: [WD]>>>> Linkup msg from Net
00:02:24:383: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:02:24:388: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:02:24:390: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:02:24:495: [WD]>>>> Linkup msg from Net
00:02:24:504: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:02:25:510: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:28:073: FAIL: PPC Core 0 Heartbeat Failed!  Restarting...
00:02:28:075: PPC Core 0 Heartbeat Failed!
00:02:28:512: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:28:514: [WD]>>>> Linkup msg from Net
00:02:28:524: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:02:29:530: NET: Change admin state (1 -> 2)(iface:0 link:2)
alive
00:02:32:532: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:32:534: [WD]>>>> Linkup msg from Net
00:02:32:543: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
00:02:33:549: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:34:147: MCP: life time number of fatal errors - 625
00:02:34:151: MCP: storing current logs as '/vol/system/logs/26.log'
00:02:39:373: NET: Change admin state (2 -> 1)(iface:0 link:2)
00:02:39:375: [WD]>>>> Linkup msg from Net
00:02:39:385: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
00:02:39:390: NET: Change admin state (2 -> 2)(iface:1 link:2)
00:02:39:392: NET: Change admin state (1 -> 1)(iface:0 link:3)
00:02:39:496: [WD]>>>> Linkup msg from Net
00:02:39:506: wlc_mlme_join_cmd called with Command 0x3 Length 0x21
WLC_E_SET_SSID: result 3  aid 0  bssid m
alive
00:02:40:512: NET: Change admin state (1 -> 2)(iface:0 link:2)
00:02:41:713: MCP: Copying file:/vol/storage_mlc01/sys/title/00050010/10040100/content/Common/Package/Men.pack to ramdisk:/vol/system_ram/proc/cache/Men.pack
00:02:41:717: MCP: Link title:0x0005001010040100 file:/vol/content/Common/Package/Men.pack to ramdisk:/vol/sys/proc_ram/cache/Men.pack
00:02:41:721: MCP: 0005001010040100 is not a demo title, skip increment demo launch count
00:02:41:723: MCP: Mapping /vol/content to /vol/storage_mlc01/sys/title/00050010/10040100/content
00:02:42:272: MCP: Finished storing current logs as '/vol/system/logs/26.dsc'
+0x0005001010040100:0x00000115
00:02:42:276: MCP: PID 14 requested to enable power transitions
iosPanic(): PPC Core 0 Heartbeat Failed!

I was scared that the Gamepad turned on at full volume... JAJAJA
Well, he threw all that at me, I don't know what happened...

EDIT:

I was reading this,
I did step 5 and 6...
and I start, slowly but I start...
The slow thing is because I'm from SD, right?

I did step 7...
A window came out that said...
"welcome to rednand salt edition"
faster start than before... I would say better...

Can it be used normally? I'm just from SD, right?
All of this could no longer be cloned to the eMMC because it is damaged, right?
then I have to physically replace that memory on the motherboard with an SD or microSD as in the post
"Using NAND-AID to repair a broken eMMC (fix 160-0103 system memory error)", right?

SDIO · Mar 22, 2024

I would say the best thing to do would be to backup your saves now using save mii and then replace the eMMC and reinstall the MLC fresh there. You don't know how much more corruption there is. The booting now was just to give you a convenient way to get the saves

Shadowthecanine · Mar 23, 2024

SDIO said:
I would say the best thing to do would be to backup your saves now using save mii and then replace the eMMC and reinstall the MLC fresh there. You don't know how much more corruption there is. The booting now was just to give you a convenient way to get the saves

You're right, I'm going to do the backup, which is the most important thing right now...

Do you think it would be worth formatting and installing the MLC again on the eMMC? Or do I better see a way to install a MicroSD to replace it...?
By the way, apart from the microSD, is there any other type of capacity limit? or can you put SSD?

On an HDD that had games, is there a way to save them? And they can reconnect to the new MLC, what will I put? or will it be lost?

EDIT:
Save mii is failed...

SDIO · Mar 23, 2024

Shadowthecanine said:
You're right, I'm going to do the backup, which is the most important thing right now...

Backing up was the whole point of creating this redNAND and booting it. The slow speed is because the Wii U doesn't like your SD card or some reason or maybe because on of the contacts in the slot is bad. Better get off of it what you need and then don't bother with it again. But yeah in theory it would be possible to fix up all the corruption on the redNAND and use that. But it is not really recommended, since it was cloned form the sys nand, it has SCFM enabled, which will give you really poor write performance.

Shadowthecanine said:
Do you think it would be worth formatting and installing the MLC again on the eMMC? Or do I better see a way to install a MicroSD to replace it...?

While it is possible to erase the eMMC and reinstall a new system to it, I really don't recommend it. The eMMC failed you once, it will fail you again. Also I don't want to have that possibility wide spread, as it could be abused by ruthless sellsers to take a shortcut and sell consoles with broken hardware as working.
The cleanes solution would be to instal a MLC2SD and use a micro SD with it. But you don't have to. You could also just use some wires to just solder a micro SD adapter to it.
You could also use redNAND, if you find a SD card that works properly and install a fresh system to the redNAND. uSATA with a SATA SSD would also be an option, but you would lose the Disc drive.
Since you were able to defuse and are already in the console, I would asume you want also to replace the eMMC with an SD to restore original functionality completely.

Shadowthecanine said:
By the way, apart from the microSD, is there any other type of capacity limit? or can you put SSD?

You can use any size of SD >= 8GB, but IOSU will limit the usable size to 64GB. To use more than 64GB, you need an IOSU patch, and that would require you to keep defuse or ISFShax installed (else the patch can't be applied early enough).
To use an SSD you would need to use the uSATA to replace the Disc drive with a SATA SSD. This would be limited to 2TB, and doesn't require permanent defuse / ISFShax.

Shadowthecanine said:
On an HDD that had games, is there a way to save them? And they can reconnect to the new MLC, what will I put? or will it be lost?

It will just work. You might have to create more users after the rebuild to get the numerical user id to match the saves on the HDD, but that is rather trivial.

Shadowthecanine said:
Save mii is failed...

Where exactly does it fail? Launching or backing up a save? Try one save at a time and make sure to use the latest SaveMii.
If SaveMii doesn't work, you could still use FTP to download the saves that way.

Shadowthecanine · Mar 23, 2024

SDIO said:
Backing up was the whole point of creating this redNAND and booting it. The slow speed is because the Wii U doesn't like your SD card or some reason or maybe because on of the contacts in the slot is bad. Better get off of it what you need and then don't bother with it again. But yeah in theory it would be possible to fix up all the corruption on the redNAND and use that. But it is not really recommended, since it was cloned form the sys nand, it has SCFM enabled, which will give you really poor write performance.

I understand, then that would be better...
I'll see if I can get another MicroSD to see what happens...

SDIO said:
While it is possible to erase the eMMC and reinstall a new system to it, I really don't recommend it. The eMMC failed you once, it will fail you again. Also I don't want to have that possibility wide spread, as it could be abused by ruthless sellsers to take a shortcut and sell consoles with broken hardware as working.
The cleanes solution would be to instal a MLC2SD and use a micro SD with it. But you don't have to. You could also just use some wires to just solder a micro SD adapter to it.
You could also use redNAND, if you find a SD card that works properly and install a fresh system to the redNAND. uSATA with a SATA SSD would also be an option, but you would lose the Disc drive.
Since you were able to defuse and are already in the console, I would asume you want also to replace the eMMC with an SD to restore original functionality completely.

I like your way of thinking...
Yes, I saw your post, I thought it was excellent...
I was thinking of using some gamecube "SD2SP2" that I have, which would be basically the same based on what I'm understanding...

SDIO said:
You can use any size of SD >= 8GB, but IOSU will limit the usable size to 64GB. To use more than 64GB, you need an IOSU patch, and that would require you to keep defuse or ISFShax installed (else the patch can't be applied early enough).
To use an SSD you would need to use the uSATA to replace the Disc drive with a SATA SSD. This would be limited to 2TB, and doesn't require permanent defuse / ISFShax.

So if I use a 32GB or 64GB one, I can leave it mounted, replacing the eMMC and I won't need "defuse or ISFhax", correct?
I have several 32GB ones, I think I'll try one of those to start...
Then I'll see if I get one of 64GB or larger...

SDIO said:
It will just work. You might have to create more users after the rebuild to get the numerical user id to match the saves on the HDD, but that is rather trivial.

Just because it is the same console, will it read it? Didn't it depend on the Wiiu operating system?
because I have 2 Wiiu's, a white 4g one and this black 32gb one that we have been repairing...
I can't cross the HDDs, if I put the one on the black console on the white one, it wouldn't read them... is there something I'm ignoring?

I mean, without manipulating my HDD of my old MLC, when installing the new MLC will it read it without problems as if nothing happened? it would be great jeje

SDIO said:
Where exactly does it fail? Launching or backing up a save? Try one save at a time and make sure to use the latest SaveMii.
If SaveMii doesn't work, you could still use FTP to download the saves that way.

when starting savemii from homebrew... I didn't enter the menu or anything about savemii and the screen went black...
and if it was the latest version... I will have to use FTP...

SDIO · Mar 23, 2024

The SD2SP won't work, as it only used SPI and not SDIO. SPI uses less pins. So you would need to solder some wires to the SD slot directly.

You can use a 64GB card directly. The Sandisk Max Endurance cards are confirmed working, we are using them all the time. Samsung Endurance cards should also be fine.

Shadowthecanine said:
Just because it is the same console, will it read it?

We are not doing a factory reset, so the USB key in the SEEPROM stays the same. So it will be able to read the same drive. Also whatever it has in the SLC relating to the USB also won't be touched.
Every console has it's own key, that's why you can't swap it between consoles.

For getting the saves with FTP:
make sure access to system files is enabled:

Open the Aroma Plugin Configuration Menu using L + Down + SELECT (-) on the GamePad or Pro Controller (or B + Down + Minus (-) for WiiMotes)
Open the FTPiiU option, then settings and set ‘Allow access to system files’ to ‘true’ by pressing A

Downloading the saves:

Using a FTP client on the PC browse to /storage_mlc/usr
Make sure your FTP client is in binary mode (not ASCII mode)
Download the save folder to your PC

Shadowthecanine · Mar 23, 2024

SDIO said:
The SD2SP won't work, as it only used SPI and not SDIO. SPI uses less pins. So you would need to solder some wires to the SD slot directly.

seriously? I haven't checked the pinout, if something is missing then I'll add the jumper, but the card allows me to take advantage of the MicroSD connectors that I have... what's missing is added, right? If not, then I add a MicroSd to SD that I also have...

SDIO said:
You can use a 64GB card directly. The Sandisk Max Endurance cards are confirmed working, we are using them all the time. Samsung Endurance cards should also be fine.

We are not doing a factory reset, so the USB key in the SEEPROM stays the same. So it will be able to read the same drive. Also whatever it has in the SLC relating to the USB also won't be touched.
Every console has it's own key, that's why you can't swap it between consoles.

For getting the saves with FTP:
make sure access to system files is enabled:

Open the Aroma Plugin Configuration Menu using L + Down + SELECT (-) on the GamePad or Pro Controller (or B + Down + Minus (-) for WiiMotes)

Open the FTPiiU option, then settings and set ‘Allow access to system files’ to ‘true’ by pressing A

Downloading the saves:

Using a FTP client on the PC browse to /storage_mlc/usr

Make sure your FTP client is in binary mode (not ASCII mode)

Download the save folder to your PC

ok, I will give priority to those MicroSD brands that you recommend...

oh, I understand, I understand then how that HDD and the SLC work, and it is not the same as the MLC that we are editing... okay okay...

I don't have the "aroma" I have the haxchi, to enter the homebrew , I don't think there is a problem, right? First use FTP to delete the "update" folder... they would be the same steps to enter, right?
and then do the steps you say to download the files to the PC, right?

SDIO · Mar 23, 2024

Oh maybe savemii isn't working because you are on haxchi. I think for haxchi you would have to use this: https://hb-app.store/wiiu/savemii
Or you just upgrade to Aroma, just for running savemii once, you don't have to install it to the console, you can just run it from the browser exploit.

Here have a look at the pinout: http://www.electroniccircuitsdesign.com/pinout/sd-microsd-card-pinout.html
SD2SP uses SPI and the Wii U uses SD. The slot itself probably has all the pins, but they go nowhere on the PCB

Shadowthecanine · Mar 23, 2024

SDIO said:
Oh maybe savemii isn't working because you are on haxchi. I think for haxchi you would have to use this: https://hb-app.store/wiiu/savemii
Or you just upgrade to Aroma, just for running savemii once, you don't have to install it to the console, you can just run it from the browser exploit.

Here have a look at the pinout: http://www.electroniccircuitsdesign.com/pinout/sd-microsd-card-pinout.html
SD2SP uses SPI and the Wii U uses SD. The slot itself probably has all the pins, but they go nowhere on the PCB

oh, I see, so now I'm going to try the other Savemii for haxchi, if it doesn't work I'll see about Aroma from the explorer...

Yes, that's what I thought, that not all the pins would be on the PCB and I would have to solder jumpers from the connector, I will check it calmly before soldering anything... thank you, I really appreciate your attention and your knowledge.

SDIO · Mar 25, 2024

A MLC2SD is also just 3 bucks from @V10lator , if you don't want to order from a PCB manufacturer

Shadowthecanine · Mar 25, 2024

SDIO said:
A MLC2SD is also just 3 bucks from @V10lator , if you don't want to order from a PCB manufacturer

thanks, I have many SD2SP2 and also many SD adapters, I will try to use them, if I can't, I will order MLC2SD... I have 2wiiu, so I use at least 2...

Hardware Wiiu 5.5.3U try to Update 5.5.6U then Brick

Active Member

Attachments

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Well-Known Member

Active Member

Similar threads

Popular threads in this forum
