Wii U Joysticks

Discussion in 'Wii U - Console, Accessories and Hardware' started by insomniac45177, Jun 20, 2017.

  1. insomniac45177
    OP

    insomniac45177 Member

    Newcomer
    42
    7
    Jun 2, 2017
    United States
    so a while i was playing around swapping buttons between my white and black gamepads. i guess i was just trying to make them more me i guess. but while i was doing that i had the idea to put ps4 ds4 joysticks on my gamepad. who would have thought that they fit perfectly no problem. one of the best things i might have ever did. they are so comfortable . check it out


    Attached Files:

    biggan1 likes this.
  2. biggan1

    biggan1 GBAtemp Regular

    Member
    148
    29
    Dec 9, 2016
    Great job man!
    I'm impressed everyday how productive this community is!
    Looks really good.

    Did it require any soldering? Maybe there's other cool mods to be made.
    Maybe you should make guide, I think many wants to replace their joypad but don't know how.

    insomniac45177 likes this.
  3. insomniac45177
    OP

    insomniac45177 Member

    Newcomer
    42
    7
    Jun 2, 2017
    United States
    Honestly no soldering at all they just went right on like they were made for it. what happened it i got a set of glow in the dark button from amazon for my ds4. so that left me with the stock ones. well i had a afterglow wii u pro controller and i liked the sticks so i tried to put them on my gamepad. they fit kinda. but they were to big and would not move freely. so when i took those back out i seen my stock ds4 ones and kinda tried it as a joke. i couldnt believe they fit. no mi wish i would have put the glowing ones in the gamepad lol

  4. insomniac45177
    OP

    insomniac45177 Member

    Newcomer
    42
    7
    Jun 2, 2017
    United States
    first off i would like to say.....this is my spare gamepad. i originally got it because i wanted to try to make a portable ouya from it.

    but anyways, the handy thing about these joysticks is that they are in there like russian nesting dolls. its immediately obvious where each piece goes. but once you get the back off everything is mounted to the front face of the gamepad. to get to the joysticks there is the bigger white housing.
    this covers the joystick's board, but also the d-pad (left side) and the ABXY buttons (right side)
    the final little board is what holds our joys. 2 triwing screams and it is all yours.

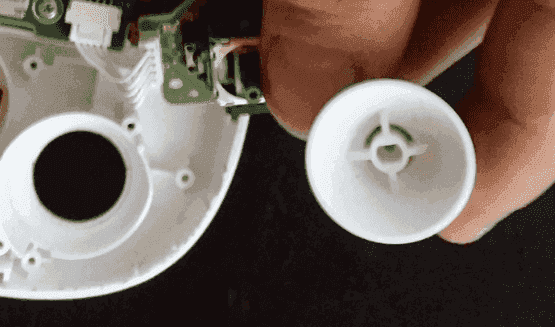

    the joy stick itself is literally held on by nothing

    if i remember correctly i think that the ds4 joys had a ever so slightly different shape to the hole that holds into place. but none the less it work flawlessly.
    i hope that this helps anybody thinking of doing something similiar. one thing about a ds4 controller is they have TONS of cool and original joys all the time that you can use to customize you gamepad.
