    Hi guys, This is my take on the Wii U HDD internal HDD mod, This is a pretty simple mod to do you will have to have some experience with soldering as this is a MUST for soldering the USB wires to the USB points that are located on the bottom of the motherboard.

    So I'm not going into detail on the complete tear down of the Wii U. So here is a guide.

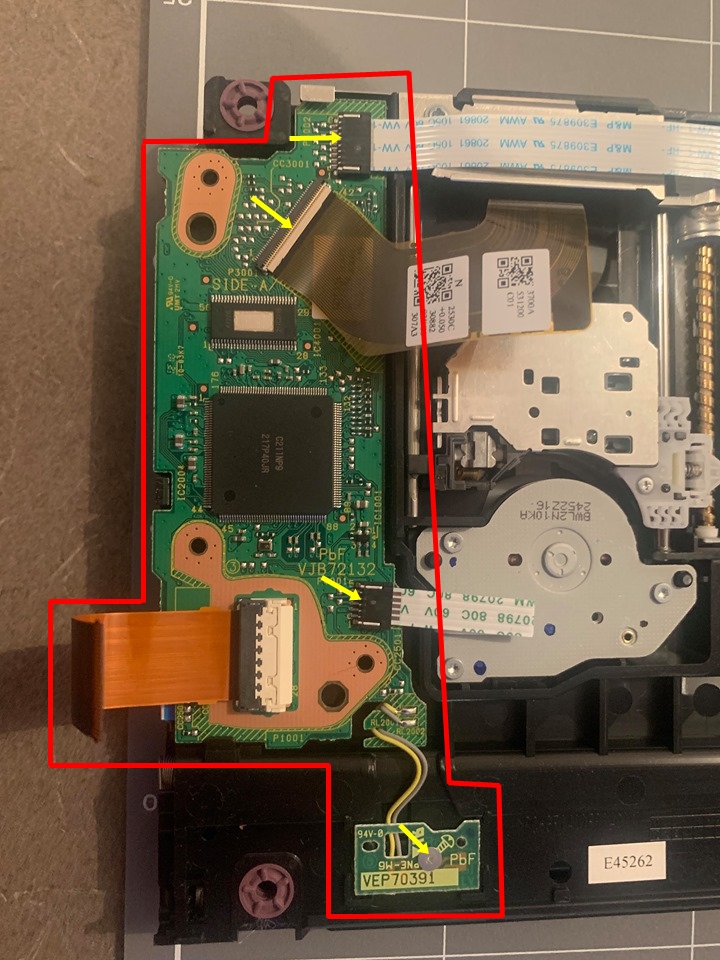

    So once you have the Wii U's optical drive removed, you will need to remove the optical drives PCB board which looks like this, the optical drive comes in it's own metal case. ( this is needed to trick the Wii U in order to boot the Wii U without any errors ). You will need to remove the screws and ribbon cables that have the yellow arrow in the image below.
    drive pcb.jpg
    Once you have removed the optical drive's PCB board it would look like this. Also I wrapped it in electrical tape for safety measures. Once that is done you can place the PCB board back into the optical drive case and screw it back in place.
    71495696_476214386441365_3473162996543389696_n.jpg 71398192_531250764275811_415350786659188736_n.jpg 71316371_405732333653042_5761498013956571136_n.jpg 71208499_2368275793207838_8343206764002410496_n.jpg
    Now For installing the HDD, I used a 2.5'' SATA HDD from a old laptop (400gb) and then I purchased a 2.5'' caddy mount from Amazon /Ebay is your best source for finding one. I had to cut off the handle on the caddy. Then I used a USB 2.0 to SATA Adapter Cable for 2.5" Hard Drive. I also had to cut out a notch in the optical drives case too feed through the cables.
    71728023_2288169534829532_2336840333649772544_n.jpg 71943844_488144415154099_4105217126921404416_n.jpg 71013049_2579209865458256_175310291460947968_n.jpg 71322211_527066794530833_6306103053955104768_n.jpg
    Now lets move onto the soldering part of this mod. So you will need to cut the end off the USB 2.0 to SATA Adapter Cable for 2.5" Hard Drive cable and expose the 4 wires and solder the correct wires to the image below, you will also need to add 2 jumper wires so you are able to do this HDD mod, as this acts like a Y cable as it draws power from the second USB port. I also made a small notch in the motherboard so I could route the wires/cable too the top of the motherboard.

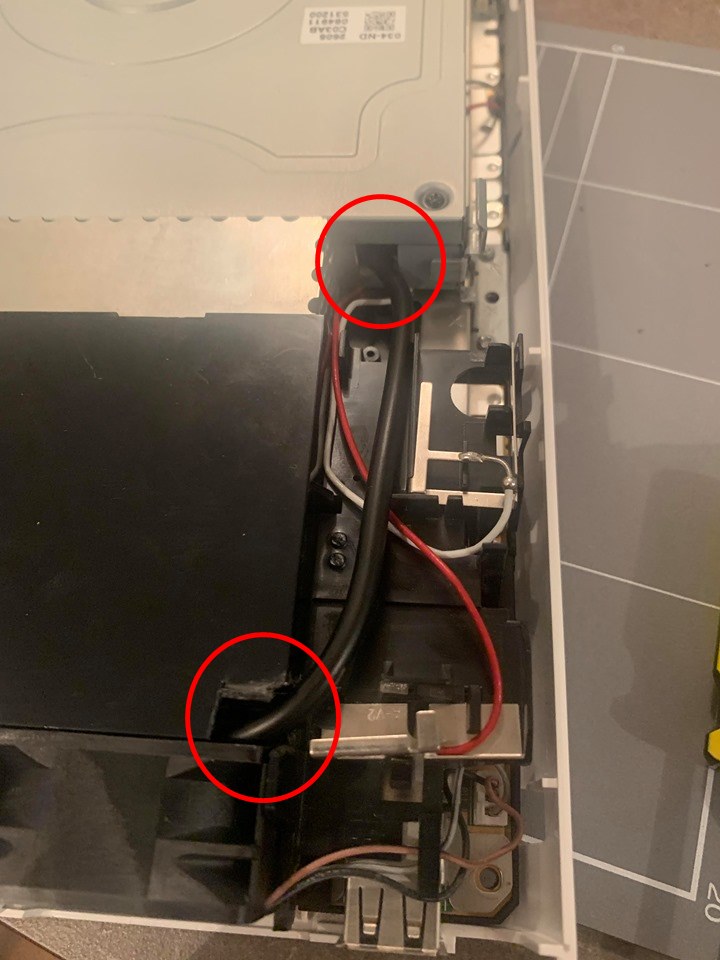

    I fed the wires to the top of the board and routed them behind the fan. I had to make a small cut out notch on the black bracket mount in-order too feed the cable. I also made a new hole for the cable in the optical drive case for better routing of the cable.
    So after this has all been done, test the HDD mod before you put the Wii U back together too insure that the Wii U is reading the HDD you soldered too the motherboard. Once its working and has been formatted, you can put the WIi U back together, Just follow the video I linked above and work backwards too put it back together.
