USB Loader GX Freezing, Not Accepting Inputs, While Cursor is Still Able to Move

[BL4CKH0L3H34RT]

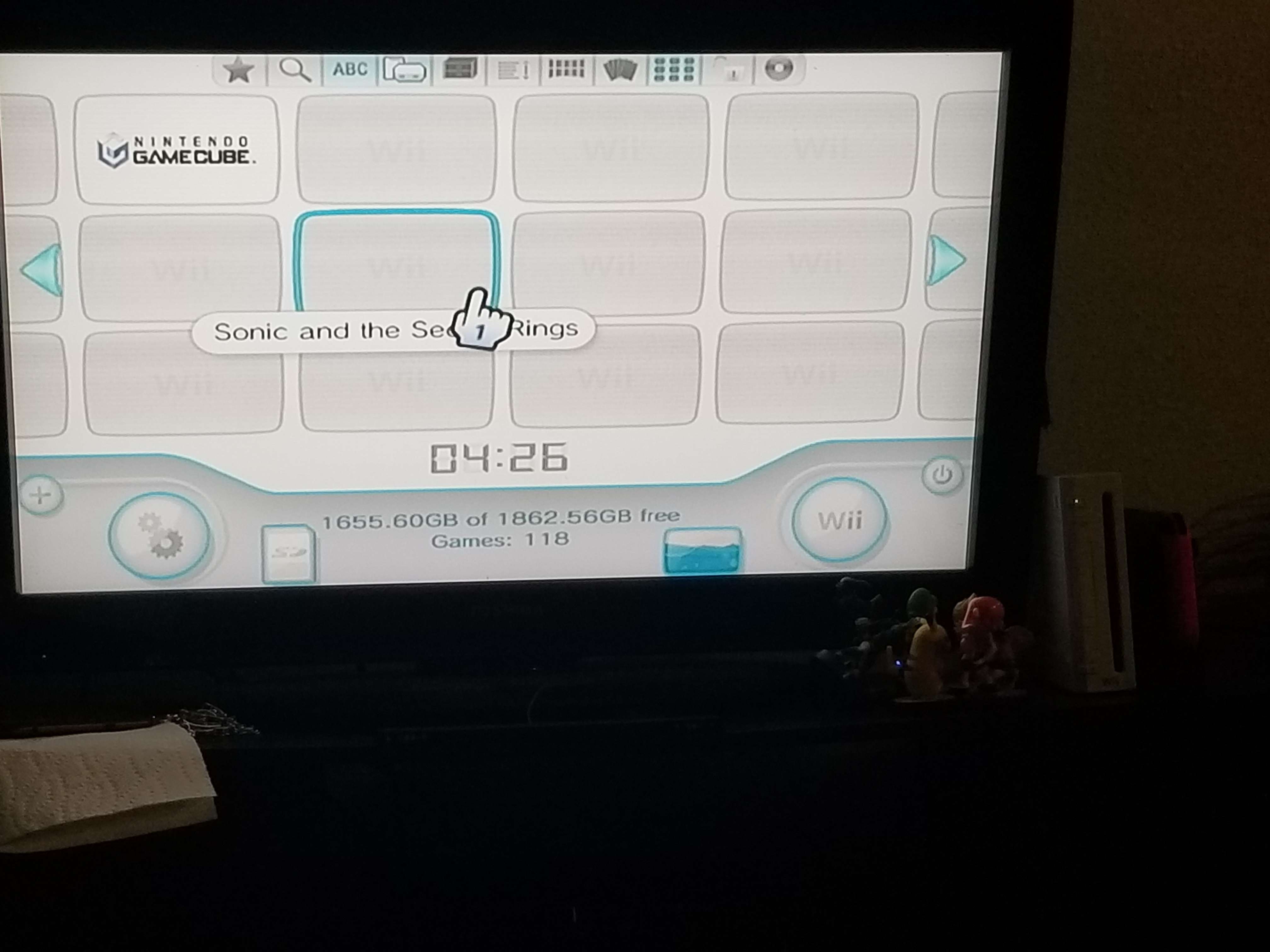

Whenever I open USB Loader GX, most of the time it works fine at first, but eventually after staying on the game selection menu for a little bit/scrolling through my games, the icons will stop loading. Clicking on any of them will cause USB Loader GX to stop accepting my inputs, but the cursor will still be controllable and some UI elements will still react. The only way to get out of this state is to hold the power button down on the Wii for several seconds. This also happens occasionally in the settings menu as well. Attached is an image of what ends up happening to the icons. They stay like this and don't load in no matter how long I wait. I've tried out and have been able to play some games, such as Mario Kart Wii, if I launch them before the issue starts.

USB Loader GX is updated to the most recent version, and I have tried reinstalling it multiple times. I am running it and the games off of a Toshiba 2tb Canvio Flex USB HDD. The drive is formatted to Fat32 32kb MBR. All of the games have been put on the drive using WiiBackupManager/GamecubeBackupManager.

I ran a syscheck, and this was the results:

Spoiler

SysCheck ME v2.5.0 by blackb0x, JoostinOnline, Double_A, R2-D2199 and Nano
...runs on IOS58 (rev 6176).

Region: NTSC-U
System Menu 4.3U (v513)
Priiloader installed
Drive date: 12.18.2008
Homebrew Channel 1.1.2 running on IOS58

Hollywood v0x21
Console ID: 147587377
Console Type: Wii
Shop Channel Country: Canada (18)
Boot2 v4
Found 77 titles.
Found 49 IOS on this console. 7 of them are stubs.

IOS3 (rev 65280): Stub
IOS4 (rev 65280): Stub
IOS9 (rev 1034): No Patches
IOS10 (rev 768): Stub
IOS11[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS12 (rev 526): No Patches
IOS13 (rev 1032): No Patches
IOS14 (rev 1032): No Patches
IOS15 (rev 1032): No Patches
IOS16 (rev 512): Stub
IOS17 (rev 1032): No Patches
IOS20[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS21 (rev 1039): No Patches
IOS22 (rev 1294): No Patches
IOS28 (rev 1807): No Patches
IOS30[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS31 (rev 3608): No Patches
IOS33 (rev 3608): No Patches
IOS34 (rev 3608): No Patches
IOS35 (rev 3608): No Patches
IOS36 (rev 3608): No Patches
IOS37 (rev 5663): No Patches
IOS38 (rev 4124): No Patches
IOS40[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS41 (rev 3607): No Patches
IOS43 (rev 3607): No Patches
IOS45 (rev 3607): No Patches
IOS46 (rev 3607): No Patches
IOS48 (rev 4124): No Patches
IOS50[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS51 (rev 4864): Stub
IOS52[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS53 (rev 5663): No Patches
IOS55 (rev 5663): No Patches
IOS56 (rev 5662): No Patches
IOS57 (rev 5919): No Patches
IOS58 (rev 6176): USB 2.0
IOS60 (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS61 (rev 5662): No Patches
IOS62 (rev 6430): No Patches
IOS70[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS80[60] (rev 65535, Info: ModMii-IOS60-v6174): Trucha Bug, NAND Access
IOS222 (rev 65280): Stub
IOS223 (rev 65280): Stub
IOS248[38] (rev 65535, Info: d2x-v11beta1): Trucha Bug, ES Identify, NAND Access
IOS249[56] (rev 65535, Info: d2x-v11beta1): Trucha Bug, NAND Access, USB 2.0
IOS250[57] (rev 65535, Info: d2x-v11beta1): Trucha Bug, NAND Access, USB 2.0
IOS251[58] (rev 65535, Info: d2x-v11beta1): Trucha Bug, NAND Access, USB 2.0
IOS254 (rev 65281): BootMii
BC v6
MIOS v10
Report generated on 04/01/2024.

Any input on what could be causing my issue is very apprecciated! I've been frantically looking all night for a solution to no avail > <



[JuanMena]

Seems like USB Loader GX being USB Loader GX.

Try CFG USB Loader instead, or, check wether or not you have a GPT boot sector instead of MBR.



[jeannotte]

Try CFG USB Loader instead, or,

very, very good CFG USB LOADER loader.



[BL4CKH0L3H34RT]

Seems like USB Loader GX being USB Loader GX.

Try CFG USB Loader instead, or, check wether or not you have a GPT boot sector instead of MBR.

I checked again and I definitely do have the drive as MBR. CFG Usb Loader seems to work, but I greatly prefer the look and feel of USB Loader GX (alongside me just being stubborn ) so I'm gonna continue investigating the issue.

I think I've greatly narrowed down what the issue is though! I did a complete reinstall of USB Loader GX and all my games onto the HDD, and when I did everything worked! That is, until I downloaded the covers, artwork, and banners for the games. Once I did the issue immediately returned. I had a suspicion that it was a GC game causing the issue so I moved the GC games to a separate folder and the issue immediately went away. I'm gonna make an attempt in a bit to sort through my Gamecube games and see if a specific game is causing my issue.
