Hi,

i bought a deffective switch with a supposed battery problem. After replaced battery, switch
stay always in black screen.
I don’t know the real story of the switch, bricked, water, usb damaged, real breakdown ..
The battery is new, so i suppose that with this new one, switch could wake up if the problem was the usb connector or battery.
What can i check to begin ?
Thanks ! Screen of my mb

Last edited by Larson62,

godreborn

Well-Known Member
Member
Joined
Oct 10, 2009
Messages
22,171
Trophies
1
XP
13,853
Country
United States
have you checked if it charges? I had a switch that's nand failed. it was still under warranty and legit, so I got a replacement from nintendo. anyway, I thought it was the battery as well, but as far as I can remember, it would not charge which lent more credence to that fact. I even tried a different charger. sometimes the nintendo logo would appear but most of the time not. I had hope it was the battery but it was the nand. I don't know if you can do anything if it's the nand especially if you're legit. it's probably something only nintendo could repair. though, they didn't repair my system. they sent me a refurbished unit (checked the serial number), but the one they sent me is hackable, just don't plan on hacking it.


Larson62

Member
OP
Newcomer
Joined
Oct 10, 2018
Messages
5
Trophies
0
Age
52
XP
59
Country
France
Hi,
It seems that switch charge, i can confirm monday, wait for an usb tester order.
There is absoluty no activity inside, so i don’t know if the switch is alive (not detected on my computer with usb to usbc too)


Siedlik

Member
Newcomer
Joined
Oct 14, 2020
Messages
14
Trophies
0
Age
29
XP
59
Country
United Kingdom
Do you have a multimeter ?
Check battery voltage or check if the cable is giving the voltage to the motherboard.


Larson62

Member
OP
Newcomer
Joined
Oct 10, 2018
Messages
5
Trophies
0
Age
52
XP
59
Country
France
Yes, got one. Usb seems to give voltage.
Can i check fuse or capacitor ? Got microscope id needed.
If the switch is bricked, there is no activity inside ? No fan ? No lcd backlight ?


Larson62

Member
OP
Newcomer
Joined
Oct 10, 2018
Messages
5
Trophies
0
Age
52
XP
59
Country
France

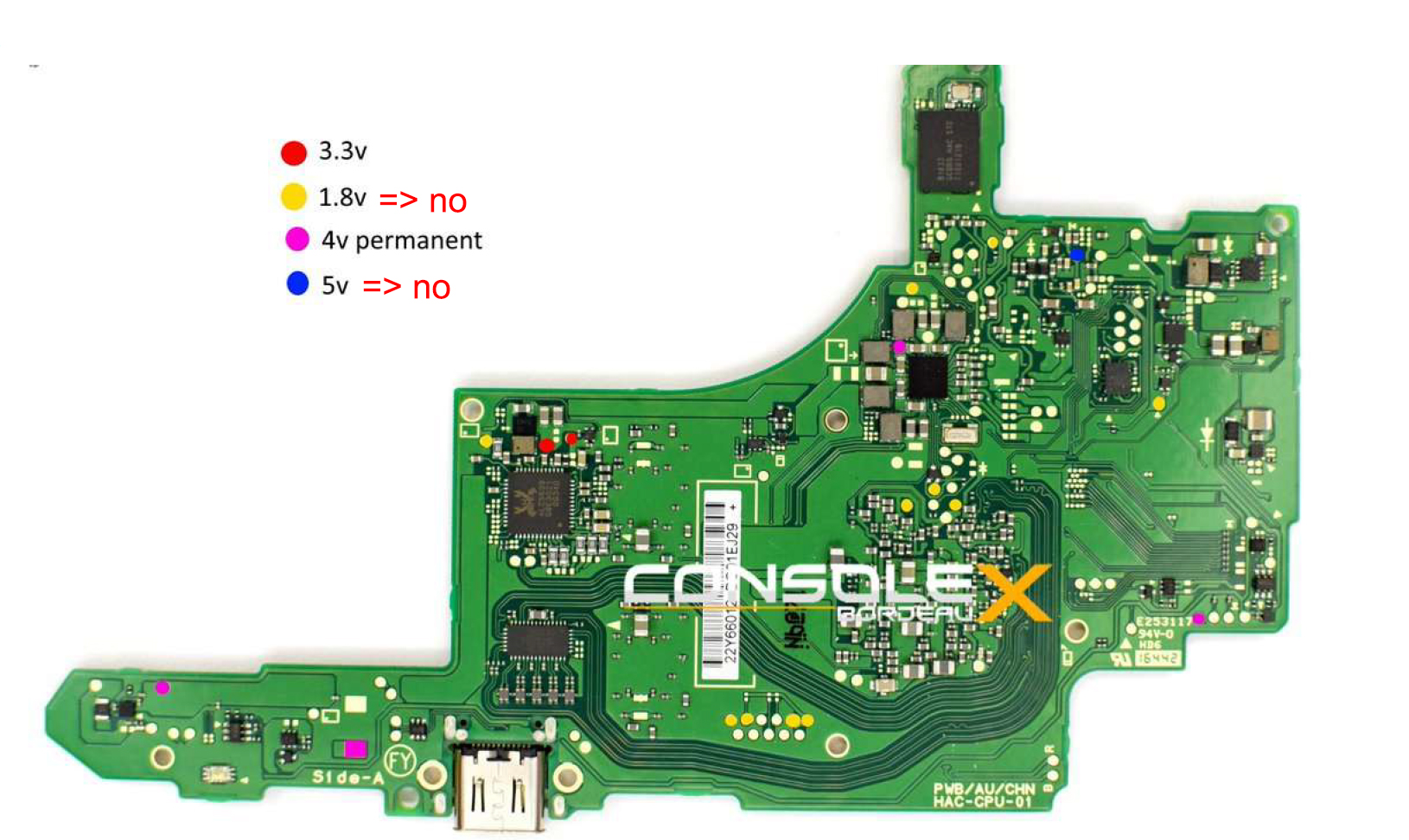

After check i don’t have 1.8v and 5v

any idea about deffective component


Attachments

  • A7EBB853-3AF7-4E16-A7CC-1D41F72EADC8.jpeg
    713 KB · Views: 74
