Hardware PS4 Pro cooling mod

[abdul85pl]

Hi i want to do some cooling mod like this:


but i was wondering - maybe it is better to put the new fan directly above the heatsink?
Yhere are 3 options:
1) like in the movie above the hole from orginal fan

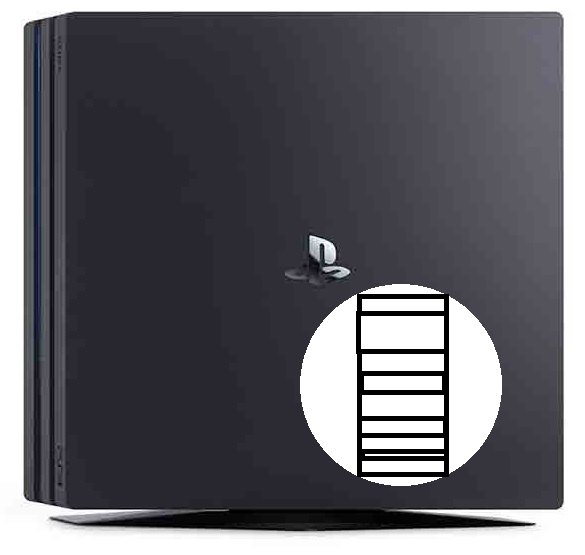

2)directly above the heatsink

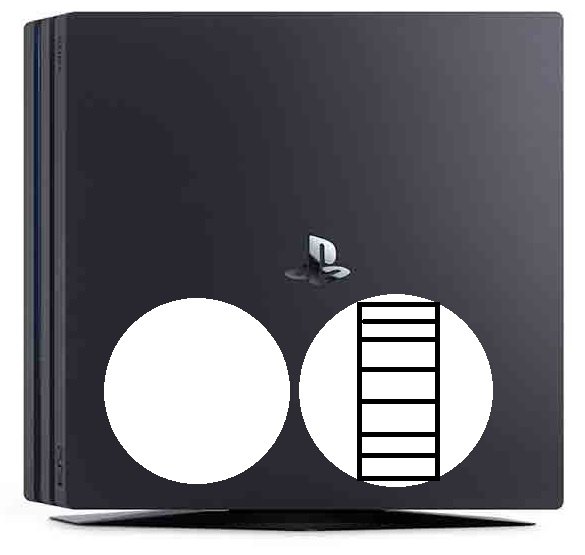

3) two holes, two fans


What do you think is the best?



[KiiWii]

Number 2. Always make sure the fan is oriented to be exhausting heat outwards.



[abdul85pl]

Number 2. Always make sure the fan is oriented to be exhausting heat outwards.

meehhh .. just reaise there is a power supply above more the a half of heatsink. i will move option 1 closer to heatsink (back of the console) as far as possible



[KiiWii]

@abdul85pl why not go mad and have four

... I’m on my iPhone, I couldn’t chop it very well... lol



[abdul85pl]

@abdul85pl why not go mad and have four

... I’m on my iPhone, I couldn’t chop it very well... lol

heheh ;-) will think about it



[weolkrman]

IT will help but not much
The best is to replace thermal paste or buy the 7115b model which don't trigger the fan to go full 100% like the 7106b
7105/06 has two metal places at the bottom. I tried removing to see if it would help fan from going too loud but it didn't
it looks in the 7115/16 version they replaced some component to decrease fan noise

No1 option helps decrease 3~5 degrees Celsius in my experience using a silent 12mm fan on top of the fan (wind going inside)
