Hi,
I got this switch that couldn't output HDMI recently.
identified that there was some water damage, cleaned it up but still didn't output, so i just bought shiny new tools to fix it (bad idea), long story short,
I had the SMD reworks at to high of a temp, and without a microscope, i royally messed up and blew all the stuff around,
want to give it another try, and was reading the forums to try to consolidate what parts i needed.

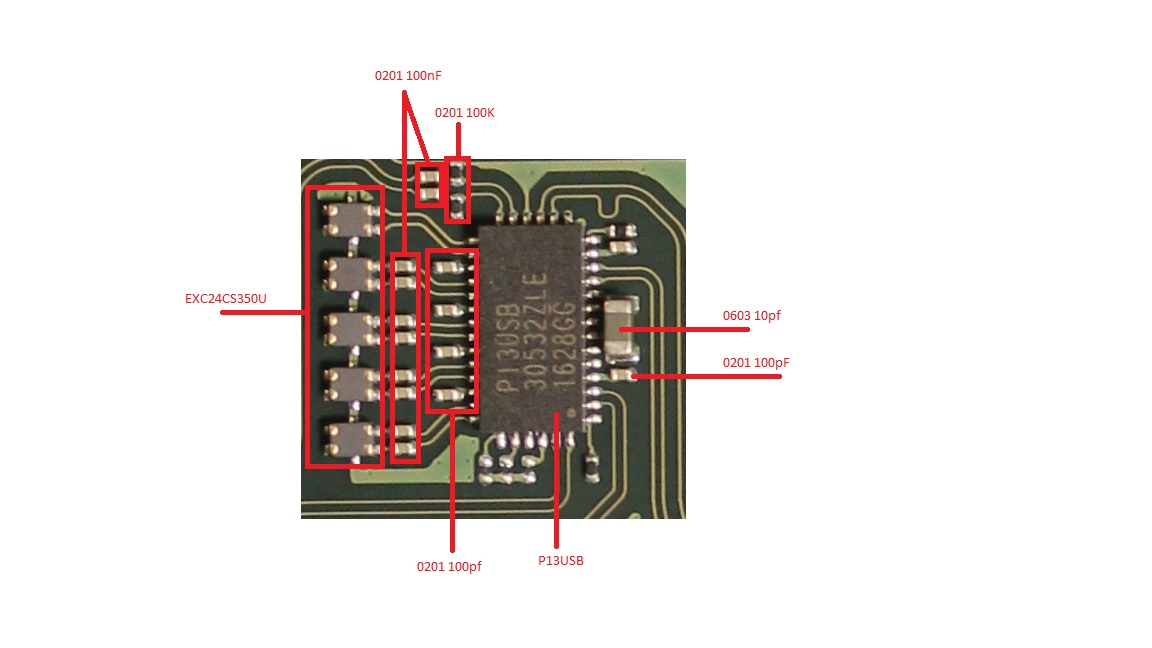

Attached is a little diagram i made, if someone has the knowledge, can you please fill in the blanks or correct me if i'm wrong?
help would be much appreciated, I will update the diagram once i got all the part values.
I'm like neck deep into tools in fixing this, but i don't mind a challenge.
