Nintendo 3DS xL dead. i got diode values

Thread starter peterjohanson2000
Start date Nov 9, 2022
Views 726
Replies 0

P

peterjohanson2000

New Member

Newbie

Nov 9, 2022

#1

Hi!
I have this nintendo which had a bad home button. I've ordered a new one and when i mounted everything it didnt turn on.

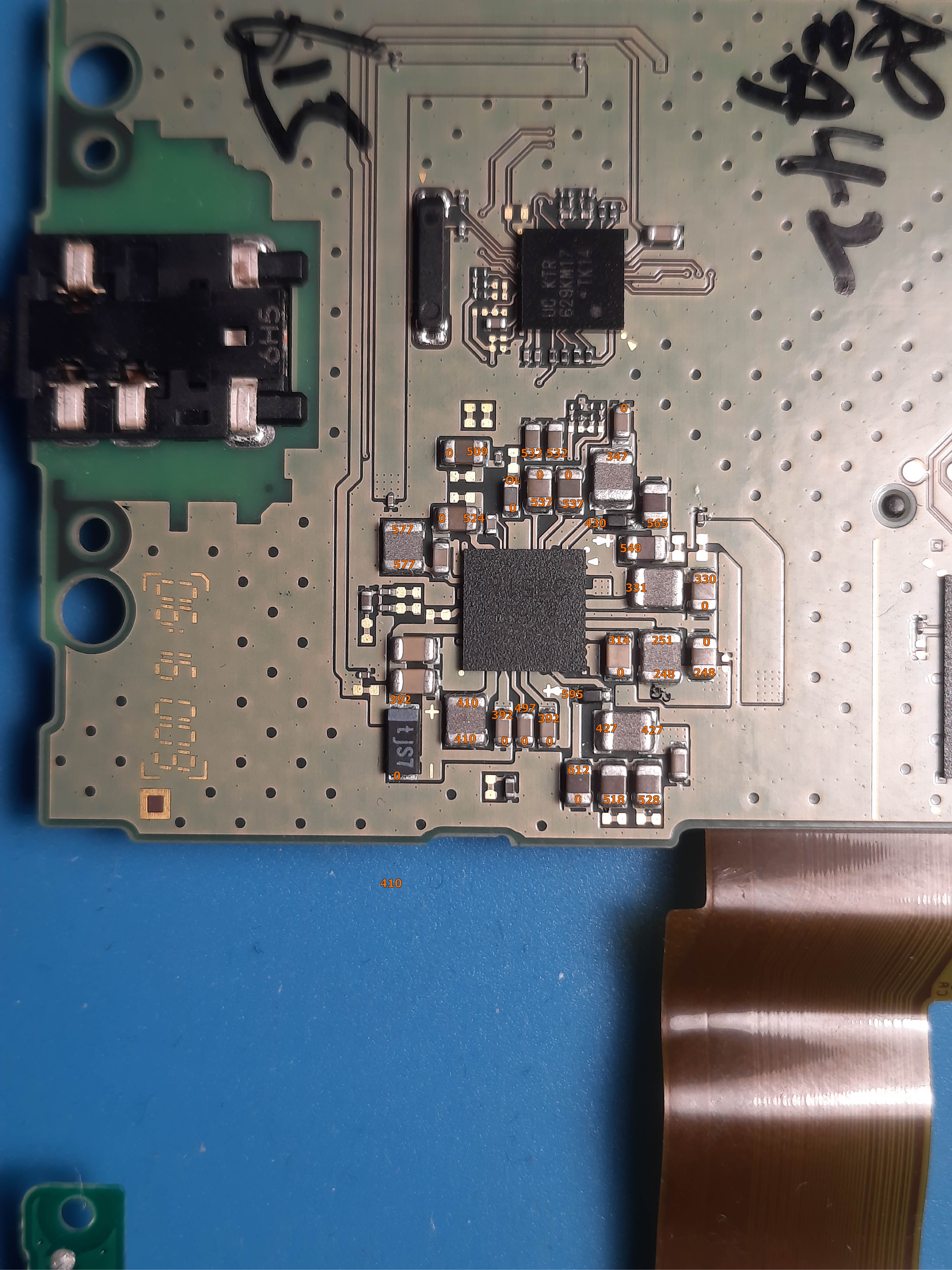

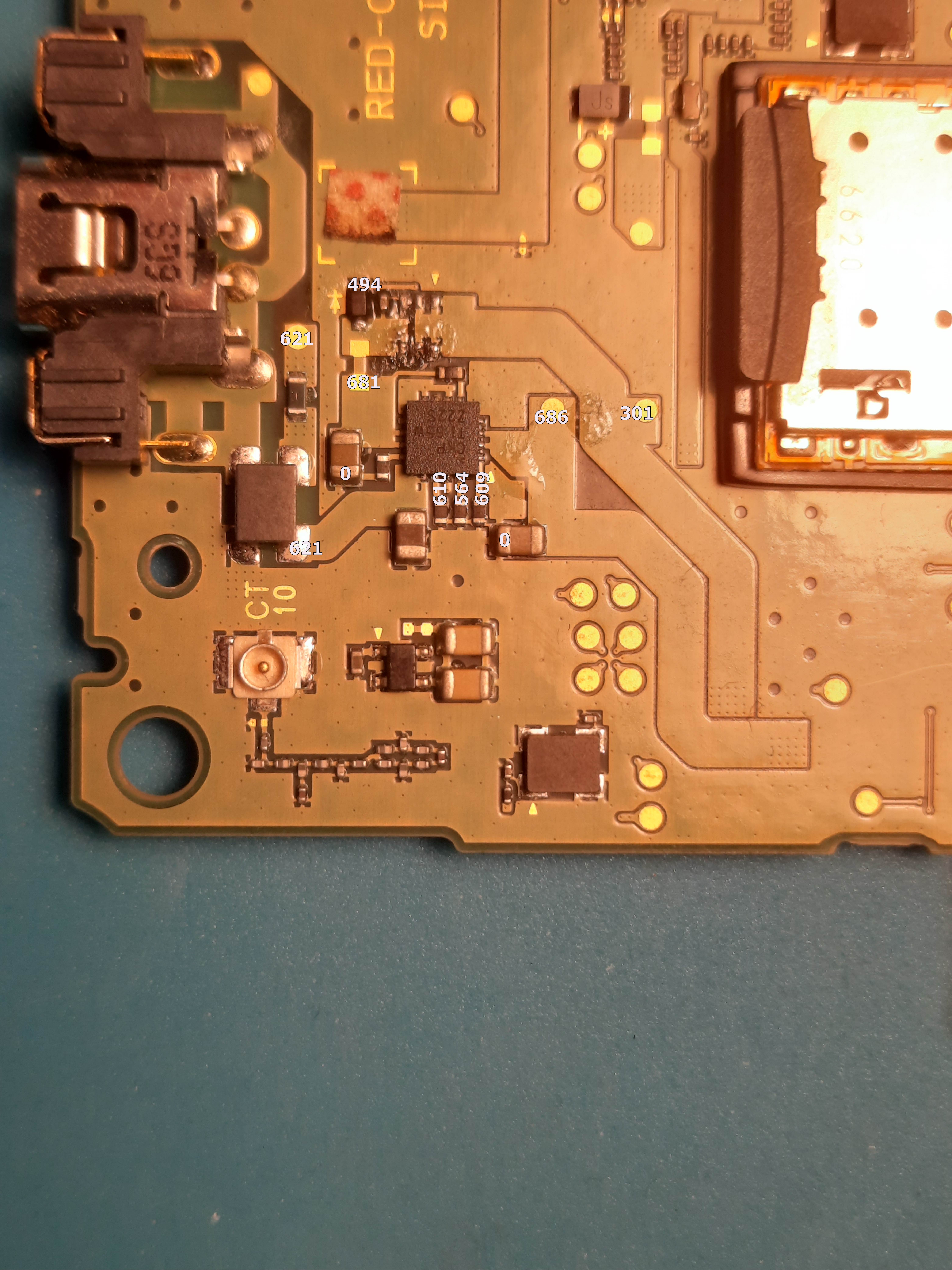

I did some measuremnts which you can see in the pictures.
Could someone help me if i shorted something?
Thanks.
