Missing cap edm010

  • Thread starter Thread starter deservd_
  • Start date Start date
  • Views Views 988
  • Replies Replies 2

deservd_

Member
Newcomer
Joined
Jul 19, 2024
Messages
8
Reaction score
0
Trophies
0
Age
31
XP
70
Country
Germany

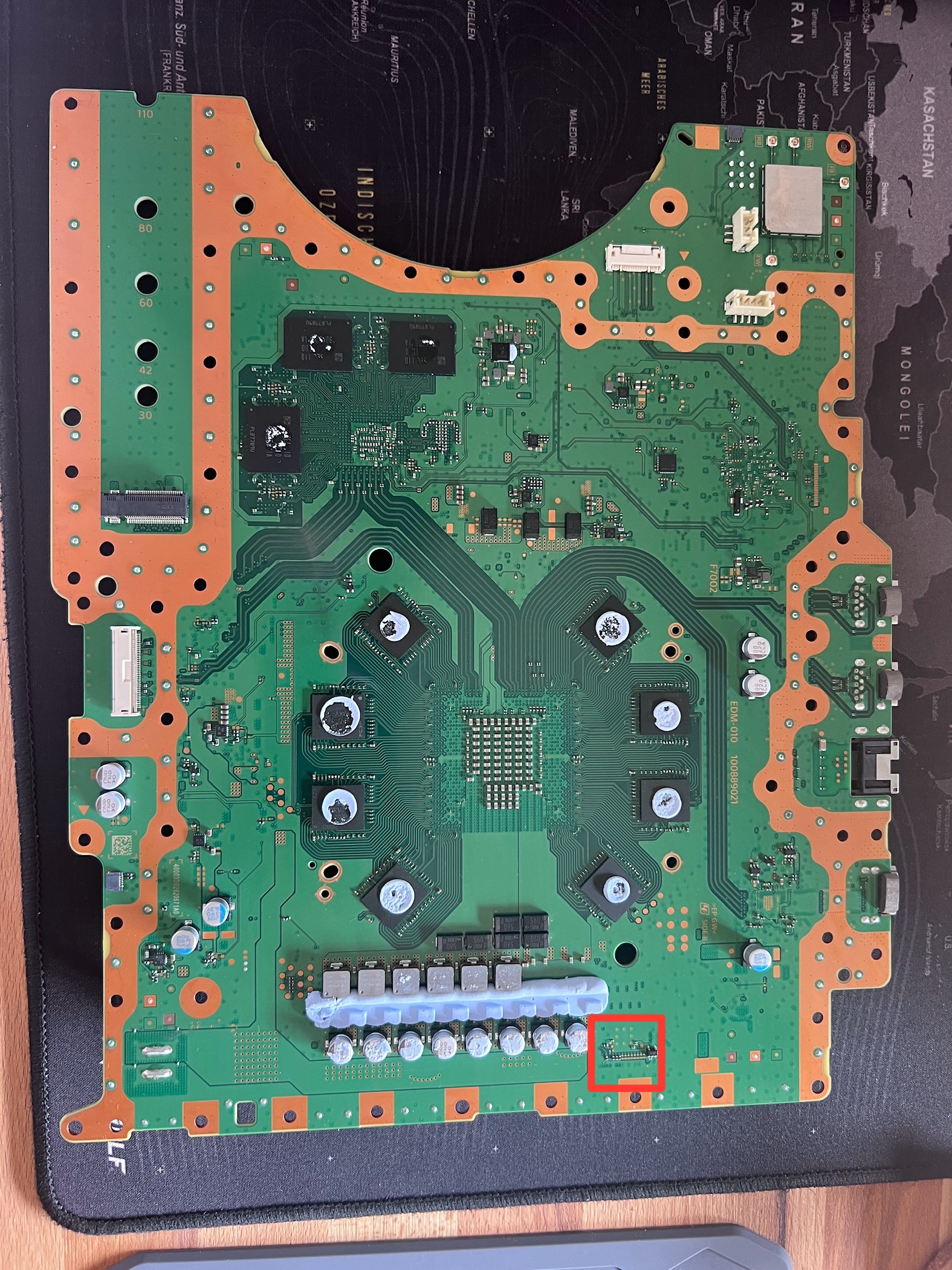

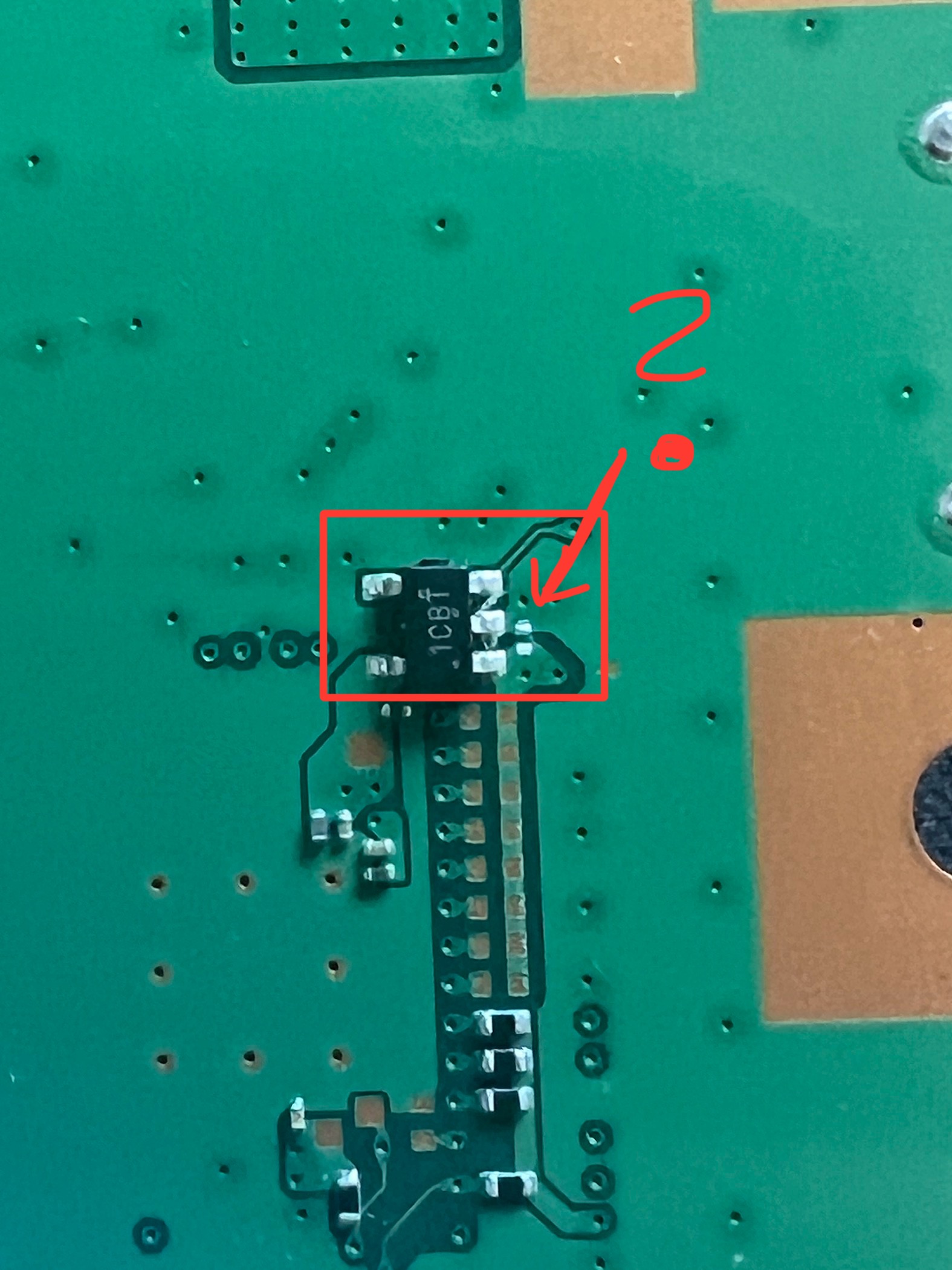

Does anyone know the values of the missing cap at the dcdc on my edm010? (See attached image)


Attachments

  • IMG_2520.jpeg
    1.1 MB · Views: 39
  • IMG_2505.jpeg
    455.3 KB · Views: 28
The Datasheet of the 1CBT says, that one is optionalbut when you thinkt that you need it. You can take a 6,3 V, 1uF ceramic Cap.

Input Voltage Range: 1.4 V to 5.5 V

Last edited by Jogy2,
  • Like
Reactions: deservd_
The Datasheet of the 1CBT says, that one is optionalbut when you thinkt that you need it. You can take a 6,3 V, 1uF ceramic Cap.

Input Voltage Range: 1.4 V to 5.5 V

Thank you very much, i wasnt Sure if i found the right datasheet but ur reply confirms i did
