Hardware hard mod errcode different.

[wessider91]

Hi all,

UPDATED:

I have my hard mod working,

but another problem has came up (i'm really unlucky xD)

The working nand.bin backup from gateway has worked in the past, but now i have recovered it on my 3ds and i get an black screen.

If i recover my bricked fw it will boot up but with the problems of updated browser and such...

any idea to get me past the black screen?

Grtz



[LameNobody]

0200 is the right error code.. http://www.3dbrew.org/wiki/Bootloader
You need a better card reader.. everything you've done so far is good... except using an internal card reader..

You need a good one which supports MMC..
most people here suggest this one:
http://www.amazon.com/dp/B006T9B6R2/
(also the one i use)



[wessider91]

i have also used an external 35 in 1 card reader, still nothing..

it supports mmc so that wouldnt be a problem i guess?

All the cables are also good, the only thing i can thing about is the sd card connection then?

any1 has an good layout for me please?

also im living in the netherlands so amazon would be a little bit pricy
grtz

I use this sd setup:



[LameNobody]

i have also used an external 35 in 1 card reader, still nothing..

it supports mmc so that wouldnt be a problem i guess?

All the cables are also good, the only thing i can thing about is the sd card connection then?

any1 has an good layout for me please?

also im living in the netherlands so amazon would be a little bit pricy
grtz

I use this sd setup:

even if it supports mmc, may not matter.... the 3ds is really picky when it comes to card readers...



[wessider91]

even if it supports mmc, may not matter.... the 3ds is really picky when it comes to card readers...

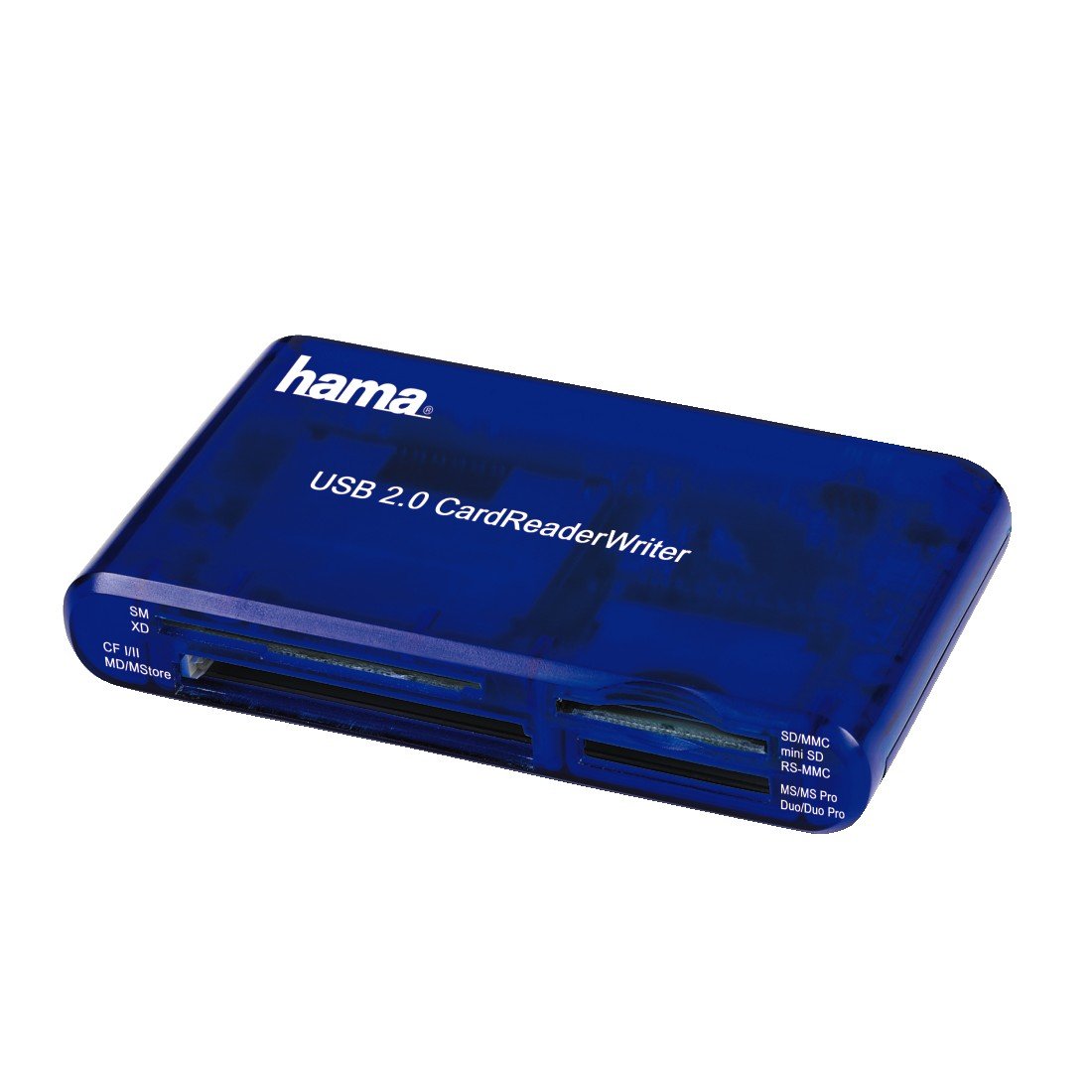

i use this 1



[LameNobody]

i use this 1

That's nice


But, have you tried one that actually works with the 3ds?



[wessider91]

haha ok so this 1 is not compatble with the 03ds?

is there any other cheap 1 i can buy in local store in holland?

ordering online is not possible atm.



[LameNobody]

For working card readers I have had good success with the:
Anker® USB 3.0 (68UNMCRD-B2U) : Realtek RTS5306
TekRepublic TUC-300 : Realtek RTS5307

Other card readers that work
SanDisk SDDR-121-A11M : GL827
Transcend P8 TS-RDP8K : ALCOR AU6476 (Thank you Gamerquest1 and zchtoy)
Anker® USB 3.0 4-Slot Card Reader (A7612) : RT5301 (Ava)

Honestly, ordering online is your best option



[wessider91]

Ok thanks m8! i borrowed an sd from some1 at work so i can test it tonight, hopefully beter results.



[wessider91]

Ok Finnally got it to work!

Only now i can read my nand but cannot write it (error 19)

how can i fix this 1?
My lock slide is gone, i think i have lost is so.

Grtz



[wessider91]

Updated, please read first post.



[piratesephiroth]

so what happened to your backup? Did it get corrupted?



[wessider91]

Well thats what i though,,

but i just used win32 disk manager instead of roadkill and it has been succesfull.

but now i can boot up, but as soon as i want to open anything, it just freezes, sound does not stop playing btw



[piratesephiroth]

Well thats what i though,,

but i just used win32 disk manager instead of roadkill and it has been succesfull.

but now i can boot up, but as soon as i want to open anything, it just freezes, sound does not stop playing btw

did you try a system format?



[wessider91]

Cant open setting or anything, think i somewhere screwed it with the hard mod soldering?



[piratesephiroth]

Cant open setting or anything, think i somewhere screwed it with the hard mod soldering?

yep. Try to disconnect something



[wessider91]

Like what if i may ask? Already removed the hard mod but still it freezes.

If you can tell me what to discinnect i will try

Thanks for your reply's btw



[piratesephiroth]

Did you "safely remove" and power off the 3DS before disconnecting it from the card reader/PC?
It seems that's kinda important.



[wessider91]

Yeah, nornally i dont do that kind of stuff, but this time i rather just followed it all becouse it wasnt really a problem to do so

Just stuck now and still thinking i screwed my mobo up.

Also cant find anything on my 3ds mobo what looks like an soldering fault



[Quincy]

Get a magnifying glass and look for cracked/bad solder jobs. Some things may not be noticable without it.

I'm not that great with soldering, but if you'd really need some help I might be able to take a look for ya, seeing we both live in NL XD I'm just really swamped right now so I might not be able to do so for a little while.
