Hardware GBA SP "R" Trigger not working

[cowboy619]

Hey guys

Gameboy Advance SP. Right trigger is not working. Tried IPA and then eventually soldered a new one. It worked for awhile then sporadically works and then stops. Is there a way to check with a multi meter? Could the button be faulty or a MB issue while replacing
I saw a post of someone running a jumper wire from the CPU to Test point to get it working

https://gbatemp.net/threads/problem-with-gba-sp-motherboards.538228/



[cowboy619]

Managed to fix it



[osvixx]

Sorry to bring this old post, but I'm facing a similar issue I guess.

I replaced the trigger for a new one and still is not working :c
Could you tell me what you did? or if you have any advise to solve it?



[Terra_tm]

Managed to fix it

Dude, you're certainly great at solving the problem, but please voice the solution, otherwise the thread becomes pointless.



[cowboy619]

Dude, you're certainly great at solving the problem, but please voice the solution, otherwise the thread becomes pointless.

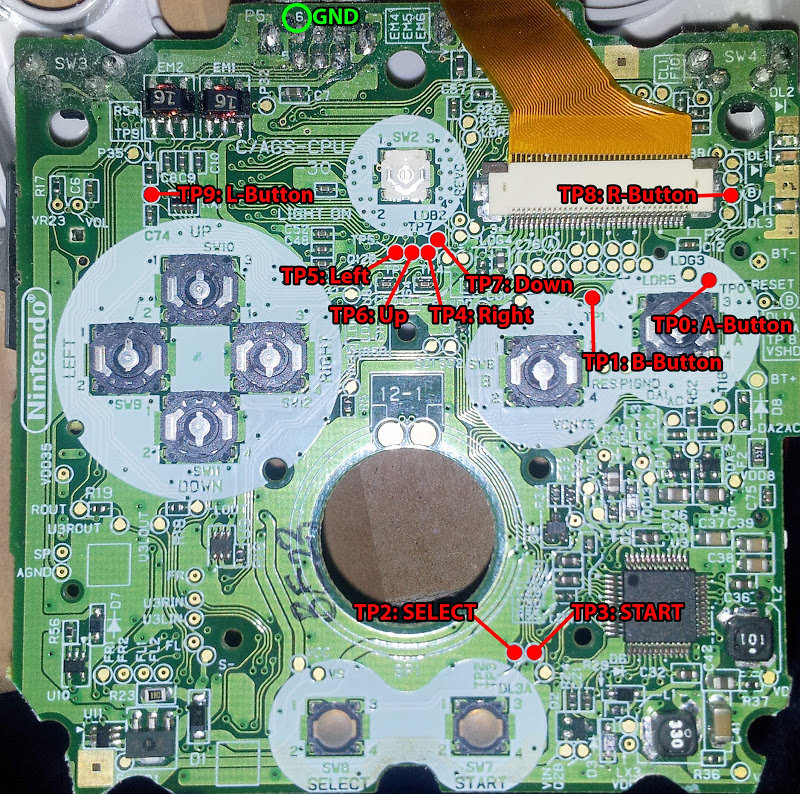

As per picture ran the jumper and for it working



[Skv0ra]

As per picture ran the jumper and for it working

Noice! What Flashcart ya runnin?



[cowboy619]

Noice! What Flashcart ya runnin?

These have been really good - you flash a custom firmware on them and runs like a dream

https://s.click.aliexpress.com/e/_c4aY4gCB
