Hacking Hardware Emmc Backup question

[Schn1ek3]

Hello,

Can anyone make a backup of a removed emmc chip?

Unfortunately I don't know how to do this and all I can find is a very specific adapter under Linux to backup all partitions.

I would like to save my switch data, but the chip inside the switch does not work.

I am hoping that someone here can help me and maybe read out the chip with boot0, boot1 and rawnand backup.

If someone knows a method how I can build an adapter for reading out with simple soldering work, that would also be a solution I can live with.

I am hoping to restore my switch with a new emmc, it is already installed and Hekate is already working.

I would be really grateful if you could help me.

Thanks for everyone



[jkyoho]

I bet the prod.key is dump from the new/empty emmc, wihtout restoring prodinfo partition back



[Schn1ek3]

Hmm I don't like that cal0 isn't working. Have you used Tinfoil incognito or Incognito Rcm on it?

Perhaps I should mention that I made the keys with the empty EMMC. I have not yet been able to read out the old Emmc. I still need an adapter or something to read it

I used this Lockpick RCM payload, not sure what you mean exactly.

Post automatically merged: Jul 23, 2024

I bet the prod.key is dump from the new/empty emmc, wihtout restoring prodinfo partition back

correct



[linuxares]

so if you check your prodinfo file, is it just full off blanks?



[Schn1ek3]

so if you check your prodinfo file, is it just full off blanks?

I think, yes
I need the Backup from my old Emmc, but i can't mount this to pc at the moment. I Hope i can find my sd Adapter so solfering my own adapter



[linuxares]

The thing is, if you want to decrypt your previous MMC, you have to have the KEYS for it. Else it's encrypted.
So the hardware must match. eMMC is married with the APU. It's the two only things you just can't swap without tricks.



[Schn1ek3]

The thing is, if you want to decrypt your previous MMC, you have to have the KEYS for it. Else it's encrypted.
So the hardware must match. eMMC is married with the APU. It's the two only things you just can't swap without tricks.

I know, thanks. I only need the Backup file and then i will restore it to my new blank emmc, so i have my old switch with a new emmc. that was what i think



[linuxares]

?????

I honestly lost what exactly you're doing now.

What I try to tell you

1) You need to use your Switch with your OLD eMMC to dump the keys correctly
2) You can then dump your OLD eMMC with Hekate
3) After that is done, you can switch the blank eMMC and restore your OLD EMMC backup to it.
4) Tada..

Or are you trying to make a rawdump of your OLD eMMC and DD it over to a new eMMC? Might be possible, should be possible.
But if your OLD eMMC doesn't even reader, I'm not even sure how you should get any data out from it. Maybe its just something wrong with the eMMC itself, maybe it's just a short on it?

Guide: https://www.retrosix.wiki/rcm-replace-emmc-nintendo-switch



[Schn1ek3]

?????

I honestly lost what exactly you're doing now.

What I try to tell you

1) You need to use your Switch with your OLD eMMC to dump the keys correctly
2) You can then dump your OLD eMMC with Hekate
3) After that is done, you can switch the blank eMMC and restore your OLD EMMC backup to it.
4) Tada..

Or are you trying to make a rawdump of your OLD eMMC and DD it over to a new eMMC? Might be possible, should be possible.
But if your OLD eMMC doesn't even reader, I'm not even sure how you should get any data out from it. Maybe its just something wrong with the eMMC itself, maybe it's just a short on it?

Guide: https://www.retrosix.wiki/rcm-replace-emmc-nintendo-switch

Perhaps to explain my situation.
My switch suddenly stopped working, then I tried to read out the emmc with a Picofly mod and hekate. Unfortunately this did not work, I always had an error (picofly *=* error code).
I then soldered in a new, empty emmc and was then able to start hekate.
My hope now is that I can back up the old emmc via pc and adapter in order to record the new emmc with the data from my old one.
Or should I solder the old one back into the switch and then backup it, but would that even work if the switch doesn't start with the old emmc?

Should I lose my savegames or something, that wouldn't be a problem. It's just important to me that I can use my Switch in exactly the same way as before.

I hope I could bring some clarity and sorry that I have caused such confusion.
PS: I have an OLED Switch, if that's important. Unfortunately, I forgot to mention that.



[linuxares]

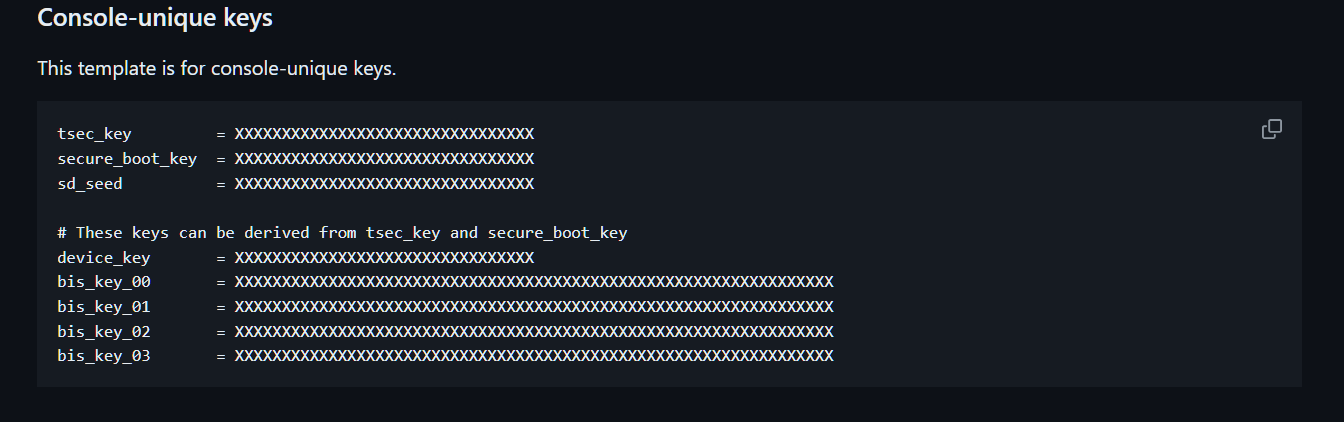

You need these keys the most. They're the unique once.
Withouth the BISKeys, you won't even be able to decrypt your saves. Since you got Hekate working, it possible you might have gotten that data out.



[impeeza]

I know, thanks. I only need the Backup file and then i will restore it to my new blank emmc, so i have my old switch with a new emmc. that was what i think

Exactly we ended (once again) on a X - Y Problem.


What you needed was recreate your NAND on a new blank eMMC Chip, the old one is desoldered from the Board.


So you need a full backup of the (now separated) old eMMC chip. then restore the backup on the new eMM chip.

in order to do that. the easy way is to use an adapter and read all partitions on linux. then use the generated files to restore on the new chip using Hekate´s NYX.


also you can use Windows to read the NAND backup but you need to recreate BOOT0 and BOOT1 partitions and that is no easy.


you have a tutorial to do that on the @binkinator tutorial about replacing the memory chip here on tutorial section. you can find it using the search bar at top of page:

https://gbatemp.net/threads/switch-oled-256gb-nand-upgrade.608377



[Schn1ek3]

I have now tried to solder the emmc chip to an sd card and read it out. unfortunately I can't get a connection.
I think my emmc is really defective.
If anyone thinks he can still save it somehow I would be very grateful for help

So is there no hope of getting my switch to work again? (without a 2nd switch)

Or could the read out keys be enough to set up a "new switch" with the existing keys?

I would like to be able to use my switch again, even with OFW.

Post automatically merged: Jul 27, 2024

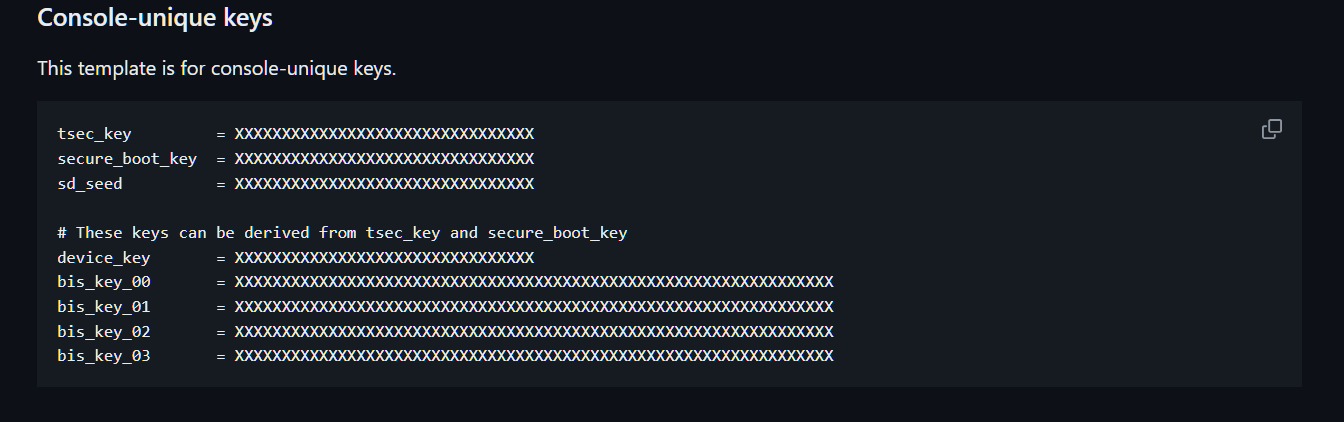

You need these keys the most. They're the unique once.
Withouth the BISKeys, you won't even be able to decrypt your saves. Since you got Hekate working, it possible you might have gotten that data out.

View attachment 448849

i have the bis_key_00 -03 device_key_x4
the other one i dont have. can i make with these keys a new ofw switch? or have i missing keys for that?



[impeeza]

I have now tried to solder the emmc chip to an sd card and read it out. unfortunately I can't get a connection.
I think my emmc is really defective.
If anyone thinks he can still save it somehow I would be very grateful for help

So is there no hope of getting my switch to work again? (without a 2nd switch)

Or could the read out keys be enough to set up a "new switch" with the existing keys?

I would like to be able to use my switch again, even with OFW.

Post automatically merged: Jul 27, 2024

i have the bis_key_00 -03 device_key_x4
the other one i dont have. can i make with these keys a new ofw switch? or have i missing keys for that?

There is a thread about getting a switch with s donor NAND you will never get back online but at least will work. Search it on the search bar at top of page



[Schn1ek3]

There is a thread about getting a switch with s donor NAND you will never get back online but at least will work. Search it on the search bar at top of page

Thank you, I had already found this post. I just hoped that the online functionality would still be available.
Too bad, but I can still restore the backup if I ever get the emmc read out, right?



[impeeza]

Thank you, I had already found this post. I just hoped that the online functionality would still be available.
Too bad, but I can still restore the backup if I ever get the emmc read out, right?

if using an adapter fails, you are doomed. because you need a exactly copy of the latest NAND on your console in order to go online, there is no other alternative.



[jkyoho]

wonder how you solder it to sd adapter, I know only certain card reader(old) chip can read Switch emmc correctly( RTS5170 )



[impeeza]

wonder how you solder it to sd adapter, I know only certain card reader(old) chip can read Switch emmc correctly( RTS5170 )

Yes only that type of chip can read ALL the eMMC chip of the nintendo switch, and only combined with a Linux driver.

any other chip normall can only read the system partition of the eMMC chip.



[linuxares]

You need more than just BISKeys sadly. You basically need the PRODINFO data, which is on your old eMMC. This data can't be rebuilt as far as I know.



[Schn1ek3]

wonder how you solder it to sd adapter, I know only certain card reader(old) chip can read Switch emmc correctly( RTS5170 )

Do you think the Low Voltage EMMC Adapter can do this too?

https://www.tronicsfixforum.com/t/switch-hard-mod-nand-dump-with-low-voltage-emmc-adapter/521

Post automatically merged: Jul 28, 2024

You need more than just BISKeys sadly. You basically need the PRODINFO data, which is on your old eMMC. This data can't be rebuilt as far as I know.

Thank you, than i will hope i can read the old emmc with another adapter.

thank you all for your help



[impeeza]

Do you think the Low Voltage EMMC Adapter can do this too?

https://www.tronicsfixforum.com/t/switch-hard-mod-nand-dump-with-low-voltage-emmc-adapter/521

Post automatically merged: Jul 28, 2024

Thank you, than i will hope i can read the old emmc with another adapter.

thank you all for your help

yes that adapter could help to read main partition on windows, but your SD Card reader needs to be able to read full partition scheme.


if you are about to buy an adapter, buy one tested for the job, like https://github.com/ignasurba/mmcblkNX



[Schn1ek3]

yes that adapter could help to read main partition on windows, but your SD Card reader needs to be able to read full partition scheme.


if you are about to buy an adapter, buy one tested for the job, like https://github.com/ignasurba/mmcblkNX

This one is out of stock. So i looked for an alternative
