2DS wont turn on

Discussion in '3DS - Console, Accessories and Hardware' started by EvilMakiPR, Sep 22, 2016.

  1. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013
  2. swabbo

    swabbo Wot u doin readin dis m8?

    Member
    5
    Mar 9, 2011
    East Yorkshire/ A Bin
    I would too have assumed it was the ribbon cables, but other than that I wouldn't know :S

    EvilMakiPR likes this.
  3. Lilligant

    Lilligant GBAtemp Regular

    Member
    1
    Aug 29, 2016
    Brazil
    Could be some internal connection damaged because of the "popping sound" it makes

    EvilMakiPR likes this.
  4. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013

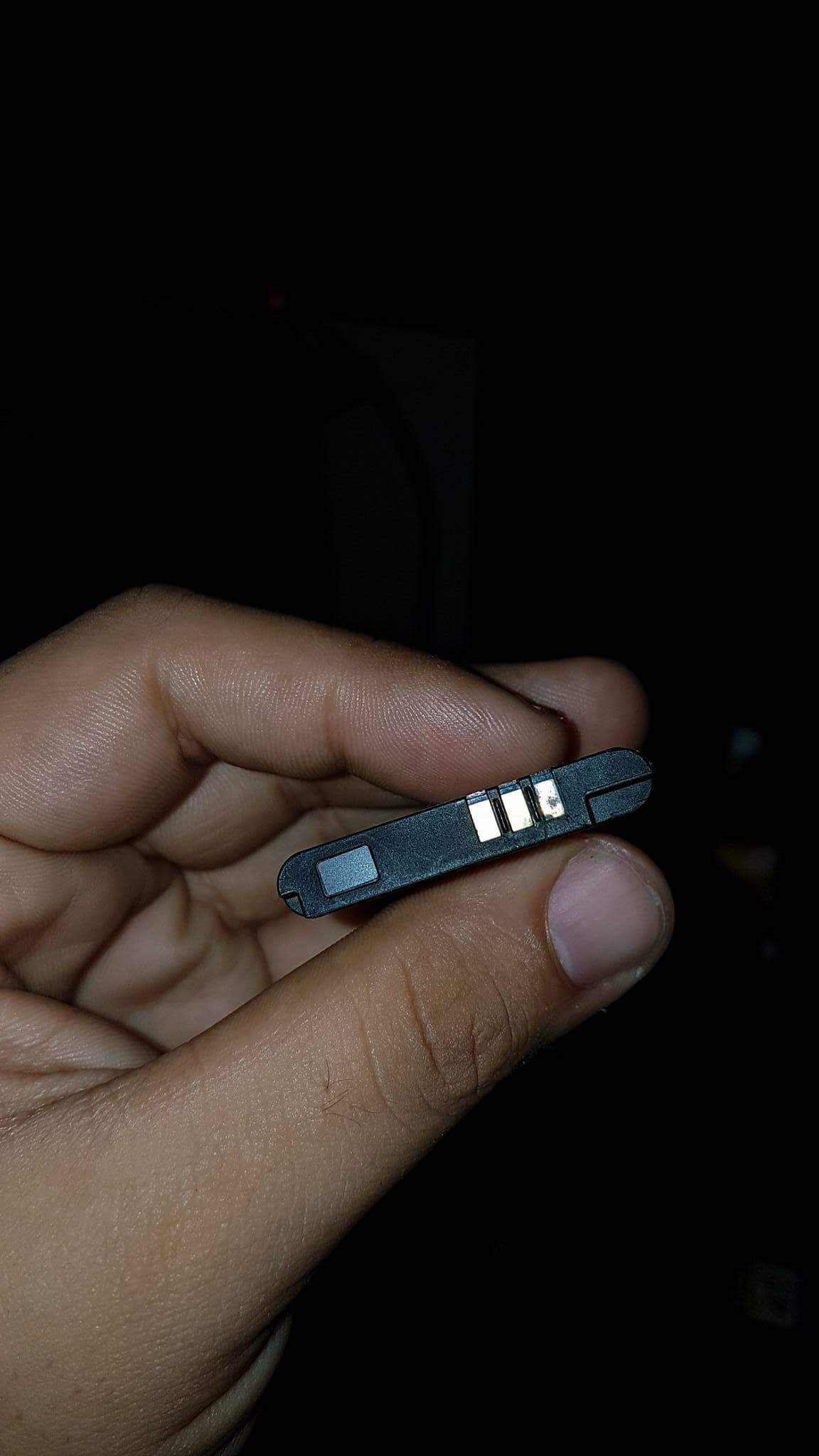

    So its not the battery right? Cuz im at Walmart to buy another 2DS and swap batteries annd you know the rest.

  5. Lilligant

    Lilligant GBAtemp Regular

    Member
    1
    Aug 29, 2016
    Brazil
    IF it was the battery it would just turn off without making any sound

    EvilMakiPR likes this.
  6. hyprskllz

    hyprskllz GBAtemp Advanced Fan

    Member
    3
    Apr 19, 2016
    Indonesia
    Do a 2DS have that kind of sound too? I thought it's because of it's counsins' clamshell design.

  7. Lilligant

    Lilligant GBAtemp Regular

    Member
    1
    Aug 29, 2016
    Brazil
    Ye, just watch the video that he linked

  8. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013

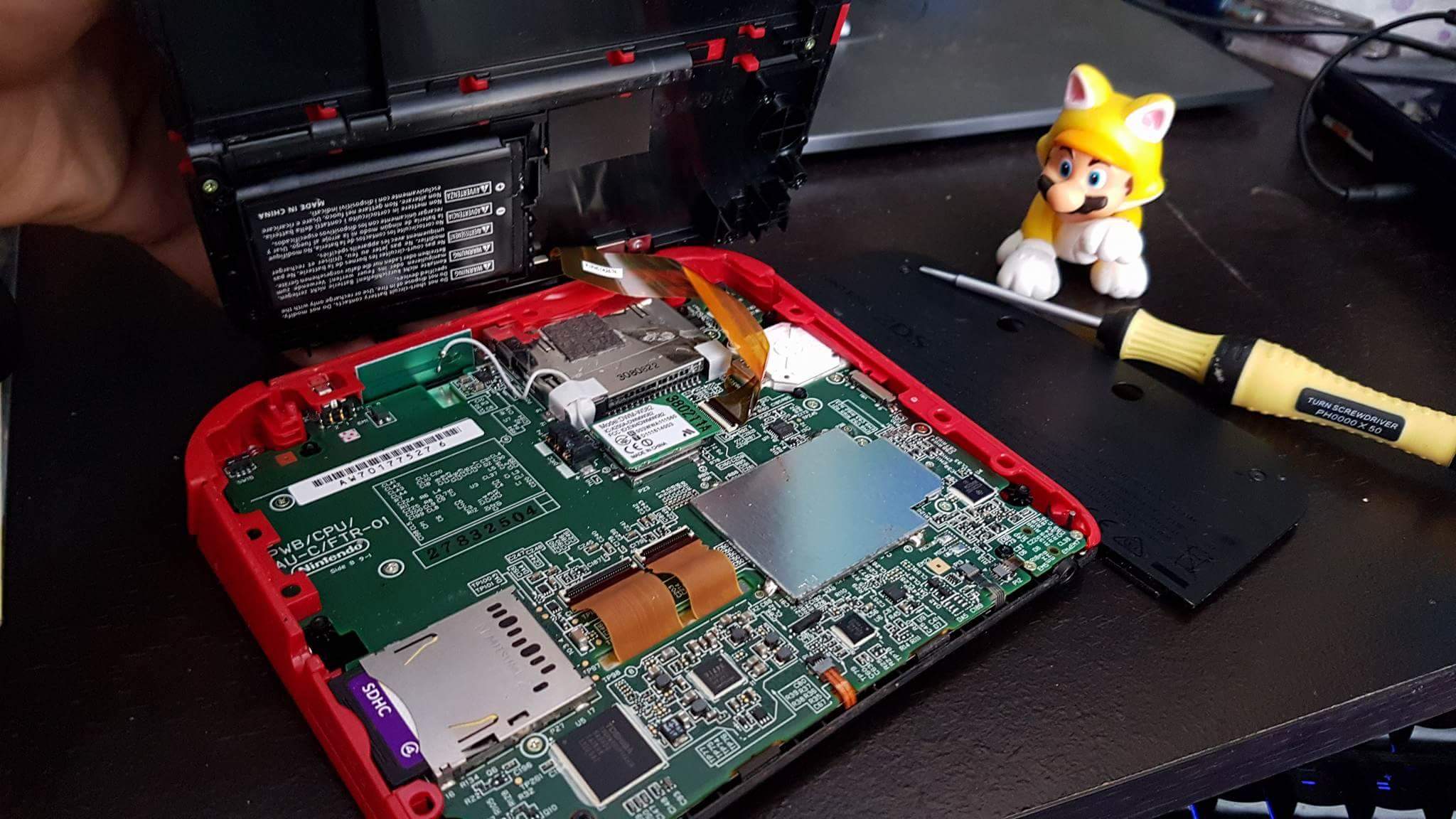

    Ok so I checked and rechecked all the cables and conections. Still do the same.
    Dead?

  9. hyprskllz

    hyprskllz GBAtemp Advanced Fan

    Member
    3
    Apr 19, 2016
    Indonesia
    Oh yeah, just clicked it, didn't saw it before. My bad.

  10. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013

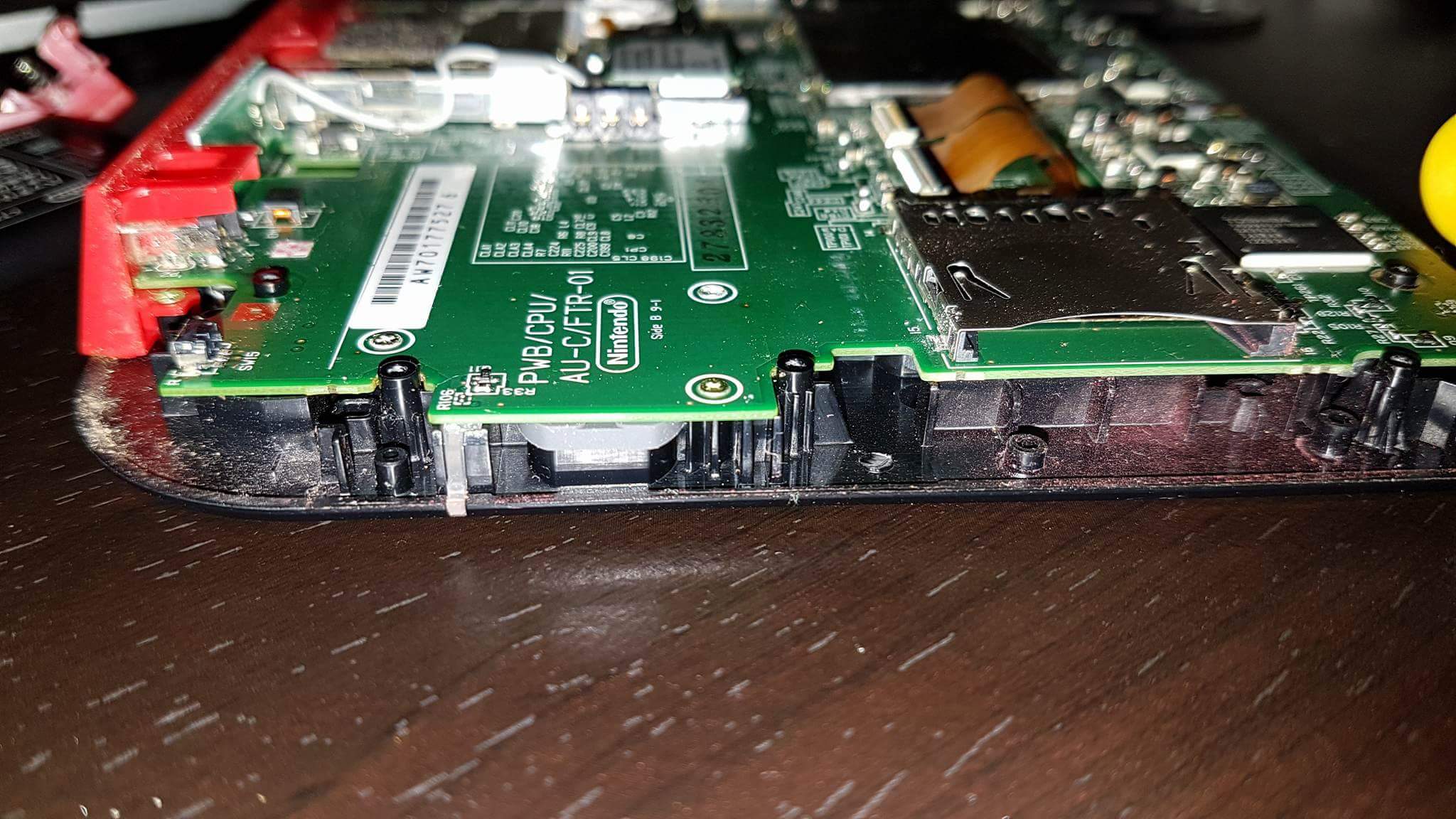

    I think I found the problem.

    The ribbon that its under the mic really close to the 3.5mm jack has a lot of corrosion. The ribbon has green stuff on it.

    — Posts automatically merged - Please don't double post! —


  11. remix2k

    remix2k Advanced Member

    Newcomer
    1
    Mar 24, 2016
    United States
    That is the LCD's backlight connector and it looks like the gold connector contacts are corroded enough to fail to connect.
    That would cause your system to fail it's boot checks and shut right off.
    And you are not seeing the screen light up because the backlight is not coming on.
    Unfortunately, you're going to need a new screen as you can't get a backlight separately.

    Sorry man :(

  12. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013
    Thanks man. Is there a way to "clean" that ribbon?

  13. remix2k

    remix2k Advanced Member

    Newcomer
    1
    Mar 24, 2016
    United States
    You can try cleaning the corrosion off the exposed gold contact sections but more often then not, the gold contact is actually eaten away and there isn't anyway to save it.
    I have scraped back the ribbon plastic to expose more contact and then trimmed the end of the cable so it can slide into the connector and make contact with the exposed contact. I have done this on a few systems I've repaired but it worked once out of 3 systems so.... ;)

  14. piratesephiroth

    piratesephiroth I wish I could read

    Member
    10
    Sep 5, 2013
    Brazil
    Perhaps you could trying cleaning it with a solution of vinegar and salt. Just remember to clean it well afterwards.

  15. osaka35

    osaka35 Instructional Designer

    Moderator
    9
    GBAtemp Patron
    osaka35 is a Patron of GBAtemp and is helping us stay independent!

    Our Patreon
    Nov 20, 2009
    United States
    Silent Hill
    I clean with alcohol wipes, and have saved at least a few 2ds that way. If it hasn't been eaten away, then it can help sometimes. Corrosion, I swear.

  16. Avalynn

    Avalynn I'm here to help poeple out as I can.

    Member
    3
    Feb 23, 2014
    United States
    San Jose, CA
    I'm just going to repeat what the others have said but try IPA (Isopropyl alcohol) of 90% to 99% because anything less usually leaves residue and an unwanted coating behind.
    Another thing to try is something like Deoxit cleaner or similar if you can't get the IPA.

    Also you may want to look inside that flat ribbon connector see if there is anything in there or on those pins. Just a note if you do clean in there, do not use a quetip as the fibers can snag and pull or bend the pins causing irreparable damage to the connector. Do look around for any other corrosion on the board around that area too.
    Best of luck and I hope it all works out!

    Last edited by Avalynn, Sep 25, 2016
  17. EvilMakiPR
    OP

    EvilMakiPR GBAtemp Addict

    Member
    6
    Apr 9, 2013
    Thanks man! But ummm...I tried to clean it and I did but didnt work so I ended up ordering a new screen from eBay.

    Thanks to all that helped me!
    Oh and thats the only part that has corrosion.
