Hacking Question about emummc with trinket installed

Madsmaten

Member
OP
Newcomer
Joined
May 31, 2015
Messages
23
Trophies
0
Age
30
XP
199
Country
I succesfully modded a trinket inside my switch this weekend.

It is running a dualboot setup, with OFW on power button, and emummc when holding power+vol up.
I did this on fw 8.10, and would like to update the emummc to 9.0.1.

Do I need to check off the "autorcm" safety warning in ChoiDujourNX?
And is there anything I need to consider before booting OFW again after updating the emummc?

Last edited by Madsmaten,

Hayato213

..
Member
Joined
Dec 26, 2015
Messages
11,875
Trophies
1
Location
Aionios
XP
7,415
Country
United States
Since you are using Emunand, it doesn't matter if you use AutoRCM or not, if you have AutoRCM enabled when you press the power button it automatically boot into CFW , it doesn't into OFW, Emummc is separate from Sysnand once you create them.

  • Like
Reactions: paulzheng

Madsmaten

Member
OP
Newcomer
Joined
May 31, 2015
Messages
23
Trophies
0
Age
30
XP
199
Country
Since you are using Emunand, it doesn't matter if you use AutoRCM or not, if you have AutoRCM enabled when you press the power button it automatically boot into CFW , it doesn't into OFW, Emummc is separate from Sysnand once you create them.
I dont have it enabled from software.

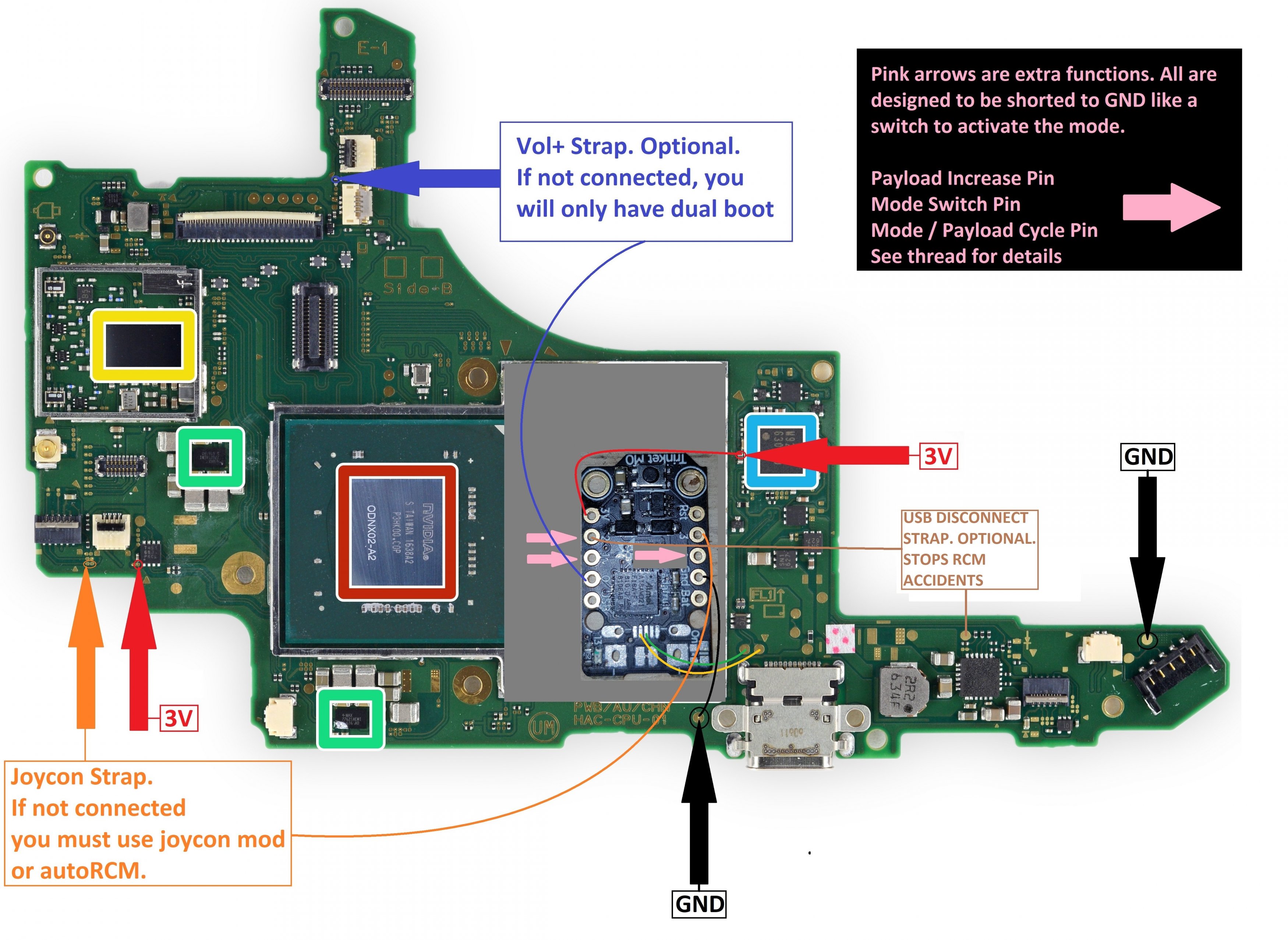

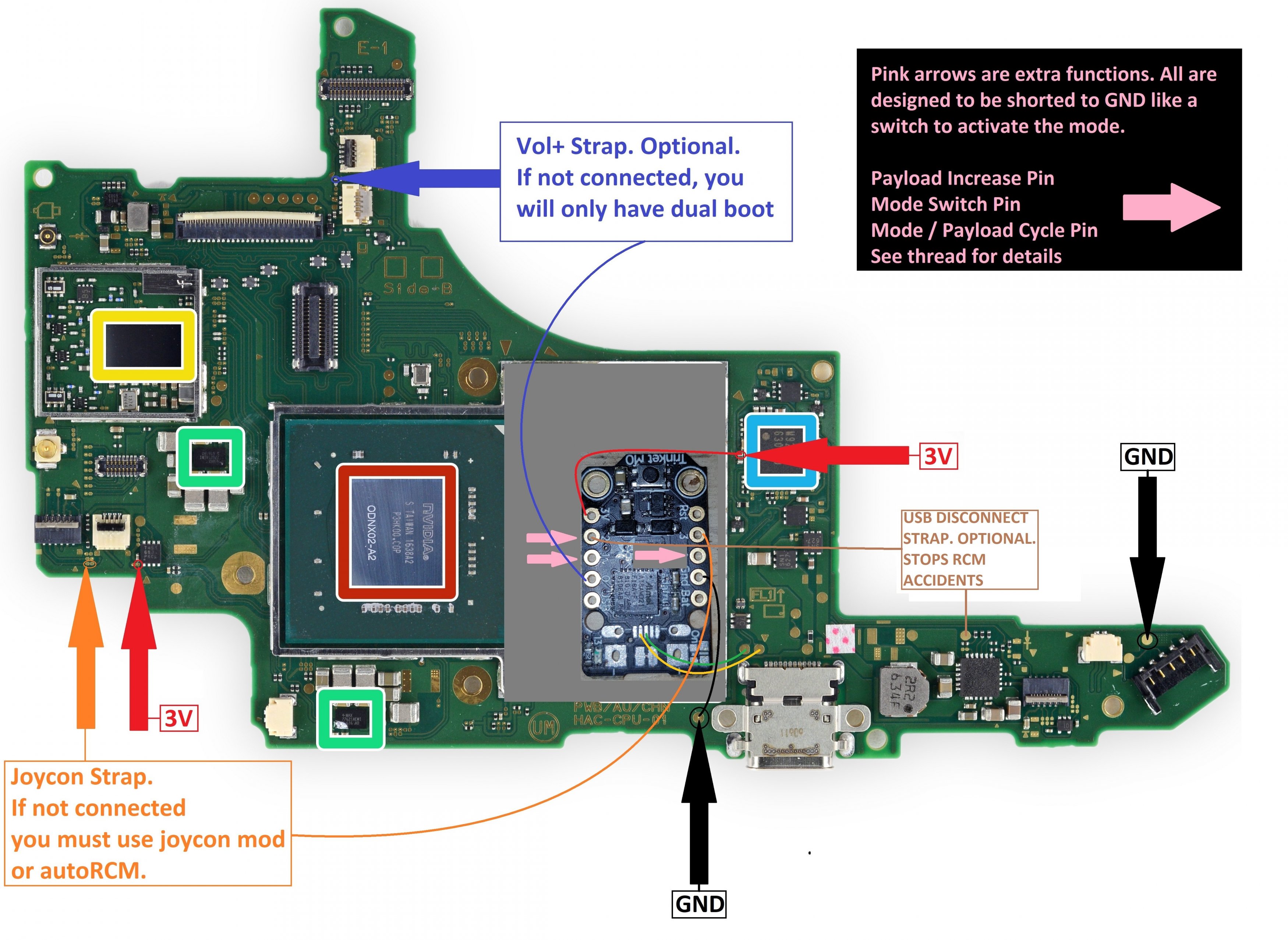

The two pins are soldered together and wired to the trinket.

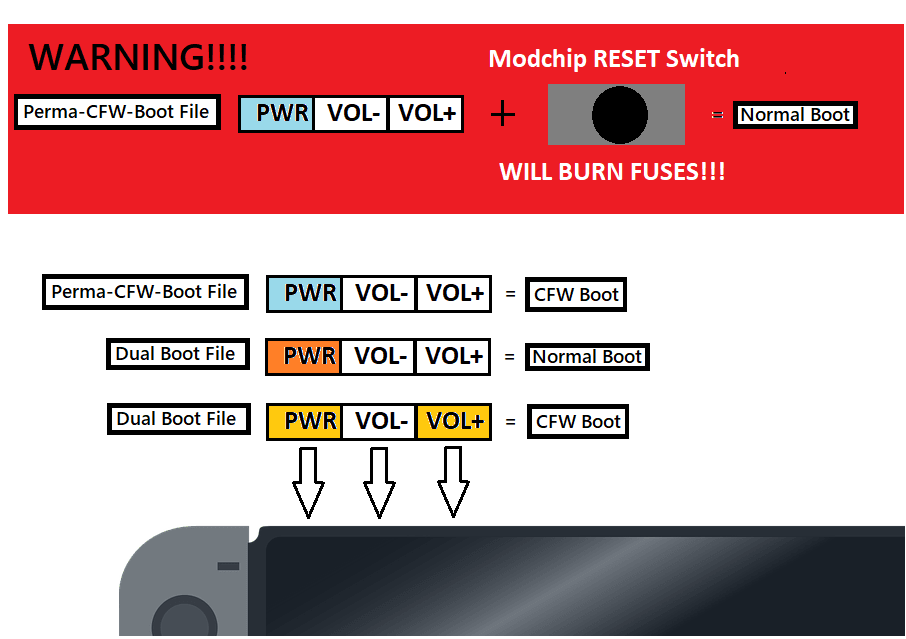

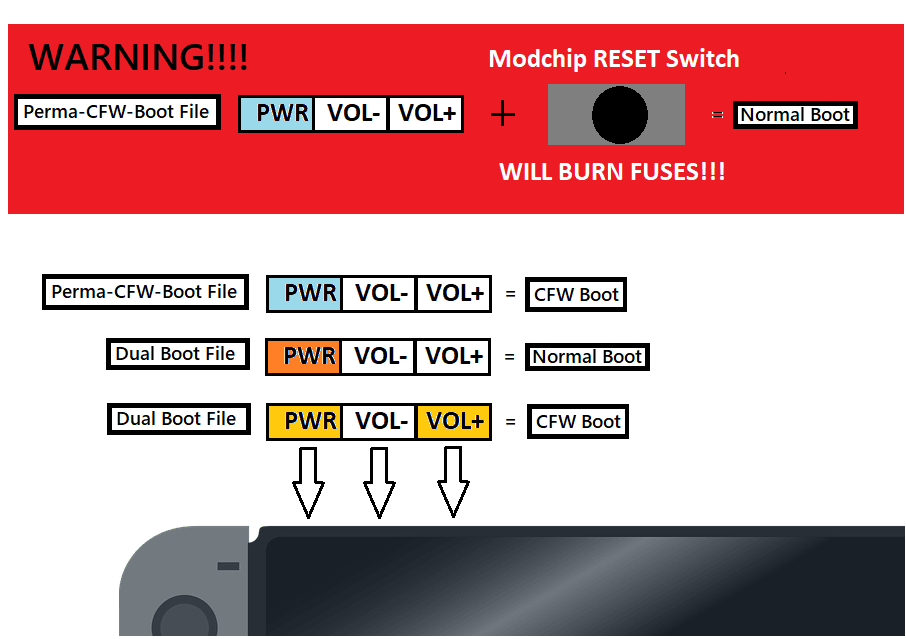

The dual boot proces is: Power = boot to stock
Power and vol up = RCM --> Trinket pushes the payload to console, and boots Emunand.

Last edited by Madsmaten,

Hayato213

..
Member
Joined
Dec 26, 2015
Messages
11,875
Trophies
1
Location
Aionios
XP
7,415
Country
United States
I dont have it enabled from software.
The two pins are soldered together and wired to the trinket.


If you did the 7 wires and used the dual boot files, then you have the dual boot setup, by default with the power button without autorcm it goes into OFW, with power and + volume it goes into CFW state, depends on what you play more, if holding an extra button annoy you use autoRCM.

  • Like
Reactions: paulzheng

Madsmaten

Member
OP
Newcomer
Joined
May 31, 2015
Messages
23
Trophies
0
Age
30
XP
199
Country
View attachment 181885 View attachment 181886
If you did the 7 wires and used the dual boot files, then you have the dual boot setup, by default with the power button without autorcm it goes into OFW, with power and + volume it goes into CFW state, depends on what you play more, if holding an extra button annoy you use autoRCM.
I really like my current setup with the different booting options.
To keep it and updating emummc, all I have to do is check of the warning in ChoidujourNX right?

--------------------- MERGED ---------------------------

Just installed it without the AutoRCM option, and everything works.

Thanks alot!

  • Like
Reactions: Hayato213
