I've seen this happen to many Gateway owners as well if anybody remembers them.Given that this is not some kind of prank or splash screen, which disappears after a few seconds (and should when trying to boot without SD), this is not good news.
This is very bad. See [3dbrew] Bootloader Error Codes→ NCSD header in sector 0 is corrupt (failed signature check).
I have some different ideas how this can happen:
==========
- Experiments which should NEVER be done →
- Malware (I've never heard of 3DS malware in the wild, but it would be trivial to built this) →
- Dying NAND chip →
Please do the following
Then try one or more of these
- Provide an empty, FAT32 formatted SD and check it with h2testw or F3. If the SD passed the check, delete the testing files and proceed
- Place latest GodMode9.firm renamed to boot.firm on the empty SD (as well as the gm9 folder with the scripts) and boot into GodMode9 with ntrboot
- Backup the currently bricked status (NAND backup). Yes, it makes sense to create an image of a bricked state. Don't ignore this
A)
- Mount an old NAND backup, from when the console was working
- Open [S:] SYSNAND VIRTUAL/nand.bin in the GodMode9 hexeditor
- Open [I:] IMGNAND VIRTUAL/nand.bin in the GodMode9 hexeditor
I guess you could do easier comparison on a computer using a hexeditor there. If only a single or two things are modified,you could try manually repairing the damage with GodMode9 hexeditor.B) Run a forced NAND restore of a known to be good image. I hope you didn't ignore the backup step with above.C) Try CTRTransfer Type D9 script. Make sure to find 11.5 and not 11.15 CTRTransfer Images.=========
If the NAND chip is failing, it might work after flashing a backup or repairing with CTRTransfer Type D9, and sooner or later the same will happen again.
Good luck!
Came later to 3DS when Gateway was already frowned upon and not easy to find. I don't have it, sadly – would like to gain knowledge in this regard.I've seen this happen to many Gateway owners as well if anybody remembers them.
This also affected legitimate carts as well or even when the firmware was corrupted.Those bricks intentionally caused by Gateway if detecting clone carts
Obviously yes, ntrboot is the only entrypoint left (unless it is some prank splash screen that disappears after some time).I thought something like this absolutely required an ntrboot flashcart and that it was a waste of time trying anything else, as per https://3ds.hacks.guide/troubleshooting .
What are you trying to say? 8046 errors are not new and sadly not uncommon. Likely to happen more often with the NAND chips aging.Well This Is New
Sorry I'm late, but I didn't have a flashcard before, but when I try to flash it, it says "Flashcard Setup Failed"
Ace3ds plus

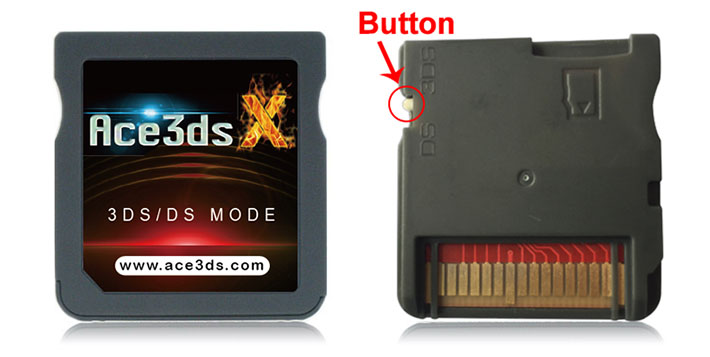

Where is the switch ?Ah ok that is why you have the error, it does not need to and cannot be flashed. Boot9strap is already flashed, just set the switch to 3ds mode, also I think it needs an sd card in the flashcart.
It is brazenly obvious!Where is the switch ?
I have ace3ds plus, not ace3ds x, I don't think I have the SwitchIt is brazenly obvious!
I have ace3ds plus, not ace3ds x, I don't think I have the Switch
I have ace3ds plus, not ace3ds x, I don't think I have the Switch

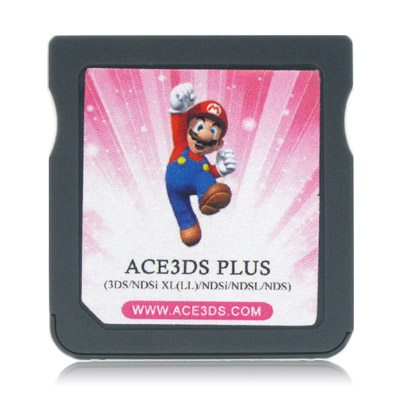

I have the flashcart on the first pictureView attachment 388479
View attachment 388480

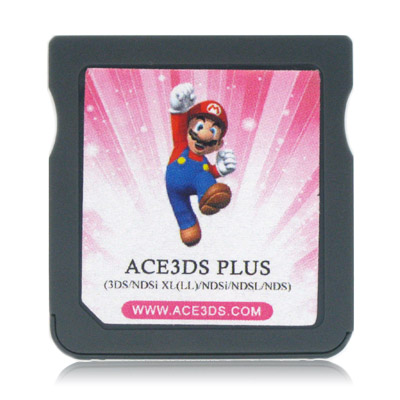

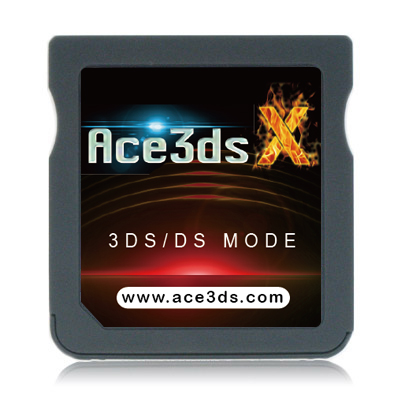

First picture is the Ace3ds Plus, the second one is Ace3ds X.
I have the flashcart on the first picture
