Wii U not booting - Next Steps?

[lolorlofl]

I'm using version 0.8 of de_fuse. Is minute not supposed to be outputting to my monitor?

Post automatically merged: Aug 24, 2023

I tested for continuity between the Pico and the test points and they all checked out ok.



[SDIO]

it should both output to the monitor and the terminal. But the prshax stuff runs so early that it might not output to the monitor, also we need the terminal later when we want to see live syslog, when iosu is running.



[lolorlofl]

Not sure if it matters, but I see this before I get to the minute menu

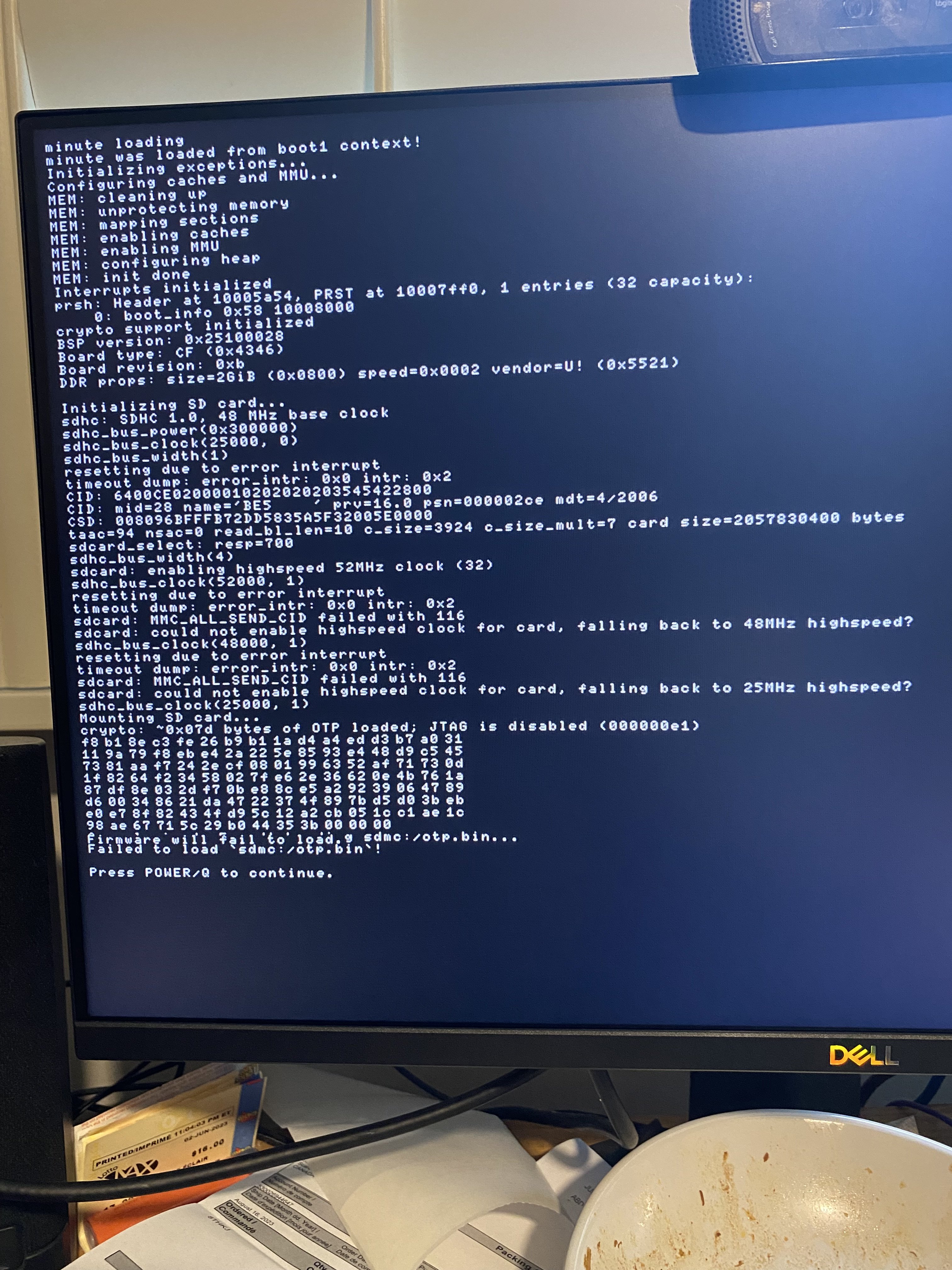

And this is what I see for a split second before the minute menu pops up



[SDIO]

Yeah it complains that it has no otp and it seems that the eMMC died completely



[lolorlofl]

Ok I just realized that the the pad for TP50 was ripped off the board. Is there anywhere else I can solder to for TP50?



[SDIO]

doesn't it have a via next to it?



[lolorlofl]

Yes but it's incredibly tiny



[SDIO]

That via is all that is accessible. I would recommend taping the wires to the board, so you don't accidentally rip stuff.

Post automatically merged: Aug 24, 2023

Maybe you can solder to that via on the top side of the board, if that makes things easier for you



[Lazr1026]

There is a via on the top side of the board right here



[lolorlofl]

Ok I managed to solder to the tiny via and got some output on the serial console

[pico] Changed state: WIIU_STATE_POWERED_OFF -> WIIU_STATE_NEEDS_DEFUSE Starting... 3224:0 Results: Winner! 0xf368 01 02 03 04 05 08 09 0a 0b 0c 0d 0e 13 14 15 18 1b 1c 1d 1e 1f 25 88 89 8a 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 [pico] Changed state: WIIU_STATE_NEEDS_DEFUSE -> WIIU_STATE_DEFUSED [pico] Changed state: WIIU_STATE_DEFUSED -> WIIU_STATE_MONITORING 0207!CF%10(MEM2MEM0PRSH84]]01]]02]^04]^08efa282d9010210010210]]04f00fca[Pico] Switching to text mode... fff00fcafaU▒U▒U▒U▒f00fcafeGPU TV addr: 17500001 GPU DRC addr: 00000000 minute loading minute was loaded from boot1 context! Initializing exceptions... Configuring caches and MMU... MEM: cleaning up MEM: unprotecting memory MEM: mapping sections MEM: enabling caches MEM: enabling MMU MEM: configuring heap MEM: init done Interrupts initialized prsh: Header at 10005a54, PRST at 10007ff0, 1 entries (32 capacity): 0: boot_info 0x58 10008000 crypto support initialized BSP version: 0x25100028 Board type: CF (0x4346) Board revision: 0xb DDR props: size=2GiB (0x0800) speed=0x0002 vendor=U! (0x5521) Initializing SD card... sdhc: SDHC 1.0, 48 MHz base clock sdhc_bus_power(0x300000) sdhc_bus_clock(25000, 0) sdhc_bus_width(1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 CID: 6400CE02000010202020203545422800 CID: mid=28 name='BE5 ' prv=16.0 psn=000002ce mdt=4/2006 CSD: 008096BFFFB72DD5835A5F32005E0000 taac=94 nsac=0 read_bl_len=10 c_size=3924 c_size_mult=7 card size=2057830400 bytes sdcard_select: resp=700 sdhc_bus_width(4) sdcard: enabling highspeed 52MHz clock (32) sdhc_bus_clock(52000, 1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 sdcard: could not enable highspeed clock for card, falling back to 48MHz highspeed? sdhc_bus_clock(48000, 1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 sdcard: could not enable highspeed clock for card, falling back to 25MHz highspeed? sdhc_bus_clock(25000, 1) Mounting SD card... crypto: ~0x07d bytes of OTP loaded; JTAG is disabled (000000e1) f8 b1 8e c3 fe 26 b9 b1 1a d4 a4 ed d3 b7 a0 31 11 9a 79 f8 eb e4 2a 22 5e 85 93 e4 48 d9 c5 45 73 81 aa f7 24 2e cf 08 01 99 63 52 af 71 73 0d 1f 82 64 f2 34 58 02 7f e6 2e 36 62 0e 4b 76 1a 87 df 8e 03 2d f7 0b e8 8c e5 a2 92 39 06 47 89 d6 00 34 86 21 da 47 22 37 4f 89 7b d5 d0 3b eb e0 e7 8f 82 43 4f d9 5c 12 a2 cb 05 1c c1 ae 1c 98 ae 67 71 5c 29 b0 44 35 3b 00 00 00 Console is de_Fused! Loading sdmc:/otp.bin... Failed to load `sdmc:/otp.bin`! Firmware will fail to load. Press POWER/Q to continue.

After I pressed Q to continue

SEEPROM failed to verify! (Check your otp.bin?) Hardware params calc: 71d26d1f stored: 6bdc60f6 Primary boot1 params calc: 80331897 stored: 531aa4a7 Secondary boot1 params calc: df82c4b5 stored: 89dfca4d Decrypted boot1 versions: v21274 (531a) and v35295 (89df) Decrypted boot1 sectors: 0xa4a7 and 0xca4d minini: Failed to open `sdmc:/minute/minute.ini`! Initializing MLC... sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc_bus_power(0x40000000) mlc: powerup failed for card sdhc: SDHC 1.0, 48 MHz base clock sdhc_bus_power(0x40300000) sdhc_bus_clock(400, 0) sdhc_bus_width(1) CID: FFFFFFFFFFFFFFFFFFFFFFFFFFFFFF00 resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 mlc: SD_SEND_RCA failed with 116 sdhc_bus_width(1) sdhc_bus_clock(0, 0) sdhc_bus_power(0x0) sdhc_bus_power(0x40300000) sdhc_bus_clock(400, 0) sdhc_bus_width(1) CID: 8FD04138005C2058494E59484A019000 CSD: 00408AFFFFFFFFFF03590F32014FD000 sdhc_bus_clock(25000, 0) mlc_select: resp=700 sdhc_bus_width(4) mlc: card_type=0xf sec_count=0x3b34000 sdhc_bus_clock(52000, 1) timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 mlc: couldn't enable highspeed clocks, trying fallback? sdhc_bus_clock(26000, 1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 mlc: couldn't enable highspeed clocks, trying another fallback? sdhc_bus_clock(52000, 0) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 mlc: couldn't enable highspeed clocks, trying another fallback? sdhc_bus_clock(25000, 0) Mounting SLC... No OTP bin, showing menu... Showing menu...

I can now see the minute menu in Putty

Post automatically merged: Aug 25, 2023

Looks like I was able to dump the OTP via PRSHhax

9254f7bf 8f14dbd2 505276c9 505276c9 Guessing key based on boot1 header type 2 --> prod key Dumping OTP using boot1 prod v8377, and offset 0x0d40ac6d... WARNING: SEEPROM boot1 version v21274 does not match NAND version v8377! Exploit might not work! If this is the first time you're dumping otp.bin, ignore this message. However, if you reflashed boot1, you might have to guess which boot1 version was originally on NAND and will match the SEEPROM version. GPU clocked at: 544.999877MHz Unmounting SLC... Shutting down MLC... sdhc_bus_power(0x0) Shutting down SD card... sdhc_bus_power(0x0) Shutting down interrupts... Shutting down caches and MMU... Resetting (prshhax)... U▒U▒[Pico] Console requested prshhax prshhax reset... [pico] Changed state: WIIU_STATE_MONITORING -> WIIU_STATE_NEEDS_DEFUSE Starting... 3224:0 Results: Winner! 0xf368 01 02 03 04 05 08 09 0a 0b 0c 0d 0e 13 14 15 18 1b 1c 1d 1e 1f 25 88 89 8a 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 81 00 80 0f 8f 0f 00 80 01 81 00 80 01 81 00 80 01 81 00 80 01 81 0f 8f 0f 00 01 81 00 80 01 81 00 80 01 81 00 80 01 [pico] Changed state: WIIU_STATE_NEEDS_DEFUSE -> WIIU_STATE_DEFUSED [pico] Changed state: WIIU_STATE_DEFUSED -> WIIU_STATE_MONITORING 07!CF%10(MEM2MEM0PRSH]]01]]02]^04]^08efa282d9010210010210]]04f00fcafff0[Pico] Switching to text mode... 0fcafaU▒U▒U▒U▒f00fcafeGPU TV addr: 17500001 GPU DRC addr: 00000000 minute loading minute was loaded from boot1 context! Initializing exceptions... Configuring caches and MMU... MEM: cleaning up MEM: unprotecting memory MEM: mapping sections MEM: enabling caches MEM: enabling MMU MEM: configuring heap MEM: init done Interrupts initialized prsh: Header at 10005a54, PRST at 10007ff0, 1 entries (32 capacity): 0: boot_info 0x58 10008000 crypto support initialized BSP version: 0x25100028 Board type: CF (0x4346) Board revision: 0xb DDR props: size=2GiB (0x0800) speed=0x0002 vendor=U! (0x5521) Initializing SD card... sdhc: SDHC 1.0, 48 MHz base clock sdhc_bus_power(0x300000) sdhc_bus_clock(25000, 0) sdhc_bus_width(1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 CID: 6400CE02000010202020203545422800 CID: mid=28 name='BE5 ' prv=16.0 psn=000002ce mdt=4/2006 CSD: 008096BFFFB72DD5835A5F32005E0000 taac=94 nsac=0 read_bl_len=10 c_size=3924 c_size_mult=7 card size=2057830400 bytes sdcard_select: resp=700 sdhc_bus_width(4) sdcard: enabling highspeed 52MHz clock (32) sdhc_bus_clock(52000, 1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 sdcard: could not enable highspeed clock for card, falling back to 48MHz highspeed? sdhc_bus_clock(48000, 1) resetting due to error interrupt timeout dump: error_intr: 0x0 intr: 0x2 sdcard: MMC_ALL_SEND_CID failed with 116 sdcard: could not enable highspeed clock for card, falling back to 25MHz highspeed? sdhc_bus_clock(25000, 1) Mounting SD card... crypto: ~0x07d bytes of OTP loaded; JTAG is disabled (000000e1) f8 b1 8e c3 fe 26 b9 b1 1a d4 a4 ed d3 b7 a0 31 11 9a 79 f8 eb e4 2a 22 5e 85 93 e4 48 d9 c5 45 73 81 aa f7 24 2e cf 08 01 99 63 52 af 71 73 0d 1f 82 64 f2 34 58 02 7f e6 2e 36 62 0e 4b 76 1a 87 df 8e 03 2d f7 0b e8 8c e5 a2 92 39 06 47 89 d6 00 34 86 21 da 47 22 37 4f 89 7b d5 d0 3b eb e0 e7 8f 82 43 4f d9 5c 12 a2 cb 05 1c c1 ae 1c 98 ae 67 71 5c 29 b0 44 35 3b 00 00 00 OTP dumped successfully and was written to `sdmc:/otp.bin`. Press POWER/Q to continue.

I will attach it to this post



[SDIO]

That looks better now. Now you can try the first option in minute and see what happens



[lolorlofl]

Here's the output after selecting the first option

ancast: no patch file `ios.patch`, stubbing... ancast: reading 0xdfd200 bytes from slc:/sys/title/00050010/1000400a/code/fw.img ancast: ...00000000 -> 01000000 ancast: ...00100000 -> 01100000 ancast: ...00200000 -> 01200000 ancast: ...00300000 -> 01300000 ancast: ...00400000 -> 01400000 ancast: ...00500000 -> 01500000 ancast: ...00600000 -> 01600000 ancast: ...00700000 -> 01700000 ancast: ...00800000 -> 01800000 ancast: ...00900000 -> 01900000 ancast: ...00a00000 -> 01a00000 ancast: ...00b00000 -> 01b00000 ancast: ...00c00000 -> 01c00000 ancast: ...00d00000 -> 01d00000 ancast: done reading ancast: decrypting slc:/sys/title/00050010/1000400a/code/fw.img... ancast: fini ancast: IOS image is prod 5.5.0 ~ 5.5.4 ancast: pre-parsing plugin `sdmc:/wiiu/ios_plugins/wafel_core.ipx` ancast: loading plugin `sdmc:/wiiu/ios_plugins/wafel_core.ipx` GPU clocked at: 544.999877MHz Unmounting SLC... Shutting down MLC... sdhc_bus_power(0x0) Shutting down SD card... sdhc_bus_power(0x0) Shutting down interrupts... Shutting down caches and MMU... Vectoring to 0x01000300... Searching for OTP store in patch... Searching for OTP store in plugins... OTP store at: 27e23204 we in here kern 0x27e00fc0, base 0x27e00000 Inserted 27e00000 before e0000000 and after 20000000! Inserted 27e00000 before e0000000 and after 27e00000! Inserted 27e00000 before e0000000 and after 05200000! Type Offset VirtAddr PhysAddr FileSiz MemSiz Flg Align PHDR 0x000034 0x1d000000 0x1d000000 0x00000960 0x00000960 0x000000 0x4 NOTE 0x000934 0x1d000960 0x1d000960 0x000002ac 0x000002ac 0x000000 0x4 LOAD 0x000034 0x1d000000 0x1d000000 0x00000c0c 0x02b00000 0x000000 0x4000 LOAD 0x000be0 0x04000000 0x08280000 0x00017020 0x00017020 0x300005 0x4 LOAD 0x017c00 0x04020000 0x082a0000 0x00003f70 0x00003f70 0x300004 0x4 LOAD 0x01bb70 0x04024000 0x082a4000 0x00000ed4 0x00000ed4 0x300006 0x40 LOAD 0x01ca44 0x04025000 0x082a5000 0x00000000 0x000095c0 0x300006 0x40 LOAD 0x01ca44 0x05000000 0x081c0000 0x000598f0 0x000598f0 0x100005 0x4 LOAD 0x076334 0x05060000 0x08220000 0x0000ffc4 0x0000ffc4 0x100004 0x40 LOAD 0x0862f8 0x05070000 0x08230000 0x00003420 0x00003420 0x100006 0x40 LOAD 0x089718 0x05074000 0x08234000 0x00000000 0x00048574 0x100006 0x40 LOAD 0x089718 0x05100000 0x13d80000 0x00015d6c 0x00015d6c 0x100005 0x4 LOAD 0x09f484 0x08120000 0x08120000 0x00015000 0x00015000 0x000005 0x10 LOAD 0x0b4484 0x08140000 0x08140000 0x00002478 0x00002478 0x000004 0x10 LOAD 0x0b68fc 0x08143000 0x08143000 0x0000d000 0x0000d000 0x000006 0x10 LOAD 0x0c38fc 0x08150000 0x08150000 0x00000000 0x00061230 0x000006 0x4000 LOAD 0x0c38fc 0x10000000 0x10000000 0x00000000 0x00100000 0x100006 0x1 LOAD 0x0c38fc 0x10100000 0x10100000 0x000312d0 0x000312d0 0x400005 0x4 LOAD 0x0f4bcc 0x10140000 0x10140000 0x00004694 0x00004694 0x400004 0x4 LOAD 0x0f9260 0x10145000 0x10145000 0x000000dc 0x000000dc 0x400006 0x4 LOAD 0x0f933c 0x10146000 0x10146000 0x00000000 0x0037f4e8 0x400006 0x20 LOAD 0x0f933c 0x10700000 0x10700000 0x000f81c4 0x000f81c4 0x500005 0x4 LOAD 0x1f1500 0x10800000 0x10800000 0x00033b6c 0x00033b6c 0x500004 0x20 LOAD 0x22506c 0x10834000 0x10834000 0x000005d0 0x000005d0 0x500006 0x4 LOAD 0x22563c 0x10835000 0x10835000 0x00000000 0x01406554 0x500006 0x200 LOAD 0x22563c 0x11f00000 0x11f00000 0x00085770 0x00085770 0x600005 0x4 LOAD 0x2aadac 0x11fc0000 0x11fc0000 0x000140b0 0x000140b0 0x600004 0x4 LOAD 0x2bee5c 0x11fd5000 0x11fd5000 0x00023234 0x00023234 0x600006 0x4 LOAD 0x2e2090 0x11ff9000 0x11ff9000 0x00000000 0x0015f41c 0x600006 0x1000 LOAD 0x2e2090 0x12300000 0x12300000 0x00131844 0x00131844 0x700005 0x4 LOAD 0x4138d4 0x12440000 0x12440000 0x000288e8 0x000288e8 0x700004 0x4 LOAD 0x43c1bc 0x12469000 0x12469000 0x000000e4 0x000000e4 0x700006 0x4 LOAD 0x43c2a0 0x1246a000 0x1246a000 0x0005b31d 0x0005b31d 0x700006 0x4 LOAD 0x4975c0 0x124c6000 0x124c6000 0x00000000 0x003c7028 0x700006 0x40 LOAD 0x4975c0 0x1fb00000 0x1fb00000 0x00300000 0x00300000 0x700006 0x4 LOAD 0x7975c0 0x1fe00000 0x1fe00000 0x00014ef4 0x00014ef4 0x100006 0x20 LOAD 0x7ac4b4 0x1fe40000 0x1fe40000 0x00000000 0x001c0000 0x100006 0x1 LOAD 0x7ac4b4 0x20000000 0x20000000 0x00000000 0x07e00000 0x500006 0x1 LOAD 0x000000 0x27e00000 0x27e00000 0x00200000 0x00200000 0x100007 0x1 LOAD 0x000000 0x05200000 0x27e00000 0x00000000 0x00100000 0x100007 0x1 LOAD 0x000000 0x10600000 0x27e00000 0x00000000 0x00100000 0x100007 0x1 LOAD 0x7ac4b4 0xe0000000 0x12900000 0x000db65c 0x000db65c 0x800005 0x4 LOAD 0x887b10 0xe0100000 0x12a00000 0x0002088c 0x0002088c 0x800004 0x4 LOAD 0x8a839c 0xe0121000 0x12a21000 0x00000124 0x00000124 0x800006 0x4 LOAD 0x8a84c0 0xe0122000 0x12a22000 0x00000650 0x00000650 0x800006 0x4 LOAD 0x8a8b10 0xe0123000 0x12a23000 0x00000000 0x0013ef10 0x800006 0x40 LOAD 0x8a8b10 0xe1000000 0x12bc0000 0x00090d08 0x00090d08 0x900005 0x4 LOAD 0x939818 0xe10c0000 0x12c80000 0x000213b4 0x000213b4 0x900004 0x4 LOAD 0x95abcc 0xe10e2000 0x12ca2000 0x00001734 0x00001734 0x900006 0x4 LOAD 0x95c300 0xe10e4000 0x12ca4000 0x00000000 0x002043b8 0x900006 0x20 LOAD 0x95c300 0xe2000000 0x12ec0000 0x002651e0 0x002651e0 0xb00005 0x4 LOAD 0xbc14e0 0xe2280000 0x13140000 0x00048934 0x00048934 0xb00004 0x4 LOAD 0xc09e14 0xe22c9000 0x13189000 0x00000264 0x00000264 0xb00006 0x4 LOAD 0xc0a078 0xe22ca000 0x1318a000 0x00000604 0x00000604 0xb00006 0x4 LOAD 0xc0a67c 0xe22cb000 0x1318b000 0x00000000 0x003fd9f0 0xb00006 0x40 LOAD 0xc0a67c 0xe3000000 0x13640000 0x0016ba14 0x0016ba14 0xc00005 0x4 LOAD 0xd76090 0xe3180000 0x137c0000 0x0002c78c 0x0002c78c 0xc00004 0x4 LOAD 0xda281c 0xe31ad000 0x137ed000 0x00000150 0x00000150 0xc00006 0x4 LOAD 0xda296c 0xe31ae000 0x137ee000 0x000009d0 0x000009d0 0xc00006 0x4 LOAD 0xda333c 0xe31af000 0x137ef000 0x00000000 0x0014da94 0xc00006 0x40 LOAD 0xda333c 0xe4000000 0x13a40000 0x00019704 0x00019704 0xd00005 0x4 LOAD 0xdbca40 0xe4040000 0x13a80000 0x00005ae8 0x00005ae8 0xd00004 0x4 LOAD 0xdc2528 0xe4046000 0x13a86000 0x0000005c 0x0000005c 0xd00006 0x4 LOAD 0xdc2584 0xe4047000 0x13a87000 0x00000000 0x0011123c 0xd00006 0x20 LOAD 0xdc2584 0xe5000000 0x13c00000 0x0000fd64 0x0000fd64 0xa00005 0x4 LOAD 0xdd22e8 0xe5040000 0x13c40000 0x0000328c 0x0000328c 0xa00004 0x4 LOAD 0xdd5574 0xe5044000 0x13c44000 0x000006e4 0x000006e4 0xa00006 0x4 LOAD 0xdd5c58 0xe5045000 0x13c45000 0x00000000 0x00029900 0xa00006 0x20 LOAD 0xdd5c58 0xe6000000 0x13cc0000 0x00010a80 0x00010a80 0x200005 0x4 LOAD 0xde66d8 0xe6040000 0x13d00000 0x00001b90 0x00001b90 0x200004 0x4 LOAD 0xde8268 0xe6042000 0x13d02000 0x00004990 0x00004990 0x200006 0x4 LOAD 0xdecbf8 0xe6047000 0x13d07000 0x00000000 0x000011f4 0x200006 0x4 LOAD 0xdecbf8 0xe7000000 0x082c0000 0x00001000 0x00001000 0x200006 0x4 LOAD 0xdedbf8 0xeff00000 0xfff00000 0x00000000 0x00008000 0x100006 0x1 LOAD 0xdedbf8 0xffff0000 0xffff0000 0x0000eb0c 0x0000eb0c 0x000007 0x4 kern_main symbol at: 27e00fc0 our module mem size is: 00177000 wafel_core: found OTP read pattern 1 at 08120290... wafel_core: found OTP read at 08120248. stroopwafel kern_main done region starting at virtual address 0xffff0000: size = 0x00010000 paddr = 0xffff0000 domain = 0x00000000 attributes: Kernel-Only, cached region starting at virtual address 0x08120000: size = 0x000a0000 paddr = 0x08120000 domain = 0x00000000 attributes: Kernel-Only, cached region starting at virtual address 0x1d000000: size = 0x02b00000 paddr = 0x1d000000 domain = 0x00000000 attributes: Read/Write, cached region starting at virtual address 0x08000000: size = 0x00100000 paddr = 0x08000000 domain = 0x0000000f attributes: Read/Write, cached region starting at virtual address 0x08100000: size = 0x00020000 paddr = 0x08100000 domain = 0x00000000 attributes: Read/Write, cached region starting at virtual address 0x00000000: size = 0x00001000 paddr = 0x00000000 domain = 0x00000000 attributes: Kernel-Only, cached region starting at virtual address 0x00001000: size = 0x01fff000 paddr = 0x00001000 domain = 0x00000000 attributes: Read/Write, cached region starting at virtual address 0x14000000: size = 0x09000000 paddr = 0x14000000 domain = 0x00000000 attributes: Read/Write, cached region starting at virtual address 0x27c00000: size = 0x00400000 paddr = 0x27c00000 domain = 0x00000000 attributes: Read/Write, cached region starting at virtual address 0x28000000: size = 0xa8000000 paddr = 0x28000000 domain = 0x00000000 attributes: Read/Write, cached IOS_KERNEL: Built 07/28/15 19:27:01, SRAM Utilization 91%, MEM Utilization 90%. region starting at virtual address 0x05000000: size = 0x0005a000 paddr = 0x081c0000 domain = 0x00000001 attributes: Read-Only, cached region starting at virtual address 0x05060000: size = 0x00010000 paddr = 0x08220000 domain = 0x00000001 attributes: Read-Only, cached region starting at virtual address 0x05070000: size = 0x00004000 paddr = 0x08230000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x05074000: size = 0x00049000 paddr = 0x08234000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x04000000: size = 0x00018000 paddr = 0x08280000 domain = 0x00000003 attributes: Read-Only, cached region starting at virtual address 0x04020000: size = 0x00004000 paddr = 0x082a0000 domain = 0x00000003 attributes: Read-Only, cached region starting at virtual address 0x04024000: size = 0x00001000 paddr = 0x082a4000 domain = 0x00000003 attributes: Read/Write, cached region starting at virtual address 0x04025000: size = 0x0000a000 paddr = 0x082a5000 domain = 0x00000003 attributes: Read/Write, cached region starting at virtual address 0xe7000000: size = 0x00001000 paddr = 0x082c0000 domain = 0x00000002 attributes: Read/Write, cached region starting at virtual address 0x10000000: size = 0x00100000 paddr = 0x10000000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x10100000: size = 0x00032000 paddr = 0x10100000 domain = 0x00000004 attributes: Read-Only, cached region starting at virtual address 0x10140000: size = 0x00005000 paddr = 0x10140000 domain = 0x00000004 attributes: Read-Only, cached region starting at virtual address 0x10145000: size = 0x00001000 paddr = 0x10145000 domain = 0x00000004 attributes: Read/Write, cached region starting at virtual address 0x10146000: size = 0x00380000 paddr = 0x10146000 domain = 0x00000004 attributes: Read/Write, cached region starting at virtual address 0x10700000: size = 0x000f9000 paddr = 0x10700000 domain = 0x00000005 attributes: Read-Only, cached region starting at virtual address 0x10800000: size = 0x00034000 paddr = 0x10800000 domain = 0x00000005 attributes: Read-Only, cached region starting at virtual address 0x10834000: size = 0x00001000 paddr = 0x10834000 domain = 0x00000005 attributes: Read/Write, cached region starting at virtual address 0x10835000: size = 0x01407000 paddr = 0x10835000 domain = 0x00000005 attributes: Read/Write, cached region starting at virtual address 0x11f00000: size = 0x00086000 paddr = 0x11f00000 domain = 0x00000006 attributes: Read-Only, cached region starting at virtual address 0xd1f00000: size = 0x00086000 paddr = 0x11f00000 domain = 0x00000006 attributes: Read-Only, un-cached region starting at virtual address 0x11fc0000: size = 0x00015000 paddr = 0x11fc0000 domain = 0x00000006 attributes: Read-Only, cached region starting at virtual address 0xd1fc0000: size = 0x00015000 paddr = 0x11fc0000 domain = 0x00000006 attributes: Read-Only, un-cached region starting at virtual address 0x11fd5000: size = 0x00024000 paddr = 0x11fd5000 domain = 0x00000006 attributes: Read/Write, cached region starting at virtual address 0xd1fd5000: size = 0x00024000 paddr = 0x11fd5000 domain = 0x00000006 attributes: Read/Write, un-cached region starting at virtual address 0x11ff9000: size = 0x00160000 paddr = 0x11ff9000 domain = 0x00000006 attributes: Read/Write, cached region starting at virtual address 0xd1ff9000: size = 0x00160000 paddr = 0x11ff9000 domain = 0x00000006 attributes: Read/Write, un-cached region starting at virtual address 0x12300000: size = 0x00132000 paddr = 0x12300000 domain = 0x00000007 attributes: Read-Only, cached region starting at virtual address 0x12440000: size = 0x00029000 paddr = 0x12440000 domain = 0x00000007 attributes: Read-Only, cached region starting at virtual address 0x12469000: size = 0x00001000 paddr = 0x12469000 domain = 0x00000007 attributes: Read/Write, cached region starting at virtual address 0x1246a000: size = 0x0005c000 paddr = 0x1246a000 domain = 0x00000007 attributes: Read/Write, cached region starting at virtual address 0x124c6000: size = 0x003c8000 paddr = 0x124c6000 domain = 0x00000007 attributes: Read/Write, cached region starting at virtual address 0xe0000000: size = 0x000dc000 paddr = 0x12900000 domain = 0x00000008 attributes: Read-Only, cached region starting at virtual address 0xe0100000: size = 0x00021000 paddr = 0x12a00000 domain = 0x00000008 attributes: Read-Only, cached region starting at virtual address 0xe0121000: size = 0x00001000 paddr = 0x12a21000 domain = 0x00000008 attributes: Read/Write, cached region starting at virtual address 0xe0122000: size = 0x00001000 paddr = 0x12a22000 domain = 0x00000008 attributes: Read/Write, cached region starting at virtual address 0xe0123000: size = 0x0013f000 paddr = 0x12a23000 domain = 0x00000008 attributes: Read/Write, cached region starting at virtual address 0xe1000000: size = 0x00091000 paddr = 0x12bc0000 domain = 0x00000009 attributes: Read-Only, cached region starting at virtual address 0xe10c0000: size = 0x00022000 paddr = 0x12c80000 domain = 0x00000009 attributes: Read-Only, cached region starting at virtual address 0xe10e2000: size = 0x00002000 paddr = 0x12ca2000 domain = 0x00000009 attributes: Read/Write, cached region starting at virtual address 0xe10e4000: size = 0x00205000 paddr = 0x12ca4000 domain = 0x00000009 attributes: Read/Write, cached region starting at virtual address 0xe2000000: size = 0x00266000 paddr = 0x12ec0000 domain = 0x0000000b attributes: Read-Only, cached region starting at virtual address 0xe2280000: size = 0x00049000 paddr = 0x13140000 domain = 0x0000000b attributes: Read-Only, cached region starting at virtual address 0xe22c9000: size = 0x00001000 paddr = 0x13189000 domain = 0x0000000b attributes: Read/Write, cached region starting at virtual address 0xe22ca000: size = 0x00001000 paddr = 0x1318a000 domain = 0x0000000b attributes: Read/Write, cached region starting at virtual address 0xe22cb000: size = 0x003fe000 paddr = 0x1318b000 domain = 0x0000000b attributes: Read/Write, cached region starting at virtual address 0xe3000000: size = 0x0016c000 paddr = 0x13640000 domain = 0x0000000c attributes: Read-Only, cached region starting at virtual address 0xe3180000: size = 0x0002d000 paddr = 0x137c0000 domain = 0x0000000c attributes: Read-Only, cached region starting at virtual address 0xe31ad000: size = 0x00001000 paddr = 0x137ed000 domain = 0x0000000c attributes: Read/Write, cached region starting at virtual address 0xe31ae000: size = 0x00001000 paddr = 0x137ee000 domain = 0x0000000c attributes: Read/Write, cached region starting at virtual address 0xe31af000: size = 0x0014e000 paddr = 0x137ef000 domain = 0x0000000c attributes: Read/Write, cached region starting at virtual address 0xe4000000: size = 0x0001a000 paddr = 0x13a40000 domain = 0x0000000d attributes: Read-Only, cached region starting at virtual address 0xe4040000: size = 0x00006000 paddr = 0x13a80000 domain = 0x0000000d attributes: Read-Only, cached region starting at virtual address 0xe4046000: size = 0x00001000 paddr = 0x13a86000 domain = 0x0000000d attributes: Read/Write, cached region starting at virtual address 0xe4047000: size = 0x00112000 paddr = 0x13a87000 domain = 0x0000000d attributes: Read/Write, cached region starting at virtual address 0xe5000000: size = 0x00010000 paddr = 0x13c00000 domain = 0x0000000a attributes: Read-Only, cached region starting at virtual address 0xe5040000: size = 0x00004000 paddr = 0x13c40000 domain = 0x0000000a attributes: Read-Only, cached region starting at virtual address 0xe5044000: size = 0x00001000 paddr = 0x13c44000 domain = 0x0000000a attributes: Read/Write, cached region starting at virtual address 0xe5045000: size = 0x0002a000 paddr = 0x13c45000 domain = 0x0000000a attributes: Read/Write, cached region starting at virtual address 0xe6000000: size = 0x00011000 paddr = 0x13cc0000 domain = 0x00000002 attributes: Read-Only, cached region starting at virtual address 0xe6040000: size = 0x00002000 paddr = 0x13d00000 domain = 0x00000002 attributes: Read-Only, cached region starting at virtual address 0xe6042000: size = 0x00005000 paddr = 0x13d02000 domain = 0x00000002 attributes: Read/Write, cached region starting at virtual address 0xe6047000: size = 0x00002000 paddr = 0x13d07000 domain = 0x00000002 attributes: Read/Write, cached region starting at virtual address 0x05100000: size = 0x00016000 paddr = 0x13d80000 domain = 0x00000001 attributes: Read-Only, cached region starting at virtual address 0x1fb00000: size = 0x00300000 paddr = 0x1fb00000 domain = 0x00000007 attributes: Read/Write, cached region starting at virtual address 0x1fe00000: size = 0x00015000 paddr = 0x1fe00000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x1fe40000: size = 0x001c0000 paddr = 0x1fe40000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x20000000: size = 0x07e00000 paddr = 0x20000000 domain = 0x00000005 attributes: Read/Write, cached region starting at virtual address 0x05200000: size = 0x00100000 paddr = 0x27e00000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0x10600000: size = 0x00100000 paddr = 0x27e00000 domain = 0x00000001 attributes: Read/Write, cached region starting at virtual address 0xeff00000: size = 0x00008000 paddr = 0xfff00000 domain = 0x00000001 attributes: Read/Write, cached Creating main() thread for IOS-BSP: priority=125 stackSize=4096 stackPtr=0xe7000000 entry=0xe600f848memPermMask=0x00100000 IOS-BSP: Built 07/28/15 19:23:58, Image Utilization 37%. Creating main() thread for IOS-MCP: priority=124 stackSize=8192 stackPtr=0x050ba4a0 entry=0x05056718memPermMask=0x000c0030 Creating main() thread for IOS-CRYPTO: priority=123 stackSize=4096 stackPtr=0x04028628 entry=0x04015ea4memPermMask=0x000c0030 Creating main() thread for IOS-USB: priority=107 stackSize=16384 stackPtr=0x104b92c8 entry=0x1012e9e8memPermMask=0x00038600 Creating main() thread for IOS-FS: priority=85 stackSize=16384 stackPtr=0x1114117c entry=0x107f6830memPermMask=0x001c5870 Creating main() thread for IOS-PAD: priority=117 stackSize=8192 stackPtr=0x1214ab4c entry=0x11f82d94memPermMask=0x00008180 Creating main() thread for IOS-NET: priority=80 stackSize=16384 stackPtr=0x12804498 entry=0x123e4174memPermMask=0x00002000 Creating main() thread for IOS-ACP: priority=50 stackSize=16384 stackPtr=0xe0125390 entry=0xe00d8290memPermMask=0x00000000 Creating main() thread for IOS-NSEC: priority=50 stackSize=4096 stackPtr=0xe12e71a4 entry=0xe108e860memPermMask=0x00000000 Creating main() thread for IOS-AUXIL: priority=70 stackSize=16384 stackPtr=0xe506a900 entry=0xe500d720memPermMask=0x00000000 Creating main() thread for IOS-NIM-BOSS: priority=50 stackSize=16384 stackPtr=0xe22cb000 entry=0xe22602fcmemPermMask=0x00000000 Creating main() thread for IOS-FPD: priority=50 stackSize=16384 stackPtr=0xe31af000 entry=0xe3166b34memPermMask=0x00000000 Creating main() thread for IOS-TEST: priority=75 stackSize=8192 stackPtr=0xe415623c entry=0xe40168a4memPermMask=0x00000000 we in here MCP 0x5202008 stroopwafel mcp_main done IOS-PAD: Built 07/28/15 19:23:58, Image Utilization 58%. IOS-CRYPTO: Built 07/28/15 19:23:58, Image Utilization 72%. CRYPTO Open, clientPid=1 nodeId 00000000 titleId 0000000000000000 perm=0xffffffff IOSC Initialize -- IOSC library build time 09/27/12 19:28:40 IOS-USB: Built 07/28/15 19:23:58, Image Utilization 62%. 00:00:00:235: MMC(0): initializing Controller 0, Slot 0 base 0x0D070000 00:00:00:237: MMC(3): initializing Controller 2, Slot 0 base 0x0D100000 00:00:00:239: MMC(4): initializing Controller 3, Slot 0 base 0x0D110000 IOS-NET: Built 07/28/15 19:23:58, Image Utilization 92%. USB Trace: Activating root hubs @ uptime 0.302 s with options 0x40000. 00:00:00:304: USB Trace: Activating root hubs @ uptime 0.302 s with options 0x40000. UHS0 Trace: DevFsm(EHCI-0/L0/P0): Creating device, speed=HIGH. 00:00:00:317: UHS0 Trace: DevFsm(EHCI-0/L0/P0): Creating device, speed=HIGH. UHS0 Trace: DevFsm(OHCI-0:0/L0/P0): Creating device, speed=FULL. 00:00:00:322: UHS0 Trace: DevFsm(OHCI-0:0/L0/P0): Creating device, speed=FULL. USB Info: UhsServerAddHc 0 OK. 00:00:00:325: USB Info: UhsServerAddHc 0 OK. UHS0 Trace: DevFsm(EHCI-1/L0/P0): Creating device, speed=HIGH. 00:00:00:337: UHS0 Trace: DevFsm(EHCI-1/L0/P0): Creating device, speed=HIGH. UHS0 Trace: DevFsm(OHCI-1:0/L0/P0): Creating device, speed=FULL. 00:00:00:342: UHS0 Trace: DevFsm(OHCI-1:0/L0/P0): Creating device, speed=FULL. USB Info: UhsServerAddHc 1 OK. 00:00:00:345: USB Info: UhsServerAddHc 1 OK. IOS-TEST: Built 07/28/15 19:23:58, Image Utilization 76%. TEST Info: localProcessHeap OK. TEST Info: crossProcessHeap OK. 00:00:00:353: TEST Info: crossProcessHeap OK. IOS-AUXIL: Built 07/28/15 19:23:58, Image Utilization 57%. AUXIL Info: localProcessHeap OK. AUXIL Info: crossProcessHeap OK. 00:00:00:358: AUXIL Info: crossProcessHeap OK. UHS0 Trace: Powering on root hub group 0. 00:00:00:362: UHS0 Trace: Powering on root hub group 0. IOS-NSEC: Built 07/28/15 19:23:58, Image UtilIOS-FPD: Built 07/28/15 19:23:58, Image Utilization 74%. UHS0 Trace: Powering on root hub group 1. 00:00:00:378: UHS0 Trace: Powering on root hub group 1. 00:00:00:381: AHCI_MGR Trace: Turning on drive power. 00:00:00:382: AHCI_MGR Trace: Turning on drive power. ization 96%. 00:00:00:388: AHCI_MGR Trace: Initializing phy. 00:00:00:389: AHCI_MGR Trace: Initializing phy. 00:00:00:391: AHCI_DRV Trace: Initiating cold open. 00:00:00:392: AHCI_DRV Trace: Initiating cold open. 00:00:00:393: AHCI_DRV Trace: Resetting HBA. 00:00:00:395: AHCI_DRV Trace: Resetting HBA. AUXIL Info: Net OK. 00:00:00:398: AUXIL Info: Net OK. IOS-ACP: Built 07/28/15 19:23:58, Image Utilization 86%. IOS-NIM-BOSS: Built 07/28/15 19:23:58, Image Utilization 90%. act_main.cpp,Start,174CRYPTO Open, clientPid=5 nodeId 00000000 titleId 00000000100000f1 perm=0xffffffff 00:00:00:446: AHCI_DRV Trace: HBA Reset OK. 00:00:00:447: AHCI_DRV Trace: HBA Reset OK. 00:00:00:515: ISFS: FAT INFO (ch WUP): slot 63 / seq 449025 (Each FAT slot has been updated 7016 times in avr) 00:00:00:518: ISFS: fs_fat.c(545)FAT INFO (ch WUP): slot 63 / seq 449025 (Each FAT slot has been updated 7016 times in avr) 00:00:00:521: FSA: [uptime 0.521 s]: Attached volume to slc01 (isfs): Capacity 511 MB, 262016 logical blocks of size 2048 B. 00:00:00:611: ISFS: FAT INFO (ch RVL Compat): slot 4 / seq 100214 (Each FAT slot has been updated 6263 times in avr) 00:00:00:614: ISFS: fs_fat.c(545)FAT INFO (ch RVL Compat): slot 4 / seq 100214 (Each FAT slot has been updated 6263 times in avr) 00:00:00:617: FSA: [uptime 0.617 s]: Attached volume to slccmpt01 (isfs): Capacity 511 MB, 261632 logical blocks of size 2048 B. 00:00:00:626: SCFM:Start init. BUILD_TIME:[19:23:46] 00:00:00:631: SCFM:FSAInit 00:00:00:632: SCFM:AddClient 00:00:00:633: SCFM:scfmMountSlc 00:00:00:634: SCFM:scfmLoad 00:00:00:635: SCFM:Done init. 00:00:00:636: PCFS: Disabled because we are in PROD mode. 00:00:00:638: MCP: booting from NAND 00:00:00:639: MCP: Boot PM flags - PON_COLDBOOT 00:00:00:659: MCP: Cafe OS SDK Version 2.13.01 Build 68939 Branch sdk_2_13 00:00:00:661: MCP: Booting on Espresso (0x0000700100000201), Latte (0x25100028), RTC (0x21) 00:00:00:663: MCP: Platform - boardType(CF), boardRevision(11), devicePresence(0x00000000), sataDevice(3), consoleType(1) 00:00:00:668: ISFS: FAT block entries check start 00:00:00:670: ISFS: fs_ops.c(2215)FAT block entries check start 00:00:00:675: ISFS: FAT block entries check finished. 00:00:00:677: ISFS: fs_ops.c(2292)FAT block entries check finished. 00:00:00:694: FSA: [uptime 0.694 s]: Attached volume to mlc01 (wfs): Capacity 29760 MB, 60948480 logical blocks of size 512 B. 00:00:00:703: FSA: [uptime 0.703 s]: Attached volume to sdcard01 (fat): Capacity 1962 MB, 4019200 logical blocks of size 512 B. 00:00:00:708: FSA: [uptime 0.708 s]: Attached volume to ramdisk01 (raw): Capacity 125 MB, 129022 logical blocks of size 1024 B. 00:00:00:712: MCP: Formatting Device ramdisk to wfs 00:00:00:857: FSA: [uptime 0.857 s]: Attached volume to ramdisk01 (wfs): Capacity 125 MB, 129022 logical blocks of size 1024 B. 00:00:00:860: MCP: Format Complete 00:00:00:850: mmc_core card err: idx=3, lba=55432192, blks=256, xfer=0x1, ret=0x00200b40 00:00:00:897: mmc_core card err: idx=3, lba=55432192, blks=256, xfer=0x1, ret=0x00200b40 00:00:00:899: mdblk: err=-131099, mid=0x90, prv=0x5c, pnm=[HYNIX ] 00:00:00:920: mmc_core card err: idx=3, lba=55432448, blks=256, xfer=0x1, ret=0x00200b40 00:00:00:952: mmc_core card err: idx=3, lba=55432448, blks=256, xfer=0x1, ret=0x00200b40 00:00:00:954: mdblk: err=-131099, mid=0x90, prv=0x5c, pnm=[HYNIX ] 00:00:00:958: [1328]:[scfm.c] asyncMdBlkDrv() [-2228232 == 0] 00:00:00:960: [1328]:[scfm.c] asyncMdBlkDrv() [err == 0] 00:00:00:961: [1328]:[scfm.c] asyncMdBlkDrv() Error occurred! 00:00:00:963: Error occurred! 00:00:00:964: [4165]:[scfm.c] mlcToCache() [-2293772 == 0] 00:00:00:965: [4165]:[scfm.c] mlcToCache() [scfmError == 0] 00:00:00:967: [4165]:[scfm.c] mlcToCache() Error occurred in mdBlkDrvRead. 00:00:00:969: [4568]:[scfm.c] flushOneCache() [-2293772 == 0] 00:00:00:971: [4568]:[scfm.c] flushOneCache() [scfmError == 0] 00:00:00:972: [4568]:[scfm.c] flushOneCache() Error occurred in mlcToCache. 00:00:00:974: [4730]:[scfm.c] flushCache() [-2293772 == 0] 00:00:00:976: [4730]:[scfm.c] flushCache() [scfmError == 0] 00:00:00:978: [4730]:[scfm.c] flushCache() Error occurred in flushOneCache. 00:00:00:980: mmc_core card err: idx=3, lba=55432192, blks=256, xfer=0x1, ret=0x00200b40 00:00:00:982: [5185]:[scfm.c] flushCachePartlyToSaveReadyCache() [-2293772 == 0] 00:00:00:984: [5185]:[scfm.c] flushCachePartlyToSaveReadyCache() [scfmError == 0] 00:00:00:986: [5185]:[scfm.c] flushCachePartlyToSaveReadyCache() Error occurred in flushCache. 00:00:01:018: mmc_core card err: idx=3, lba=55432192, blks=256, xfer=0x1, ret=0x00200b40 00:00:01:021: mdblk: err=-131099, mid=0x90, prv=0x5c, pnm=[HYNIX ] 00:00:01:041: mmc_core card err: idx=3, lba=55432448, blks=256, xfer=0x1, ret=0x00200b40 00:00:01:073: mmc_core card err: idx=3, lba=55432448, blks=256, xfer=0x1, ret=0x00200b40 00:00:01:075: mdblk: err=-131099, mid=0x90, prv=0x5c, pnm=[HYNIX ] 00:00:01:077: [4440]:[scfm.c] cancelCurrentPipelineProcess() Error occurred in cancelPipelineProcess. [-2228230] 00:00:01:080: [2486]:[scfm.c] catchScfmProcAsync() Error occurred in scfm, so cannot access. 00:00:01:083: FSA: ### MEDIA ERROR ###, dev:mlc01, err:-2228230, cmd:2, path:(null) iosPanic(): MCP: failure in PM(788)...



[SDIO]

OK nice, now you should be all set up when the NAND-AID arrives. The log looks exactly how we would expect it and we can even see how it crashes on the MLC.

From the scfm crashing on the flushCache, I guess your eMMC went read only.

Did you already dump the MLC using minute?



[lolorlofl]

How do I dump the MLC from minute? I don't see an option for it in the Backup and Restore menu.



[Lazr1026]

you have to use the "format rednand" option. i have a guide for it at my unbrick guide https://lazr1026.github.io/unbrick



[lolorlofl]

Awesome, thank you very much. There's a thunderstorm tonight and I'm worried my power will drop so I will start the dump tomorrow.
EDIT: Plugged Wii U into UPS so I will start the dump tonight.

Post automatically merged: Aug 25, 2023

@Lazr1026 In your guide it says to make an image of the 3rd partition using Win32DiskImager. How do I select specifically that partition? I think right now it's making an image of the whole SD card



[SDIO]

Yeah Win32DiskImager can't do that, it can only do the whole device. I guess you either have to do the whole device or find a windows tool that can. I am using linux and there it is trivial with dd. On Windows things are more complicated.



[lolorlofl]

Yeah I was having a hard time finding an equivalent tool for Windows. There is a DD for Windows utility but I have no idea how to use it unfortunately. The only extra SD card I have that could fit the MLC backup is a 200GB card, so now I have a huge disk image taking up space. Is there a tool that will let me split the disk image, or am I better off trying to find a tool that will let me clone that specific partition?



[SDIO]

Have a look here: http://www.chrysocome.net/dd
For if (input file) you would specify the partition and for of (output file) the file you want to write to. Also I recommend a bs=1M

Also Backup the other small partition, which has the SLC, so you have both marching



[lolorlofl]

Yeah that's what I was looking at yesterday. How do I determine the name of the partition? I know in Linux it's something like \dev\sdc or something. I tried using diskpart in Windows to see if it will give me a name to work with but it's either not possible through diskpart or I'm completely missing something.

Post automatically merged: Aug 25, 2023

I see there's a command in DD to list disk volumes in Windows. I'll check this out again when I'm home later today.
