Hacking Hardware switch lite - rp2040 mosfet schema wiring

Dee87

Well-Known Member
Member
Joined
Mar 19, 2023
Messages
1,139
Trophies
1
XP
1,578
Country
Germany
can you help me draw the wiring line ?
you can use paint or maybe online like photopea.com
to draw line~
View attachment 363502
Hope this Picture works Better B-)
edited it one more time Xd
Marikodual Mosfet.jpg

Last edited by Dee87,

Phantomas77

Well-Known Member
Member
Joined
Dec 19, 2022
Messages
284
Trophies
0
XP
720
Country
Italy

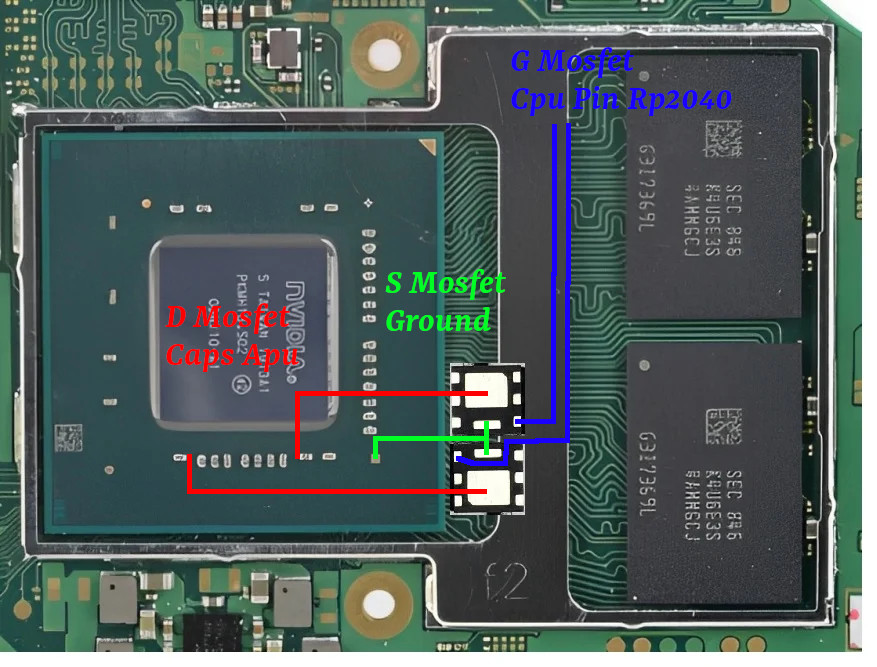

@Dee87 red is Drain, but the scheme is ok.
But why did you go with low-melt solder nearby the hottest spot on the entire system? I haven't done transistor install directly on the caps, but would prefer the classic Sn63/Pb37 alloy.

  • Like
Reactions: Dee87

Dee87

Well-Known Member
Member
Joined
Mar 19, 2023
Messages
1,139
Trophies
1
XP
1,578
Country
Germany
@Dee87 red is Drain, but the scheme is ok.
But why did you go with low-melt solder nearby the hottest spot on the entire system? I haven't done transistor install directly on the caps, but would prefer the classic Sn63/Pb37 alloy.
yeah i edit the picture with better explanation
sorry didnt have enough coffe

low melt solder so u dont rip of the Caps/Pads if u accidently pull on the Wire ( yes been there and done that )
plus the apu will never reach over 60°C my low melt solder is something between 140°C and 170°C

  • Like
Reactions: Phantomas77

Phantomas77

Well-Known Member
Member
Joined
Dec 19, 2022
Messages
284
Trophies
0
XP
720
Country
Italy
yeah i edit the picture with better explanation
sorry didnt have enough coffe

low melt solder so u dont rip of the Caps/Pads if u accidently pull on the Wire ( yes been there and done that )
plus the apu will never reach over 60°C my low melt solder is something between 140°C and 170°C
OK, I see. Thanks for the pic, I think we can ask @Adran_Marit to insert it in the AIO thread :)

  • Like
Reactions: Dee87

Dee87

Well-Known Member
Member
Joined
Mar 19, 2023
Messages
1,139
Trophies
1
XP
1,578
Country
Germany
you edit the image.

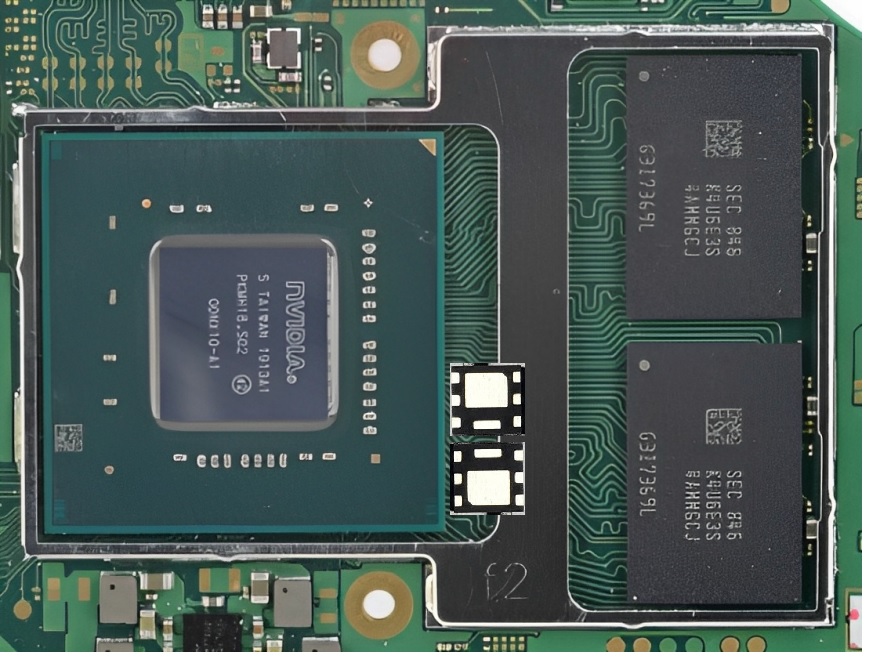

ehe this one better !!
thx
this superb!!!
yes i did
no Problem
Post automatically merged:

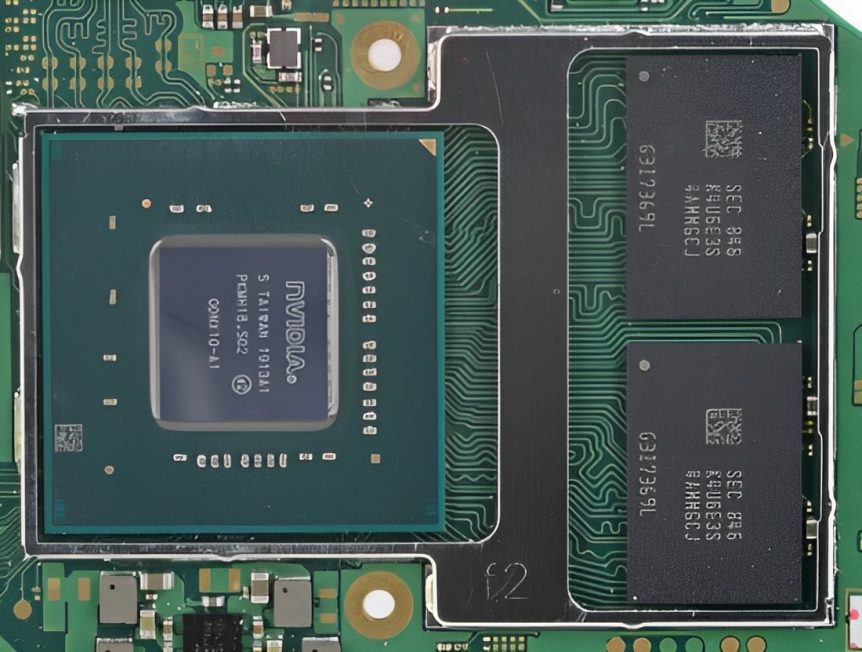

@nico77 where did u fin the Hq pic from the Apu?
are there maybe more maybe also From the eriste/V1 Board
also can u upload the original picture without mosfet?

Last edited by Dee87,

nico77

Well-Known Member
OP
Member
Joined
Apr 6, 2023
Messages
160
Trophies
0
Age
33
XP
238
Country
Indonesia
yes i did
no Problem
Post automatically merged:

@nico77 where did u fin the Hq pic from the Apu?
are there maybe more maybe also From the eriste/V1 Board
also can u upload the original picture without mosfet?
lol...
sry but i only use from google~ and enhance them online :P
theres online website i use to enhance the image.... but they limit how many times we can use to enhance pic :v

  • Like
Reactions: Dee87

haipro287

Active Member
Newcomer
Joined
Aug 6, 2022
Messages
28
Trophies
0
Age
23
Location
Hanoi
XP
162
Country
Vietnam
no problem
use low melt solder ,flux and uv mask
dont brindge anything on the emosfet
and dont use to thin wire to the mosfet
the wire to cpu pins 0.1mm wire is enough
Why dont use thin wire to the mosfet, I intend to use 0.1mm wire, is it not okay?
