Picofly AIO Thread

[QuiTim]

Why the two wires to the Pico if they both go to a single point on it?

Because it's quite difficult to run a single wire to Gate terminals on 2 mosfets since those terminals are on the oposite sides (higher risk of creating a short)



[A-Hacked-Soul]

About at my limit of patience, I get the blue light then a yellowish orange light which should be Dat0 but everything seems to check out. Unsolder everything and it boots fine still.



[lightninjay]

About at my limit of patience, I get the blue light then a yellowish orange light which should be Dat0 but everything seems to check out. Unsolder everything and it boots fine still.

Have you accidentally sat your resistor on the dat0 point on your picofly instead of having only one side of it connected to the pad and the wire connected to the other side of the resistor?



[A-Hacked-Soul]

Have you accidentally sat your resistor on the dat0 point on your picofly instead of having only one side of it connected to the pad and the wire connected to the other side of the resistor?

No I have mine hanging off to avoid that.



[NandieeHU]

These are some of my mosfet installations. Both way works perfectly fine. But i'll recommend the cpu flex cable.



[A-Hacked-Soul]

Nintendo Switch Lite Alternative Point DAT0 CMD CLK by Modyfikator. Hope it help you 👊

I tried this lite alt point and it is still turning orange. Maybe I have a bad 2040...

Post automatically merged: May 4, 2023

Blue White Orange



[Haseo13]

Hi
Can you tell me where i can get sdloader,enc update to picofly ? Just get to two mess up oled from customers...Hope can fix them



[Adran_Marit]

Hi
Can you tell me where i can get sdloader,enc update to picofly ? Just get to two mess up oled from customers...Hope can fix them

Probably here if it uses a modded version of the hwfly toolbox



[SiggiBartman]

Can somebody help me, i‘ve broken the pads for clk and somehow even lost the resistor? next to it. Is there an alternative point so i can fix my switch and what is the value of this resistor/diode?



[Adran_Marit]

Can somebody help me, i‘ve broken the pads for clk and somehow even lost the resistor? next to it. Is there an alternative point so i can fix my switch and what is the value of this resistor/diode?

can you clean those pads up more. If its the left most pad you are screwed but if it the right pad, you are lucky... as for the resistor idk



[Flaviocarvalho]

Hi...can anyone tell me what is this comonent next to the emmc ? And if its crucial for the console to turn on?

Post automatically merged: May 4, 2023

Can somebody help me, i‘ve broken the pads for clk and somehow even lost the resistor? next to it. Is there an alternative point so i can fix my switch and what is the value of this resistor/diode?

We are on the same boat hahaha... same thing here



[LogicalMadness]

Hi...can anyone tell me what is this comonent next to the emmc ? And if its crucial for the console to turn on?

Post automatically merged: May 4, 2023

We are on the same boat hahaha... same thing here

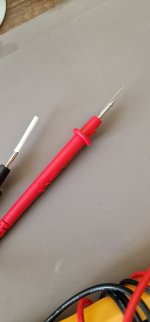

100 ohm resistor, I believe. Happen to be working on a Lite and this made me finally solder needles to the end of my DMM probes to check @Dee87



[QuiTim]

100 ohm resistor, I believe. Happen to be working on a Lite and this made me finally solder needles to the end of my DMM probes to check @Dee87

Been there



[LogicalMadness]

Been there

I went with 'just the tip'



[Adran_Marit]

that reminds me, get needle probes



[LogicalMadness]

that reminds me, get needle probes

*Make



[mian_85_]

Hi people, I tried to install a picofly (firm 2.67) in a OLED with a cpu flex cable labeled as FL1v2-2. I got a Cyan led and I just read the updated guide for installing. I was thinking that the flex cable maybe is not valid for the OLED but now I'm thinking that I maybe bridged pin 2 or 5 with gates pins...

Anybody has used this exactly flex model with success? Anyway I ordered a v5 cpu flex for another OLED.

Thanks!



[QuiTim]

Hi people, I tried to install a picofly (firm 2.67) in a OLED with a cpu flex cable labeled as FL1v2-2. I got a Cyan led and I just read the updated guide for installing. I was thinking that the flex cable maybe is not valid for the OLED but now I'm thinking that I maybe bridged pin 2 or 5 with gates pins...

Anybody has used this exactly flex model with success? Anyway I ordered a v5 cpu flex for another OLED.

Thanks!

The flex is compatible, probably some soldering issue. Any photo?



[Xadro]

Just to stop me from fucking up my shit, Mariko is xaj7 005... right? That needs the flex v2?
I do hope that 14€ Aliexpress "ready to go" board will work and has the resistors in place already, i honestly cant tell.



[QuiTim]

Just to stop me from fucking up my shit, Mariko is xaj7 005... right? That needs the flex v2?
I do hope that 14€ Aliexpress "ready to go" board will work and has the resistors in place already, i honestly cant tell.

The sure way to know is to open the switch.
In the mean time: https://suchmememanyskill.github.io/guides/switchserials/
