Understading ancient GBA flash cartridges

ultraforce

Active Member
Newcomer
Joined
Mar 23, 2024
Messages
42
Trophies
0
Age
26
XP
41
Country
Canada

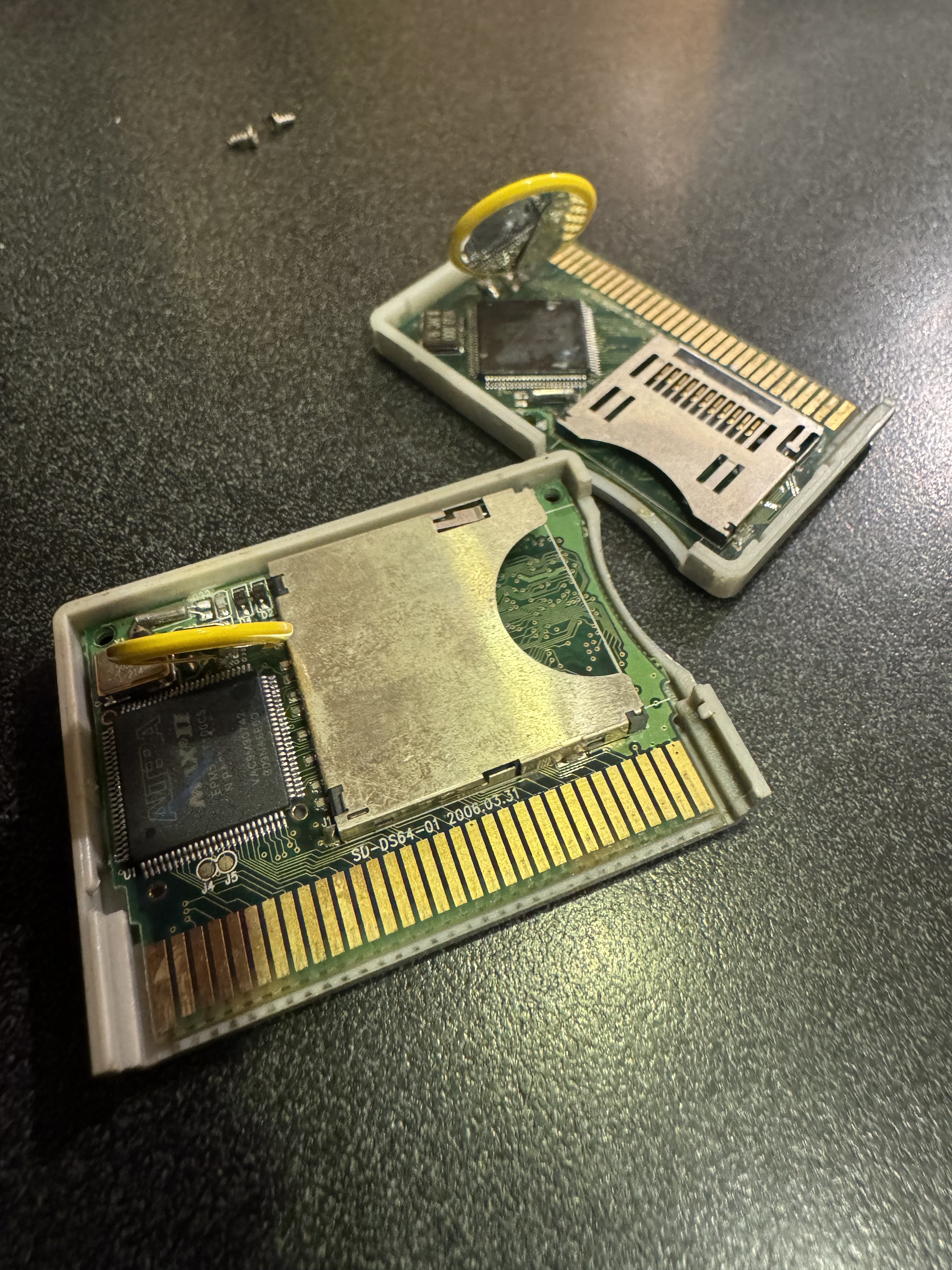

Well at least they haven’t corroded all over. It’s a bit late and I don’t know if I have a multimeter and definitely don’t have the other tools to fix it atm other then the soldering iron


Attachments

  • IMG_4549.jpeg
    1.9 MB · Views: 27
  • Like
Reactions: BuddhaHunterMac

Janni9009

Well-Known Member
Newcomer
Joined
Sep 19, 2022
Messages
66
Trophies
0
Age
21
Location
-
XP
614
Country
Germany
Is there a way to tell if either of these is the M3 Perfect or if neither of them are?
Open them and check for 32MiB/256Mbit of DRAM/PSRAM.
Or process a retail game through M3 Game Manager and try to run it (Pro can only run multiboots/256kb, Perfect can run most if not nearly all retail games)
Firmware and M3GM can be found here: http://linfoxdomain.com/nintendo/ds/ under the "M3 Perfect v31-v36" category. The prefix depends on the cart language, e* is english (and only goes up to v35. can still use M3GM-v36 with it). Most of these *cannot* be language-changed, only aware of the CF version being able to do so first-hand.

Also when soldering new batteries to these, please be careful. First of all, if the cart uses an ML (rechargeable) instead of CR cell (only aware of the lite doing this, but just in case), you *must* replace it with an ML (not VL, higher voltage!), or protect the battery from being charged. And secondly, use good tools, no direct-to-wall irons (not talking about portables like the pinecil, but those that go straight to an outlet with a regular AC cord) or gas irons, both of which are gonna scorch the fine pads and pull surrounding components off.
I recently found an old 3in1 flash slot for the DS and I assume GBA but gonna have to retest it tho.
For the EZ3in1 NORFlash works on GBA, but still need to flash it from a DS (Wood and YSMenu have native support for this cart, otherwise use GBAExpLoader). And of course the lite version won't fit a GBA (the phat version being exceedingly rare these days)
Main thing that breaks on these is the SRAM. Use this to test it: https://www.gamebrew.org/wiki/3in1_SRAM_Test and if it gives an error *after* reboot, you need a new battery. If it errors *before* reboot, you likely need to reflow and pray it works (sometimes this can still be battery related... sure isn't in my EZ5C10's case though)

Last edited by Janni9009,
  • Like
Reactions: 4d1xlaan

ultraforce

Active Member
Newcomer
Joined
Mar 23, 2024
Messages
42
Trophies
0
Age
26
XP
41
Country
Canada
Open them and check for 32MiB/256Mbit of DRAM/PSRAM.
Or process a retail game through M3 Game Manager and try to run it (Pro can only run multiboots/256kb, Perfect can run most if not nearly all retail games)
Firmware and M3GM can be found here: http://linfoxdomain.com/nintendo/ds/ under the "M3 Perfect v31-v36" category. The prefix depends on the cart language, e* is english (and only goes up to v35. can still use M3GM-v36 with it). Most of these *cannot* be language-changed, only aware of the CF version being able to do so first-hand.


Which part do I check for the RAM?


The Real Jdbye

*is birb*
Member
Joined
Mar 17, 2010
Messages
24,106
Trophies
5
Location
Space
XP
15,272
Country
Norway
View attachment 437651

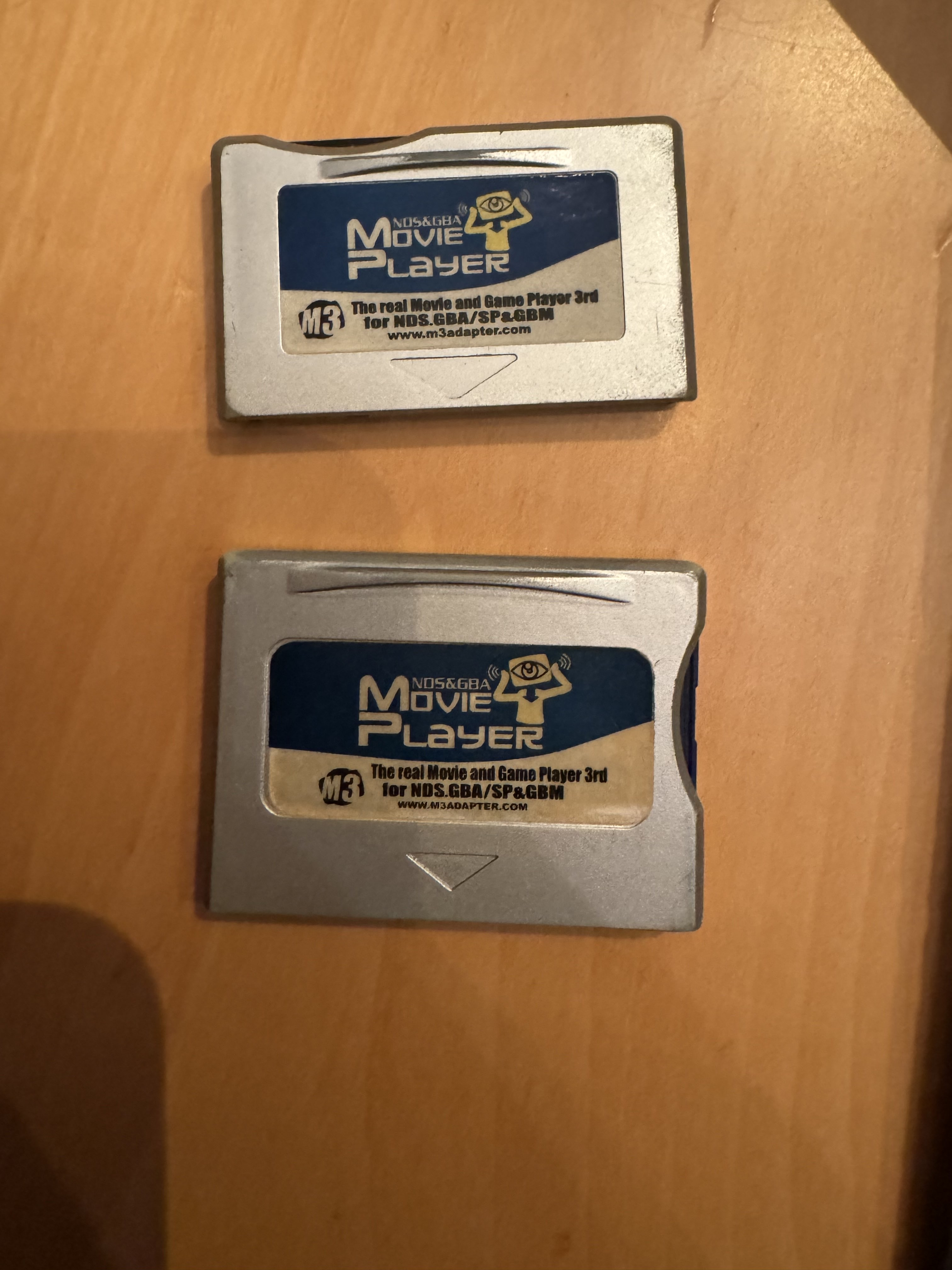

Is there a way to tell if either of these is the M3 Perfect or if neither of them are?
The branding confuses me, but the bottom one appears to be the M3 Perfect SD Lite. It should be good, I think.
The top one I have no idea. Google suggests it might be some version of a M3 Pro but I can't find a definite confirmation of that.
Confusingly, there is also a M3 Lite Perfect, which is a newer and entirely different cart only compatible with the DS Lite.
M3's branding and product naming is confusing, they had too many models, and information is hard to find nowadays, I'm actually unsure which models are good and which ones are not.
The only information on the top one I could find is this thread: https://gbatemp.net/threads/which-m3-gba-flash-card-is-this.353463/
Which suggests it could have either 4MB RAM (which would be bad for GBA) or 32MB (which would be good) and the only way to know is to open it up and look at the chips.

  • Like
Reactions: 4d1xlaan

ultraforce

Active Member
Newcomer
Joined
Mar 23, 2024
Messages
42
Trophies
0
Age
26
XP
41
Country
Canada
The branding confuses me, but the bottom one appears to be the M3 Perfect SD Lite. It should be good, I think.
The top one I have no idea. Google suggests it might be some version of a M3 Pro but I can't find a definite confirmation of that.
Confusingly, there is also a M3 Lite Perfect, which is a newer and entirely different cart only compatible with the DS Lite.
M3's branding and product naming is confusing, they had too many models, and information is hard to find nowadays, I'm actually unsure which models are good and which ones are not.
The only information on the top one I could find is this thread: https://gbatemp.net/threads/which-m3-gba-flash-card-is-this.353463/
Which suggests it could have either 4MB RAM (which would be bad for GBA) or 32MB (which would be good) and the only way to know is to open it up and look at the chips.

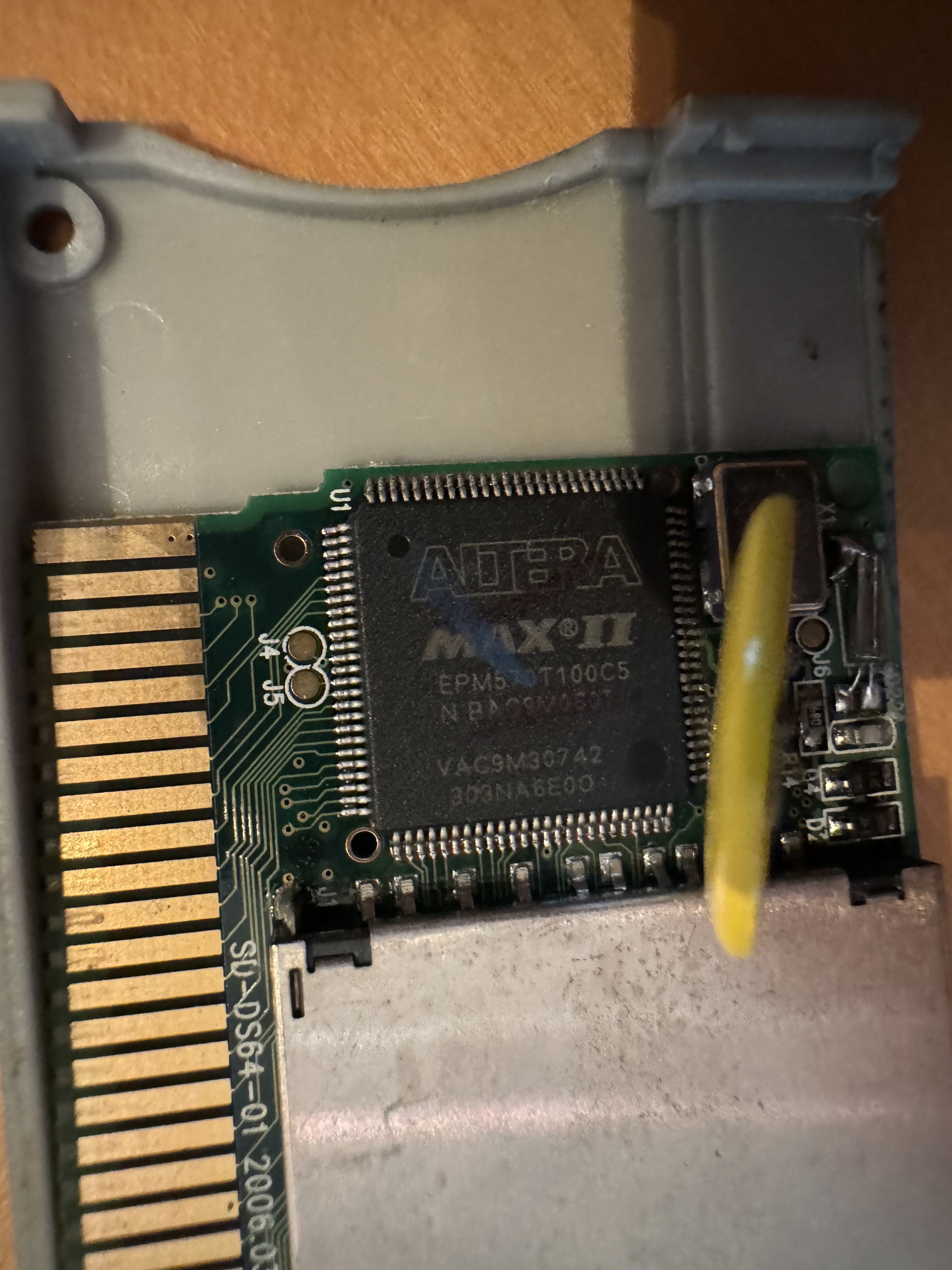

Both of the most recent photos were of the same card just on both sides of the pcb. The top loading SD card m3 didn’t just slide out so I left it.


ultraforce

Active Member
Newcomer
Joined
Mar 23, 2024
Messages
42
Trophies
0
Age
26
XP
41
Country
Canada

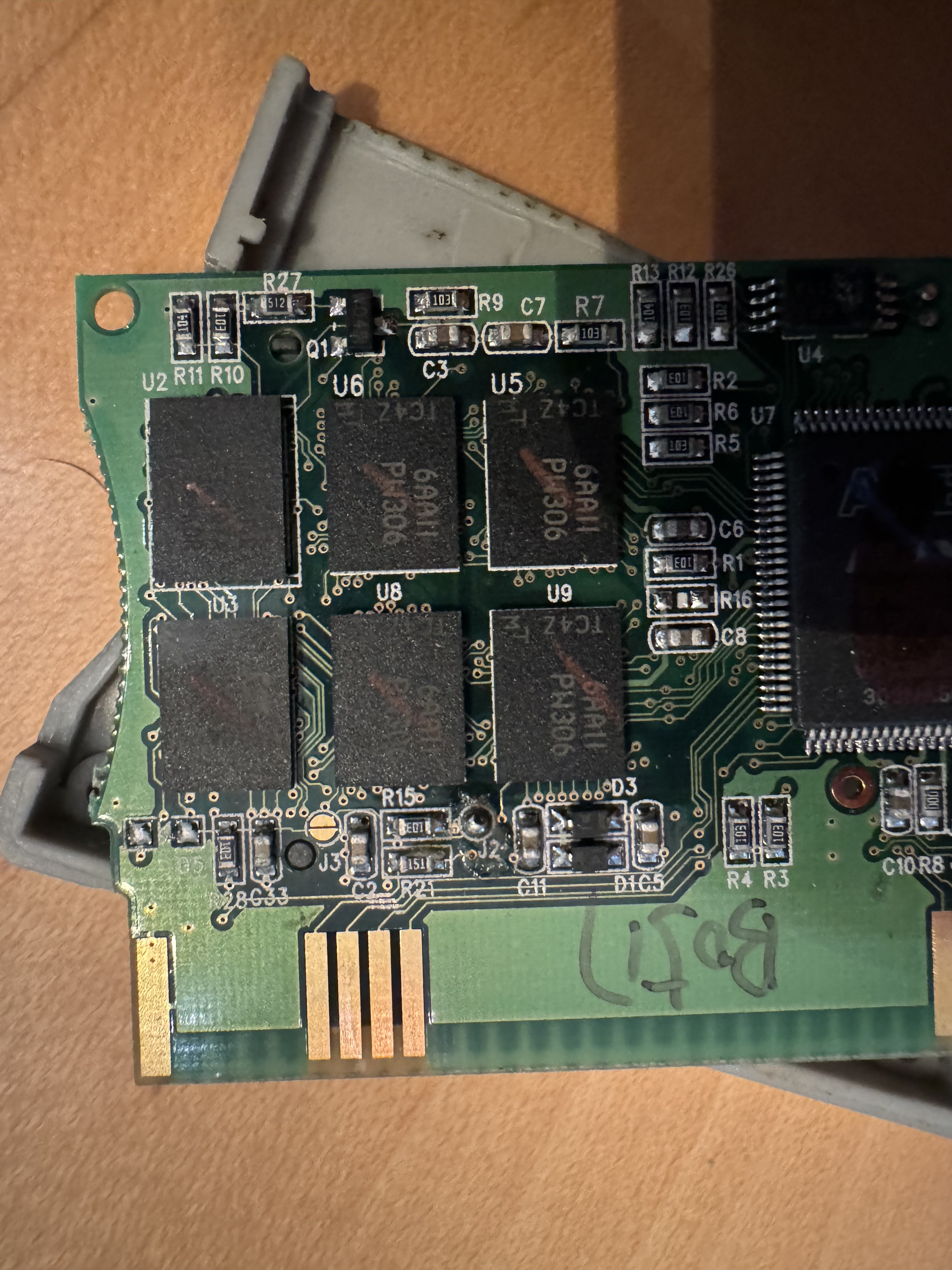

Those BGA chips on the left of the lower image. That's definitely a perfect.
Okay so in all likelihood a new battery and updating the firmware will make it a great choice for backing up my old GBA games without shelling out for the ez-flash omega de?

Edit: actually given my experience or lack there of with soldering these small things probably would rather just spend the extra money.
Post automatically merged:

The branding confuses me, but the bottom one appears to be the M3 Perfect SD Lite. It should be good, I think.
The top one I have no idea. Google suggests it might be some version of a M3 Pro but I can't find a definite confirmation of that.
Confusingly, there is also a M3 Lite Perfect, which is a newer and entirely different cart only compatible with the DS Lite.
M3's branding and product naming is confusing, they had too many models, and information is hard to find nowadays, I'm actually unsure which models are good and which ones are not.
The only information on the top one I could find is this thread: https://gbatemp.net/threads/which-m3-gba-flash-card-is-this.353463/
Which suggests it could have either 4MB RAM (which would be bad for GBA) or 32MB (which would be good) and the only way to know is to open it up and look at the chips.

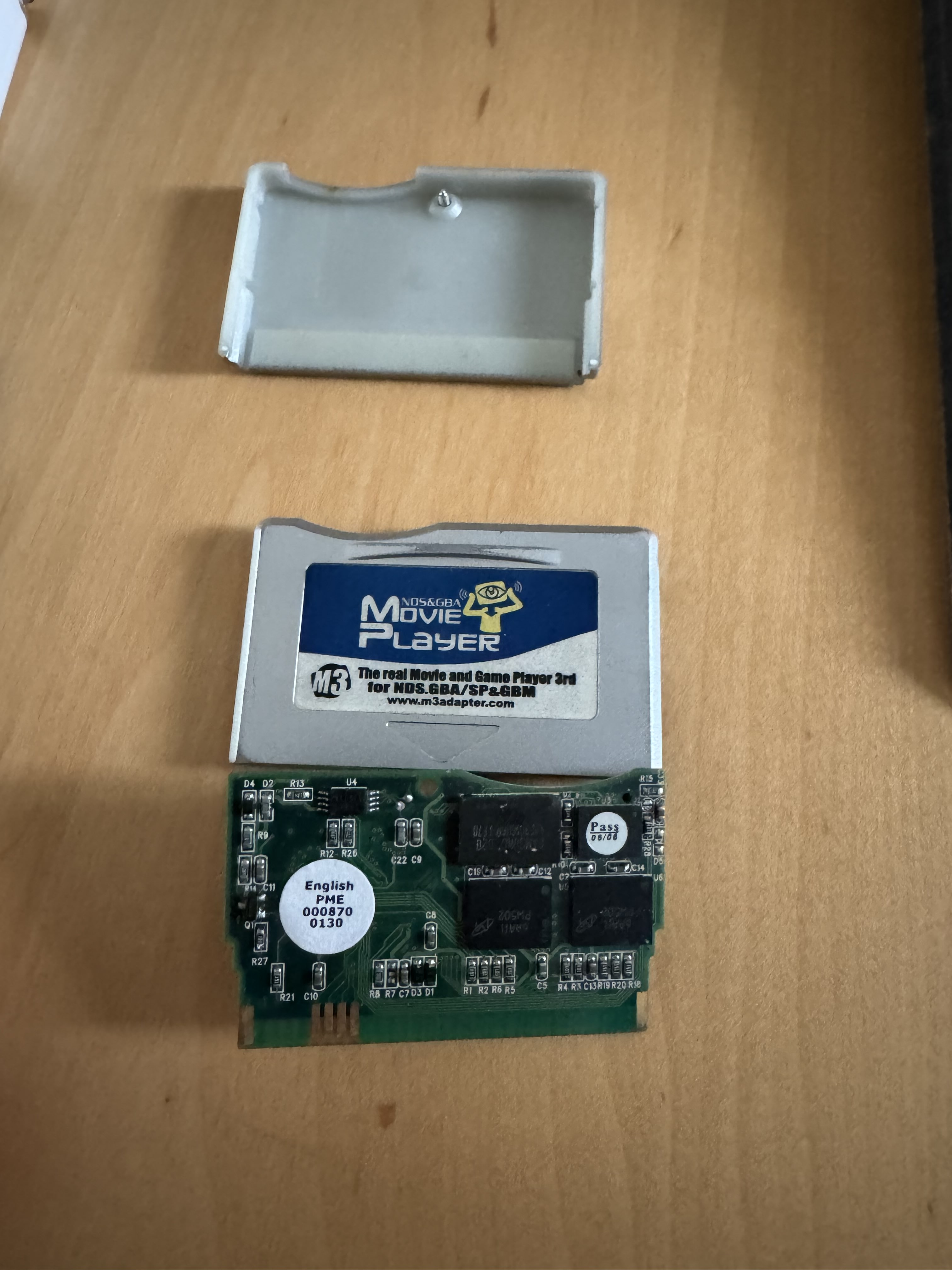

Here's the images of the toploading one better laid out.

Last edited by ultraforce,

ASSASSIN-Z

Retro GBA Flashcard User
Member
Joined
Mar 17, 2003
Messages
1,362
Trophies
2
Location
The Internet
XP
1,764
Country
United States

4d1xlaan

Well-Known Member
Member
Joined
Apr 21, 2024
Messages
1,255
Trophies
0
XP
1,459
Country
United States
it might be cool if someone figured out how to patch ds games for slot 2 and added compatibility for newer games for the old cards. it's kinda pointless but being able to play games from a slot 2 card is cool from a historical point of view.

anyone remember that old ds homebrew zelda game that only worked from slot 2? good times
