Top Screen is darker when Backplate is on the DSi ?

Discussion in 'NDS - Console and Game Discussions' started by Gnarmagon, May 20, 2017.

  1. Gnarmagon
    OP

    Gnarmagon Noob <3

    Member
    479
    71
    Dec 12, 2016
    Germany
    Maybe this is a common Issue:

    For cleaning (DPAD) I opened my DSi and after I reassembled it the top Screen is a lot darker !!!
    without backplate it works fine O.O

  2. testerfan

    testerfan GBAtemp Regular

    Member
    110
    47
    May 28, 2013
    United States
    there are 2 voltage regulators for the top and bottom LCD screens on the backplate (right under Left shoulder button), so you either rotated them thinking it's the screw, or broke it off (the one on the right side is for the top screen)

  3. Gnarmagon
    OP

    Gnarmagon Noob <3

    Member
    479
    71
    Dec 12, 2016
    Germany

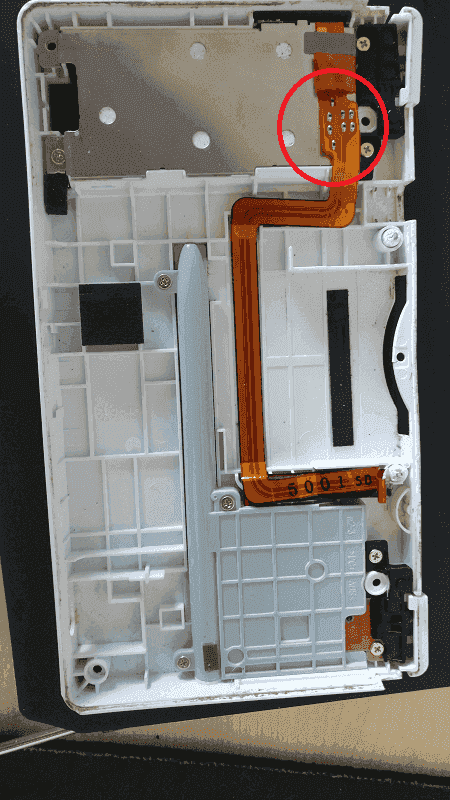

    What do you mean ? http://imgur.com/a/aEGul

  4. Ryccardo

    Ryccardo WiiUaboo

    Member
    3,221
    1,547
    Feb 13, 2015
    Italy
    Imola
    On the back side there should be 2 trimmers; they set the bias voltage for the top and bottom screens

  5. Gnarmagon
    OP

    Gnarmagon Noob <3

    Member
    479
    71
    Dec 12, 2016
    Germany
    Can I fix this ?
    I mean without the Backplate the Screen is normal....

    — Posts automatically merged - Please don't double post! —

    Should I isolate these Pins ?

  6. Ryccardo

    Ryccardo WiiUaboo

    Member
    3,221
    1,547
    Feb 13, 2015
    Italy
    Imola
    Well you could physically remove the trimmers, but the result may not be ideal and could damage the screens over time

    You could try buying the complete backplate electronics (including L/R buttons) for 10 € on ebay...

  7. Gnarmagon
    OP

    Gnarmagon Noob <3

    Member
    479
    71
    Dec 12, 2016
    Germany
    How does the Trimmer look like ?

  8. Gnarmagon
    OP

    Gnarmagon Noob <3

    Member
    479
    71
    Dec 12, 2016
    Germany
    Got it Working XD

    (On the back where you put in the Battery are 2 Holes that look like a Screw...just use a Screwdriver and adjust them to the same Brightness)

    http://imgur.com/a/tYvGP

    Last edited by Gnarmagon, May 21, 2017
  9. Ryccardo

    Ryccardo WiiUaboo

    Member
    3,221
    1,547
    Feb 13, 2015
    Italy
    Imola
    Yep those "screws" are the trimmers :)
