titan mod M8+ bios mod on TSOP

[Donnie-Burger]

can a pc dvd drive autoboot burned media ik it can read burned media on the xbox (just need to keep the yellow cable plugged in for it to work also what do i set the dvd drive to slave and the ide board to master via the jumpers?

No need to change jumpers if was working before and if xbox modded it should boot from cd-r if iso is bootable.



[chrisrlink]

how do i make it bootable? I mean like i tried to make a xblast cdr by changing the xblast.xbe to default.xbe then used qwiks to make the xiso used imgburn to burn it too and no change didn't boot



[Donnie-Burger]

how do i make it bootable? I mean like i tried to make a xblast cdr by changing the xblast.xbe to default.xbe then used qwiks to make the xiso used imgburn to burn it too and no change didn't boot

Grab hexen 2017 maybe 2018 but I run 2017 cause it works. Its iso ready to burn and bootable.

Or grab Aid = Auto Installer Deluxe iso also bootable, they both usually boot real slow at boot.



[Donnie-Burger]

Found some goodies in a drawer

Titan UDMA5 bios working on Xecuter 2.3B Pro (Using this one with multiple banks to switch between 128MB bios and Titan)
Titan UDMA5 bios working on Spiderchip

Tested and working with Titan + UDMA5 + Startech:

TSOP:
Tsop 1.0 XBOX with Hynix bios
Tsop 1.0 XBOX with St bios
Tsop 1.2 XBOX with Winbond bios
Tsop 1.4 XBOX with Winbond bios

Modchip:
XBOX 1.6 with Aladdin XT Plus Modchip (Flashable Version)
XBOX 1.6 with Xecuter 2.3B Pro
XBOX 1.6 with Spiderchip

Hopefully we can get Titan + UDMA5 + 128MB (UDMA5 in Emustation is so much faster)



[Donnie-Burger]

weird i flashed it it shows the evoX/animation xbox logo but just stays there hopefully didn't brick my box

Forgot to tell you - If you flash UDMA5 Titan your old hard drive will no longer work and black screen or error is normal. You need 2TB+ drive formatted in FatXplorer with Titan option.

Old non Titan bios will load a Titan formatted drive but F will be non-visible.



[chrisrlink]

wierd i tried a dvd-r no luck bootinig it the weird thing is once i got an error 06 despite having a tsop, trie both SDG-605(samsung Xbox oem)and a samsung 616 Master (can't seen to find any of the drives that can be flashed)



[Donnie-Burger]

wierd i tried a dvd-r no luck bootinig it the weird thing is once i got an error 06 despite having a tsop, trie both SDG-605(samsung Xbox oem)and a samsung 616 Master (can't seen to find any of the drives that can be flashed)

If you wanna keep your old hard drive use stock titan no udma and your old drives work.



[Donnie-Burger]

Sourced this locally. Tinkering with this right now.



[Alexander1970]

Sourced this locally. Tinkering with this right now.

Now we know,why all Startech Adapters are sold out.....🤣💖

Great Catch and good Luck for modding.😉



[Donnie-Burger]

Now we know,why all Startech Adapters are sold out.....🤣💖

Great Catch and good Luck for modding.😉

Clock capacitor removed
Tsop
128MB ram upgrade
Xecuter 2.3B Pro with header installed for testing Titan & Cerbios
GPU/CPU cleaned and new thermal
4TB Seagate pulled from a one touch usb caddy

Thinking about:
Logitech wireless controller with internal mod
Make MHz Hdmi/XboxHD+
1.4 CPU Upgrade
Brook Wingman XB to use controllers from other systems



[Alexander1970]

Good Morning.😊

Clock capacitor removed
Tsop
128MB ram upgrade
Xecuter 2.3B Pro with header installed for testing Titan & Cerbios
GPU/CPU cleaned and new thermal
4TB Seagate pulled from a one touch usb caddy

Thinking about:
Logitech wireless controller with internal mod
Make MHz Hdmi/XboxHD+
1.4 CPU Upgrade
Brook Wingman XB to use controllerss from other systems

Awesome,great Work,my Friend !!! 💖👌

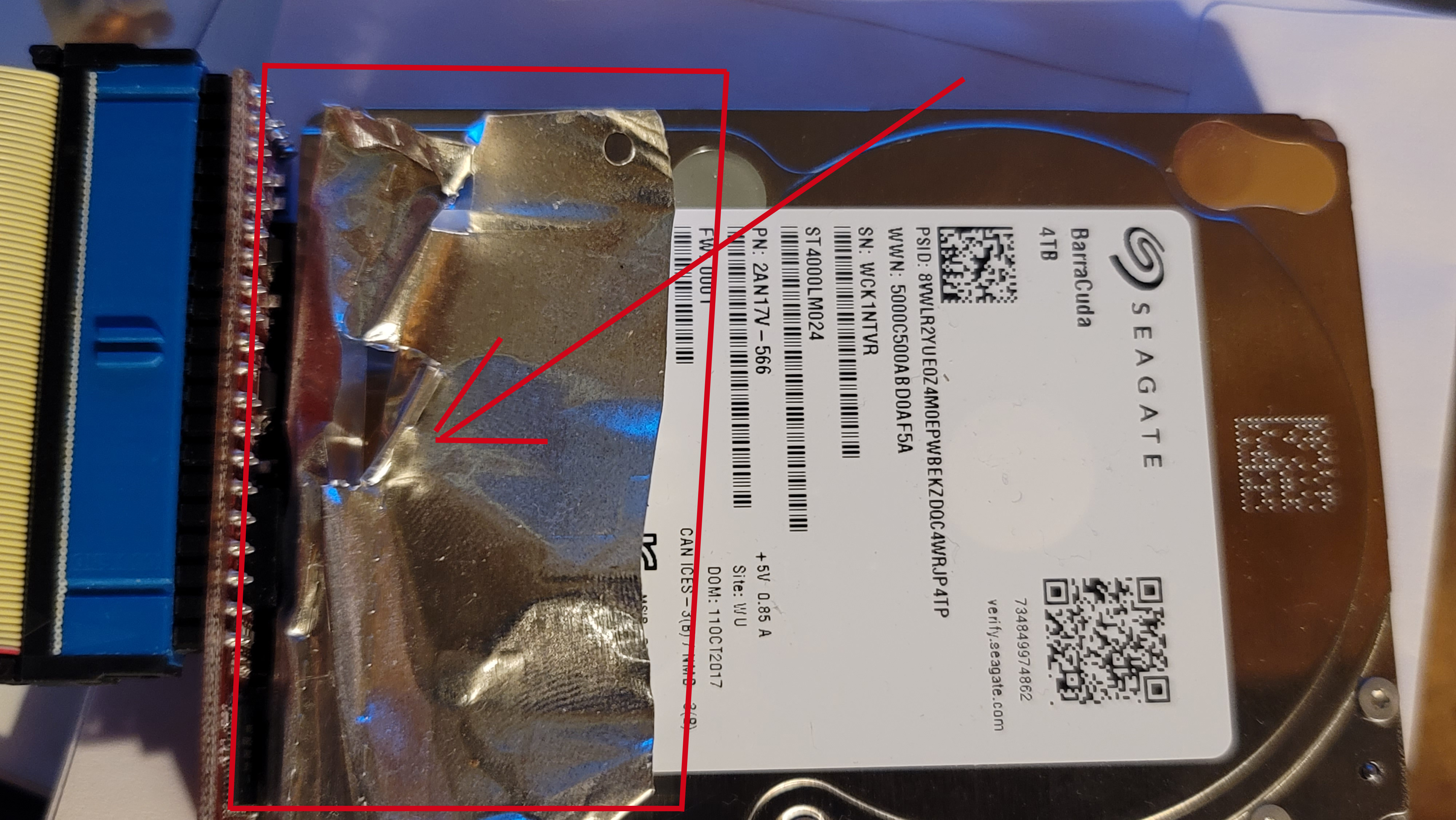

May I ask please,what for this "Cover" is please ?



Thank you.😊



[Donnie-Burger]

Good Morning.😊


Awesome,great Work,my Friend !!! 💖👌

May I ask please,what for this "Cover" is please ?

View attachment 307458

Thank you.😊

They come like that in usb caddy. Tape shielding. Im gonna pull it off and get an adapter so it fits perfect inside.



[chrisrlink]

does anyone know if xeniumumICE/sdl compble (solderlessxemium chips)and can be flashed witch cerbios or titan?



[Donnie-Burger]

does anyone know if xeniumumICE/sdl compble (solderlessxemium chips)and can be flashed witch cerbios or titan?

https://discord.gg/XJWHK2Kg



[Donnie-Burger]

Color changing LEDs
Brook Wingman XB
XBOX2HDMi











Brook Wingman XB allows you to use controllers from other consoles.
Tested and working controllers:
Xbox One
Xbox Elite Controller Series 1
PS3
PS4
PS5

All work wireless except Xbox 1 and Elite controller
No input lag and actually feels smoother and faster than Original Xbox controller

XBOX2HDMi working on all but XBOX 1.0 model. No sound.



[Donnie-Burger]

Really want to put a MakeMHz hdmi in this lady. To bad they are sold out. Anyone have one for sale?



[Donnie-Burger]

Another one:



[Donnie-Burger]

XBOX 1.6
128MB ram upgrade
Took me about 4 hours

https://hackaday.com/2022/06/06/original-xbox-v1-6-ram-upgrade-stacks-tqfp-chips/



[Donnie-Burger]

XBOX 1.6 - Titan Bios patched for 128MB + UDMA5 by Sweetdarkdestiny
XBOX 1.4 - Titan bios patched for 128mb + UDMAA 5 by Sweetdarkdestiny
Make MHZ patches next - Thank you Sweetdarkdestiny


Have 3 more projects in the works:
1. CPU upgrade parts are all in and need to pick a candidate - Maybe we can find the needed values to upgrade 1.6 motherboards now that they can be upgraded to 128mb of ram

2. Made a single OGX360 other day and currently sourcing all parts for the 4 player version:
3. Controller and xbox custom jewels - Tinkering with this now:



[Donnie-Burger]

CPU upgrade attempt#1
