Hacking Sys-Clk module not running

MelvinSmiley

Member
OP
Newcomer
Joined
Jun 26, 2022
Messages
14
Trophies
0
Age
38
Location
Aaachen
XP
29
Country
Germany
Seems that messages like this are being ignored here, there's already a thread from a user with the same problem that nobody answered. WTF is wrong with this module? I spent 6 hours trying to make it work, overclocking the switch was the only reason I event tried to mess with CFW so I kinda need this to work. First it didn't work, then it did, and now it just won't run no matter what I do. I'm on latest atmosphere 13.2 and FW 14.2, trying to install sys-clk 1.0.2. Uninstalled and reinstalled it countless times to no avail.

sys-clk does not seem to be running, please check that it is correctly installed and enabled​

This module is the bane of my existence.

Last edited by MelvinSmiley,

binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
Seems that messages like this are being ignored here, there's already a thread from a user with the same problem that nobody answered. WTF is wrong with this module? I spent 6 hours trying to make it work, overclocking the switch was the only reason I event tried to mess with CFW so I kinda need this to work. First it didn't work, then it did, and now it just won't run no matter what I do. I'm on latest atmosphere 13.1 and FW 14.2, trying to install sys-clk 1.0.2. Uninstalled and reinstalled it countless times to no avail.

sys-clk does not seem to be running, please check that it is correctly installed and enabled​

This module is the bane of my existence.


Yeah, not sure man. Just a data point and answer for you but no solutions I’m afraid.

I’m on 14.1.2 | AMS 1.3.2 | E and sync lock is running without issues.

Haven’t had enough issues with this module to be able to duplicate this issue.

e: did spot one difference…I’m still on 1.0.1-5 rather than 1.0.2


Going to upgrade and see if I can break it.

Last edited by binkinator,
  • Like
Reactions: MelvinSmiley

MelvinSmiley

Member
OP
Newcomer
Joined
Jun 26, 2022
Messages
14
Trophies
0
Age
38
Location
Aaachen
XP
29
Country
Germany
I tried sys-clk-1.0.1 from their github page and have the same issue, seems this module is just incompatible with atmosphere 13.2, at least for me.


binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
I tried sys-clk-1.0.1 from their github page and have the same issue, seems this module is just incompatible with atmosphere 13.2, at least for me.
Yeah…I think it’s something else with your setup. I’m on 1.3.2 as well. Latest and greatest everything. Perhaps you have a bad config in place that’s causing it to fail regardless of the version?


MelvinSmiley

Member
OP
Newcomer
Joined
Jun 26, 2022
Messages
14
Trophies
0
Age
38
Location
Aaachen
XP
29
Country
Germany
Yeah…I think it’s something else with your setup. I’m on 1.3.2 as well. Latest and greatest everything. Perhaps you have a bad config in place that’s causing it to fail regardless of the version?
My hekate.ini config is just the usual stuff they recommend in cfw guides, nothing extraordinary. It used to work with my system too, for about 5 minutes, and then after a reboot it wouldn't load anymore. Had no issues running other homebrew software, just this sys clk module. Well, I guess there's nothing I can do atm except wait for an update.


binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
My hekate.ini config is just the usual stuff they recommend in cfw guides, nothing extraordinary. It used to work with my system too, for about 5 minutes, and then after a reboot it wouldn't load anymore. Had no issues running other homebrew software, just this sys clk module. Well, I guess there's nothing I can do atm except wait for an update.
How about your sys-clk config? Any kruft stored there perhaps?


MelvinSmiley

Member
OP
Newcomer
Joined
Jun 26, 2022
Messages
14
Trophies
0
Age
38
Location
Aaachen
XP
29
Country
Germany
It's just the usual stuff in their config.ini.template, [values] temp_log_interval_ms=0 csv_write_interval_ms=0
and 2 overclocking examples that are formatted as comments so they don't work anyway. Tried changing the config.ini.template to config.ini, didn't do anything.


binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
It's just the usual stuff in their config.ini.template, [values] temp_log_interval_ms=0 csv_write_interval_ms=0
and 2 overclocking examples that are formatted as comments so they don't work anyway. Tried changing the config.ini.template to config.ini, didn't do anything.

Is there anything in /config/sys-clk/log.txt?

e: looks like you need to have /config/sys-clk/log.flag set to get logs, but it might be worth a clue.

I see you opened a ticket on github. Good stuff.

I was thinking github or the official gbatemp thread for it: https://gbatemp.net/threads/sys-clk-under-overclocking-sysmodule.531372/page-58

Last edited by binkinator,

MelvinSmiley

Member
OP
Newcomer
Joined
Jun 26, 2022
Messages
14
Trophies
0
Age
38
Location
Aaachen
XP
29
Country
Germany
[2022-06-26 17:17:33.007] === sys-clk 1.0.1 ===
[2022-06-26 17:17:37.728] Ready
[2022-06-26 17:17:37.751] [mgr] sys-clk status: enabled
[2022-06-26 17:17:37.764] [mgr] TitleID change: 0100000000001000
[2022-06-26 17:17:37.776] [mgr] CPU clock change: 1020.0 Mhz
[2022-06-26 17:17:37.788] [mgr] GPU clock change: 307.2 Mhz
[2022-06-26 17:17:37.801] [mgr] Memory clock change: 1331.2 Mhz
[2022-06-26 17:17:37.822] [!] ASSERT_RESULT_OK: tsGetTemperatureMilliC
RC: [0xf601] 0001-0123
in /home/sam/workspace/switch/sys-clk/sysmodule/src/clocks.cpp:325
[2022-06-26 17:17:37.881] Exit
[2022-06-26 17:19:10.004] === sys-clk 1.0.1 ===
[2022-06-26 17:19:14.689] Ready
[2022-06-26 17:19:14.705] [mgr] sys-clk status: enabled
[2022-06-26 17:19:14.721] [mgr] TitleID change: 0100000000001000
[2022-06-26 17:19:14.733] [mgr] CPU clock change: 1020.0 Mhz
[2022-06-26 17:19:14.744] [mgr] GPU clock change: 307.2 Mhz
[2022-06-26 17:19:14.757] [mgr] Memory clock change: 1331.2 Mhz
[2022-06-26 17:19:14.770] [!] ASSERT_RESULT_OK: tsGetTemperatureMilliC
RC: [0xf601] 0001-0123
in /home/sam/workspace/switch/sys-clk/sysmodule/src/clocks.cpp:325
[2022-06-26 17:19:14.783] Exit

Hm, it looks like the module itself is working, it's just the overlay that is broken for some reason.


binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
[2022-06-26 17:17:33.007] === sys-clk 1.0.1 ===
[2022-06-26 17:17:37.728] Ready
[2022-06-26 17:17:37.751] [mgr] sys-clk status: enabled
[2022-06-26 17:17:37.764] [mgr] TitleID change: 0100000000001000
[2022-06-26 17:17:37.776] [mgr] CPU clock change: 1020.0 Mhz
[2022-06-26 17:17:37.788] [mgr] GPU clock change: 307.2 Mhz
[2022-06-26 17:17:37.801] [mgr] Memory clock change: 1331.2 Mhz
[2022-06-26 17:17:37.822] [!] ASSERT_RESULT_OK: tsGetTemperatureMilliC
RC: [0xf601] 0001-0123
in /home/sam/workspace/switch/sys-clk/sysmodule/src/clocks.cpp:325
[2022-06-26 17:17:37.881] Exit
[2022-06-26 17:19:10.004] === sys-clk 1.0.1 ===
[2022-06-26 17:19:14.689] Ready
[2022-06-26 17:19:14.705] [mgr] sys-clk status: enabled
[2022-06-26 17:19:14.721] [mgr] TitleID change: 0100000000001000
[2022-06-26 17:19:14.733] [mgr] CPU clock change: 1020.0 Mhz
[2022-06-26 17:19:14.744] [mgr] GPU clock change: 307.2 Mhz
[2022-06-26 17:19:14.757] [mgr] Memory clock change: 1331.2 Mhz
[2022-06-26 17:19:14.770] [!] ASSERT_RESULT_OK: tsGetTemperatureMilliC
RC: [0xf601] 0001-0123
in /home/sam/workspace/switch/sys-clk/sysmodule/src/clocks.cpp:325
[2022-06-26 17:19:14.783] Exit

Hm, it looks like the module itself is working, it's just the overlay that is broken for some reason.


Yeah, that looks good.

side note: the version is still 1.0.1…I don’t think they bumped the revision For 1.0.2

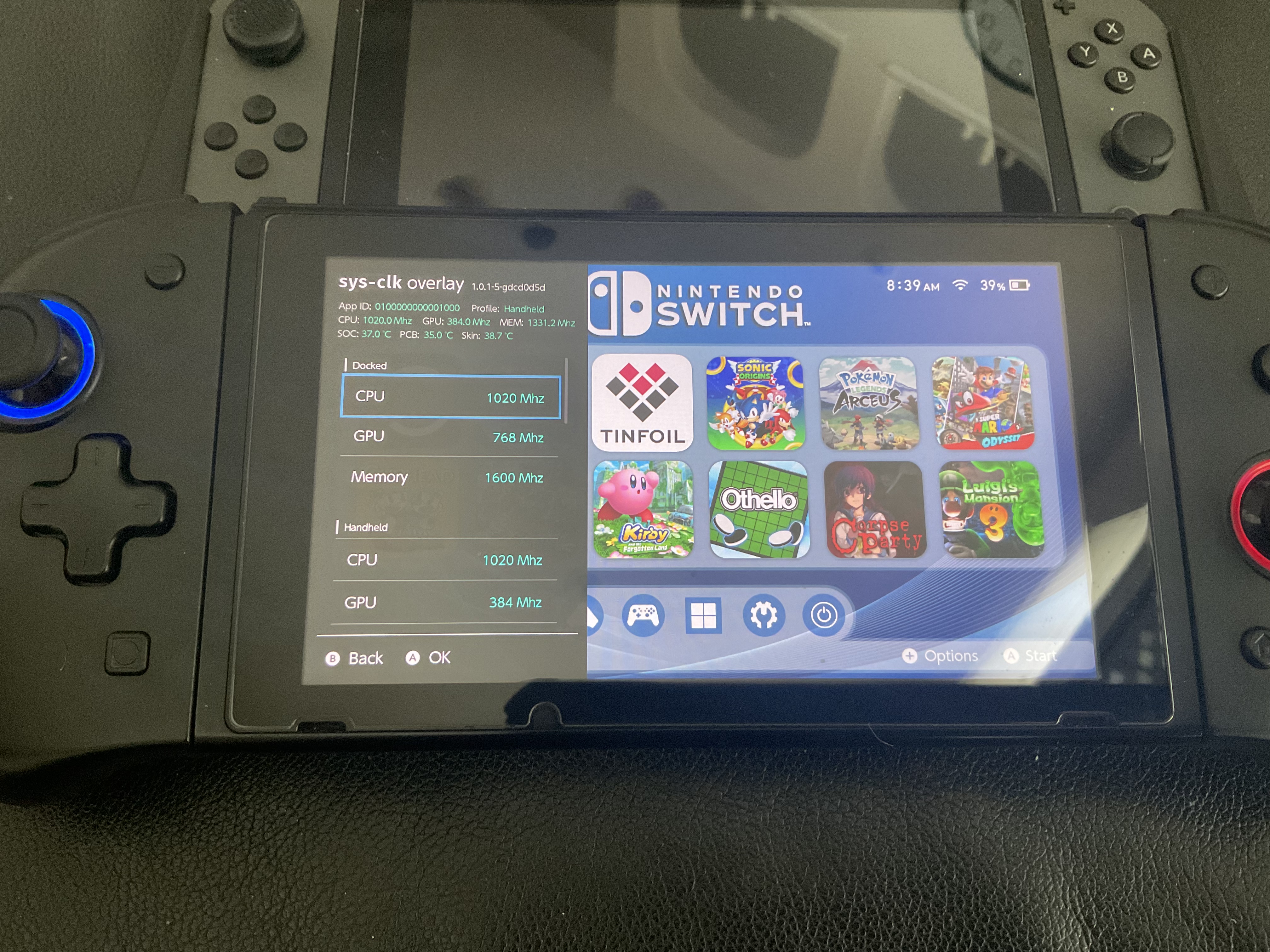

E: attaching my working overlay in a zip file if you want to temporarily try it and see if that fixes things…


Attachments

  • sys-clk-Overlay.ovl.zip
    143.1 KB · Views: 16
Last edited by binkinator,
  • Like
Reactions: MelvinSmiley

binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
3,045
Trophies
2
XP
2,190
Country
United States
  • Like
Reactions: MelvinSmiley
