SX Lite Modchip Install in Nintendo Switch Lite FW 10.1.0 and OS 3.0.4

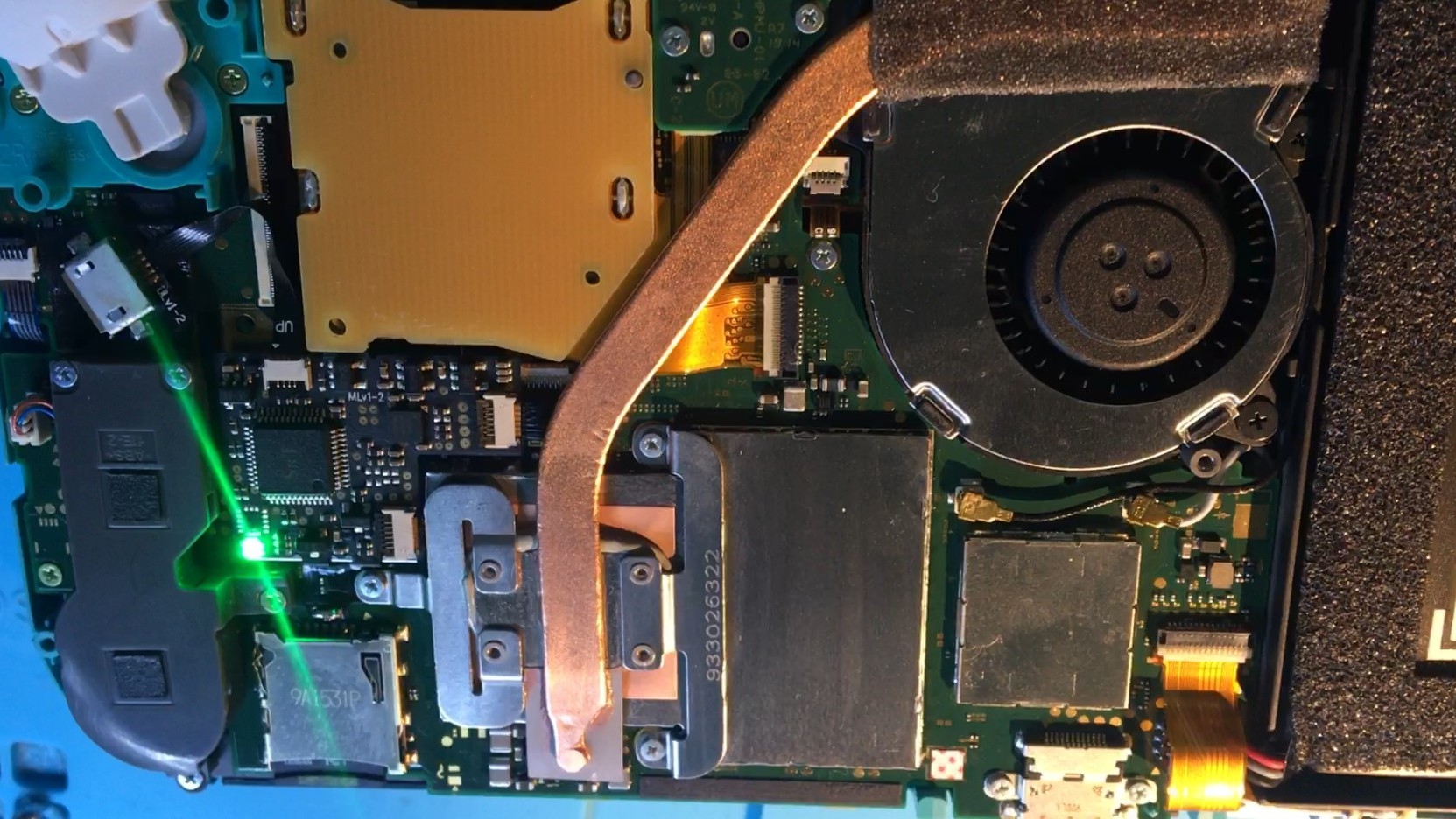

IMG_0054.jpg IMG_0114.jpg IMG_0059.jpg oooo.jpg[/MEDIA]

Last edited by FXDX,

Chirtan

Member
Newcomer
Joined
Aug 23, 2020
Messages
12
Trophies
0
Age
28
XP
98
Country
Canada
Hey man using your video as a guideline to walk me through the process. What temp did you run your iron at? I want to be very careful to not burn or float my capacitors.

  • Like
Reactions: FXDX

FXDX

Well-Known Member
OP
Member
Joined
Sep 15, 2019
Messages
301
Trophies
0
XP
1,587
Country
Dominican Republic
It depends on what kind of station you use. Between 340 and 360 degrees Celsius is ok and don't discount the flux. It matters a lot.

Last edited by FXDX,
  • Like
Reactions: Chirtan

Chirtan

Member
Newcomer
Joined
Aug 23, 2020
Messages
12
Trophies
0
Age
28
XP
98
Country
Canada
Okay thanks, yeah I noticed everyone seems to use a ton of flux. I orderd some flux paste on Amazon it looks kind of waxy. Should I have grabbed a more viscous flux?

  • Like
Reactions: FXDX

Tom Davies

New Member
Newbie
Joined
Jul 28, 2015
Messages
2
Trophies
0
Age
30
XP
54
Country
Is there anyone providing a service to install SX lite? Looking to get mine installed but don't really want to risk damaging the switch. Based in the UK

  • Like
Reactions: FXDX

raging_chaos

Well-Known Member
Member
Joined
Oct 27, 2020
Messages
209
Trophies
0
XP
604
Country
United States
Okay thanks, yeah I noticed everyone seems to use a ton of flux. I orderd some flux paste on Amazon it looks kind of waxy. Should I have grabbed a more viscous flux?


Just a PSA about 'no clean' flux, it really just means low residue. It's usage is supposed to be for boards that will undergo wave soldering after being hand soldered, that's where the rest of the left over residue would burn off. It might look clean to the eye but the residue is still there. Sometimes it will manifest as a white non-corrosive residue over time, or might do actual damage depending on composition. Either way 'no clean' residue is almost impossible to clean. I tend to lean towards the waxy type, just make sure to clean the board after with IPA.

Here are some pro's and con's about no cleans:
https://www.circuitnet.com/experts/73284.html

Last edited by raging_chaos,

urherenow

Well-Known Member
Member
Joined
Mar 8, 2009
Messages
4,158
Trophies
1
Age
46
Location
Japan
XP
2,729
Country
United States
Don't need a mod chip since I have a release console. But I was interested in watching the video. It's been removed from YouTube... :(
