    i have been reading along for couple days and just want to say thank you for providing good information here.
    i'm planing on getting the sx core once available at my place. :)

  2. squee666

    squee666 Trusted SX Core/Lite Installer
    Member

    Joined:
    Sep 17, 2010
    Messages:
    2,052
    Country:
    United Kingdom
    did you reattach the battery to motherboard

  3. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria
    Did you plug the nand chip on the modchip and not on to the motherboard? I also heard that people plugged the nand chip on to the motherboard and the Switch doesnt power on without giving any leds on sx core. A overall picture would be nice

    Last edited by Grimlock97, Jul 2, 2020
  4. vvaitforme

    vvaitforme Member
    Newcomer

    Joined:
    May 25, 2020
    Messages:
    19
    Country:
    Turkey
    are you sure you stick the chip in the right direction. v1 and v2 diffrent side i know

  5. Artwebb

    Artwebb Advanced Member
    Newcomer

    Joined:
    Jun 18, 2018
    Messages:
    98
    Country:
    Canada
    You really cant screw that up, the ribbons wouldn't have lined up.

  6. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark

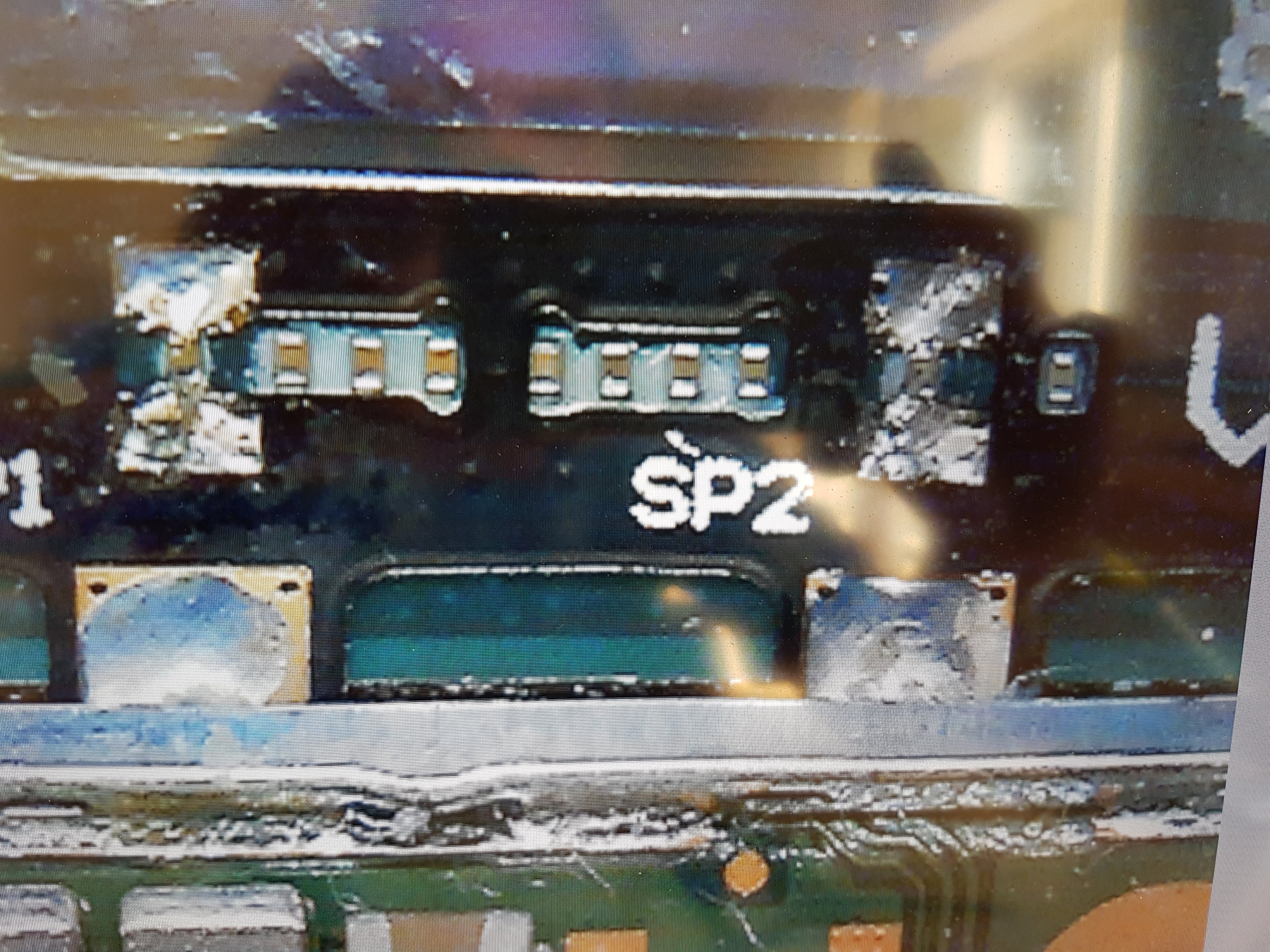

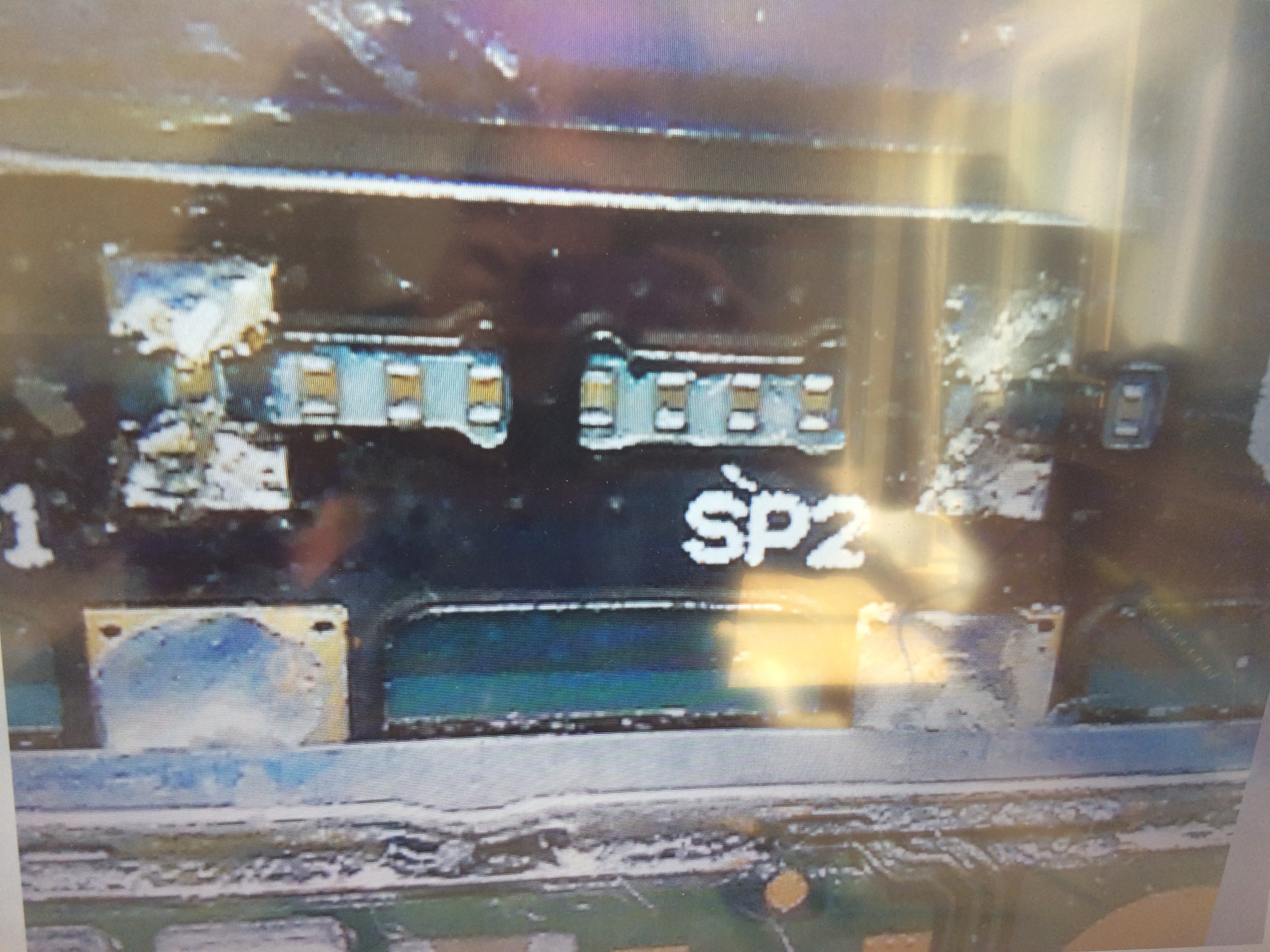

    IMG_0162.JPG IMG_0165.JPG sorry about the quality of the solder pic
    tried to resolder because i thought the solder wasent touching the capasistor points.

    Last edited by spoggi, Jul 2, 2020
  7. blueflue

    blueflue Newbie
    Newcomer

    Joined:
    Jun 30, 2020
    Messages:
    6
    Country:
    Germany
    you should take off the metal shield from the nand. you may have shortcut the modchip.

  8. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark
    yes but it wont turn on even with the chip attached

    — Posts automatically merged - Please don't double post! —

    now tried to attact the nand back to the motherboard but nothing still wont turn on.

    — Posts automatically merged - Please don't double post! —

    yes

  9. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria

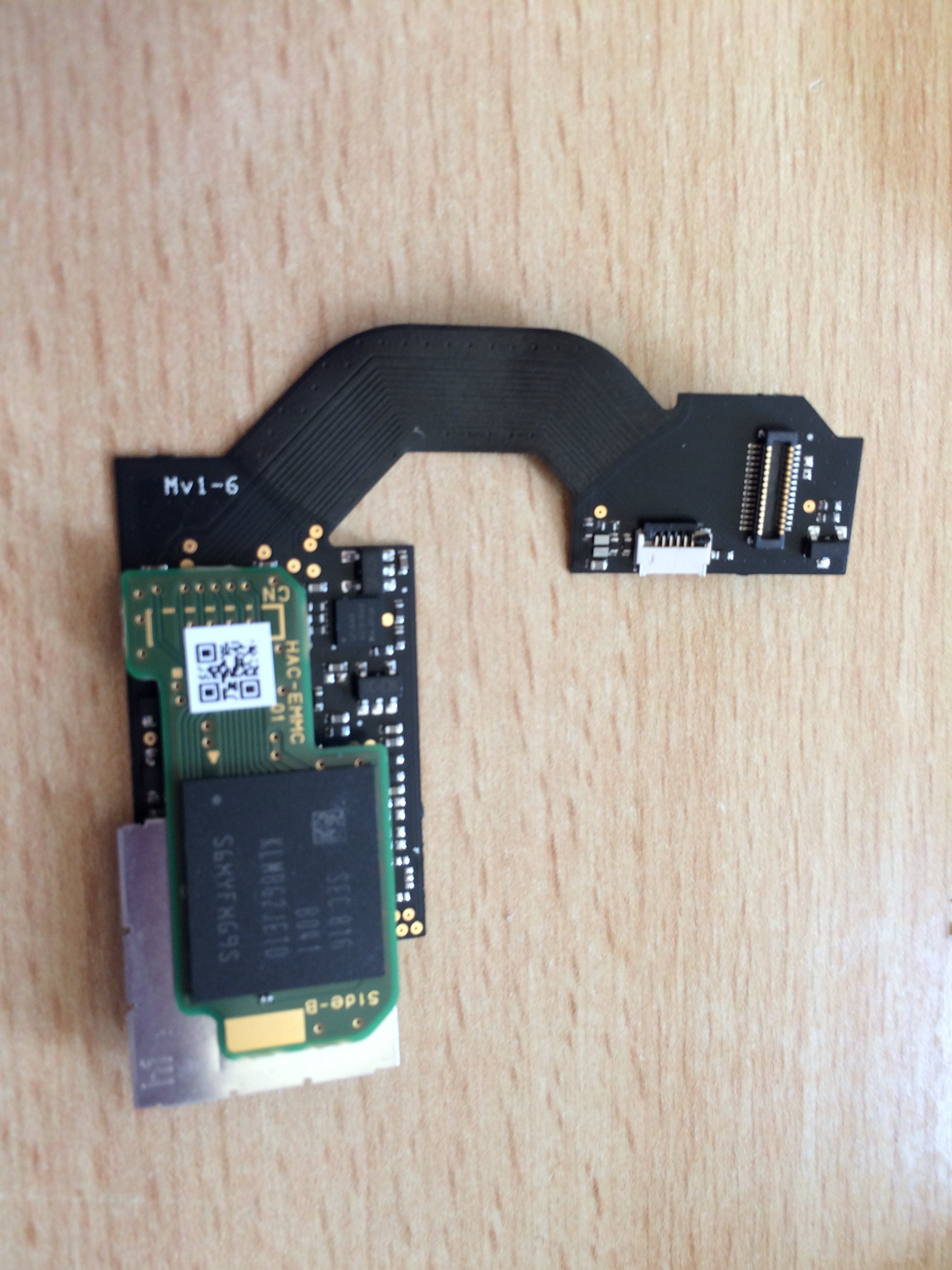

    On the second picture, you already plugged the nand chip , where it belongs to but you must take the silver alu-shielding off. You can shortcut the modchip or maybe because of the alu-shielding, the nand chip does not connect properly.

  10. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark
    ok will try that.but is it normal that the switch not turning on without the chip attached

  11. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria
    It may be normal, I did not test it with mine but if you want to check your soldered connections, use multimeter and test the connectivity on both solder points.

  12. blueflue

    blueflue Newbie
    Newcomer

    Joined:
    Jun 30, 2020
    Messages:
    6
    Country:
    Germany
    without the nand? yes thats normal

  13. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria
    If he means without the nand, thats absolutly normal but if he means that he did not attach the modchip, I have to let this unanswered as I did not test that.

  14. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark
    just removed the metalplate no go.

  15. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria
    Did you plug the battery connector back to the motherboard?

  16. blueflue

    blueflue Newbie
    Newcomer

    Joined:
    Jun 30, 2020
    Messages:
    6
    Country:
    Germany
    could you make a quality picture of the mainboard, so we can see whats going on?

  17. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark
    this is as good as i could manage

    — Posts automatically merged - Please don't double post! —

    with nand attached to the chip

  18. Grimlock97

    Grimlock97 Member
    Newcomer

    Joined:
    Jun 26, 2020
    Messages:
    35
    Country:
    Austria
    There is the problem, you did not connect the first connector, near the cable where it says "up" to the motherboard. From the image I can see it is not connected

    I marked it on the picture with a red marker, there is the second connector on the modchip, that you have to plug it on to the motherboard. then it should work

    Last edited by Grimlock97, Jul 2, 2020
  19. huma_dawii

    huma_dawii GBAtemp Psycho!
    Member

    Joined:
    Apr 3, 2014
    Messages:
    3,682
    Country:
    United States
    Received and installed mine, i am a completely IGNORANT when it comes to soldering, just used a bit of common sense and lots of patience.... did it in an afternoon, the only thing i dont like is that this wont let me reboot or boot any other payload, lets say Lockpick and Incognito RCM, i cant use either because i get a black screen... everything else works. Even Tesla menu.

  20. spoggi

    spoggi Member
    Newcomer

    Joined:
    Jun 5, 2020
    Messages:
    44
    Country:
    Denmark
    Jesus..Your right now i got blue light what does mean and do i have to turn on the switch to test.
