1. Sato92

    Sato92 Newbie
    Newcomer

    Joined:
    Sep 24, 2014
    Messages:
    9
    Country:
    Serbia, Republic of
    Pay with paypal. Mail them about refund nearly week ago and no answear. And I mail them with question about shippment too. Cause I need chip more then refund. If they wont contact with me till 20 of June, then would refund through paypal. Heck, If you dont want make business normally between "you and me" then third side (paypal) will be connected

    Astur_torque likes this.
  2. Diskun

    Diskun Advanced Member
    Newcomer

    Joined:
    May 17, 2005
    Messages:
    54
    Country:
    Spain
    This applies for anywhere in the world where modchips are illegal to sell: don't look for a modchip installation service. Look for console, laptop, smartphone repair shops and ask them if they can do "mods", "upgrades", or maybe "jailbreak" your console. Tell them you will provide the mod and the instructions and they just have to install it. Try to use the most lawful wording possible since they don't want to risk being caught doing something illegal or being sued by the Big N. Many won't even tell you over the phone so you will have to go to the place and ask the technician yourself.

    In some cases the technician will even refuse to do it in the shop and will do it as a side job himself or hook you up with someone else.

    Also always ask them for samples of their previous work, see that the place is clean, professional, has the appropriate tools and if they offer repair warranty that's always a good thing.

  3. Astur_torque

    Astur_torque GBAtemp Regular
    Member

    Joined:
    May 19, 2020
    Messages:
    191
    Country:
    Spain
    Yes, it's more like "Can you solder this 6 points for me? The technician just don't need to know what are that flex cable for hehehe

    Just a custom order from a client, not a service offered to pirate your console..

    Diskun likes this.
  4. XD2020

    XD2020 Advanced Member
    Newcomer

    Joined:
    May 21, 2020
    Messages:
    76
    Country:
    United States
    I’m in Denver and going to try it myself. Mainly because I like learning about this stuff and think its interesting. A recent install video covered what you need (variable temp soldering iron, flux, special screwdriver, magnifying glasses, thermal paste, etc.) Hopefully as long as you take it slow, practice first on a smd practice board, and use the proper tools it isn’t too bad.

  5. Theorem

    Theorem Member
    Newcomer

    Joined:
    Dec 19, 2018
    Messages:
    46
    Country:
    Slovenia
    You need decent regulated soldering station with fine clean tip, some form of magnification, IPA for paste cleaning and FLUX ! (often missed in videos). Just take your time, dont rush it this is microsoldering job, no copper tube welding.
    Mistakes i noticed in sample videos:
    1) Flux not used
    2) Improper soldering tool - very nasty tip, high temperature set
    3) No magnification - no your eyes are NOT good enough to solder to 0201 cap, believe me.
    4) Pretinting anchor points too much - and then facing problems to sqeeze it under. If you use flux, you dont need to pretint anchor points at all it will stick just fine if you solder it in place
    5) You need to have soldering area absolutely clean - use IPA (Isoprophylacohol) to clean it properly. There should be no leftovers of thermal paste between those caps.

    Last edited by Theorem, Jun 11, 2020
    S_Sustain, Diskun and MrSandstorm like this.
  6. MrSandstorm

    MrSandstorm Advanced Member
    Newcomer

    Joined:
    May 17, 2020
    Messages:
    59
    Country:
    Brazil
    Listen to this man people, if you want your mod to actually work. BTW, are those caps 0201? Opened my Lite some time ago and thought they were 0402...

    Last edited by MrSandstorm, Jun 11, 2020
  7. weatMod

    weatMod GBAtemp Addict
    Member

    Joined:
    Aug 24, 2013
    Messages:
    2,959
    Country:
    United States
    IPA is even harder to get a hold of than the mod chip
    bout to torrent me all seasons of moon shiners and build me a still

    Last edited by weatMod, Jun 11, 2020
  8. Confused3dsUser

    Newcomer

    Joined:
    Mar 11, 2019
    Messages:
    26
    Country:
    United States
    You could always go to any convenience or drug store, and get a bottle for a couple dollars.

    *Edit* r /woooosh, my bad, lmao.

    Last edited by Confused3dsUser, Jun 11, 2020
  9. S_Sustain

    S_Sustain Member
    Newcomer

    Joined:
    May 19, 2020
    Messages:
    35
    Country:
    United Kingdom
    I wouldn't mind knowing this for certain so I can get some extra practice in (without unnecessarily cracking open my switch ! )

    Dimensions are..
    Size Length (mm) Width (mm)
    0201 0.60x0.30
    0402 1.00x0.50

    Which are they? They look like 0201s to me :-/

  10. Theorem

    Theorem Member
    Newcomer

    Joined:
    Dec 19, 2018
    Messages:
    46
    Country:
    Slovenia
  11. MrSandstorm

    MrSandstorm Advanced Member
    Newcomer

    Joined:
    May 17, 2020
    Messages:
    59
    Country:
    Brazil
    Because of the corona situation?

    Careful, in a convenience store you'll probably find rubbing alcohol. While that is mostly IPA, it's not the same. For cleaning electronics you ideally want 98% IPA or better.

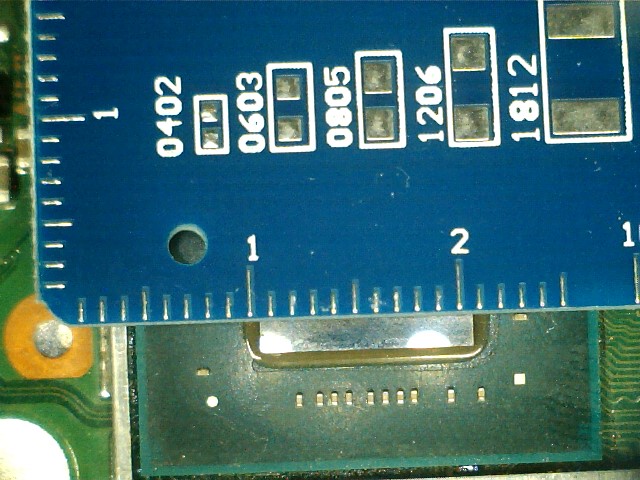

    OK, definitely 0201. Thank you.

  12. Akira

    Akira I'm not a SHRIMP!!!!
    Member

    Joined:
    Apr 28, 2013
    Messages:
    1,243
    Country:
    United States
    Will this work?

  13. matias3ds

    OP matias3ds GBAtemp Addict
    Member

    Joined:
    Oct 25, 2017
    Messages:
    2,595
    Country:
    Argentina
    I asked if i could help and they told me that they already have severalm spanish translators

  14. weatMod

    weatMod GBAtemp Addict
    Member

    Joined:
    Aug 24, 2013
    Messages:
    2,959
    Country:
    United States
    yep
    all i got left is 50% from the dollar store
    the hardest to find is 75% you might be able to get 90%
    and the scented 75% you might be lucky to find, i found one bottle a couple months ago but it's wintergreen scented

    Last edited by weatMod, Jun 11, 2020
  15. Theorem

    Theorem Member
    Newcomer

    Joined:
    Dec 19, 2018
    Messages:
    46
    Country:
    Slovenia
    For such a small area it will.It will probably not vaporize fast enough comparable to 99,9% IPA but well...you have much harder times to get anything in states so for this job this would be sufficient. Use cheap ear cotton swabs to do the cleaning. After work you can use Palm Beauty on your hands too...

    Last edited by Theorem, Jun 11, 2020
  16. MrSandstorm

    MrSandstorm Advanced Member
    Newcomer

    Joined:
    May 17, 2020
    Messages:
    59
    Country:
    Brazil
    In a pinch, yeah, it should work. Check in the composition if it has anything other than isopropyl and water in it. If possible you want to avoid any extra stuff as that might not vaporize and leave some residue behind, but if you really can't find anything else, it should do.

    This whole thing with people using IPA as sanitizer is actually news to me. Over here they don't even put it on the shelves, so if you want IPA you have to specifically ask for it, and it usually only comes in 1L (drugstore) or 500mL (electronic components store) bottles of the high purity stuff, close to 100%. Pretty expensive, though. Now with the pandemic even beer factories have switched to producing 70% ethanol gel, but I still haven't heard anyone even mention IPA.

    Last edited by MrSandstorm, Jun 11, 2020
  17. Diskun

    Diskun Advanced Member
    Newcomer

    Joined:
    May 17, 2005
    Messages:
    54
    Country:
    Spain
    Same. In fact they already had several translators just a couple hours after posting the message for help, when I wrote offering mine. Lots of people from all around the world are closely following everything about this modchip. They may have gotten a dozen applications every day easily. I just got lucky that the couple guys before me were not too good at it.

    Last edited by Diskun, Jun 11, 2020
    matias3ds likes this.
  18. SPon23567

    SPon23567 Newbie
    Newcomer

    Joined:
    Nov 16, 2019
    Messages:
    4
    Country:
    United States
    is there a way to buy a switch lite with this preinstalled? or have someone install it for you? i have an issue that makes something like this impossible to do myself and want to know if there is a way to have someone install it for you or buy a pre-modded switch lite.

    — Posts automatically merged - Please don't double post! —

    is there a way to buy a pre-modded switch, or have someone install this for me? i have a medical issue that makes doing what this modchip requires pretty much impossible and need to know if there is a way to buy a pre-modded console OR pay someone to install it for me.

    — Posts automatically merged - Please don't double post! —

    ***oops. i thought my post got deleted in the process of trying to remember my login info. sorry bout the accidental "double post".

  19. 0x3000027E

    0x3000027E GBAtemp Regular
    Member

    Joined:
    Mar 14, 2018
    Messages:
    188
    Country:
    United States
    You have to admit though, this job looks a bit easier than everyone was anticipating. A Modbo is certainly more of a challenge than this, for instance.

    ModderFokker619 likes this.
  20. weatMod

    weatMod GBAtemp Addict
    Member

    Joined:
    Aug 24, 2013
    Messages:
    2,959
    Country:
    United States
    wait so the caps next to the die we have to solder too are even smaller than the 0402 size SMD's ?
