    Also looking at your soldering, it really looks like the red circle isn't making a good connection. Looks like it's not really connecting at all. I'm not sure if you did it again since the last time you posted pics, but that's what it looks like.
    Green circle looks like it's only connecting to one pad and not both. Hard to see from that angle.

    As I said before, make sure you're using flux, I don't really see any traces of flux anywhere. Also if you're not using a temp controlled iron, you really need to.

    [​IMG]

    Sent from my ONEPLUS A6013 using Tapatalk

    Last edited by hartleyshc, Aug 15, 2020
  2. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    I use flux and a temp cont and a microscope :D
    I cleaned the flux after, let me check these points.

    but my main issue is the final cap you solder the chip to is shorted as well as the one below.

    can anything from the qsb cause this

    — Posts automatically merged - Please don't double post! —

    I removed the qsb completly, and both caps are shorting

  3. nero99

    nero99 GBAtemp Addict
    Member

    Joined:
    Sep 18, 2014
    Messages:
    2,974
    Country:
    United States
    you got some solder all over the connector that your nand qsb plugs into. if you haven't already, remove that solder blob from the connector in your second pic. also check everywhere for solder that could have dripped or splashed without you knowing.

    Xandroz likes this.
  4. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    I removed the chip, and the nand qsb, and still a short at the cap that powers the chip
    Ill investigate tommorow under the microscope for any solder that went to the sd slot.
    I honestly forgot to tape around it before soldering, maybe something flew.
    The second picture is the old chip that i replaced with a new one, that was the one goving continous pink, even after i removed that solder, i was expermenting with wired installs prior, and when i replaced with the new one, it glitched to green then console restarted and chip wasnt powering.
    will update in 10 hours and see under the microscope for any solder

    Last edited by Xandroz, Aug 15, 2020
    nero99 likes this.
  5. XD2020

    XD2020 Advanced Member
    Newcomer

    Joined:
    May 21, 2020
    Messages:
    87
    Country:
    United States
    Thanks for this tip. I made 110% sure I could read my sd card before I installed the sx core, but it's good to know there's a way to recover from this anyway. Seems like an easy thing to happen.

    Max_034 likes this.
  6. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    Found a ground on the sd card reader pin 4/6
    Normal switch unmodeed ahorts at 4 only.

    masbass and Deleted User like this.
  7. ExploitJunkie

    ExploitJunkie GBAtemp Regular
    Member

    Joined:
    Dec 4, 2017
    Messages:
    183
    Country:
    United States

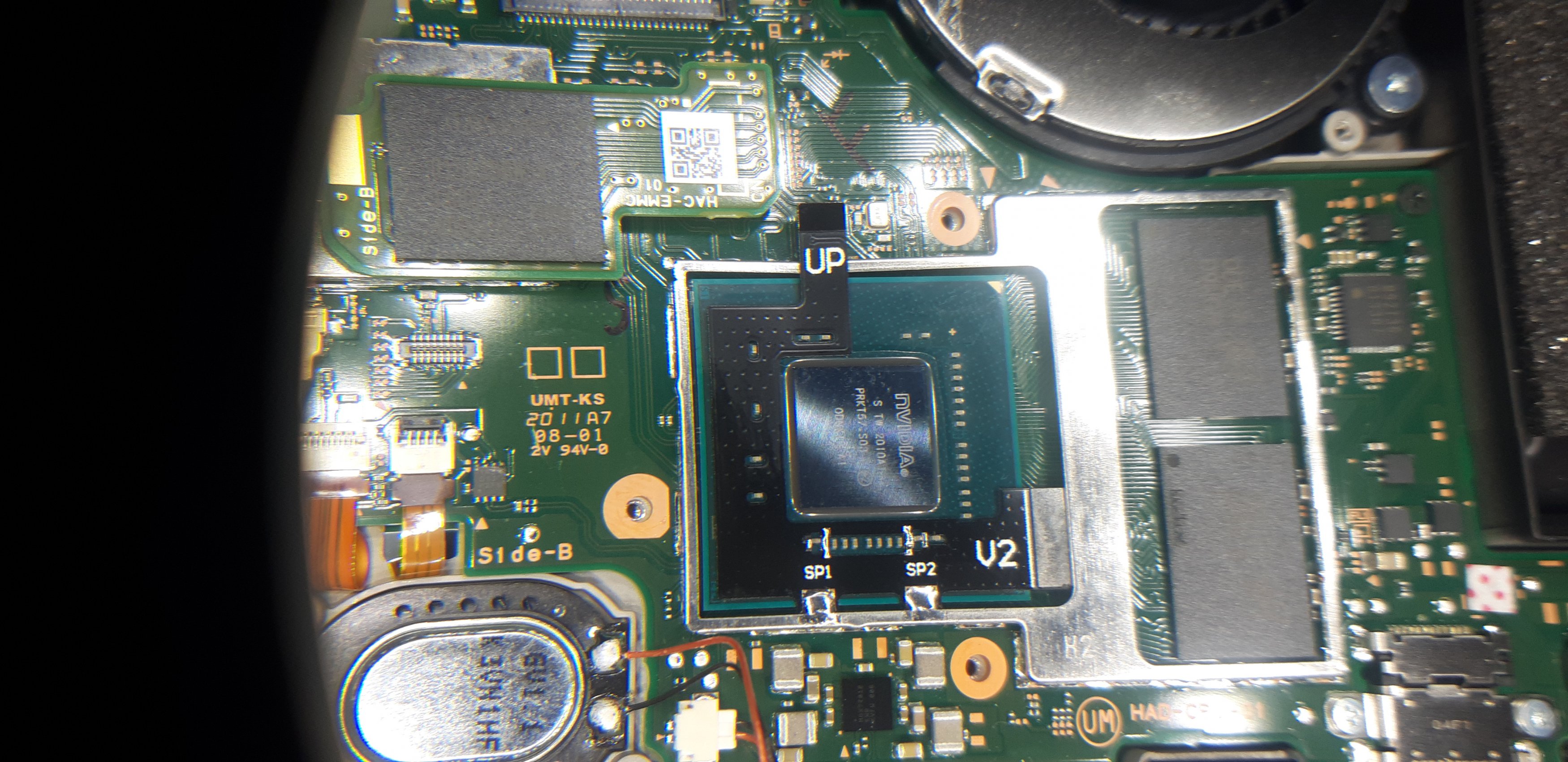

    Pfft... Easy...core and lite installation...


    Attached Files:

    • 111.jpg
      File size:
      592.2 KB
      Views:
      62
    • 222.jpg
      File size:
      538 KB
      Views:
      78
    • 333.jpg
      File size:
      903 KB
      Views:
      81
  8. vvaitforme

    vvaitforme Member
    Newcomer

    Joined:
    May 25, 2020
    Messages:
    21
    Country:
    Turkey
    Would it be a problem if I throw nand files to the computer. otherwise the files should remain on my switch?

  9. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    Yea dont leave it on your sd,
    Take the backup and throw it on your pc

    vvaitforme likes this.
  10. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    244
    Country:
    Romania
    Just copy to pc, external hdd and so on, and then rename the one from sd card to emunand

  11. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt

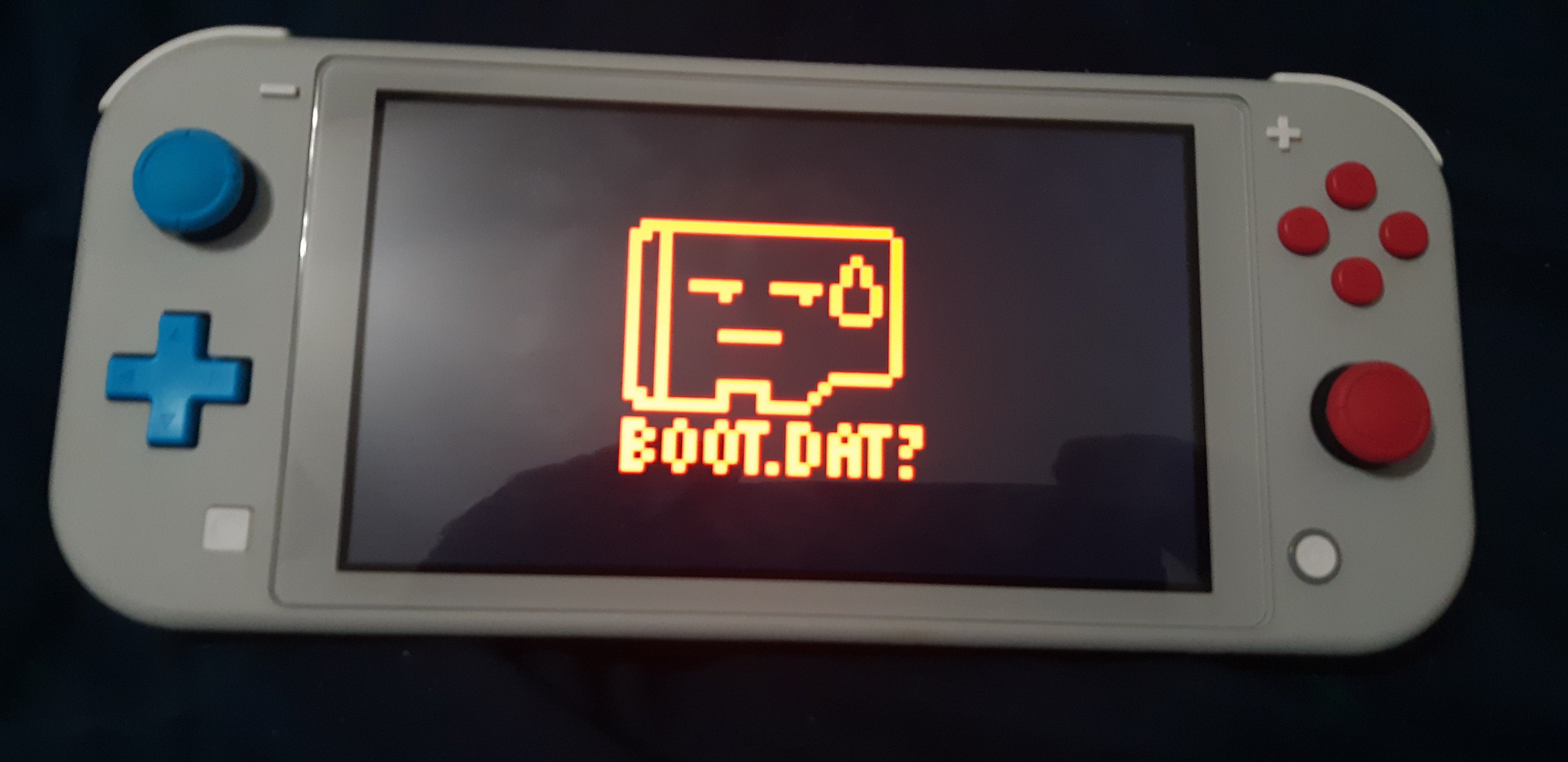

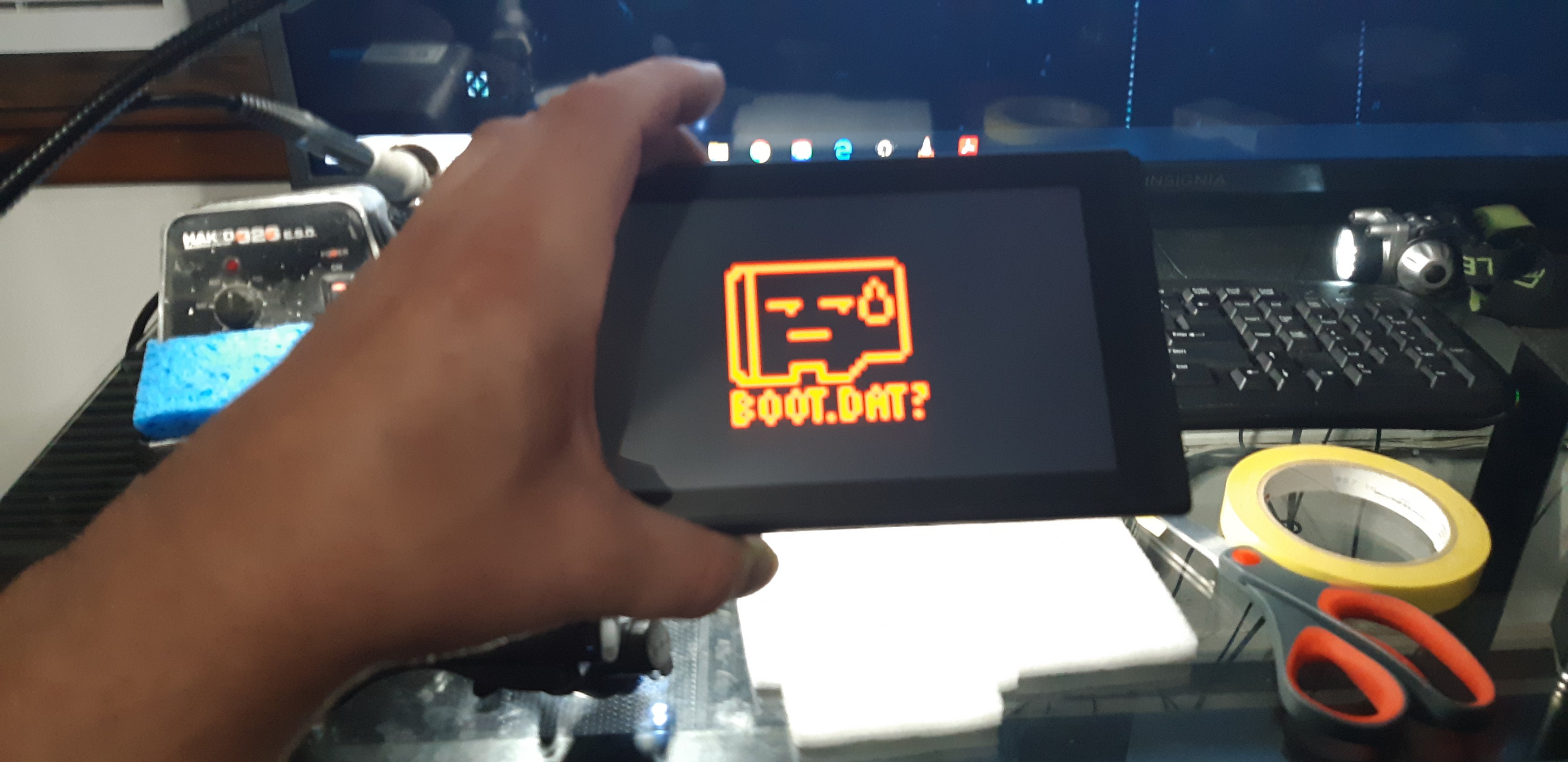

    Finally Finally
    I needed this one to work so bad
    That was my final lite before giving up


    Attached Files:

  12. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    244
    Country:
    Romania
    Dont put the shield yet, make nand backup , copy to pc, then rename the backup on sd card to emunand, activate licence test, maybe protect the shield with kapton tape around the area where sx lite sit or the sx lite partialy on the edges.
    If you already put the shield and no problems ignore.

    Last edited by Modificatorul, Aug 15, 2020
    Xandroz likes this.
  13. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    Yea i put masking tape under and above, not risking
    Im not gonna bother with emunand, the console is banned :D so wont make sense for this bad boy

    thanks once again guys for your help

    Modificatorul likes this.
  14. hartleyshc

    hartleyshc GBAtemp Regular
    Member

    Joined:
    Oct 2, 2008
    Messages:
    296
    Country:
    United States
    How did a switch lite get banned before chip installation?

    Sent from my ONEPLUS A6013 using Tapatalk

    Lightyose and Modificatorul like this.
  15. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    244
    Country:
    Romania
    Kid buying games and the adult claiming the money back from the bank?

  16. hartleyshc

    hartleyshc GBAtemp Regular
    Member

    Joined:
    Oct 2, 2008
    Messages:
    296
    Country:
    United States
    That would ban the account, not the system.

    Sent from my ONEPLUS A6013 using Tapatalk

    Xandroz and Modificatorul like this.
  17. Modificatorul

    Modificatorul GBAtemp Regular
    Member

    Joined:
    Oct 28, 2009
    Messages:
    244
    Country:
    Romania
    On ps4 a customer said he got console ban for chargheback, i have no ideea on switch.
    @Xandroz must now .

    Last edited by Modificatorul, Aug 15, 2020
  18. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    Console ban, bought 4 of these kids to test the lite installtion on, lost 3 and 1 passed :D
    Will sell it and get my money back

    these are console banned due to charge backs a couple of month ago, there was a glitch in fortnite, where they kept spamming and getting the money back, so nintendo banned a shit ton of consoles

    Modificatorul and Deleted User like this.
  19. hartleyshc

    hartleyshc GBAtemp Regular
    Member

    Joined:
    Oct 2, 2008
    Messages:
    296
    Country:
    United States
    Yeah it's why I'm asking. Nintendo will only ban the account for chargeback/stolen cc issues. You can create a new account and the system will work just fine. Users over at reddit have done this after buying cd keys online that the original seller used stolen credit cards to purchase. On top of your original comment of the user/parent doing a chargeback.

    As far as I know, the only way to get a console banned is through system modifications. Hacking, homebrew, modchip, etc.


    Ok, that makes more sense. Repeat offenders on the same equipment.

    Sent from my ONEPLUS A6013 using Tapatalk

    Last edited by hartleyshc, Aug 15, 2020
    Modificatorul likes this.
  20. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    These are console banned bro, had them in the closet for the past 3 month waiting for the sx lite

    Each one of these puppies has vbucks charge back of more than 5000 dollars

    Remember the scandel that was a couple of month back, of the stolen accounts

    thats what they did with these accounts

    — Posts automatically merged - Please don't double post! —

    You can get it via chargeback if you abuse, the guy who sold the consoles to me told me he made over 60 accounts on each switch :D

    hence nintendo fucked it and banned the system, i even gave em a call, he told me no way its a console ban for excessive charge back

    Modificatorul likes this.
  21. Gwyn138

    Gwyn138 Newbie
    Newcomer

    Joined:
    Aug 15, 2020
    Messages:
    1
    Country:
    United States
    May I have a link to a seller of the SX Core. Is there someone in the US that will install this chip for me?

    Meatloaf916 likes this.
  22. Artwebb

    Artwebb GBAtemp Regular
    Member

    Joined:
    Jun 18, 2018
    Messages:
    103
    Country:
    Canada
    Holy shit that's a lot of paste.

  23. Meatloaf916

    Meatloaf916 Member
    Newcomer

    Joined:
    Jul 22, 2020
    Messages:
    11
    Country:
    United States
    Try modderfokker619. He’s a good us installer

    Redasx, mike3041990 and Deleted User like this.
  24. Xandroz

    Xandroz GBAtemp Advanced Fan
    Member

    Joined:
    Mar 19, 2018
    Messages:
    821
    Country:
    Egypt
    No man , recommended by all installers to put 3 lines on the heat sink on top.
    After opening the switch i honestly dont know how this processor is being cooled, with the thermal paste on the caps not cpu, and blobs of paste everywhere
