New OLED specific chip from AliExpress installed successfully. Not recommended for quick and easy installs. The flex PCB for the CPU bends too much, puts a bit of pressure on the CPU resistors in my opinion, but it's strong enough to hold, I'm not worried. The flex PCB up top is just garbage...takes ALOT of time to get it right, I even cut off part of it and manually wired 3.3v and ground.

TLDR: This new OLED model is poorly designed, but works. Be prepared to put in extra time to install it properly.

Hopefully this helps you out if you get this revision :)
hi , how your modded oled ? i 'm facing a problem boot to hekate everytime i off my oled. everytime i on my oled it automatic boot to ofw directly and need restart few time to enter hekate. how bout yours?


Ichigo1990

Member
Newcomer
Joined
Feb 8, 2019
Messages
19
Trophies
0
Age
32
XP
65
Country
Indonesia
ask
help
switch oled hwfly
after apply tema and reboot not boot

blink cyan after that red solid and gone
no boot hekate menu
i try 10 time not work/not boot


OrganixXx

Member
Newcomer
Joined
Jan 6, 2019
Messages
15
Trophies
0
Age
37
XP
244
Country
Germany
Saturday Done 😎


Attachments

  • IMG_20220515_110454.jpg
    1.8 MB · Views: 34
  • Like
Reactions: kerelenko

irvingoh999

Member
Newcomer
Joined
Oct 10, 2021
Messages
10
Trophies
0
Age
23
XP
145
Country
Singapore
I haven't done it, but what happens if you ground out the D (CLK?) Point from scraping away too much at it?
Hi, so I was installing an oled v3 chip (locked chip) and then this happened, the cpu shield touched the clk point. Now I can't boot ofw at all, black screen. Any suggestions? Thanks!


kerelenko

Well-Known Member
Member
Joined
Jun 25, 2018
Messages
364
Trophies
0
XP
1,346
Country
Canada
ask
help
switch oled hwfly
after apply tema and reboot not boot

blink cyan after that red solid and gone
no boot hekate menu
i try 10 time not work/not boot
Sthetix posted a new video explaining and showing the solution to this issue. Mainly, this issue is caused by the DAT0 adapter only connecting to the DAT0 point via friction. Reflowing the EMMC and anchoring the DAT0 adapter solves the issue. I also experience this on my OLED and the way I make sure it boots again is to force it to shut down and wait for 24hrs before turning it on again.


  • Like
  • Love
Reactions: impeeza and peteruk

gokuz

Well-Known Member
Member
Joined
Jun 13, 2014
Messages
126
Trophies
0
XP
450
Country
Senegal
Sthetix posted a new video explaining and showing the solution to this issue. Mainly, this issue is caused by the DAT0 adapter only connecting to the DAT0 point via friction. Reflowing the EMMC and anchoring the DAT0 adapter solves the issue. I also experience this on my OLED and the way I make sure it boots again is to force it to shut down and wait for 24hrs before turning it on again.


I disagree with this method, solder balls might touch if you're not careful. Better be safe than sorry.

To secure it, just add UV mask around the sides of the whole dat0 adapter.

  • Like
Reactions: impeeza

Hoseccan

New Member
Newbie
Joined
Jul 3, 2022
Messages
3
Trophies
0
Age
28
Location
Novosibirsk
XP
26
Country
Russia
Hello to everyone! I have some issues after instaling oled chip... when i plug in battery, and doesn't even push power button, chip led start light with white-blue colour. Flashing firmware seems ok during process... voltage drop also OK, anyone have thoughts about this?


Attachments

  • lv_0_20220703162919.mp4
    23.8 MB · Views: 3

TheUnknownOne

Well-Known Member
Newcomer
Joined
May 29, 2021
Messages
79
Trophies
0
Age
35
XP
232
Country
United States
Hello to everyone! I have some issues after instaling oled chip... when i plug in battery, and doesn't even push power button, chip led start light with white-blue colour. Flashing firmware seems ok during process... voltage drop also OK, anyone have thoughts about this?

Get rid of that junk wire. Undo everything and see if the problem is still there.

If it is, reflow the ALJ chip to see if that fixes it.

  • Like
Reactions: Hoseccan

malgamer

Member
Newcomer
Joined
May 8, 2022
Messages
15
Trophies
0
Age
45
Location
malaysia
XP
60
Country
Malaysia
Hello to everyone! I have some issues after instaling oled chip... when i plug in battery, and doesn't even push power button, chip led start light with white-blue colour. Flashing firmware seems ok during process... voltage drop also OK, anyone have thoughts about this?

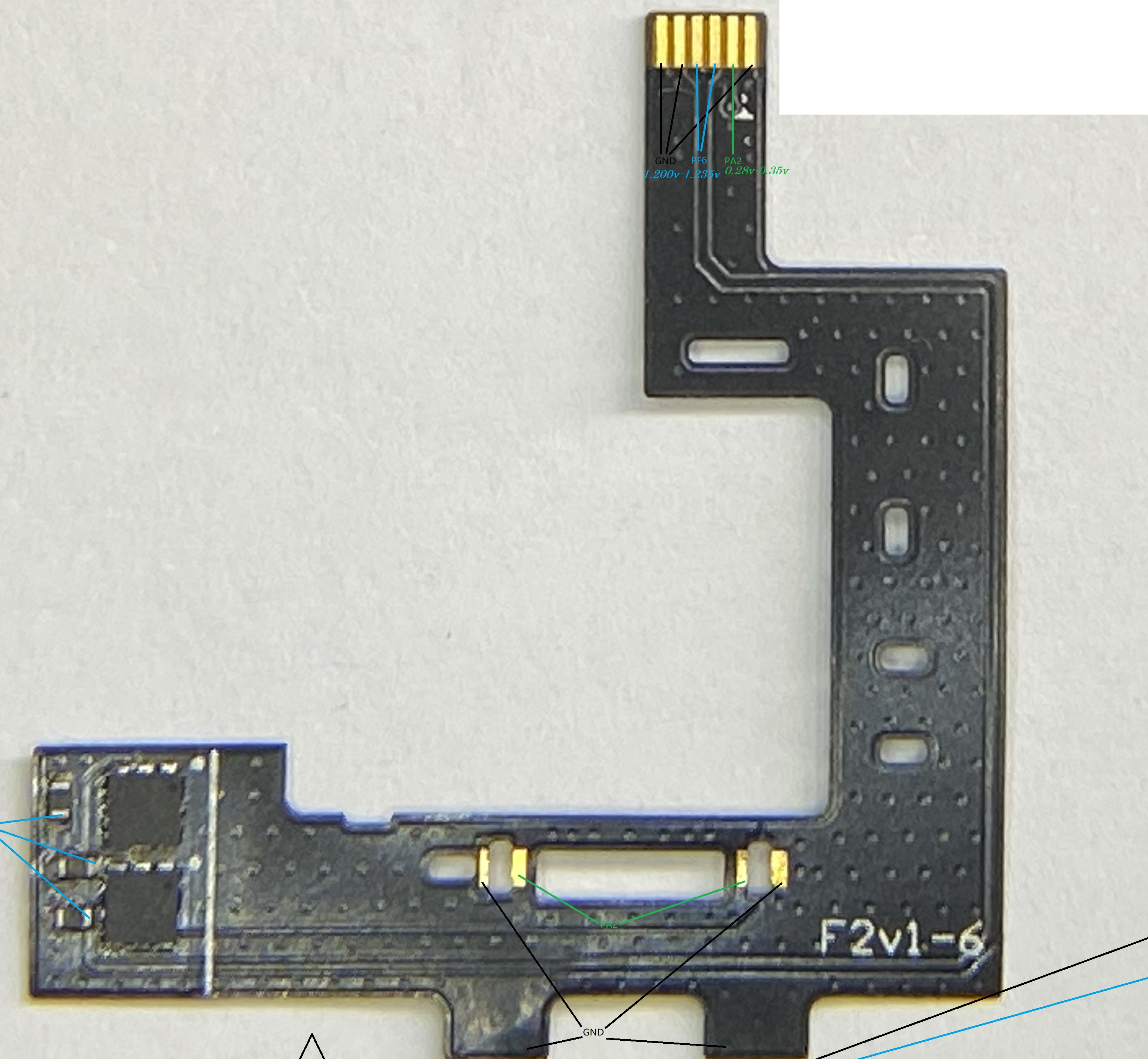

try flash the modchip firmware to 0.62. try check your sp1 and sp2 cable in diode mode. black to the ground and red to green point and blue point.


Attachments

  • 1.jpg
    1 MB · Views: 19
Last edited by malgamer,
  • Like
Reactions: Hoseccan

Hoseccan

New Member
Newbie
Joined
Jul 3, 2022
Messages
3
Trophies
0
Age
28
Location
Novosibirsk
XP
26
Country
Russia
Flashing on 0.62 doesn't help. I disconnected cpu cable and saw blinking red-green led. Would be hwfly work without sp1 and sp2 cap? Maybe one of them was fried


zal16

Well-Known Member
Newcomer
Joined
Oct 8, 2020
Messages
96
Trophies
0
Age
36
XP
371
Country
Brazil
Hello to everyone! I have some issues after instaling oled chip... when i plug in battery, and doesn't even push power button, chip led start light with white-blue colour. Flashing firmware seems ok during process... voltage drop also OK, anyone have thoughts about this?

you said the modchip is turning on without pressing the power button.

Check the 3.3v line, maybe you soldered at wrong point at switch board.

You should solder it at the red point marked on image (on the capacitors)


Attachments

  • Populated-SideB (1).jpg
    Populated-SideB (1).jpg
    1.3 MB · Views: 17
Last edited by zal16,
  • Like
Reactions: Hoseccan

rezendes

Member
Newcomer
Joined
Jun 20, 2006
Messages
5
Trophies
0
XP
199
Country
United States
De9ed did my Oled for me. Very fast, great communication, and reasonable prices. If you see some of my earlier posts, you will notice I tried to do an HWFLY lite in Oled (before the new Oled specific version) and botched it pretty bad. De9ed helped me out and I have a wonderful Oled with Oled chip running beautifully.
Was he able to resurrect the same switch that you had trouble with the install on? I am having the same exact BAD0010D error and when I remove the chip my switch won't do anything.


rezendes

Member
Newcomer
Joined
Jun 20, 2006
Messages
5
Trophies
0
XP
199
Country
United States
De9ed did my Oled for me. Very fast, great communication, and reasonable prices. If you see some of my earlier posts, you will notice I tried to do an HWFLY lite in Oled (before the new Oled specific version) and botched it pretty bad. De9ed helped me out and I have a wonderful Oled with Oled chip running beautifully.
accidental double post
