Yeah it's normal behavior, and you can use autohosoff on hekate to prevent it.

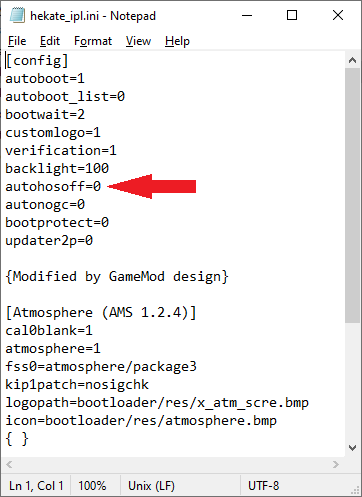

Like in here?

Just change it to 1?
Thx!


HellsBoyz

Well-Known Member
Newcomer
Joined
Aug 12, 2021
Messages
58
Trophies
0
XP
174
Country
Vietnam
I recommend you guys choose SD File Based to create Emummc, because partition based somehow will not restore your files after doing backup on SD card.

Also emunand bases on sysnand, sysnand bases on device's storage capacity, which is 64gb. If you choose SD partition based, you can move 29 full (~32gb) or 29x2 (create 2 more partition, ~32gb each). I think it will corrupt.

Correct me if I'm wrong here. And after Nintendo release HOS 13.0, ATM and Hekate fully supported, SD file based (on Oled) is more reliable than before.


mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,431
Trophies
0
Age
40
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,355
Country
Brazil
I recommend you guys choose SD File Based to create Emummc, because partition based somehow will not restore your files after doing backup on SD card.

Also emunand bases on sysnand, sysnand bases on device's storage capacity, which is 64gb. If you choose SD partition based, you can move 29 full (~32gb) or 29x2 (create 2 more partition, ~32gb each). I think it will corrupt.

Correct me if I'm wrong here. And after Nintendo release HOS 13.0, ATM and Hekate fully supported, SD file based (on Oled) is more reliable than before.
Currently there's no way to create 58.3Gb partitions via Hekate but it will create a 29Gb fine, which will work for OLED as well.

If you want to create a full 64gb partition you can use any partitioning program to create a 58.3Gb (actually a 58.27Gb will suffice) trailing partition on your SD and Hekate will "see and use" it as a full partition for your OLED.

Cheers!

  • Like
Reactions: lufeig

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,431
Trophies
0
Age
40
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,355
Country
Brazil
Thx, mate!
I had mine set as 0 and I will be making a test soon enough with it set as 2 :)
Setting it to 2 causes the console to do not show anything, just as the option says, immediately shutting it down.

The chip blinks purple then green, which is expected since it needs to do its thing before Hekate senses a power on after a power off to shut it down for good.

One "annoyance" down! :)

Cheers!


lufeig

Well-Known Member
Member
Joined
Oct 22, 2009
Messages
196
Trophies
0
Age
43
Location
São Paulo, Brazil
XP
636
Country
Brazil
Thx, mate!
I had mine set as 0 and I will be making a test soon enough with it set as 2 :)
with autohosoff=2, when you turn the console off from horizon, it reboots to black screen, then the modchip comes into action again - you can see it from the status led - and as soon as the led becomes green, the console turns off automatically!
----------
EDIT: sorry, i wrote my answer when you were writing yours! glad that it worked for you too, mate!


FR0ZN

Well-Known Member
Member
Joined
Nov 2, 2013
Messages
1,155
Trophies
0
Age
35
XP
2,359
Country
United States

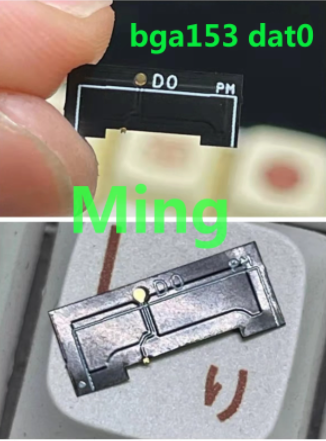

It seems like the HWFLY team has created a new OLED SoC cable and bundles it with the DAT0 adapter in a set.
It works on both the Lite and Core variant.

9eQaJ3C7La0T6z8q0FlYQRxkYONgaVNL-nHvfc4t__pXnIXZTrm06dSvdi0EMuNzQwfTTob_5jRP=s640-c-fcrop64=1,00000000ffffffff-nd-v1

gYaUTSRWxmxLVBBt49ClTKF0a7n7QuojlFqSfKyNK_4p0pNMpr21CCShYlMNITlYUOShWpI8KlH814g=s640-c-fcrop64=1,00000000ffffffff-nd-v1

VdZs976JGUPXUct-fn7pOaZeuVZCyAi5SJKLQicHFj6BWNDkl3Jy206_oaWbhrbTmiWcfCs6r7tqHQg=s640-c-fcrop64=1,00000000ffffffff-nd-v1

hRgxVamZYAYVmbQHVbZhEf8FQZVS0WAoHGUqpf3-MVgZogxcHDQE5HJXJjYaedeAhdyBIFQS_EV4=s640-c-fcrop64=1,00001ff1ffffe00e-nd-v1

JqwfF_21b_56iJF1WED9qfVBsQSIBGyNQQB8wZYR4Ukga-C7B9FAeCW-QqJPr0M661uF0NGTpQXr2A=s600-c-fcrop64=1,20000000dfffffff-nd-v1


As much as I would've wished for a revised PCB, this is probably better than nothing / as far as they will go.
If they would preinstall Spacecraft-NX 0.2 now on all units, we would be pretty much golden here.


lufeig

Well-Known Member
Member
Joined
Oct 22, 2009
Messages
196
Trophies
0
Age
43
Location
São Paulo, Brazil
XP
636
Country
Brazil
It seems like the HWFLY team has created a new OLED SoC cable and bundles it with the DAT0 adapter in a set.
It works on both the Lite and Core variant.

9eQaJ3C7La0T6z8q0FlYQRxkYONgaVNL-nHvfc4t__pXnIXZTrm06dSvdi0EMuNzQwfTTob_5jRP=s640-c-fcrop64=1,00000000ffffffff-nd-v1

gYaUTSRWxmxLVBBt49ClTKF0a7n7QuojlFqSfKyNK_4p0pNMpr21CCShYlMNITlYUOShWpI8KlH814g=s640-c-fcrop64=1,00000000ffffffff-nd-v1

VdZs976JGUPXUct-fn7pOaZeuVZCyAi5SJKLQicHFj6BWNDkl3Jy206_oaWbhrbTmiWcfCs6r7tqHQg=s640-c-fcrop64=1,00000000ffffffff-nd-v1

hRgxVamZYAYVmbQHVbZhEf8FQZVS0WAoHGUqpf3-MVgZogxcHDQE5HJXJjYaedeAhdyBIFQS_EV4=s640-c-fcrop64=1,00001ff1ffffe00e-nd-v1

JqwfF_21b_56iJF1WED9qfVBsQSIBGyNQQB8wZYR4Ukga-C7B9FAeCW-QqJPr0M661uF0NGTpQXr2A=s600-c-fcrop64=1,20000000dfffffff-nd-v1


As much as I would've wished for a revised PCB, this is probably better than nothing / as far as they will go.
If they would preinstall Spacecraft-NX 0.2 now on all units, we would be pretty much golden here.
Thanks for letting us know!

Nice, but in the end we still have to solder 6 wires.

PS for newbies like me: on the core installation there’s another step: fold the ribbon cable and connect the adapter - in which the 4 wires are soldered to - to the modchip motherboard.


FR0ZN

Well-Known Member
Member
Joined
Nov 2, 2013
Messages
1,155
Trophies
0
Age
35
XP
2,359
Country
United States
They are both using a variation of v1 it uses different APIs so it's not updatable even on V3 hwfly, it's also buggy because they made the storage that stores timing configurations to be read only, so it can never update timings per console and instead relies on the factory set timing.

That said all spacecraft-nx v2 allows is to use the OLED panel to display the NO SD screen, so you can make do with the status LED. Then again a legit SX Lite modchip is preferable assuming you can secure one.

What about the serial over USB connection on the modchip?
Iirc you could putty into it and press "r" to reset it - did they remove this feature?


grubgrub

Well-Known Member
OP
Member
Joined
Jun 14, 2015
Messages
270
Trophies
0
Age
42
XP
906
Country
New Zealand
It seems like the HWFLY team has created a new OLED SoC cable and bundles it with the DAT0 adapter in a set.
It works on both the Lite and Core variant.

9eQaJ3C7La0T6z8q0FlYQRxkYONgaVNL-nHvfc4t__pXnIXZTrm06dSvdi0EMuNzQwfTTob_5jRP=s640-c-fcrop64=1,00000000ffffffff-nd-v1

gYaUTSRWxmxLVBBt49ClTKF0a7n7QuojlFqSfKyNK_4p0pNMpr21CCShYlMNITlYUOShWpI8KlH814g=s640-c-fcrop64=1,00000000ffffffff-nd-v1

VdZs976JGUPXUct-fn7pOaZeuVZCyAi5SJKLQicHFj6BWNDkl3Jy206_oaWbhrbTmiWcfCs6r7tqHQg=s640-c-fcrop64=1,00000000ffffffff-nd-v1

hRgxVamZYAYVmbQHVbZhEf8FQZVS0WAoHGUqpf3-MVgZogxcHDQE5HJXJjYaedeAhdyBIFQS_EV4=s640-c-fcrop64=1,00001ff1ffffe00e-nd-v1

JqwfF_21b_56iJF1WED9qfVBsQSIBGyNQQB8wZYR4Ukga-C7B9FAeCW-QqJPr0M661uF0NGTpQXr2A=s600-c-fcrop64=1,20000000dfffffff-nd-v1


As much as I would've wished for a revised PCB, this is probably better than nothing / as far as they will go.
If they would preinstall Spacecraft-NX 0.2 now on all units, we would be pretty much golden here.

Wow nice
This saves me having to solder onto the SX/HWFLY chip now
Which aliexpress link are you using?


sean222

Well-Known Member
Newcomer
Joined
Sep 7, 2007
Messages
65
Trophies
0
XP
423
Country
Canada
As much as I would've wished for a revised PCB, this is probably better than nothing / as far as they will go.
If they would preinstall Spacecraft-NX 0.2 now on all units, we would be pretty much golden here.

I originally bought an SX Core pre-installed with Spacecraft-NX 0.1. Updated it to Spacecraft-NX 0.2, and attempted to install it in my OLED (and gave up and bought a HWFLY Lite instead due to size). Anyways, I took that SX Core with Spacecraft-NX 0.2 and put it in my old Original V1 Switch, and it wouldn't boot! I managed to downgrade to Spacecraft-NX 0.1 and then it booted, all else the exact same. Spacecraft-NX dev also mentions if you don't have an OLED, no reason to update...so it seems it's hard for HWFLY to accomodate to both OLED and non-OLED users. We know for certain Spacecraft-NX 0.1 'works' with both devices, but not the other way around.


mattyv

Member
Newcomer
Joined
May 28, 2009
Messages
17
Trophies
0
XP
995
Country
United States
I originally bought an SX Core pre-installed with Spacecraft-NX 0.1. Updated it to Spacecraft-NX 0.2, and attempted to install it in my OLED (and gave up and bought a HWFLY Lite instead due to size). Anyways, I took that SX Core with Spacecraft-NX 0.2 and put it in my old Original V1 Switch, and it wouldn't boot! I managed to downgrade to Spacecraft-NX 0.1 and then it booted, all else the exact same. Spacecraft-NX dev also mentions if you don't have an OLED, no reason to update...so it seems it's hard for HWFLY to accomodate to both OLED and non-OLED users. We know for certain Spacecraft-NX 0.1 'works' with both devices, but not the other way around.
Question...Can the SX Core be flashed with Spacecraft before it is installed? or does it need to be in the switch and powered on before it can be flashed?

  • Like
Reactions: mvmiranda
