Switch OLED teardown V1/V2

remiferia

Member
Newcomer
Joined
Oct 10, 2021
Messages
11
Trophies
0
Age
31
XP
44
Country
Taiwan

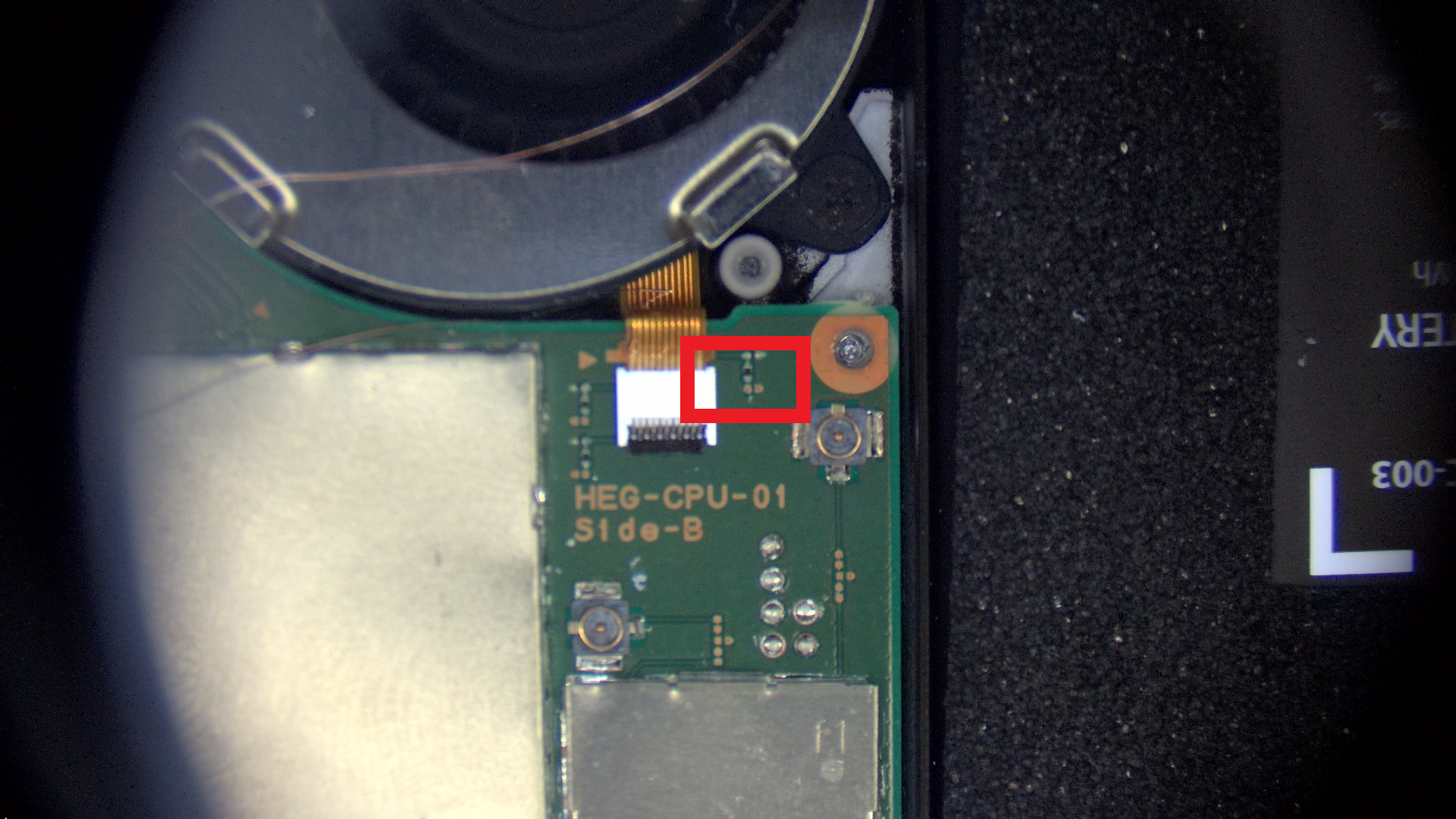

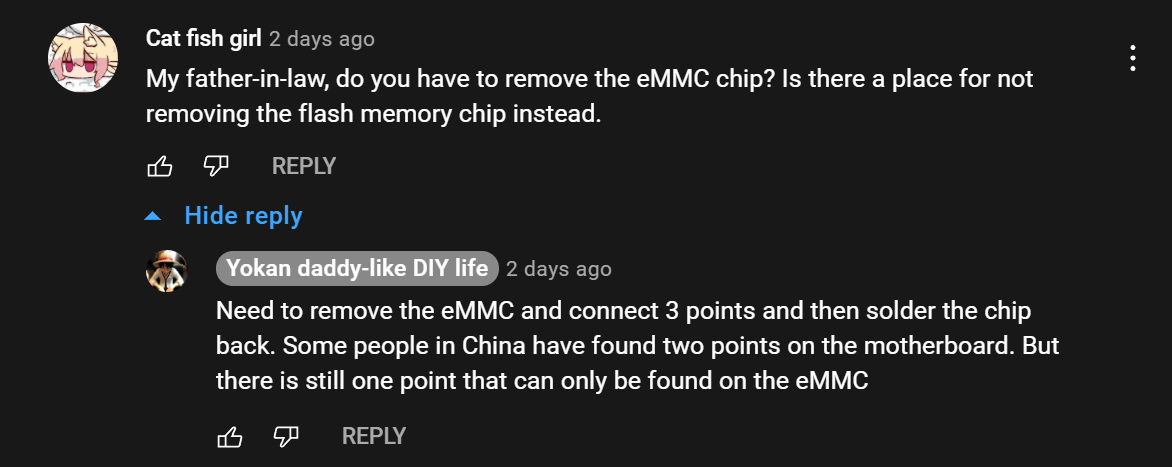

Some tips (translated) from Yokan daddy (author of first oled hekate video):

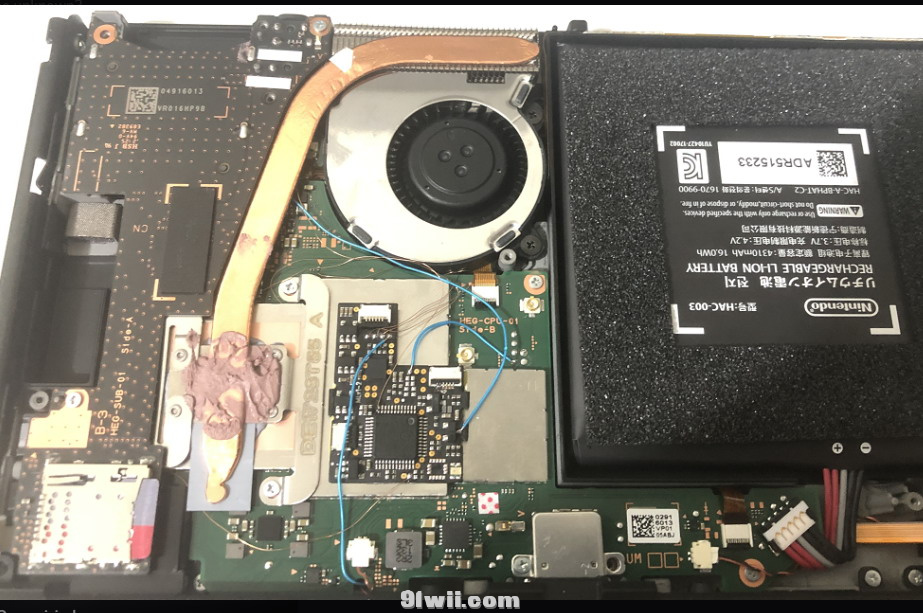

Update: According to feedback on 91wii, using sx core with the currently public wiring method may cause unable to enter CFW without disconnecting dat0 after enter hekate, thus is not recommended for now. Using sx lite / hwfly lite is recommended.

Last edited by remiferia,

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,407
Trophies
0
Age
39
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,290
Country
Brazil
I rather reflow/reball a BGA chip that make a kamikaze atempt like we did on the Xvox 360
humm...
IMO, that, actually, depends.
With Xbox 360 the "gap" between the board and the APU allowed us to do that. I, personally, used wires and needle before we have the Post Fix from TX.
Now, if you look at the Switch and it's eMMC there's no room for slipping in anything without removing the IC first.... So, in the end, without an alt point, a reball will be the ONLY way.
I'm not sure I'm "ready" for so many reballs, TBH! :/

  • Like
Reactions: HollowGrams

HollowGrams

Well-Known Member
Member
Joined
Nov 27, 2020
Messages
628
Trophies
0
Age
41
XP
637
Country
United States
humm...
IMO, that, actually, depends.
With Xbox 360 the "gap" between the board and the APU allowed us to do that. I, personally, used wires and needle before we have the Post Fix from TX.
Now, if you look at the Switch and it's eMMC there's no room for slipping in anything without removing the IC first.... So, in the end, without an alt point, a reball will be the ONLY way.
I'm not sure I'm "ready" for so many reballs, TBH! :/
Solder paste, stencil, hot air, lets go!

  • Like
Reactions: mvmiranda

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,407
Trophies
0
Age
39
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,290
Country
Brazil
Solder paste, stencil, hot air, lets go!
I feel you! The hype is real and good! :)

Buuut, the "hype" might go down the sink hole when you wake up and realize you have, let's say, 20-30 consoles.
One or two, maybe five, should be fine :) now, 20-30 or maybe more a day, it's a completely different story :P
I'm really tying to get my hands in one of these OLED units just to try it out.

  • Like
Reactions: HollowGrams

HollowGrams

Well-Known Member
Member
Joined
Nov 27, 2020
Messages
628
Trophies
0
Age
41
XP
637
Country
United States
I feel you! The hype is real and good! :)

Buuut, the "hype" might go down the sink hole when you wake up and realize you have, let's say, 20-30 consoles.
One or two, maybe five, should be fine :) now, 20-30 or maybe more a day, it's a completely different story :P
I'm really tying to get my hands in one of these OLED units just to try it out.
Rookie :)

  • Haha
Reactions: mvmiranda

Kallrkyle

Well-Known Member
Member
Joined
Jul 23, 2021
Messages
211
Trophies
0
Age
50
XP
249
Country
Denmark
humm...
IMO, that, actually, depends.
With Xbox 360 the "gap" between the board and the APU allowed us to do that. I, personally, used wires and needle before we have the Post Fix from TX.
Now, if you look at the Switch and it's eMMC there's no room for slipping in anything without removing the IC first.... So, in the end, without an alt point, a reball will be the ONLY way.
I'm not sure I'm "ready" for so many reballs, TBH! :/
I can read you don't know what the Kamikaze hack was

That was when we drilled a hole in the chip on the drive so it could be unlocked and then flasked with cstm firmware
drilling too deep and the chip died

  • Like
Reactions: mvmiranda

MarkSummers

Member
Newcomer
Joined
Oct 12, 2021
Messages
8
Trophies
0
Age
71
XP
18
Country
United States
If you need a different voltage check around the coils, unless its coming off the main power chipset that used to get fried in the third party dock fiasco event.

  • Like
Reactions: mvmiranda

mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,407
Trophies
0
Age
39
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,290
Country
Brazil

I can read you don't know what the Kamikaze hack was

That was when we drilled a hole in the chip on the drive so it could be unlocked and then flasked with cstm firmware
drilling too deep and the chip died
Yup! I know it... Bought me a Dremel just for this. Before that I used an old iron tip in my Yaxun.
Did my last one a back in February this year. :)


mvmiranda

Well-Known Member
Member
Joined
Oct 29, 2013
Messages
1,407
Trophies
0
Age
39
Location
Brazil, Sao Paulo
Website
www.gamemod.com.br
XP
1,290
Country
Brazil

vulp_vibes

Well-Known Member
Newcomer
Joined
Mar 13, 2013
Messages
86
Trophies
0
XP
971
Country
United States

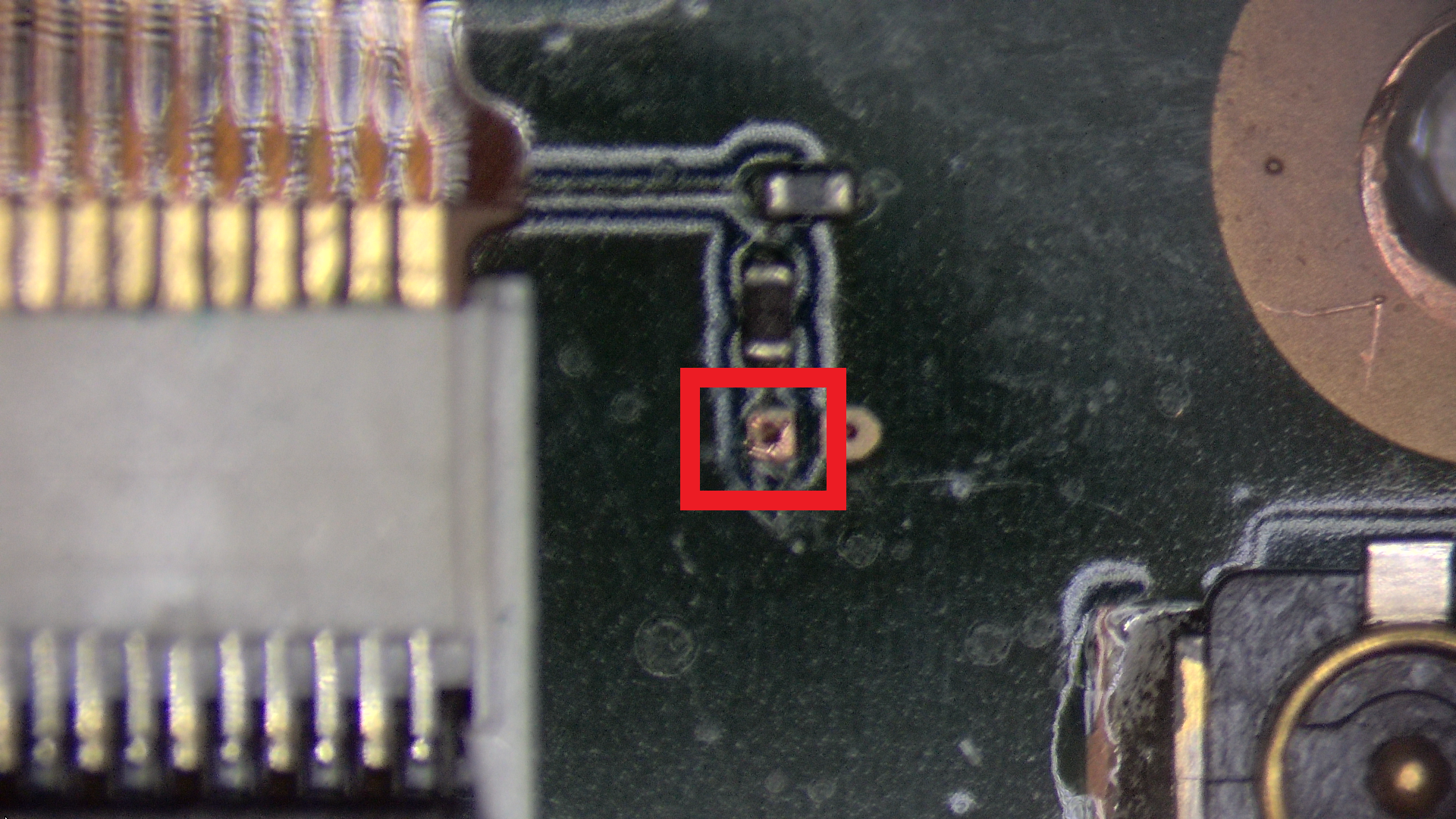

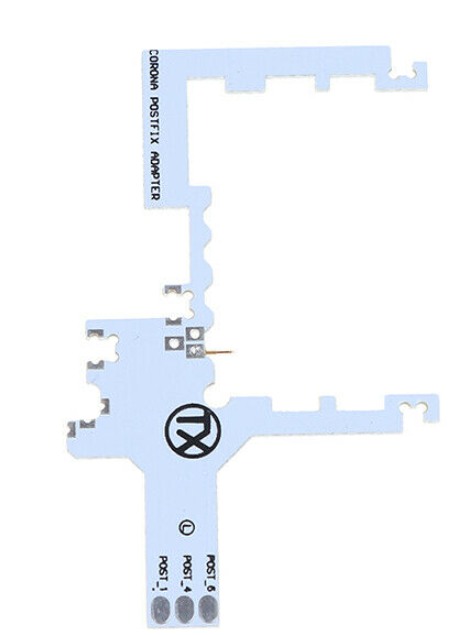

I was originally quite skeptical of the possibility of a solution similar to the corona postfix adapter due to the clearance, depth, and pitch of the emmc's BGA, but I was in fact able to snake a tinned magnet wire under the chip and get continuity to the dat0 test point on a switch lite board. I will be looking into this further; I am certainly not opposed to the hot air rework method, but also would not mind if it was rendered unnecessary :D


grubgrub

Well-Known Member
OP
Member
Joined
Jun 14, 2015
Messages
257
Trophies
0
Age
41
XP
848
Country
New Zealand
I was originally quite skeptical of the possibility of a solution similar to the corona postfix adapter due to the clearance, depth, and pitch of the emmc's BGA, but I was in fact able to snake a tinned magnet wire under the chip and get continuity to the dat0 test point on a switch lite board. I will be looking into this further; I am certainly not opposed to the hot air rework method, but also would not mind if it was rendered unnecessary :D

wow nice!
Sounds like this will make modding the switch much easier!
Hopefully we can get somthing like this.
