Hacking Hardware Switch OLED SkHynix with Picofly long boot-time

[superfiege]

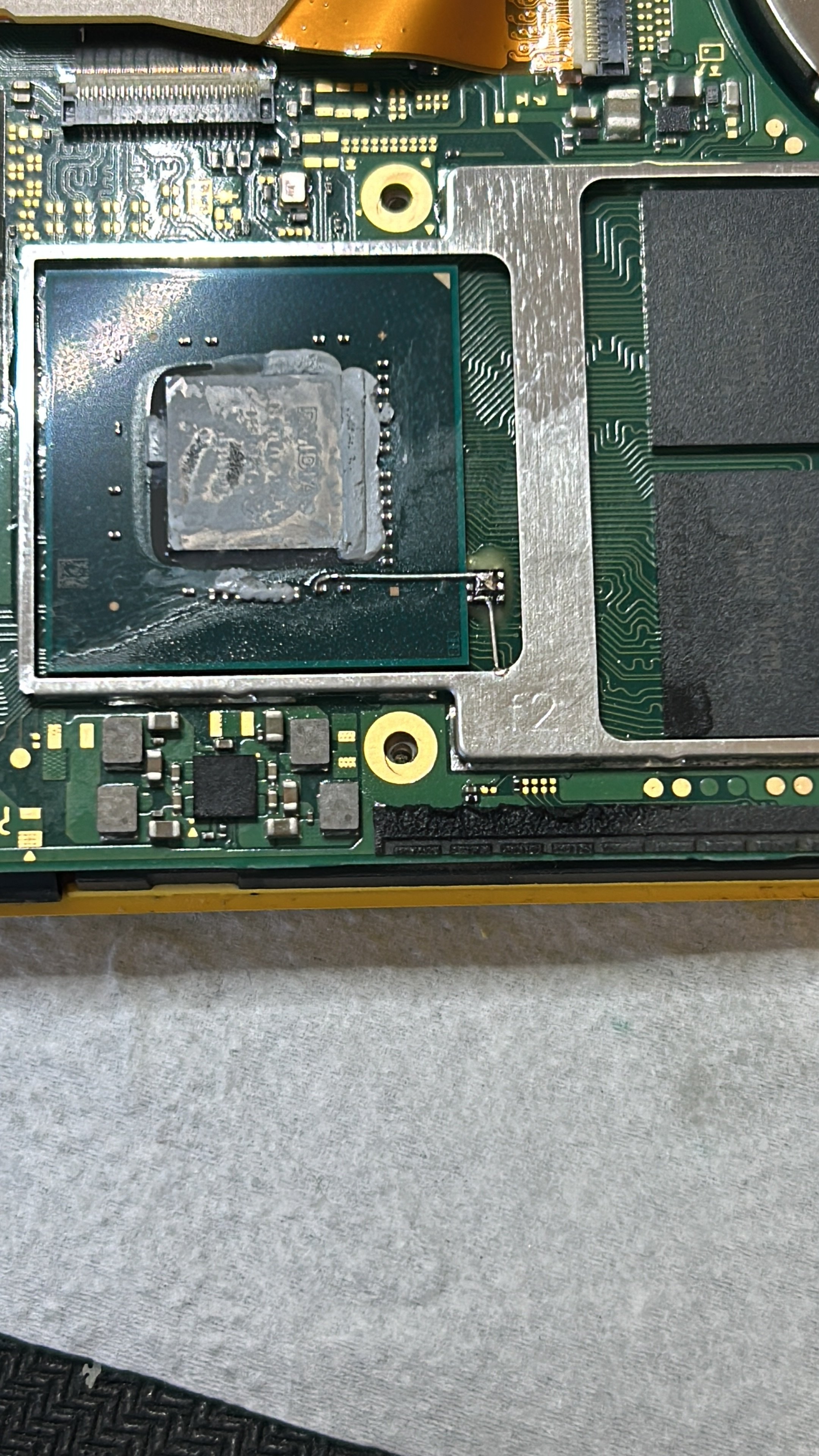

Probably 1-3 seconds. 0.2mm magnet wire from mosfet to drain and source, then 36awg from gate to tiny.

OK, so I think the main problem with my long glitching-time is in fact the apu-flex-cable. I will replace it with a single-mosfet install and give feedback.



[psycho-neon]

OK, so I think the main problem with my long glitching-time is in fact the apu-flex-cable. I will replace it with a single-mosfet install and give feedback.

Some eMMC are slow at glitching. Whether you use a single mosfet or the fpc. It doesn't matter the scenario. Its within the firmware of the picofly support. You are just waiting your time replacing a component. You might as well break something. Other users here already mentioned this on your previous posts.



[superfiege]

Some eMMC are slow at glitching. Whether you use a single mosfet or the fpc. It doesn't matter the scenario. Its within the firmware of the picofly support. You are just waiting your time replacing a component. You might as well break something. Other users here already mentioned this on your previous posts.

Thats right, but others said its worth trying…and i love soldering so its not wasted time. And in the end i learned a bit…even if its not improving glitch-time.



[gueshkiller66]

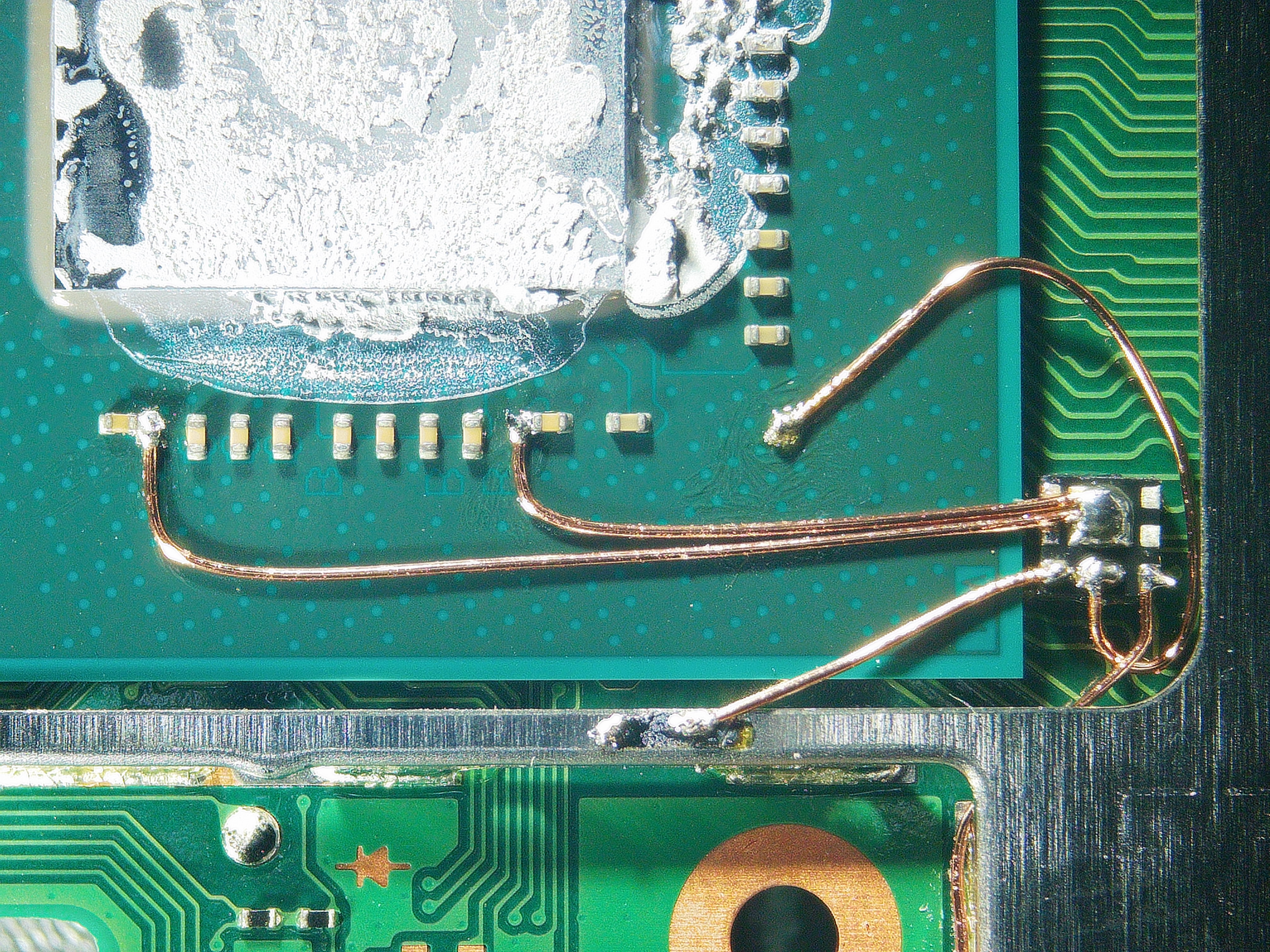

In my experience, glitch time is mostly related to the mosfet setup. I've tried all combinations of everything (mosfet on front, back, double or single, different wire thickness, wire length etc) and the setup that I find performs the best (tested across many switches) is 0.2mm thick wires attached like in the picture.

View attachment 425039

0.2mm is risquy man in these conditions, but so you probably have more soldering experience and tricks than me...
I use a flex for V1 or V2 with all integrated, easy to find on aliixpress so, I will always respect dudes but honestly when you can do it easily do it I can have the 10 flex cables for v1 or v2 for 2 dollars, ridiculous, even the rp2040 chip is ridiculously cheap 2 dollars maybe



[Viktorsilva]

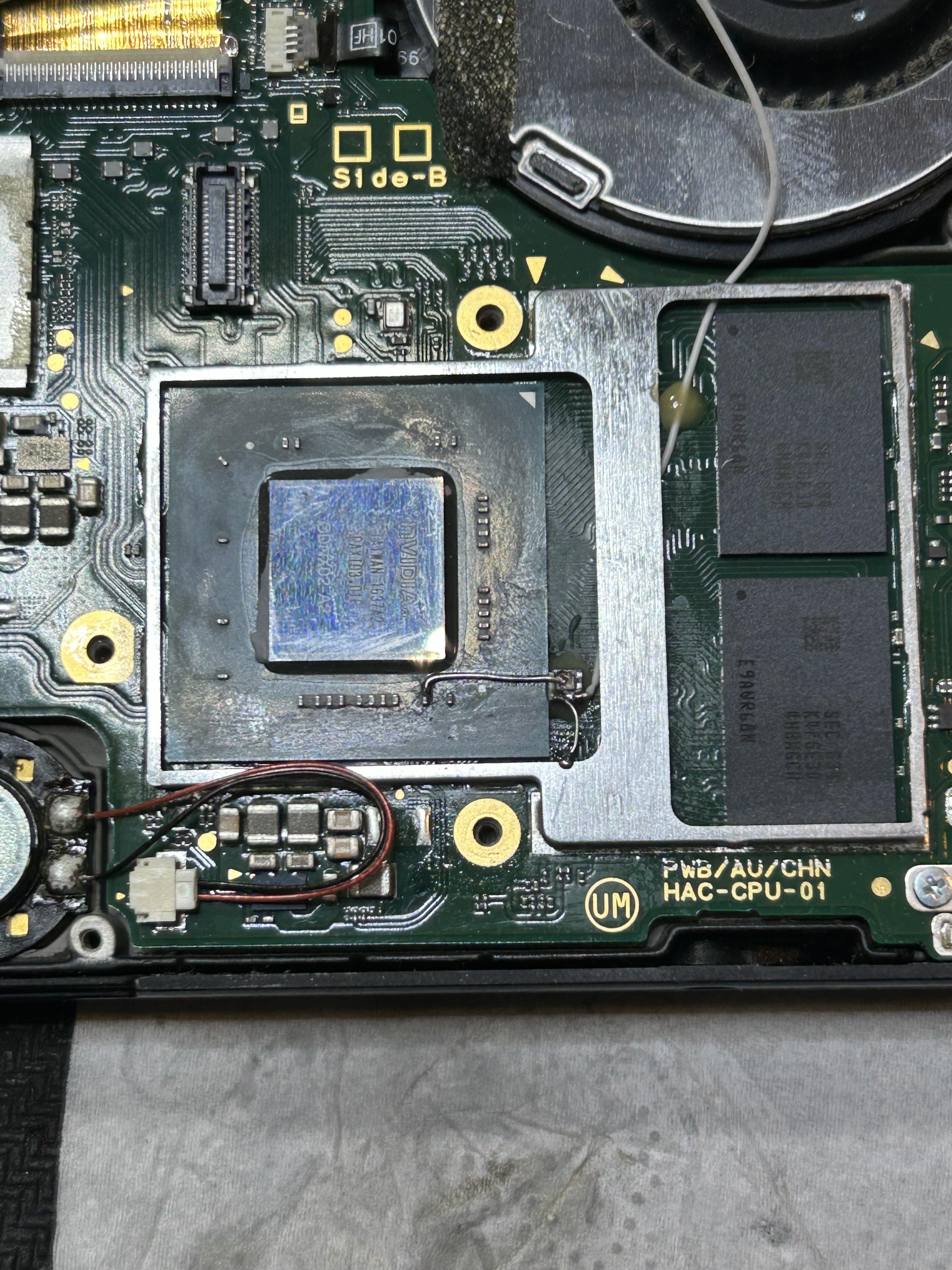

I had always chose for the single MOSFET directly on APU. The results are almost always instant boots.
