Still no success.
The guy at the store didn't know how to solder correctly, and after 3 attempts, he gave up and gave me back the two emmcs (the 256GB and the original 64GB) and the empty motherboard

I ended up having to buy a heat gun and try the soldering myself.

After many soldering attempts, I ended up getting it working for a day, but the next day the emmc died. the cause of this may have been the excessive attempts I made (the heat may have deteriorated the IC).

I ended up buying a second emmc but it should still arrive next week
Sorry to hear my friend. I hope you have better luck with the second one!


binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
2,494
Trophies
2
XP
1,736
Country
United States
i think i should make a video how i reball an emmc.
@binkinator
I have yet to answer your question in the other thread. I'm very busy and I'm trying these days.

That would be awesome!

I intend to do one as well and will do my best, but it’s going to be my first time reballing anything so I expect a lot of “constructive” feedback on my yet to be determined “technique”.

(no expectations on responses to anything…it’s just the Internet, man. It can wait.)

Last edited by binkinator,

binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
2,494
Trophies
2
XP
1,736
Country
United States

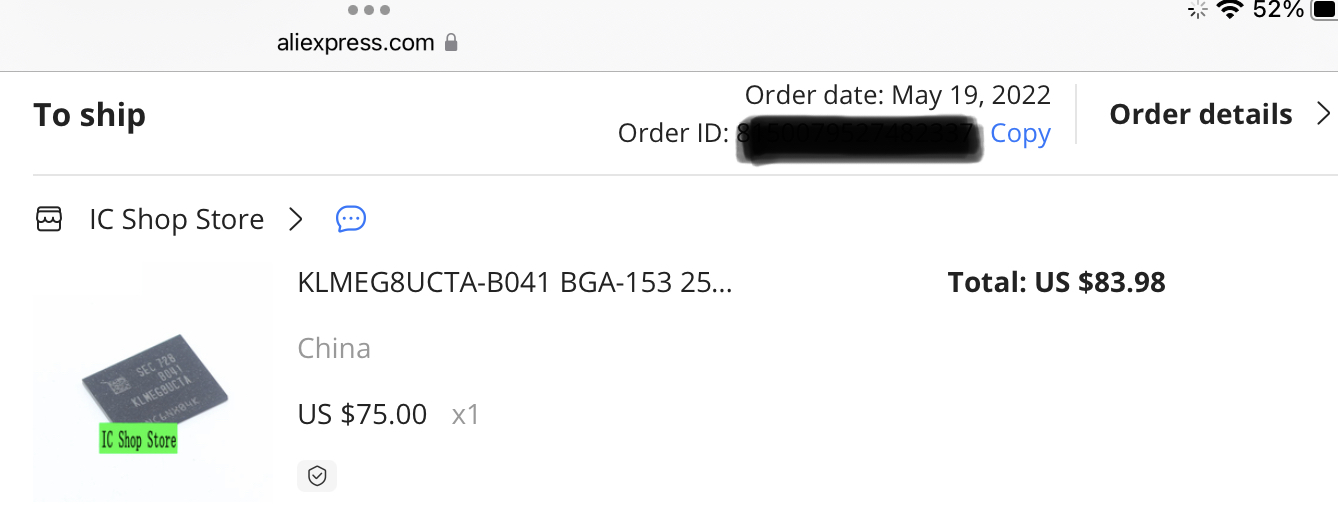

shipt



…will let you know how long it takes to arrive in Texas.


zal16

Well-Known Member
OP
Newcomer
Joined
Oct 8, 2020
Messages
93
Trophies
0
Age
36
XP
336
Country
Brazil
What the value os this resistor on sx core?


Attachments

  • -1459100865-982778547.jpg
    35.4 KB · Views: 6

l7777

Well-Known Member
Newcomer
Joined
Apr 13, 2022
Messages
89
Trophies
0
Location
Earth
XP
179
Country
United States
I'm very tempted to get a 2nd emmc board for my v2 just to try my hand at soldering the emmc. I've seen it done but haven't given it a go yet. Then again I had never reflowed any 0201 smd components before modding my v2 either.

If I can reliably do it with the v2 I'd probably give the OLED a try.

Last edited by l7777,
  • Like
Reactions: binkinator

binkinator

Garfield’s Fitness Coach
Member
GBAtemp Patron
Joined
Mar 29, 2021
Messages
2,494
Trophies
2
XP
1,736
Country
United States
I'm very tempted to get a 2nd emmc board for my v2 just to try my hand at soldering the emmc. I've seen it done but haven't given it a go yet. Then again I had never reflowed any 0201 smd components before missing my v2 either.

If I can reliably do it with the v2 I'd probably give the OLED a try.

Same! I’m just a tech tourist. There’s really no need for this. I just want to add a skill and see if I can do it.

I’m over here getting all jacked up on YouTube reballing vids and Mountain Dew!
