Switch No Wi-Fi BT either after disassembly

Mocho

Member
OP
Newcomer
Joined
Aug 28, 2019
Messages
24
Trophies
0
XP
63
Country
Spain
I had disssembly my son Switch for dust cleaning (playing saying too hot ant shut down). After reassemble it no Wi-Fi detected and controllers didn't recognized. I suppose is up to this module because normalli Wi-Fi and BT is in the same chip. Coaxial lead is connected. What else shall I check?


linuxares

I'm not a generous god!
Global Moderator
Joined
Aug 5, 2007
Messages
9,450
Trophies
1
XP
11,175
Country
Sweden
Check so it's seater properly and also check your coax cables. They are "button" connectors so they're really firmly connected.

  • Like
Reactions: Mocho

ROGsamurai

Well-Known Member
Member
Joined
Oct 26, 2021
Messages
192
Trophies
0
Age
33
XP
544
Country
United States
Small black and white wires I believe. Make sure you feel or hear a small click while pressing them down but do not force it.

  • Like
Reactions: Mocho

impeeza

¡Kabito!
Member
Joined
Apr 5, 2011
Messages
1,222
Trophies
1
Age
44
XP
1,923
Country
Colombia
The "module" is soldered to board but the antennas are connected via small coax cables you could to forget connect them look on the disassemble videos available on the net

  • Like
Reactions: Mocho

Mocho

Member
OP
Newcomer
Joined
Aug 28, 2019
Messages
24
Trophies
0
XP
63
Country
Spain
The "module" is soldered to board but the antennas are connected via small coax cables you could to forget connect them look on the disassemble videos available on the net
I commented checked the coaxial cables. Didn't unplugged by what I did, anyway I checked if unfortunately disconnected but wasn't. Anyway if were disconnected if palced close to the router, wi-fi signal shown but low, right? Is like not wi-fi at all, either the controllers. Something I'm thinking, can't remove a screw and polish it with my dremmel as gentle as possible, maybe by the vibration the broadcomm module any pad lost the connection with the board?. I was silly anyway, then realized didn't need remove that screws, just the middle one


Attachments

  • IMG20220110113603__01.jpg
    1.5 MB · Views: 13

Invich

New Member
Newbie
Joined
Jan 11, 2022
Messages
3
Trophies
0
Age
26
XP
23
Country
Guatemala
I have the exact same issue. Been searching for a solution since some months ago, but no luck so far. Most threads I've seen suggest it's a hardware problem with BCM4356 chip.


Mocho

Member
OP
Newcomer
Joined
Aug 28, 2019
Messages
24
Trophies
0
XP
63
Country
Spain

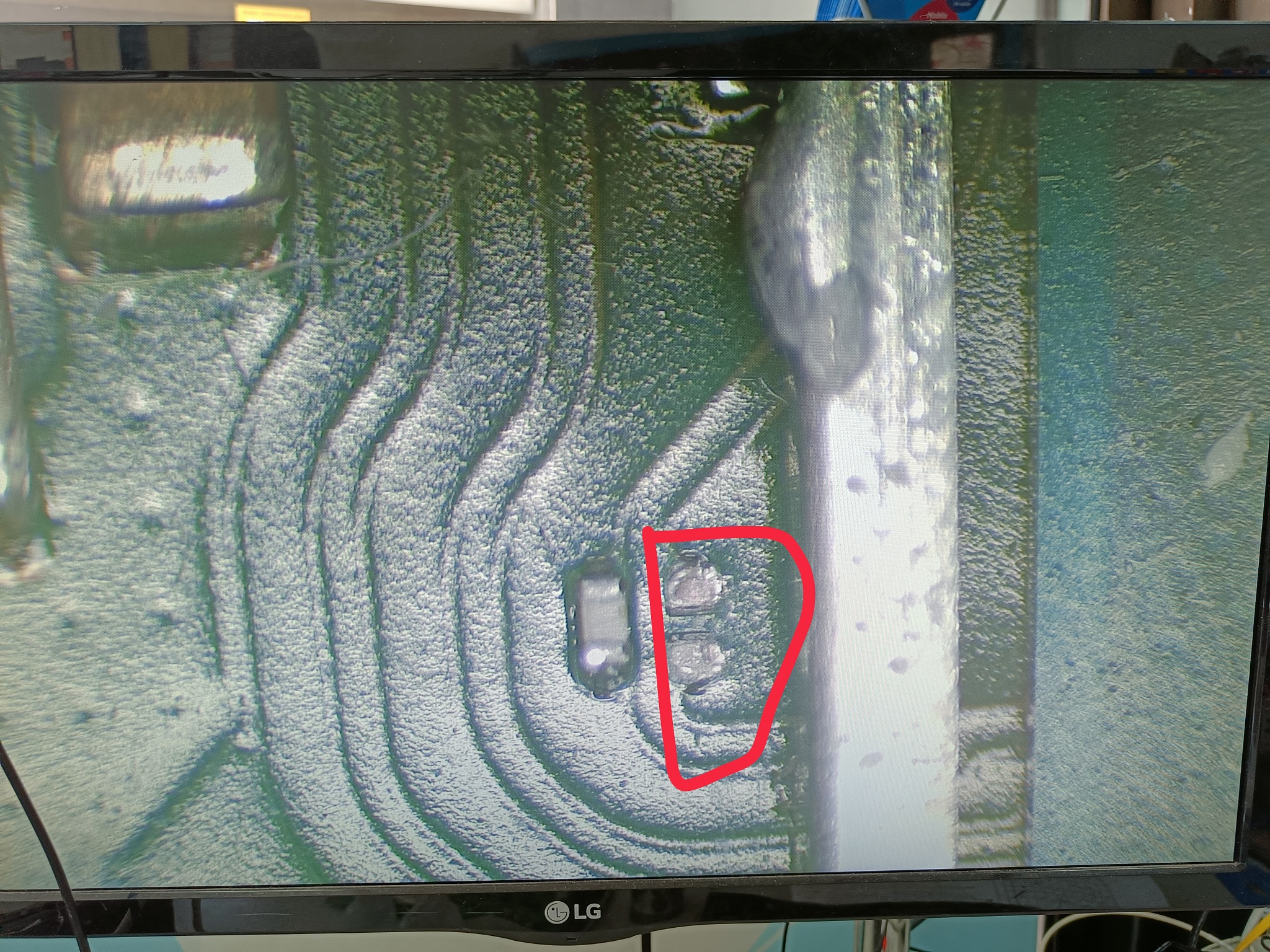

The Wi-Fi was the missing resistor or capacitor, solved putting from a doner board. But controllers still not responsing at all. Is weird. If plugged the genuine joycons didn't work if not charged (so not charging). Charged in other switch then recognized (so BT is working). If plugged non official controllers side one, Hori in my case don't recognize it. Pro controller by BT do it.

For other side, Switch is getting hot, like fan not working. Replaced the fan but still not working. Don't know is problem is hardware relationated. Before WI-FI problem (my fault at disassemble it), had those problem, controllers connection and high temperature.



linuxares

I'm not a generous god!
Global Moderator
Joined
Aug 5, 2007
Messages
9,450
Trophies
1
XP
11,175
Country
Sweden
The Wi-Fi was the missing resistor or capacitor, solved putting from a doner board. But controllers still not responsing at all. Is weird. If plugged the genuine joycons didn't work if not charged (so not charging). Charged in other switch then recognized (so BT is working). If plugged non official controllers side one, Hori in my case don't recognize it. Pro controller by BT do it.

For other side, Switch is getting hot, like fan not working. Replaced the fan but still not working. Don't know is problem is hardware relationated. Before WI-FI problem (my fault at disassemble it), had those problem, controllers connection and high temperature.

View attachment 294285
Ah common issue when you take of the plate. That resister is like in the damage zone.


Bens411

Active Member
Newcomer
Joined
Jan 19, 2013
Messages
30
Trophies
0
Age
32
XP
586
Country
France
The Wi-Fi was the missing resistor or capacitor, solved putting from a doner board. But controllers still not responsing at all. Is weird. If plugged the genuine joycons didn't work if not charged (so not charging). Charged in other switch then recognized (so BT is working). If plugged non official controllers side one, Hori in my case don't recognize it. Pro controller by BT do it.

For other side, Switch is getting hot, like fan not working. Replaced the fan but still not working. Don't know is problem is hardware relationated. Before WI-FI problem (my fault at disassemble it), had those problem, controllers connection and high temperature.
Hi ! I had the same problem before. In my case, the two resistors were missing according to the repair shop. The Wi-Fi worked after the repair.
But now, this switch has a sleep problem. It simply cannot go into sleep mode, the CPU seems to be awaken every second. The shop checked with a thermal camera, but didn't find anything.
