PS1/2 Sony PlayStation 2 Restoration Plus Modchip install

iVirtualPlays

Well-Known Member
Newcomer
Joined
Jul 11, 2018
Messages
46
Trophies
0
Age
24
XP
406
Country
United Kingdom
I got a good deal on this Clear Blue PS2 which arrived from Japan. But it had one issue. It would not read disks. So i took up the challenge and ordered it. It arrived a couple of months later since this arrived in Pal territories. I had to also pick up a step down converter from 220v to 120v.
17 - jYB19oG.jpg

I tested all of my Japanese Region games and none of them worked so I started with replacing the laser with this new KHS 400C laser i had laying around. I removed the old laser
1 - sGe5ezr.jpg 2 - 7tnPUzI.jpg

And unscrewed the plastic part that works with the rail. And screwed it onto the new laser.
4 - 0BHUN2X.jpg

I cleaned off the old grease and applied some new grease.
5 - wFde7RI.jpg

I desoldered the anti-static protection from the new laser.
7 - wOza7aJ.jpg

Installed it
3 - GO2SVjx.jpg 9 - vGD7Qmw.jpg

But it did not work
10 - 5h7zC2a.jpg

I tore it down to the motherboard since i’m going to install a modchip. And i found this. The chip that controls the DVD Drive. Which had this mod. Looks like an attempt at some kind of mod. Perhaps a Romeo Mod which is only done on later revisions of the PS2’s to prevent the laser from burning out when playing backups. But this earlier revision PS2 doesn’t have this security implementation and has a different drive chip. There is probably a chance that this chip has shorted out or is faulty. So i’m going to replace it just in case. Double-checking to see if there are any bridges. I replaced the old broken dried out thermal pads on these drive chips with some new ones and made sure that i got the thickness of the pads right. I had to replace some of the old ribbon cables. Such as ones for the controller port and the power and eject ribbon. Since the blue cards attached to the ribbon cables came off. The same happened with my DVD drive ribbons. I cannot find replacement ribbons for those. So i applied a thin layer of double-sided tape and stuck the card back on. I made sure the ribbon cables were plugged in properly. And screwed everything back together.
11 - 4PvufH4.jpg 15 - EhSPH6P.jpg 16 - WnX2nRH.jpg

I also installed a 750 Modbo and replaced the CR2032 Battery to allow for region free support and the ability to play backups but i will be using OPL on this system for the most part. Loading games off the harddrive using an Official Sony hdd adaptor with a Sata mod.
14 - 3ZBV7Zq.jpg 13 - 1XD0lCH.jpg 12 - 53XB8u6.jpg

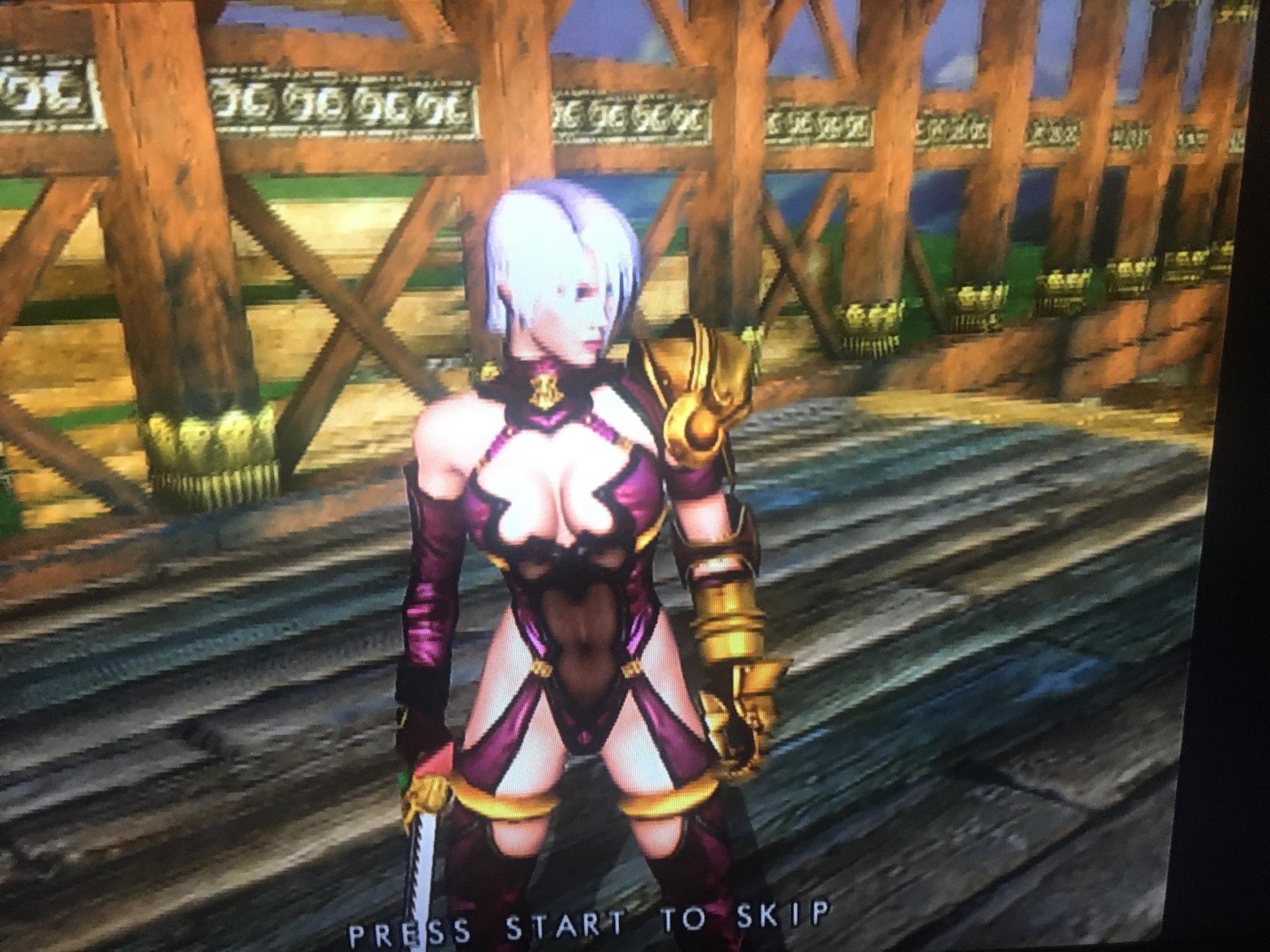

Since the PS logo was damaged. I replaced the damaged logo with another spare i had laying around and i had to glue the tray cover back on, as it broke off. After all that it would only play PS1 games and PS2 Blue Disks. Had to go back in. I adjusted the DVD potentiometer underneath the laser a tiny bit, cleaned the laser with a qtip dipped in isopropyl alcohol 99%, and let it dry. But it did not make a difference. I found this guide: https://arstechnica.com/gaming/2003/11/ps2-repair-guide/ and i was able to fix it. There is a white gear behind the laser which adjusts the position of the laser. So i adjusted that couple of times. Tested it and got it working but audio, the video would stutter, and load times were slow. Adjusted it some more and it was working perfectly. No stutter, games would load up fast. Here is the Laser tweaking guide: https://iswtc.wordpress.com/2016/07...-2-disc-read-errors-laser-voltage-method/amp/


Attachments

  • 18 - aN3Xo0a.jpg
    18 - aN3Xo0a.jpg
    227 KB · Views: 73
  • 19 - WEJhEOf.jpg
    19 - WEJhEOf.jpg
    481.1 KB · Views: 79
  • 20 - yTxchAQ.jpg
    20 - yTxchAQ.jpg
    373 KB · Views: 72
  • 6 - a1IKQPj.jpg
    6 - a1IKQPj.jpg
    288.2 KB · Views: 77
  • 8 - tQ3M3b7.jpg
    8 - tQ3M3b7.jpg
    305.1 KB · Views: 74

slaphappygamer

Well-Known Member
Member
Joined
Nov 30, 2008
Messages
3,495
Trophies
1
Age
44
Location
California
XP
3,931
Country
United States
Fun project. A chip looks pretty difficult to install. I bought a premodded ps2 long ago. It’s got a DMS3+ in it. Only recently I took the ps2 apart to clean it and holy cow! There are so many wires in there. Tiny solder points as well.


iVirtualPlays

Well-Known Member
Newcomer
Joined
Jul 11, 2018
Messages
46
Trophies
0
Age
24
XP
406
Country
United Kingdom
Fun project. A chip looks pretty difficult to install. I bought a pre modded ps2 long ago. It’s got a DMS3+ in it. Only recently I took the ps2 apart to clean it and holy cow! There are so many wires in there. Tiny solder points as well.
That's a saught after modchip. I used to be daunted by installing modchips but after years of soldering. Modding PS1’s, Xboxes, Gamecubes. I’ve gotten used to it. This is my 30th PS2. That i’ve mod chipped. As long as you have the experience, good equipment with some drag soldering techniques. It becomes a piece of cake to install.

Last edited by iVirtualPlays,
  • Like
Reactions: slaphappygamer

iVirtualPlays

Well-Known Member
Newcomer
Joined
Jul 11, 2018
Messages
46
Trophies
0
Age
24
XP
406
Country
United Kingdom

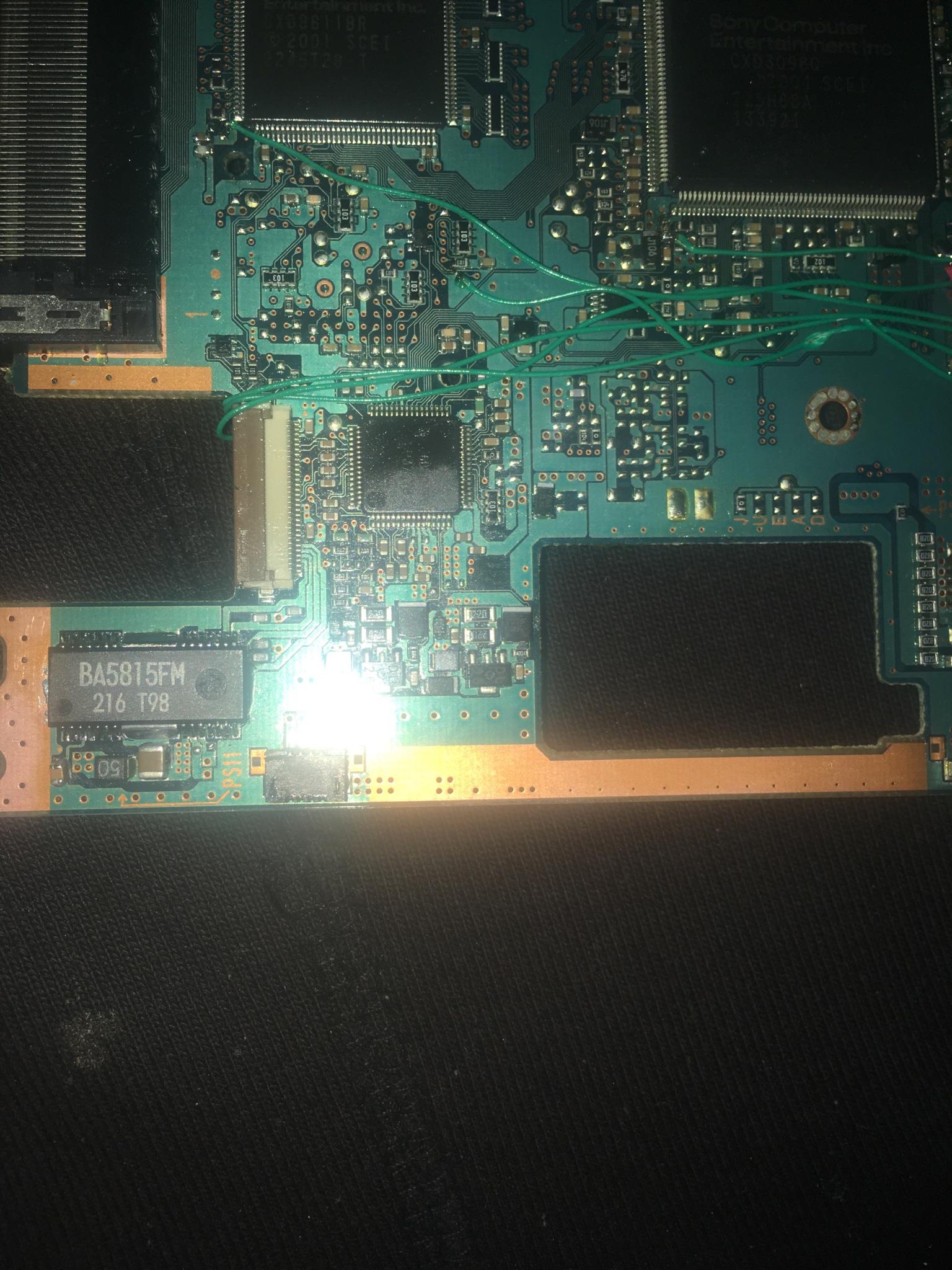

Though unnecessary, thought i update the post with a PS1 and PS11 resettable fuse replacement. I used a 400mA 60v reset fuse for the PS1 fuse and a 2.3a smd fuse for the PS11 fuse. I could have replaced them all with reset fuses but that would be expensive. So just replacing these two is really all, that is kind of needed as they are more prone to blowing. Also thought i share a Romeo mod on this earlier revision PS2. The SCPH39000 and earlier models are not known to burn out the laser like the later models have. When playing backups, but i thought i did it just in case. So that i don’t have to open up the PS2 again.

Modbo guides are here with Romeo mods for later revision PS2’s.
https://quade.co/ps2-modchip-guide/modbo/

For later revisions this is the guide. It’s the 3rd on the other side of the chip all the small pins count to 17.


Attachments

  • C2071235-CA7B-4827-BE49-51CDB395593A.jpeg
    3.3 MB · Views: 61
  • 841DB6B0-19F4-4C97-8836-EA17E8BD84E8.jpeg
    428.8 KB · Views: 60
  • 73CF3A3F-B227-440A-ADC9-038373926DEB.jpeg
    2.3 MB · Views: 65
  • DB40FB5F-63C9-4848-A1CD-0E7054430735.jpeg
    3.5 MB · Views: 63
  • 52E0756E-ECB8-47DC-88E1-B8CB8F94F3F6.jpeg
    248.7 KB · Views: 64
  • AB604BD6-0B87-447C-BD77-8DB00543395A.jpeg
    98.9 KB · Views: 59
Last edited by iVirtualPlays,
