Hacking Sigpatches for Atmosphere (Hekate, fss0, fusee & package3)

[impeeza]

i've been away from hacking since 16.0
did anything changed?
sigpatch is the same for 18.1.0 or i should not update?

almost everything changed, please read https://gbatemp.net/threads/ultimate-guide-to-upgrade-your-firmware-atmosphere.661148/



[WindMageVaati]

Where are sigpatches found?



[impeeza]

Where are sigpatches found?

If you use the search bar at top of the page:

You will find the thread https://gbatemp.net/threads/sigpatc...kate-fss0-fusee-package3.571543/post-10480707 that thread will have the most recent ones. MEANING YOU CAN READ THE OP OF THIS THREAD!

Also remember if you like, to Install/Upgrade SYS-Patch Sysmodule https://gbatemp.net/download/sys-patch-1-5-2-binary-fw-18-1-0-atmosphere-1-7-1.38686/


Last do not forget to restart your console once your install sigaptches or sysmodules.



[WindMageVaati]

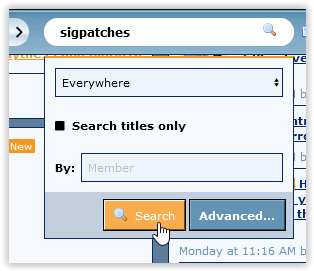

If you use the search bar at top of the page:
View attachment 460710

You will find the thread https://gbatemp.net/threads/sigpatc...kate-fss0-fusee-package3.571543/post-10480707 that thread will have the most recent ones.

Also remember if you like, to Install/Upgrade SYS-Patch Sysmodule https://gbatemp.net/download/sys-patch-1-5-2-binary-fw-18-1-0-atmosphere-1-7-1.38686/


Last do not forget to restart your console once your install sigaptches or sysmodules.

what is a sysmodule?



[impeeza]

what is a sysmodule?

Small programs which run at startup or reside on memory and allow you to make some actions, by example FTP server, Amiibo emulators, Overclocking, etc.



[protivakid]

Modified fusee version with ips kip patches support

This just fixed my issue after updating my switch. Did the one on the Atmosphere page change to no longer allow patches?



[Hayato213]

This just fixed my issue after updating my switch. Did the one on the Atmosphere page change to no longer allow patches?

You need to either use fss0 build or use modified fusee.bin.



[impeeza]

This just fixed my issue after updating my switch. Did the one on the Atmosphere page change to no longer allow patches?

Atmosphère removed the official support of applying IPS patches to KIPs on the version 1.7.0 (https://github.com/Atmosphere-NX/Atmosphere/releases/tag/1.7.0-prerelease) so if you start your console using the FUSEE.BIN payload your console will no be patched at start.

You can:

• Start your console using Hekate as payload, HIGHLY RECOMMENDED.
• Install SYS-PATCH sysmodule (https://gbatemp.net/download/sys-patch-1-5-2-binary-fw-18-1-0-atmosphere-1-7-1.38686/).
• use an unofficial Atmosphère FUSEE.BIN, but you need the correspondent set of sigpatches for that Atmosphère build.



[Herodias]

When updating my console and installing the newest sigpatches one of my games stopped working. The game is Master Detective Archives: RAIN CODE, I'm not sure why it happened. Does anyone know a solution for when this happens? It's only with this game, tried reinstalling but nothing change :/



[impeeza]

When updating my console and installing the newest sigpatches one of my games stopped working. The game is Master Detective Archives: RAIN CODE, I'm not sure why it happened. Does anyone know a solution for when this happens? It's only with this game, tried reinstalling but nothing change :/

install also sys-patch sysmodule and restart your console.



[runechronos]

Guys i'm going crazy, never had any trouble since day 1 of switch hacks I Was on 16.0 FW and hekate 6.0.4 and atmosphere 1.5.3 , working great, i decided to update to 18.1.0 FW, hekate 6.2 and atmosphere 1.7.1, I put the files on my SD card, also modified the hekate_ipl.ini and the sigpatches v2 you gave at the start of the thread. And I don't manage to boot on hekate or anything since then.

I get an RCM OK from Tegra RCM 2.6 but the screen remains black, I tried with a RCM Loader directly, it flashes green and blue as normal, and i see a little flash of light for a brief half a second on the screen and it stays black. So it's like something is preventing from loading hekate. I tried to put back all the appropriate files from older version that were working and I get the same problem. I tried a fresh SD Card, put the files on it, same problem. I don't know what is happening.

I have an emummc on the regular SD Card i'm using, but not on the new one I also tried.

Yet I have no problem booting on the regular NAND of the switch if I press the power button for like 20 sec, and the start the console again.

Thanks for your help



[impeeza]

Guys i'm going crazy, never had any trouble since day 1 of switch hacks I Was on 16.0 FW and hekate 6.0.4 and atmosphere 1.5.3 , working great, i decided to update to 18.1.0 FW, hekate 6.2 and atmosphere 1.7.1, I put the files on my SD card, also modified the hekate_ipl.ini and the sigpatches v2 you gave at the start of the thread. And I don't manage to boot on hekate or anything since then.

I get an RCM OK from Tegra RCM 2.6 but the screen remains black, I tried with a RCM Loader directly, it flashes green and blue as normal, and i see a little flash of light for a brief half a second on the screen and it stays black. So it's like something is preventing from loading hekate. I tried to put back all the appropriate files from older version that were working and I get the same problem. I tried a fresh SD Card, put the files on it, same problem. I don't know what is happening.

I have an emummc on the regular SD Card i'm using, but not on the new one I also tried.

Yet I have no problem booting on the regular NAND of the switch if I press the power button for like 20 sec, and the start the console again.

Thanks for your help

Try injecting this payload and let us to know how is going:
https://gbatemp.net/download/fusee-test.38122/



[taffyponty]

hello.,.

can i ask.. do i just extract these files into the root directory of the switch, or is there more to it?



[impeeza]

hello.,.

can i ask.. do i just extract these files into the root directory of the switch, or is there more to it?

Extract the folders and files AT THE ROOT OF THE SD CARD used on your console. nothing more.



[soratheultima]

Adding the newest Sigpatches (including SysPatch) does not work for my OLED Switch on 18.1.0|AMS 1.7.1
i get a fatal error everytime i try to boot into emummc : (white text) Program ID: 010041544d530000 (Yes my SD Card is Legit i checked Hekate)
Do I need a modified Fusee.bin?

Reverting back to a fresh Atmosphere Install makes my emummc boot up again.



[impeeza]

Adding the newest Sigpatches (including SysPatch) does not work for my OLED Switch on 18.1.0|AMS 1.7.1
i get a fatal error everytime i try to boot into emummc : (white text) Program ID: 010041544d530000 (Yes my SD Card is Legit i checked Hekate)
Do I need a modified Fusee.bin?

Reverting back to a fresh Atmosphere Install makes my emummc boot up again.

may be your card is ExFat format and you don't installed the ExFat Driver when updating?

https://github.com/Atmosphere-NX/Atmosphere/issues/1914

https://gbatemp.net/threads/panic-occurred-while-running-atmosphere-010041544d530000.645978/

If the card is Fat32, use Hekate to fix archive bit. if that do not solve the problem: Backup all files of your SD card on your pc, format it to fat 32 using fat32 format (https://gbatemp.net/download/gui-format.33869/) then test your sd card using H2Testw (https://www.heise.de/download/product/h2testw-50539)

Be careful to not format or delete your EmuNAND if is a RAW partition based one.

THEN if the card is ok, use Hekate to format again the card and restore all your files.

May be the card is Legit but could be deteriorated (that happen to all flash memory with the time)

Post automatically merged: Oct 3, 2024

@soratheultima, did this helped you?



[soratheultima]

@impeeza The SD Card (512GB) was formatted as fat32, I reformatted it today using guiformat and i don't really mind loosing my EmuNAND partition as I hardly used the switch in the past anyway. h2testw is still running and is verifying the card. the check finished without any errors. There is still around 1 1/2 hours left for the verify. I'll report back as soon as that is done and i could retest everything.

Post automatically merged: Oct 4, 2024

@impeeza alright it's working now. i figured out what is causing the error.

the line: add_defaults_to_dns_hosts = u8!0x1 in the system_settings.ini caused it, removing it made it boot up.

Thanks for the Help!



[impeeza]

Sigpatches for Firmware 19. Thanks to the great buddy working on them.

https://gbatemp.net/threads/sigpatc...-fusee-package3.571543/page-205#post-10517797



[miniminx]

Sigpatches for Firwmare 19, obiously do not work yet because there is no CFW leaving them here for record only. Thanks to the great buddy working on them.

FYI, for noob users (like me), Remember you need to add the Atmosphere package3 patch to this once Atmosphere is released.



[impeeza]

Fellow tempers I am going on a trip until next week so if a new Atmosphère is released I ask you to create the new set of patches needed for that CFW and publish it here merging it with https://gbatemp.net/threads/sigpatc...kate-fss0-fusee-package3.571543/post-10511757 sorry I will be away from any network.
