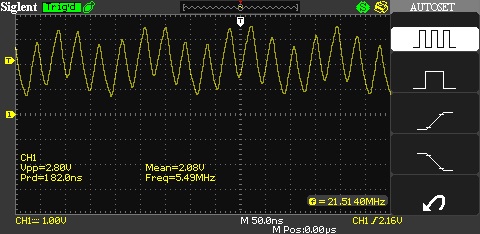

I have problems with the S-CLK chip, on pin 4 (XOUT) it generates an incorrect signal that you can see in the link below. I think the correct signal would be a square wave between 0 and 5V of about 21 Mhz

--------------------- MERGED ---------------------------

I have problems with the S-CLK chip, on pin 4 (XOUT) it generates an incorrect signal that you can see in the link below. I think the correct signal would be a square wave between 0 and 5V of about 21 Mhz


Attachments

  • XIN.jpg
    51.4 KB · Views: 114

tech3475

Well-Known Member
Member
Joined
Jun 12, 2009
Messages
4,002
Trophies
2
XP
6,678
Country
I have problems with the S-CLK chip, on pin 4 (XOUT) it generates an incorrect signal that you can see in the link below. I think the correct signal would be a square wave between 0 and 5V of about 21 Mhz

--------------------- MERGED ---------------------------

Have you checked the input voltages and capacitors?

On my recent MD/Gen repair the capacitors 'looked' fine but some were bad so a visual inspection alone may not be enough.


JaapDaniels

Well-Known Member
Member
Joined
Apr 22, 2012
Messages
1,254
Trophies
1
Age
40
Website
github.com
XP
2,649
Country
Netherlands
Have you checked the input voltages and capacitors?

On my recent MD/Gen repair the capacitors 'looked' fine but some were bad so a visual inspection alone may not be enough.
yes, all the through hole caps could be having a leak and you might not smell or see it when that happens, and check the DC bridge, i had a few pal snesses where one diode of the four had shorted over time (it's one component with four legs).


jkarma

Member
Newcomer
Joined
Aug 12, 2021
Messages
5
Trophies
0
Age
54
XP
39
Country
Spain
Let me tell you. I have measured all three source voltages and they correctly measure 4.96V, 12V, and about 10V (instead of 9V) for the audio amplifier. This console worked fine but had noise, like hum, in the sound, I changed 4 capacitors from the power supply which gave wrong measurement with capacitance meter, then the hum or noise disappeared. But when assembling the console, nothing appeared, just snow on the TV. I measured, with the oscilloscope, the clock signals to the S-CLK outputs and they all gave correct except pin 4 (XOUT) which gave a continuous 0V, that is, it did not give any signal. So I followed the Snes PAL schematic of the circuit that surrounds the S-CLK and saw that a connection was missing, pins 8 and 9 were linked but they came out and I connected them to the junction of C3 and R3, as in the diagram, and there it is when i received the signal i have shown you on pin 4 of the S-CLK this signal is supposed to be the master clock of the system and it should be a square wave from 0 to 5V and around 21Mhz but it gives that weird signal superimposed to an alternate signal. The other outputs of the S-CLK are correct (pin 5, 6 and 7). Now with this XOUT signal I get video but it is a black screen and nothing else. Maybe I should change the S-CLK chip? Well, I have measured the rest of the components and they are fine. I also don't know how to get this S-CLK chip.

Last edited by jkarma,

SylverReZ

Let it snow
Member
GBAtemp Patron
Joined
Sep 13, 2022
Messages
8,871
Trophies
6
Location
The Wired
Website
m4x1mumrez87.neocities.org
XP
27,710
Country
United Kingdom
Thank you for your work, do you happen to still have the KiCad files too besides the PDF?
Why not create a reproduction board yourself? Nobody should ever work hard labor shifts creating it for you since the schematics are free.

And furthermore, why are you bumping a thread that is in-active to this day?
