everything we gather so far should be added in this post
https://gbatemp.net/threads/saturn-...n-force-testing-and-debug.600756/post-9621207

well if things get complicated or we cant share some of the files Due to illegal Stuff, we can form a Discord and Contribute to the Research and Figure out how we can rebuild the NSP with our own Assets
i have the skills to make Graphic assets for anything and can test anything, plus i cam provide some resources


for now lets try and share as much info in public to have as much help as we can in here

Idea #1
for starters i want to make Template NSP and delete Cotton2.bin from it
- then we can just drop our new Saturn Iso in RomFS
we can make several Templates, example as following:
NSP Template 1: Castlevania SOTN
NSP Template 1: Nights Into Dreams
NSP Template 1: Panzer Dragoon II
NSP Template 1:Radiant SilverGun
now let me explain how an average GBATemper will use the Template:

these NSP templates wlil not have Cotton2.bin inside them

you will provide your own Saturn Image matching the Game Title Name i mentioned above and put it in RomFS folder
the 4 premade NSP files will have only the .cue file renamed to each of the 4 mentioned games

Idea #2
this will not be possible to share in public

Rebuild Cotton2 NSP
remove all traces of Cotton 2 names and replace with the new game name
inject the edited .tex file that remove the lower Menu options
inject the edited .tex file that remove the wallpaper
replace settings file with widescreen+ignore aspect ratio and 4mb ram changes
inject the new Saturn iso into cotton NSPO (no need to make a RomFS folder)
make Custom Professionally looking assets for intro and game image and replacing cotton2 assets from Unity menu intro . developer/publisher logo

share a pre made NSP with 1 of the 4 games mentioned

i have been gathering all the breakthrough in a Discord for later use when i need to build the Custom NSP with Assets
let me know when you do this.I have a discord account.thanks


Zomorph

Well-Known Member
Member
Joined
Mar 28, 2021
Messages
100
Trophies
0
Age
42
XP
95
Country
United Kingdom
post #16 just change the name

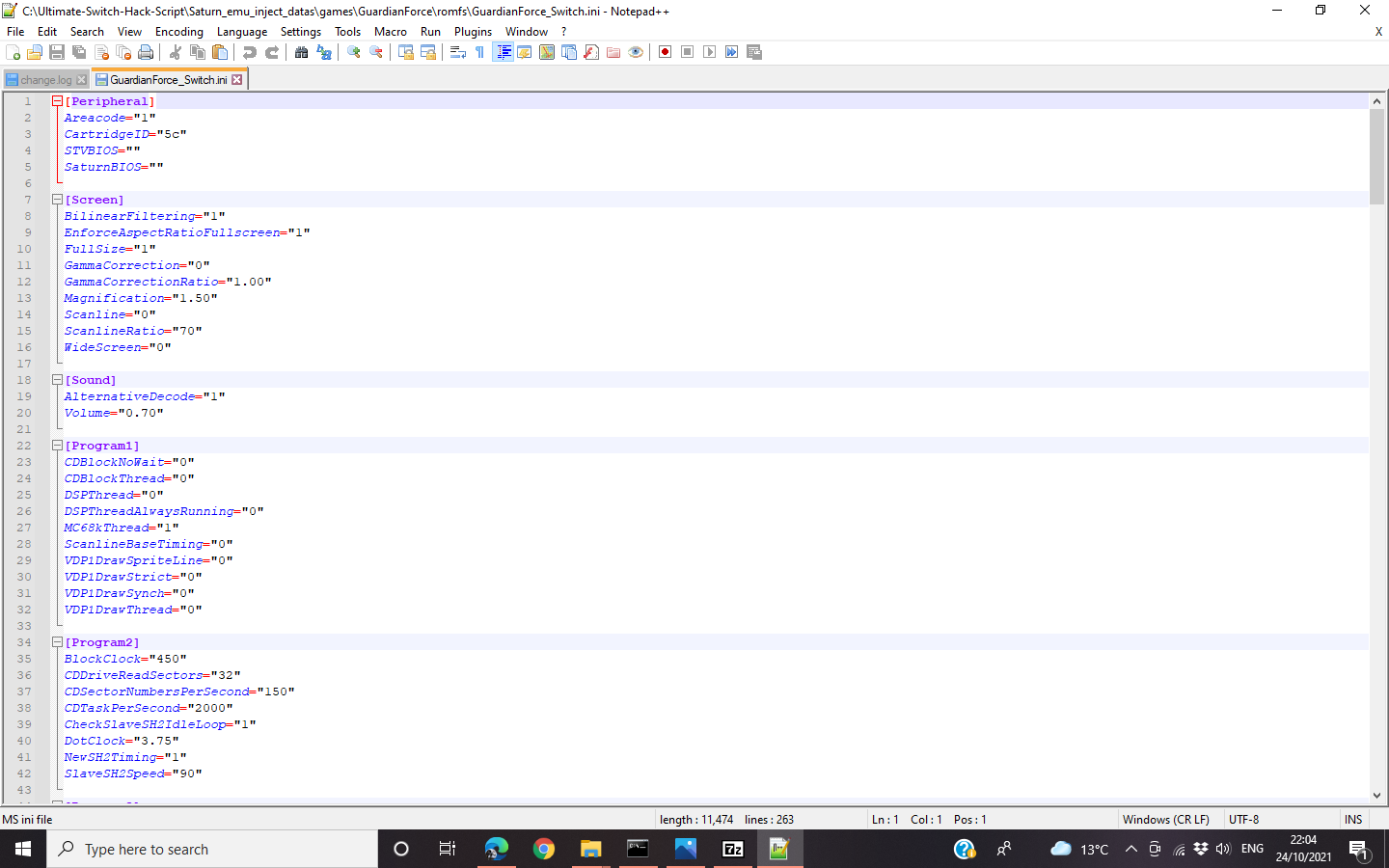

Thought I had this but I don't. Deleted the old config file and replaces it with the decrypted one from post 16. Renamed to reflect GF. Changed Cartridge ID to 5c. Generated NSP. Installed. Deleted old SFZ3 save data but still stuck on the 4MG screen. Any ideas?



stranno

Well-Known Member
Member
Joined
Feb 17, 2013
Messages
596
Trophies
0
XP
1,752
Country
Spain
Mine is all gibberish when I open it...
Copy and paste this:

[Peripheral]
Areacode="1"
CartridgeID="5c"
STVBIOS=""
SaturnBIOS=""

[Screen]
BilinearFiltering="1"
EnforceAspectRatioFullscreen="1"
FullSize="1"
GammaCorrection="0"
GammaCorrectionRatio="1.00"
Magnification="1.50"
Scanline="0"
ScanlineRatio="70"
WideScreen="0"

[Sound]
AlternativeDecode="1"
Volume="0.70"

[Program1]
CDBlockNoWait="0"
CDBlockThread="0"
DSPThread="0"
DSPThreadAlwaysRunning="0"
MC68kThread="1"
ScanlineBaseTiming="0"
VDP1DrawSpriteLine="0"
VDP1DrawStrict="0"
VDP1DrawSynch="0"
VDP1DrawThread="0"

[Program2]
BlockClock="450"
CDDriveReadSectors="32"
CDSectorNumbersPerSecond="150"
CDTaskPerSecond="2000"
CheckSlaveSH2IdleLoop="1"
DotClock="3.75"
NewSH2Timing="1"
SlaveSH2Speed="90"

[Program3]
BusWait="0"
CDTrackIndex="0"
CheckCyclePattern="1"
CheckSpritePriority="1"
DelayVDP2RAMWriteTiming="0"
MemoryAccessWait="1"
SH2Cache="0"
SH2DMARealTransfer="0"
VDP2RAMWriteTiming="0"
VDP2RAMWriteTimingBufferSize="32"
VDP2RAMWriteTimingGPUSplitNumbers="4"

[Program4]
EnableFDD="0"
HookBackupLibrary="1"
MeshTranslucent="0"
NoBIOS="0"
SpriteHighDefinition="0"

[Program5]
FixedSpriteMagnification="1.00"
LineMagnification="1.00"
PolygonMagnification="1.00"
PolylineMagnification="1.00"
RectangleSpriteMagnification="1.00"
TransformSpriteMagnification="2.00"
TransparentPixelRatio="70"

[Program6]
ABusCS0ReadByte="16"
ABusCS0ReadLong="16"
ABusCS0WriteByte="4"
ABusCS0WriteLong="9"
ABusCS1ReadByte="30"
ABusCS1ReadLong="30"
ABusCS1WriteByte="11"
ABusCS1WriteLong="24"
ABusCS2ReadByte="14"
ABusCS2ReadLong="14"
ABusCS2WriteByte="4"
ABusCS2WriteLong="10"
ABusCSReserveReadByte="16"
ABusCSReserveReadLong="16"
ABusCSReserveWriteByte="4"
ABusCSReserveWriteLong="9"
BackupRAMReadByte="5"
BackupRAMReadLong="10"
BackupRAMWriteByte="4"
BackupRAMWriteLong="9"
BootROMReadByte="5"
BootROMReadLong="10"
IOGAReadByte="5"
IOGAReadLong="10"
IOGAWriteByte="4"
IOGAWriteLong="9"
MINITReadByte="5"
MINITReadLong="10"
MINITWriteByte="4"
MINITWriteLong="9"
SCSPRegisterReadByte="28"
SCSPRegisterReadLong="28"
SCSPRegisterWriteByte="10"
SCSPRegisterWriteLong="19"
SCURegisterReadByte="4"
SCURegisterReadLong="4"
SCURegisterWriteByte="2"
SCURegisterWriteLong="2"
SINITReadByte="5"
SINITReadLong="10"
SINITWriteByte="4"
SINITWriteLong="9"
SMPCReadByte="5"
SMPCReadLong="10"
SMPCWriteByte="4"
SMPCWriteLong="9"
SoundRAMReadByte="28"
SoundRAMReadLong="28"
SoundRAMWriteByte="10"
SoundRAMWriteLong="19"
VDP1FramebufferReadByte="27"
VDP1FramebufferReadLong="27"
VDP1FramebufferWriteByte="6"
VDP1FramebufferWriteLong="6"
VDP1RAMReadByte="27"
VDP1RAMReadLong="27"
VDP1RAMWriteByte="10"
VDP1RAMWriteLong="11"
VDP1RegisterReadByte="17"
VDP1RegisterReadLong="17"
VDP1RegisterWriteByte="6"
VDP1RegisterWriteLong="6"
VDP2ColorRAMReadByte="24"
VDP2ColorRAMReadLong="24"
VDP2ColorRAMWriteByte="3"
VDP2ColorRAMWriteLong="4"
VDP2RAMReadByte="27"
VDP2RAMReadLong="27"
VDP2RAMWriteByte="1"
VDP2RAMWriteLong="1"
VDP2RegisterReadByte="24"
VDP2RegisterReadLong="24"
VDP2RegisterWriteByte="3"
VDP2RegisterWriteLong="4"
WorkRAMHReadByte="0"
WorkRAMHReadLong="0"
WorkRAMHWriteByte="1"
WorkRAMHWriteLong="1"
WorkRAMLReadByte="4"
WorkRAMLReadLong="9"
WorkRAMLWriteByte="4"
WorkRAMLWriteLong="8"

[Input]
EnableRapid="0"
Pad0_0_0="1/0/1/1/1/2/1/3/1/5/1/4/1/11/1/7/1/6/1/10/1/8/1/9/1/15/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/7/0/6/0/9/0/2/0/2/0/2/0/2/0/2/0/0"
Pad0_0_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_0_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_0_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_1_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_1_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_1_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_1_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_2_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_2_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_2_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_2_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_3_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_3_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_3_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_3_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_4_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_4_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_4_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_4_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_5_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_5_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_5_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad0_5_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_0_0="1/0/1/1/1/2/1/3/1/5/1/4/1/11/1/7/1/6/1/10/1/8/1/9/1/15/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/7/0/6/0/9/0/2/0/2/0/2/0/2/0/2/0/0"
Pad1_0_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_0_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_0_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_1_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_1_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_1_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_1_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_2_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_2_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_2_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_2_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_3_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_3_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_3_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_3_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_4_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_4_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_4_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_4_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_5_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_5_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_5_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Pad1_5_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
PadType0_0="0"
PadType0_1="5"
PadType0_2="5"
PadType0_3="5"
PadType0_4="5"
PadType0_5="5"
PadType1_0="0"
PadType1_1="5"
PadType1_2="5"
PadType1_3="5"
PadType1_4="5"
PadType1_5="5"
PortFlag0="0"
PortFlag1="0"
Rapid0_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid0_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid0_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid0_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid0_4="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid0_5="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_0="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_1="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_2="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_3="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_4="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
Rapid1_5="0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0/0"
VariableRapid0_0="0"
VariableRapid0_1="0"
VariableRapid0_2="0"
VariableRapid0_3="0"
VariableRapid0_4="0"
VariableRapid0_5="0"
VariableRapid1_0="0"
VariableRapid1_1="0"
VariableRapid1_2="0"
VariableRapid1_3="0"
VariableRapid1_4="0"
VariableRapid1_5="0"

[Other]
DateFlag="1"
ROMFolder=".\"
SMEM0="0"
SMEM1="0"
SMEM2="0"
SMEM3="5"
SSDate0="1993"
SSDate1="12"
SSDate2="5"
SSDate3="31"
SSDate4="23"
SSDate5="59"
SSDate6="59"
SSDate7="0"

[EachGame]
Language="255"


Zomorph

Well-Known Member
Member
Joined
Mar 28, 2021
Messages
100
Trophies
0
Age
42
XP
95
Country
United Kingdom
Copy and paste this:
Thanks for this. But I used the file from cucholix from the first page. I don't think the config file is the problem. I'm doing something else wrong. Most likely something very silly.

I thought I'd try installing 4x 4MG games in one go since I was changing the config to 4mg cartridge. Here are some of the covers I used. Incidentally Vampire Saviour works perfectly (I don't think it needs the 4mg). Waku Waku 7 is unplayable- no sprites. But this might be because I haven't got the 4mg setting working


Attachments

  • Marvel Super Heroes Vs. Street Fighter Front.jpg
    Marvel Super Heroes Vs. Street Fighter Front.jpg
    73.9 KB · Views: 7
  • Vampire Savior  Front.jpg
    Vampire Savior Front.jpg
    57.8 KB · Views: 12
  • Waku Waku 7 Cover.jpg
    Waku Waku 7 Cover.jpg
    53.8 KB · Views: 9

Prb

Well-Known Member
Member
Joined
Nov 10, 2020
Messages
766
Trophies
1
XP
1,878
Country
United Kingdom
Thanks for this. But I used the file from cucholix from the first page. I don't think the config file is the problem. I'm doing something else wrong. Most likely something very silly.

I thought I'd try installing 4x 4MG games in one go since I was changing the config to 4mg cartridge. Here are some of the covers I used. Incidentally Vampire Saviour works perfectly (I don't think it needs the 4mg). Waku Waku 7 is unplayable- no sprites. But this might be because I haven't got the 4mg setting working
Google notepad++
And install it on your pc it's what you need for playing with code way better than standard notepad
Then open your ini by right clicking and replace with all the text that @stranno just gave you save and complie your nsp

  • Like
Reactions: Zomorph

Zomorph

Well-Known Member
Member
Joined
Mar 28, 2021
Messages
100
Trophies
0
Age
42
XP
95
Country
United Kingdom
Google notepad++
And install it on your pc it's what you need for playing with code way better than standard notepad
Then open your ini by right clicking and replace with all the text that @stranno just gave you save and complie your nsp
Thanks for trying to help.

I just tried copying and pasting the text from stranno but got the same problem. I'll dl notepad++ and use the original decrypted file from cucholix. I'm using SFZ3, I've deleted all the game saves on the switch - is there anything else I need to delete?


Zomorph

Well-Known Member
Member
Joined
Mar 28, 2021
Messages
100
Trophies
0
Age
42
XP
95
Country
United Kingdom
Ok, I've now used notepad++ but still have the same problem. I'm convinced there's a save somewhere that I haven't deleted...But all the SFZ3 save data is off the switch



Levine91

Well-Known Member
Member
Joined
Oct 8, 2011
Messages
156
Trophies
0
XP
343
Country
United States
Just an update, compatibility sheet is still being worked on. It's not going to be complete when it comes out obviously, but trying to tackle any games of even minor note.

Additionally, I've added more icons/covers over the past couple of days. Go check them out.
https://drive.google.com/drive/folders/1_rjVgGDuTv0KTlYIRzhtCo_LBCfJXp6i?usp=sharing


Lastly, after a handful of configuration adjustments I was able to get Mr. Bones (USA) to work.
You'll find the config attached. Sadly the Japanese and European versions still do not work.


Attachments

  • Mr Bones Config.zip
    1.8 KB · Views: 13

ZER-O

Well-Known Member
Member
Joined
Sep 25, 2021
Messages
354
Trophies
0
XP
863
Country
United Kingdom
let me know when you do this.I have a discord account.thanks
i just made custom Credits/controllerGuide/boot intros and wallpapers/and some game covers for the games i was testing
made 10 pages for Digital Instruction manual for the 4 games i mentioned, i didnt compile the game with them yet
will probably share them after the google spreadsheet for Game Compatibility has optimal Settings files for the games i want to compile injected NSP for

if there is something you want, ill sned it, for now there isnt a public shared source

Last edited by ZER-O,

Zomorph

Well-Known Member
Member
Joined
Mar 28, 2021
Messages
100
Trophies
0
Age
42
XP
95
Country
United Kingdom
I haven't actually tried to complie SFZ3
Myself I was just giving you the best tool to do it with
Gotcha. I appreciate your help. Maybe I should test it with something that definitely works. Have you tested any working 4mg games?


Rikua

Well-Known Member
Member
Joined
Dec 2, 2014
Messages
178
Trophies
0
Age
34
XP
1,268
Country
United States
i just made custom Credits/controllerGuide/boot intros and wallpapers/and some game covers for the games i was testing
made 10 pages for Digital Instruction manual for the 4 games i mentioned, i didnt compile the game with them yet
will probably share them after the google spreadsheet for Game Compatibility has optimal Settings files for the games i want to compile injected NSP for

if there is something you want, ill sned it, for now there isnt a public shared source
I desperately need need that rad Saturn controllerGuide and that awesome Saturn boot screen if your willing the share the .tex(s) now. I've only made 3 or 4 injects, but would like to make them over with extra goodies lol

General chit-chat
Help Users
  • Sicklyboy @ Sicklyboy:
    hmmm what to order for dinner
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    Lrn2cook :angry:
    Gift
  • Sicklyboy @ Sicklyboy:
    I can cook great. But the depression kind of drains me of all motivation to do anything
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    I feel that but I beat it out cause the fees on apps make me more depressed
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    And you may get extra creamy sauce if you refuse to tip
    Gift
  • Sicklyboy @ Sicklyboy:
    god wtf is it about facebook that just makes you (me) doomscroll for ever? Fucking glad I rarely touch it anymore but god damn I've probably spent more time on FB today than in the past 3 months combined.
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    I usually just use messenger cause someone always tends to comment something extremely stupid on my status like I don't wanna see that on my page then I'm all like well you know what to do if you don't want to see it and they get all butthurt even more
    Gift
  • Sicklyboy @ Sicklyboy:
    I keep Facebook around for oauth2 (though Google largely fills the same roll for me these days) and Messenger. I rarely ever use the website, the app is set to not run in background on my phone and has all notifications disabled. Hopped on today to list a few things for sale/free in my area and just spent more time today scrolling up and down than I ought to
    Gift
  • Sicklyboy @ Sicklyboy:
    I guess I keep it around for FB Dating too though I rarely use that. Maybe I should change that since I've had more success there than anywhere else lol
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    What's urehandle 😏
    Gift
  • Sicklyboy @ Sicklyboy:
    xXBigPapi42069Xx
    Gift
  • Gift
  • KennieDaMeanie @ KennieDaMeanie:
    I always get fat girls on dating apps but that's okay nothing wrong with a fat chick they deserve love
    Gift
  • Sicklyboy @ Sicklyboy:
    I gotta delete and recreate the profiles I got. Reset all those swipes and what not
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    The new scam thing seems to be stock photos of hot Girls asking for WhatsApp
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    Two more likes from breaking 1k and it only took like 8 years lol
    Gift
  • Sicklyboy @ Sicklyboy:
    I have more likes than I have posts 😳
    Gift
  • Sicklyboy @ Sicklyboy:
    dawg I didn't realize you did a name change I thought you were just some other rando that got let into the chat while I've been gone for months smh my head
    Gift
  • Sicklyboy @ Sicklyboy:
    name change AND new pfp got me shook
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    Well I'm a naughty and meanie users gotta rep it some how
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    I do remember a user I haven't seen in forever either Brian or Even? Can't remember his username exactly
    Gift
  • Sicklyboy @ Sicklyboy:
    Doesn't ring a bell
    Gift
  • KennieDaMeanie @ KennieDaMeanie:
    Could be Devon
    Gift
  • Psionic Roshambo @ Psionic Roshambo:
    What does this have to do with porn? Lol
    Gift
  • Gift
    Psionic Roshambo @ Psionic Roshambo: https://imgur.com/gallery/5dvW9ev
