[Release] SDL-3DS 1.2.15 - Simple DirectMedia Layer for 3DS

Discussion in '3DS - Homebrew Development and Emulators' started by nop90, Jan 30, 2017.

  1. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Quick qustion: SDL_NumJoysticks() is returning 1 - even on a N3DS. However, there should be two joysticks - the C-pad and the C-stick.
    How can I get the C-stick as a joystick?

  2. nop90
    OP

    nop90 GBAtemp Advanced Maniac

    Member
    11
    Jan 11, 2014
    Italy
    Rome
    You have to customize the SDL code to handle the C-pad. If you try you should find that it's very easy.

  3. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Ok, thanks for clarification.
    One more question: I'm currently porting a software to 3DS which uses the top screen initialized with SDL_SetVideoMode(SDL_TOPSCR). I would, however, like to add some own stuff on the bottom screen (not just console text but graphics). If I create another SDL_Surface with SDL_SetVideoMode(SDL_BOTTOMSCR), the topscreen surface is not working anymore. How can I have two separate SDL_Surfaces - one for top, one for bottom?

  4. nop90
    OP

    nop90 GBAtemp Advanced Maniac

    Member
    11
    Jan 11, 2014
    Italy
    Rome
    You should look at second post of this thread:

    you can also look at some of my ports on github for reference.

    Using SDL_SetVideoMode(SDL_DUALSCR) you can make a surface of 320x480, so the upper 320x240 will be used for top scren (with black lateral bands) and the lower 320x240 will fil the bottom screen.

    This is good if you want that sprites moves continuosly from bottom and top screen. If the two screen ae used for separate views (i.e. game and menu) you'll have to handle drawing rects for moving sprites to control that part of one screen is not drawn on the other.

    You can also define a 400x480 screen, this way part of the bottom screen surface will be not visible. But this is a waste of memory and CPU (SDL is very slow on 3ds).

    The last option is to use 320x480 with SDL_FULLSCREEN flag so to stretch the top screen to 400x240, while the bottom screen wll remain not stretched.

    I used this option to port games with an original resolution of 320x240, like in my Zelda ports, where the main game is on top screen stretched and the menu is always visible on the bottom screen.

    Badda likes this.
  5. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Ok, thanks for the hints. I figured as much looking on your port of Amphetamin. I guess, the software that I want to port, relies on having its own screen and has no built-in ways to display in parts of a larger screen - must validate that though. Hope, I will not need to get into the guts of the software to change that ...

  6. nop90
    OP

    nop90 GBAtemp Advanced Maniac

    Member
    11
    Jan 11, 2014
    Italy
    Rome
    You can make a copy of the surface structure and make the data field to point at the first byte of the second half of the surface bits buffer.

    Should work.

  7. maorninja

    maorninja GBAtemp Advanced Fan

    Member
    5
    Feb 7, 2016
    United States
    I wonder if you can make a port of SDL to the original DS

  8. nop90
    OP

    nop90 GBAtemp Advanced Maniac

    Member
    11
    Jan 11, 2014
    Italy
    Rome
    There is already. But with different approach and no more maintaied.

    To be honest my version too is no more maintained, but at least it's (should be) compatible with latest devkitARM changes.

    About coding for the DS, I don't know very well the DS toolchain, and at the moment I'm more interested in Atari Lynx developement. Probably I'll back to 3DS when it will be a forgotten console.

  9. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Ok, got it working :-) But I really did have to get into the emulator internals ...
    You might want to add another software to your list of things based on your SDL port: https://gbatemp.net/threads/release-vice3ds-c64-emulator.534830/

    One more thing: I can't get the C-Stick or ZL/ZR buttons working. I bound them to a key with SDL_N3DSKeyBind but no event fires when I press the buttons. Do you know what I can do?

  10. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Sorry, it works - I'm stupid :)

  11. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    I checked your source - the only file I need to adjust to get the D-pad and C-stick working as a joystick is src/joystick/n3ds/SDL_sysjoystick.c, right?

    ... and I'm getting an error when trying to compile your SDL version:
    libtool: link: arm-none-eabi-gcc -march=armv6k -mtune=mpcore -mfloat-abi=hard -mtp=soft -O3 -g -mword-relocations -std=gnu++11 -fno-rtti -fno-exceptions -fomit-frame-pointer -ffast-math -ffunction-sections -D_3DS -I/opt/devkitpro/portlibs/3ds/include/freetype2 -D_GNU_SOURCE=1 -ffunction-sections -fdata-sections -march=armv6k -mtune=mpcore -mfloat-abi=hard -mword-relocations -DARM11 -D_3DS -I/opt/devkitpro/portlibs/3ds/include/SDL -I/opt/devkitpro/libctru/include -o showfont showfont.o -specs=3dsx.specs -march=armv6k -mfloat-abi=hard -specs=3dsx.specs -march=armv6k -mfloat-abi=hard -L/opt/devkitpro/portlibs/3ds/lib -L/opt/devkitpro/portlibs/armv6k/lib -L/opt/devkitpro/libctru/lib ./.libs/libSDL_ttf.a -L/opt/devkitpro/portlibs/3ds -lfreetype /opt/devkitpro/portlibs/3ds/lib/libSDL.a -lcitro3d -lctru -lm
    arm-none-eabi-gcc.exe: fatal error: c:/devkitpro/devkitarm/bin/../lib/gcc/arm-none-eabi/8.3.0/../../../../arm-none-eabi/lib/3dsx.specs: attempt to rename spec 'link' to already defined spec 'old_link'
    compilation terminated.

    Any ideas on how to fix that?

    Last edited by Badda, Apr 7, 2019
  12. nop90
    OP

    nop90 GBAtemp Advanced Maniac

    Member
    11
    Jan 11, 2014
    Italy
    Rome
    You should use the SDL version in devkitARM. The code is the same (don't think someone updated it) but all the dependancies to build it are updated.

    EDIT: I see that devkitPRO site is down.

    Badda likes this.
  13. Badda

    Badda GBAtemp Regular

    Member
    3
    Feb 26, 2016
    Tokelau
    Nirvana
    Thanks, using the SDL version that comes with devkitARM works :-)

    Would you please take a quick look at the following issue that I am facing?
    With my code, I simply want to display a png-image on the screen, no scaling involved. However, the image shown on the screen with the code below always comes out blurry, the colors are off and there are some strange artefacts. Here the code:

    Code:
    SDL_Init(SDL_INIT_VIDEO);
    SDL_Surface *screen = SDL_SetVideoMode(400, 240, 24, SDL_HWSURFACE);
    SDL_Surface *image = IMG_Load ( "/image.png" );
    SDL_BlitSurface ( image, NULL, screen, NULL );
    SDL_Flip(screen);

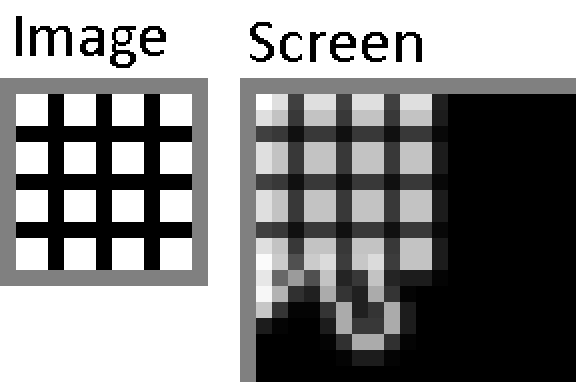

    The image below shows the original png-image within the grey box on the left (enlarged - each black stripe is one pixel wide, original dimensions are 11x11px) and what the screen shows after executing the code above on the right. I checked the pixel data of both image and screen surface - they both look good. Seems like the issue occurrs when the screen surface is rendered to the physical 3DS screen - there are probably some unneccessary filters applied. What can I do to get the image on the screen "as is"?

    kd1DP.
