RCM X86,Which one is D0

wwwcqh

Member
OP
Newcomer
Joined
Aug 9, 2019
Messages
19
Trophies
0
Age
45
XP
248
Country
United States



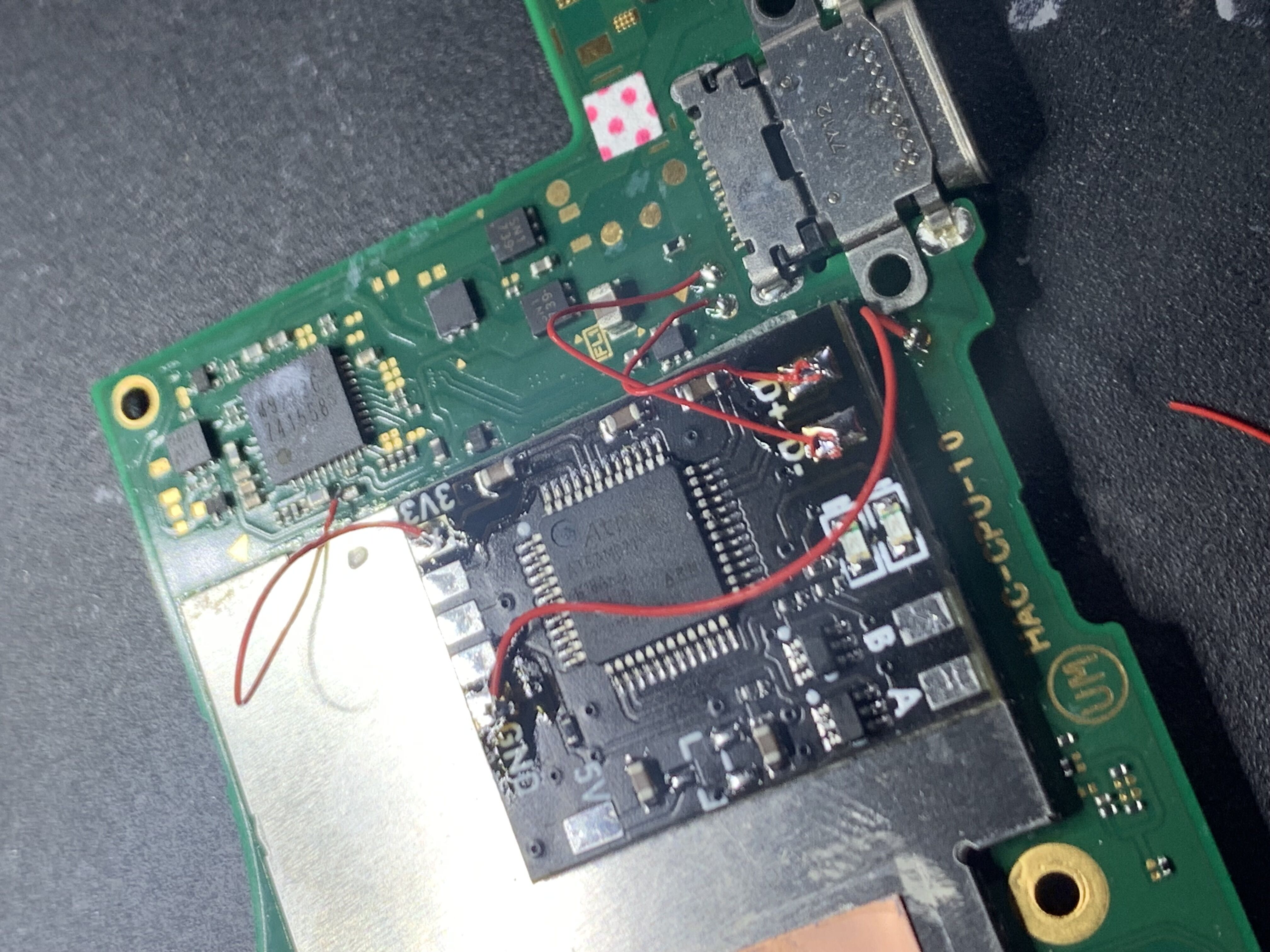

Which one is d0(pin10)
THANKS.


impeeza

¡Kabito!
Member
Joined
Apr 5, 2011
Messages
8,023
Trophies
4
Age
46
Location
At my chair.
XP
27,111
Country
Colombia

nimaid

Member
Newcomer
Joined
May 18, 2024
Messages
13
Trophies
0
Age
28
XP
87
Country
United States
For anyone finding this looking for info, here is some stuff I could figure out:
- That's a knockoff RCMx86 sold by Aliexpress and the like. It has a different pinout.
- It most likely does not support UF2 mode, at least I couldn't get mine into it. The reset pin seems non-functional.
- Based on the diagrams given by the Chinese manufacturer, I don't think it has a USB strap option.

Here is a pinout I found online, supposedly from the manufacturers of this knockoff:


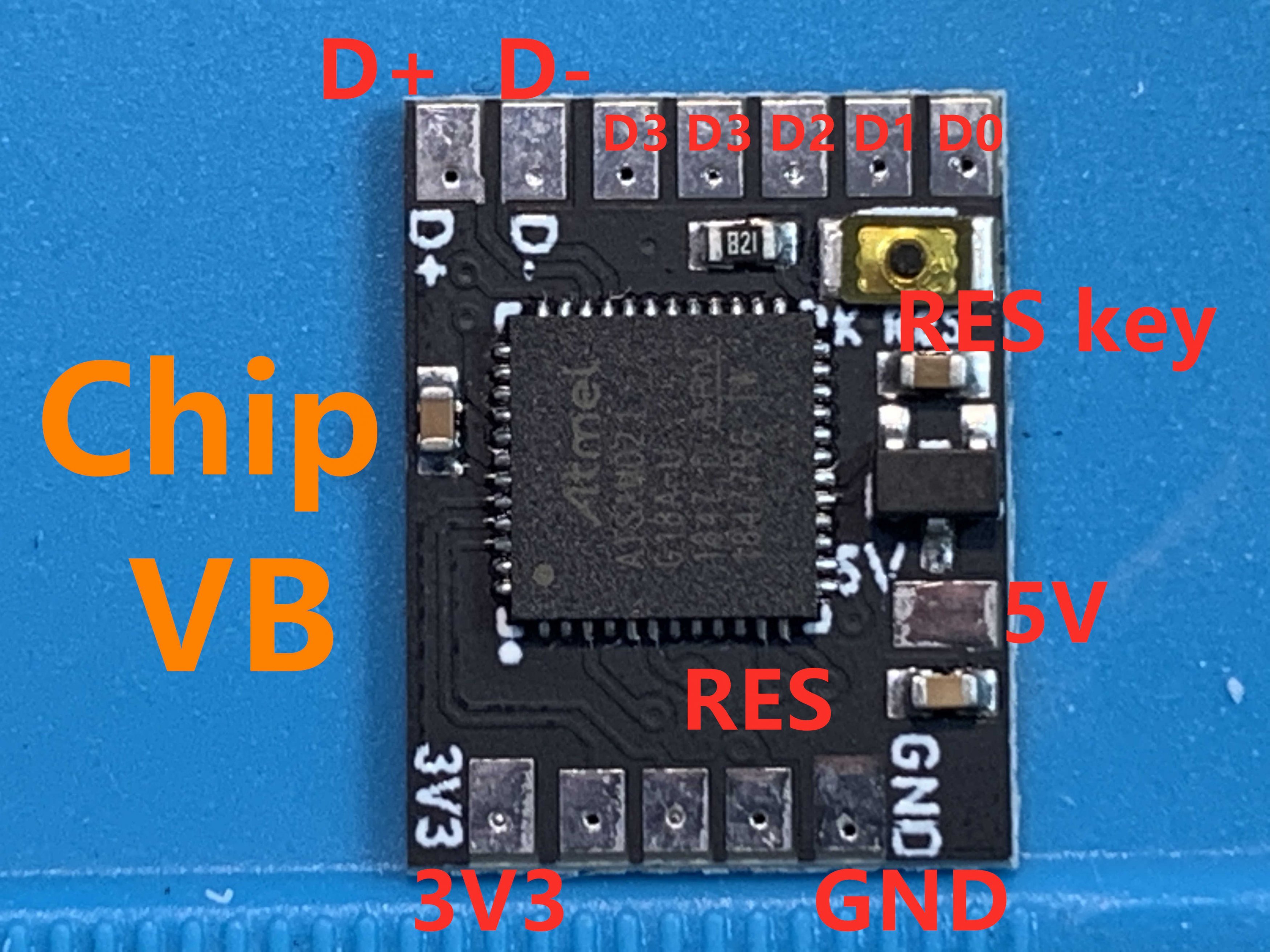

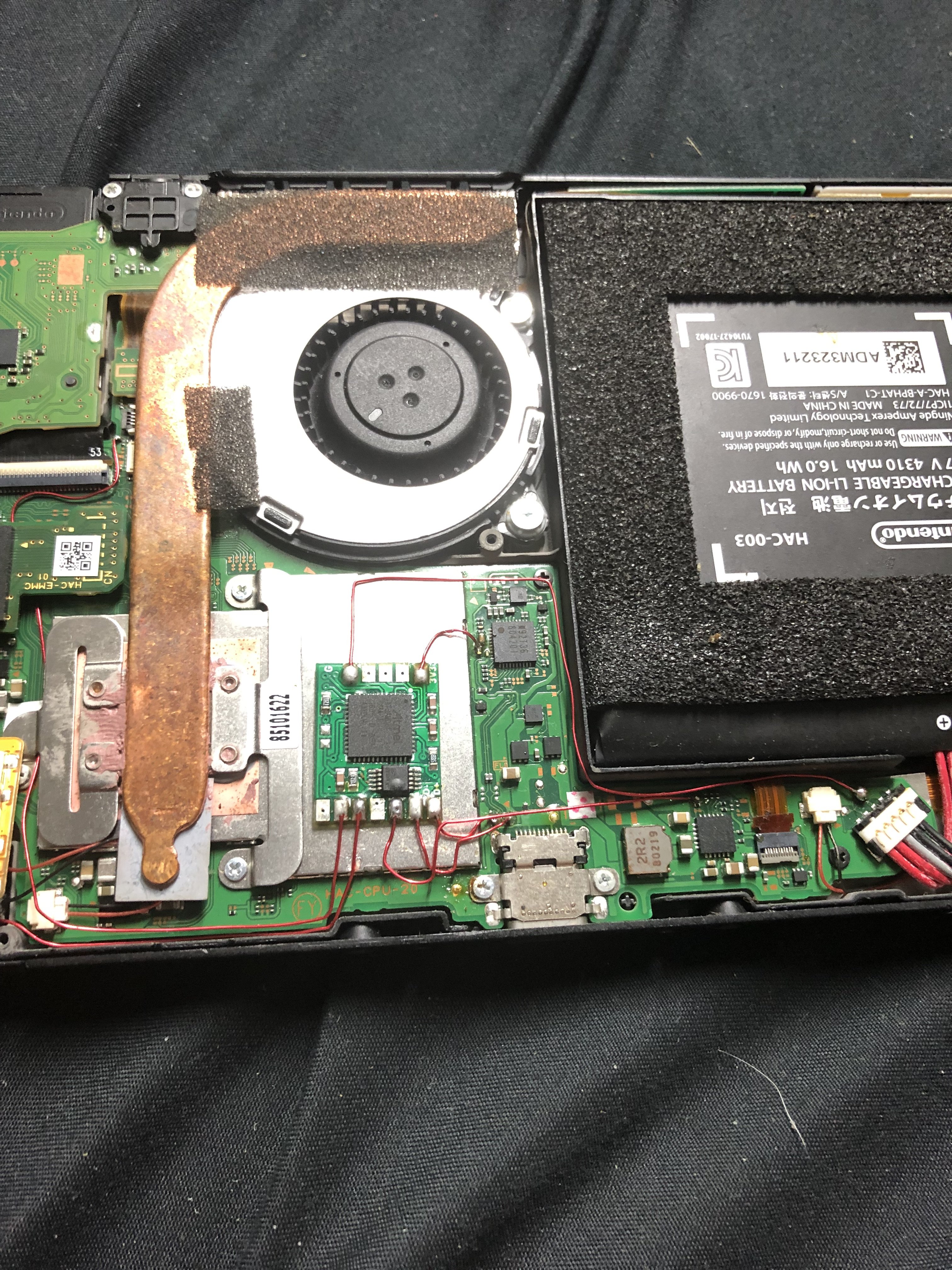

Based on that, it looks like pad A is supposed to be the Joy-Con, and pad B is for Vol +. However, they seem interchangeable based on my experience and various install pics I've seen.

EDIT:

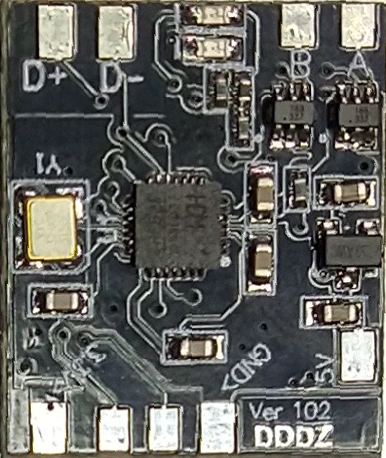

I just realized mine is an EVEN WORSE KNOCKOFF than yours! It doesn't even use a SAMD21 chip! So maybe yours does have UF2 mode. Here is the chip I have in mine that I thought was the same as yours:


MrKitten

New Member
Newbie
Joined
Apr 23, 2023
Messages
1
Trophies
0
Age
40
XP
54
Country
United Kingdom
For anyone finding this looking for info, here is some stuff I could figure out:
- That's a knockoff RCMx86 sold by Aliexpress and the like. It has a different pinout.
- It most likely does not support UF2 mode, at least I couldn't get mine into it. The reset pin seems non-functional.
- Based on the diagrams given by the Chinese manufacturer, I don't think it has a USB strap option.

Here is a pinout I found online, supposedly from the manufacturers of this knockoff:


EDIT:
I just realized mine is an EVEN WORSE KNOCKOFF than yours! It doesn't even use a SAMD21 chip! So maybe yours does have UF2 mode. Here is the chip I have in mine that I thought was the same as yours:
View attachment 438926


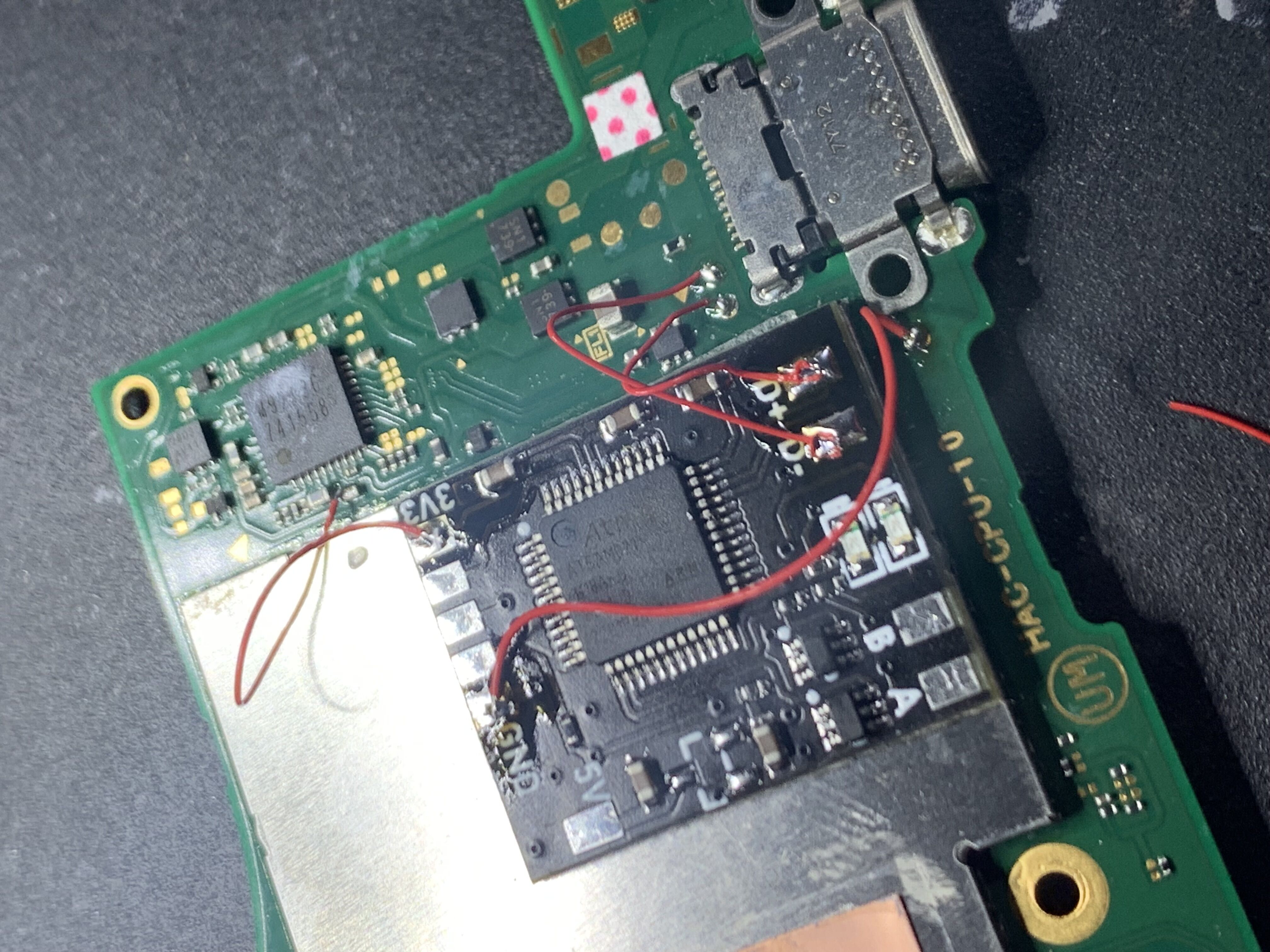

I have the same board and the same chip.
I can work out the D+ and D-
But A, B and the 2 points between 3.3v and gnd I can't work out.

Did you work it out in the end?

Last edited by MrKitten,

thesjaakspoiler

Well-Known Member
Member
Joined
Nov 20, 2018
Messages
1,319
Trophies
0
Age
124
XP
1,943
Country
Afghanistan
This is just a replacement for a payload injector like the RCM Loader.
It can only be used for unpatched Switches.
It connects to the USB port and it needs not wires for power.
It is not a mod chip for patched Switches like the OLED or the Lite.

This is a good installation video :

  • Like
Reactions: ben_r_

bufalla

New Member
Newbie
Joined
Oct 3, 2020
Messages
1
Trophies
0
Age
34
XP
45
Country
United States


I have the same board and the same chip.
I can work out the D+ and D-
But A, B and the 2 points between 3.3v and gnd I can't work out.

Did you work it out in the end?

So I have the same chip as well. It seems to work with both A and B for Dat0. But my problem is when I connect that my right joy con doesn't recognize when I slide it on the rail. If I disconnect the wire the right joy con works fine again. Otherwise it all works. Any one else have this problem or anyway to fix it?
