My friends ps5 got liquid damaged around the output ports. I've done a lot of tests for shorts to ground but there do not appear to be any.
When I power it up it beeps and gives me a blue light which turns off again after a second. The current it daws on idle is 0.004A, during the startup it goes to 0.290 +/-

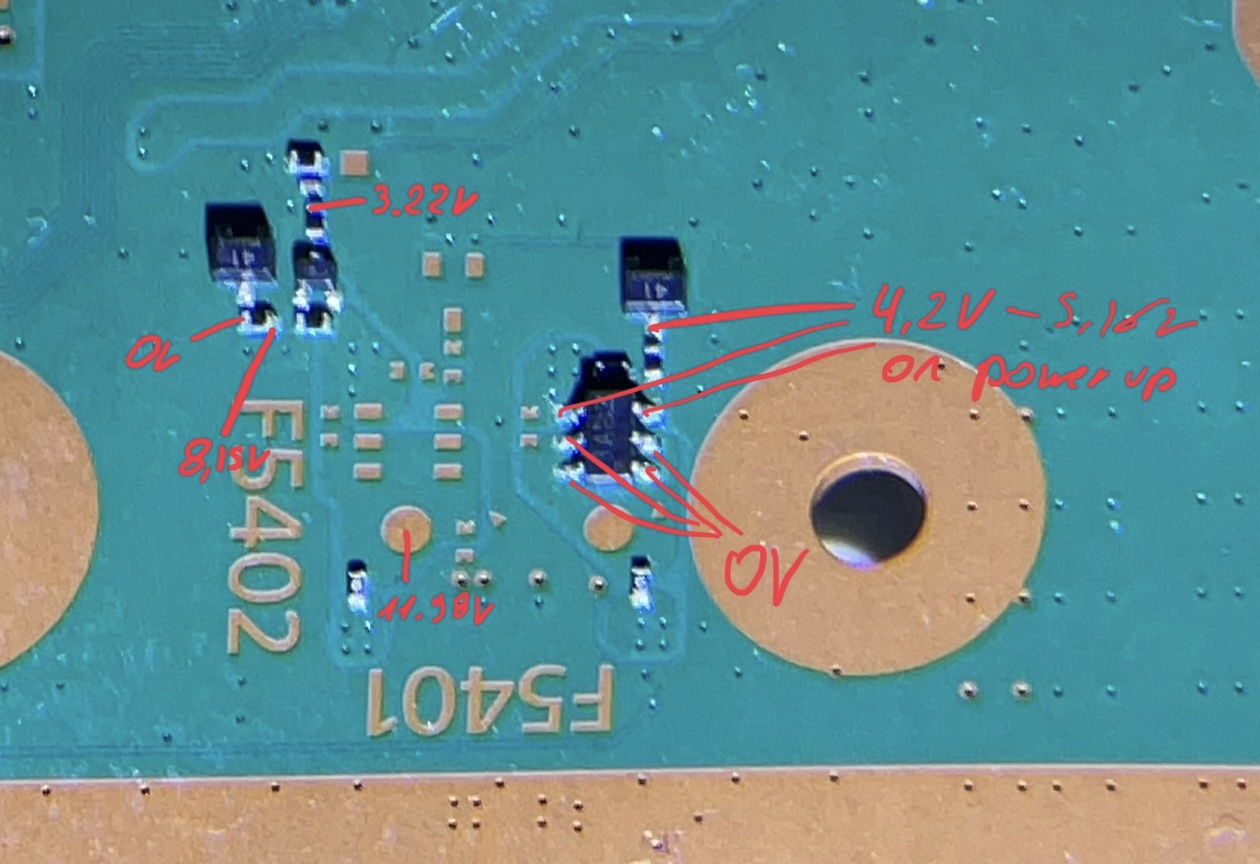

All fuses are intact and give outputs except fuse F5401. It still conducts but there are almost no voltages present (see picture). I also am not sure if F5402 is 100% correct as there is 8.9V before a what I assume is a resistor and 0 volt after it. Reading the value of it while still on the board is 265K ohms.
I am getting some voltages around the HDMI IC when I power it up and nothing is shorted so I think that IC is still fine.
Something else to note is that none of the USB ports get any power however I don't know if that's normal when the device is off.
I do have the equipment and skills to measure and repair electronics but I'm really bad at finding faults. I just repair stuff for friends and family as a hobby.
Currently I'm thinking something is wrong on either of those 2 fuses their circuits or it's the southbridge
Any guidance would be greatly appreciated
I forgot to add, the board is EDM-010

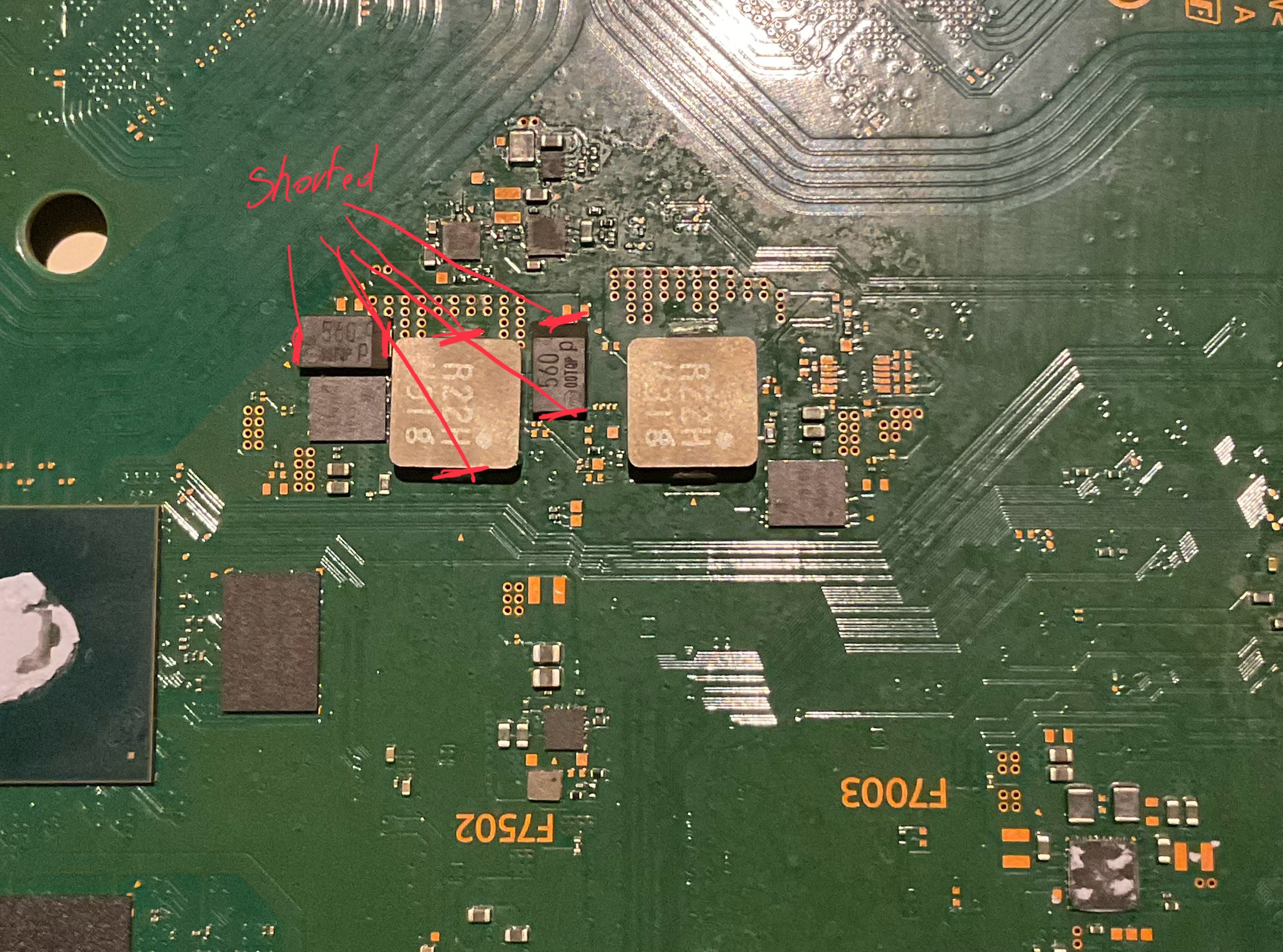

An update here; I found the following capacitors & 1 inductor to be shorted to ground. This might be a low impedance circuit though so it might be totally fine. This circuit is near the ssd controller.
From what I found online, these are 560uf 267RH P v40 v70 capacitors
Could someone with the measurements confirm whether this is fine or not?

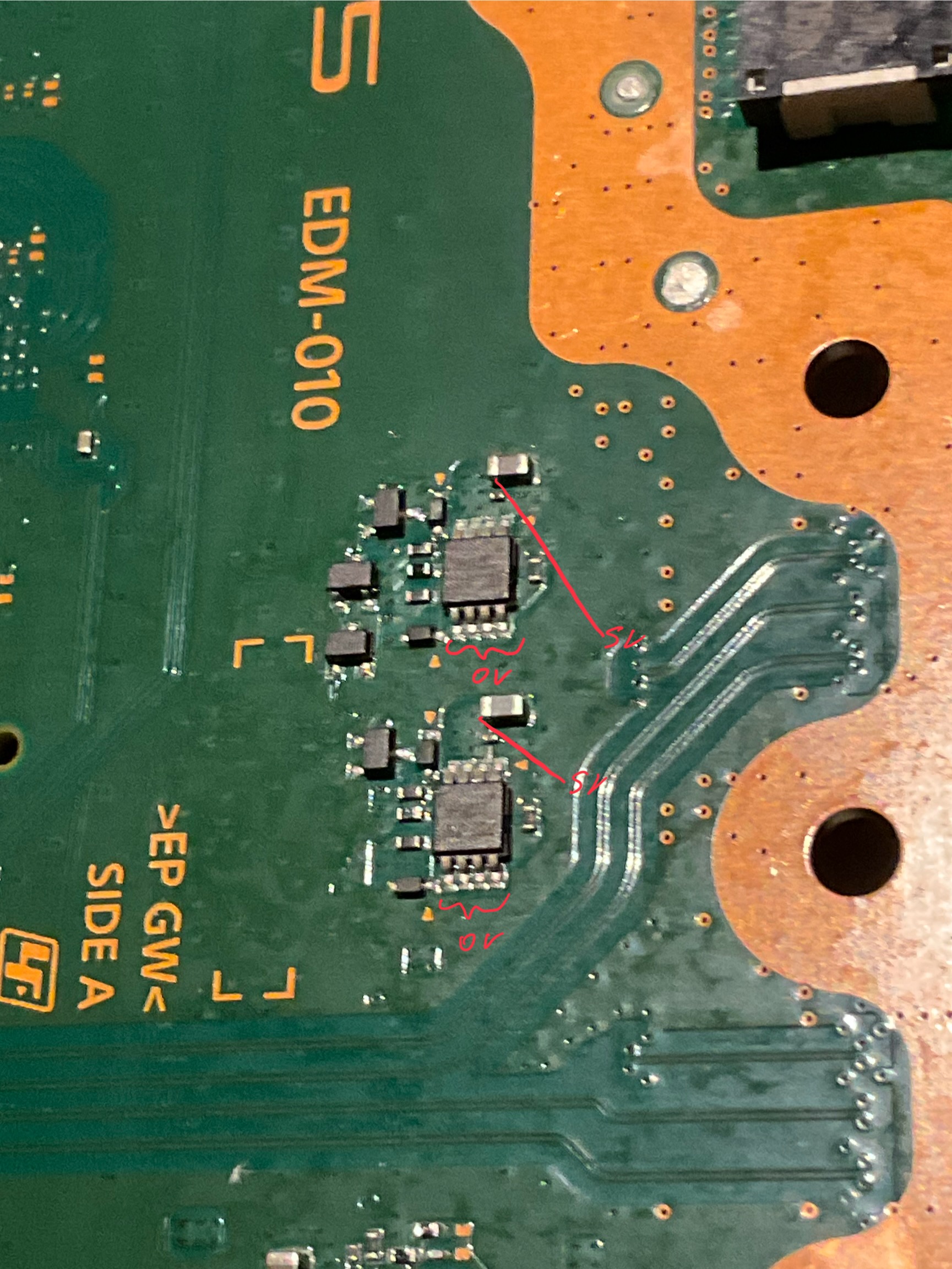

Another update, I found that on the 2 small circuits near the usb ports I am getting 5v input but no output from the IC. From what I saw in a video, there should be more voltages there than just the 5v.
When I power it up it beeps and gives me a blue light which turns off again after a second. The current it daws on idle is 0.004A, during the startup it goes to 0.290 +/-
All fuses are intact and give outputs except fuse F5401. It still conducts but there are almost no voltages present (see picture). I also am not sure if F5402 is 100% correct as there is 8.9V before a what I assume is a resistor and 0 volt after it. Reading the value of it while still on the board is 265K ohms.
I am getting some voltages around the HDMI IC when I power it up and nothing is shorted so I think that IC is still fine.
Something else to note is that none of the USB ports get any power however I don't know if that's normal when the device is off.
I do have the equipment and skills to measure and repair electronics but I'm really bad at finding faults. I just repair stuff for friends and family as a hobby.
Currently I'm thinking something is wrong on either of those 2 fuses their circuits or it's the southbridge
Any guidance would be greatly appreciated
Post automatically merged:
I forgot to add, the board is EDM-010
Post automatically merged:
An update here; I found the following capacitors & 1 inductor to be shorted to ground. This might be a low impedance circuit though so it might be totally fine. This circuit is near the ssd controller.
From what I found online, these are 560uf 267RH P v40 v70 capacitors
Could someone with the measurements confirm whether this is fine or not?
Post automatically merged:
Another update, I found that on the 2 small circuits near the usb ports I am getting 5v input but no output from the IC. From what I saw in a video, there should be more voltages there than just the 5v.
