blackb0x appears to have solved this by patching the WAD in memory -- Cubello is now successfully patched without requiring decompression.
Nice! But it still doesn't launch the wad directly though right? But rather the title off of an emunand (which may or may not have been installed via a wad)

Edit: I'm really excited for the next official release of GX!

Last edited by XFlak,

NoobletCheese

Well-Known Member
Member
Joined
Aug 12, 2018
Messages
364
Trophies
0
Age
22
XP
633
Country
United States
Nice! But it still doesn't launch the wad directly though right? But rather the title off of an emunand (which may or may not have been installed via a wad)

The way I'm doing it is to install the wad to sysnand using YAWMM, then it appears in the game list in ULGX. I've got Priiloader and Bootmii installed as a precaution.

Alternatively we could install the wad to ULGX emunand, but the game compatibility isnt as good.

Are there other loaders which can launch wads without having to install them first?

Last edited by NoobletCheese,
  • Like
Reactions: XFlak

XFlak

Wiitired but still kicking
Member
Joined
Sep 12, 2009
Messages
11,857
Trophies
2
Age
36
Location
Cyprus, originally from Toronto
Website
modmii.github.io
XP
5,358
Country
Cyprus
The way I'm doing it is to install the wad to sysnand using YAWMM, then it appears in the game list in ULGX. I've got Priiloader and Bootmii installed as a precaution.

Alternatively we could install the wad to ULGX emunand, but the game compatibility isnt as good.

Are there other loaders which can launch wads without having to install them first?
I haven't played with it personally, but yes, it appears to be do-able, but perhaps with lower compatibility
https://gbatemp.net/threads/bbloade...te-emulation-on-real-wii.589066/#post-9485323


NoobletCheese

Well-Known Member
Member
Joined
Aug 12, 2018
Messages
364
Trophies
0
Age
22
XP
633
Country
United States
Unfortunately blackb0x has decided to take their project in a different direction, removing the GXSetCopyFilter patch and reverting to the standard method of patching video modes (GXRenderModeObjs) which won't work for games like Donkey Kong Returns, Sonic Colours, Battalion Wars 2, Metroid Prime, or any other game that doesn't pass a GXRenderModeObj->vfilter to GXSetCopyFilter.

I still have one of their previous test versions which supports GXSetCopyFilter patching; I'm not sure they want me sharing it though.

In the meantime I plan on learning C so that I can write my own fork of ULGX, as I'd like to add an option to select between 2 methods of patching the vfilter out, as there could be games that work better with one method but not the other.

For example some games might use GXSetCopyFilter to perform fade-in/out screen transition effects, or for adjusting screen brightness in the video menu, and those effects would become broken using the GXSetCopyFilter patch.

Another possibility is that some games are compiled with a different version of the GX library (such as Dolphin.a or gxD.a, instead of gx.a which is the version we're currently patching) and the patch wouldn't work for those games. Although none have been discovered so far, but I'm sure eventually someone will find one that wasn't compiled with gx.a.

In these cases we could select method 2 which would patch all GXRenderModeObjs + lone vfilter strings.

I'd also like to add a third option: custom vfilter, let the user select their own vfilter, such as the weaker 04041010100404 filter which might be useful to reduce dithering noise in some games (eg. RE4) or even just for reducing flicker a bit for those using 480i CRTs without the ungodly blur of the full strength 08080A0C0A0808 filter.

I've also discovered the binaries for GameCube's gx.a and Dolphin.a versions of GXSetCopyFilter, so reliable vfilter patching should be a thing on Nintendont now (although it is already pretty reliable with only a few edge cases, but it appears to be using GXRenderModeObj patching). Also saw a new vfilter string -- 02 02 11 16 11 02 02 -- used by Mario Kart Double Dash for its 480p mode.

Last edited by NoobletCheese,

XFlak

Wiitired but still kicking
Member
Joined
Sep 12, 2009
Messages
11,857
Trophies
2
Age
36
Location
Cyprus, originally from Toronto
Website
modmii.github.io
XP
5,358
Country
Cyprus
That is disappointing to hear about blackb0x deciding against this. I guess your tool to manually edit games is going to be the best we can do at this time.

Out of curiosity, will you have an "undo" option in case any of those fades you mentioned don't behave right? So that the changes the tool made can be reversed if the results aren't ideal


NoobletCheese

Well-Known Member
Member
Joined
Aug 12, 2018
Messages
364
Trophies
0
Age
22
XP
633
Country
United States
That is disappointing to hear about blackb0x deciding against this. I guess your tool to manually edit games is going to be the best we can do at this time.

It's not over yet -- stay tuned :)


Out of curiosity, will you have an "undo" option in case any of those fades you mentioned don't behave right? So that the changes the tool made can be reversed if the results aren't ideal

The patching tool was either going to give you a [ID6].dol to launch separately with ULGX, or make you a patched copy of your original iso/wbfs, so you could always revert to your originals. But I guess it wouldn't hurt to also add an 'unpatch me' option as well.

This article shows the brightness control in Metroid and menu screen fades in Soul Calibur not working when GXSetCopyFilter is disabled
https://ppltoast.wordpress.com/2018/05/11/a-small-look-into-the-gamecubes-copy-filter/

Not a dealbreaker for me personally -- I'd still rather not have the filter -- but enough to preference the vfilter patching method as the default method, and revert to patching GXSetCopyFilter as a last resort.

Last edited by NoobletCheese,
  • Like
Reactions: XFlak

Maeson

Well-Known Member
Member
Joined
Apr 3, 2013
Messages
851
Trophies
0
Age
32
XP
2,070
Country
Now that I see that link, I remembered that Soul Calibur 2 (at least Pal version) is one of those few games that don't get the filter taken away by forcing video modes.

I tried looking at the Start.dol file, editing the VFilters like I did with R: Racing Evolution, but with Soul Calibur 2 it makes no difference. Did we found how to remove the SetCopyFilter from GC dols? I'll look at previous pages...


NoobletCheese

Well-Known Member
Member
Joined
Aug 12, 2018
Messages
364
Trophies
0
Age
22
XP
633
Country
United States
Did we found how to remove the SetCopyFilter from GC dols? I'll look at previous pages...


Disabling GXSetCopyFilter for GameCube games:

Version 1 (for games compiled with gx.a)
Replace
91 23 80 00 98 83 80 00 91 43 80 00 41 82 00 68
with
91 23 80 00 98 83 80 00 91 43 80 00 48 00 00 68
Version 2 (for games compiled with Dolphin.a)
Replace
91 04 80 00 99 44 80 00 91 24 80 00 41 82 00 40
with
91 04 80 00 99 44 80 00 91 24 80 00 48 00 00 40
Version 3 (for games compiled with SN Systems ProDG SDK)
Replace
91 2B 80 00 98 0B 80 00 91 0B 80 00 41 82 00 5C
with
91 2B 80 00 98 0B 80 00 91 0B 80 00 48 00 00 5C
Version 4 (for games compiled with gxD.a)
Replace
7C 08 02 A6 90 01 00 04 94 21 FF C0 BF 61 00 2C 98 61 00 08 7C 9E 23 78 98 A1 00 10 3B 66 00 00
with
4E 80 00 20 90 01 00 04 94 21 FF C0 BF 61 00 2C 98 61 00 08 7C 9E 23 78 98 A1 00 10 3B 66 00 00

Notes:

If the above string is not found, try searching for a shorter substring of it
eg.
7C 08 02 A6 90 01 00 04 94 21 FF C0 BF 61 00 2C 98 61 00 08 7C 9E 23 78
or
7C 08 02 A6 90 01 00 04 94 21 FF C0 BF 61 00 2C 98 61 00 08

If you find multiple instances of them, it will be the one inside a block of length 2268 bytes starting with "7C 08 02 A6..." and ending with "4E 80 00 20".

This patch appears to only be compatible with Wii hardware and not Dolphin emulator (not that it's needed for Dolphin which can disable the filter anyway). Just in case it isn't compatible with certain games, here is an alternate patching method:

1. Find "7C 08 02 A6 90 01 00 04 94 21 FF C0 BF 61 00 2C 98 61 00 08 7C 9E 23 78 98 A1 00 10 3B 66 00 00" which is the first 32 bytes of GXSetCopyFilter.

2. Keep scanning forward from this point until "4E 80 00 20" is found (end of function / return) which should be exactly 2268 bytes after the "7C 08 02 A6..."

3. Select the whole function of length 2268 bytes (including the 4E 80 00 20 at the end)

4. Perform a find and replace all "41 82" with "48 00" within the selection (flips boolean of all if statements)

Most games probably use version 1 (gx.a).

If none of the 4 versions are found, it's possible the game uncompresses GXSetCopyFilter at runtime, eg. Star Wars Rogue Squadron III which could only be patched with a Gecko cheat code which modifies memory contents at runtime.

Cheat code templates:
eg. patching gx.a ver of GXSetCopyFilter (91238000988380009143800041820068) at a certain mem address:
28XXXXXX 00009143 // if half-word at mem address 0x80XXXXXX = 9143
06XXXXXX 00000008 // write to mem address 0x80XXXXXX the following 8 bytes
91438000 48000068 // replacement GXSetCopyFilter 8 bytes
e0000000 80008000 // end of code

eg. patching a vfilter string 08080A0C0A0808 at a certain address
28XXXXXX 00000808 // if half-word at mem address 0x80XXXXXX = 0808
06XXXXXX 00000007 // write to mem address 0x80XXXXXX the following 7 bytes
00001516 15000000 // replacement vfilter 7 bytes (no filter)
e0000000 80008000 // end of code

For some games you might also need to add a second copy of the code with a different mask for the first line:
eg. replace
28XXXXXX 00000808
with
28XXXXXX F7F70808
where F7F7 is the mathematical result of FFFF - 0808 (eg. use Windows calculator in hex mode).

The mem address 0x80XXXXXX can be discovered using Dolphin emulator in debug mode:

- Config > interface tab > show debugging UI
- View > memory
- Launch game (play button)
- Pause game
- Memory window > Hex radio button
- Memory window > paste eg. 9143800041820068 into Value > find next
- Keep clicking find next until finding the one at mem address starting with 80 (physical memory range is 0x80XXXXXX).

Paste your completed code(s) into https://mkwii.com/gct/ to generate .gct file.
Copy .gct file to:
SD:\codes\XXXXXX.gct
USB:\codes\XXXXXX.gct
Where XXXXXX = game ID (https://www.gametdb.com/titles.txt)

In ULGX / Nintendont, enable Ocarina / Cheats.

Last edited by NoobletCheese,

Maeson

Well-Known Member
Member
Joined
Apr 3, 2013
Messages
851
Trophies
0
Age
32
XP
2,070
Country
Thank you as always, NoobletCheese. I found the first string in Soul Calibur 2, only once in the file.

I tried it on my Wii and it worked like a charm. It's true that the Fade to Black is gone, but in all honesty, I did not find it annoying at all. Heck, to me it looks even fine. Many games had no fading at all when going through menus, specially arcade-y games. Maybe if they used the fade to hide weird graphic changes or something...

If you want, this weekend I'll go through my GC games and see what each one has. Fortunately the ones you need to edit are very few (only 2 in all the games I tried) and you can get by easily with forcing the video mode on Nintendont.

  • Like
Reactions: NoobletCheese

NoobletCheese

Well-Known Member
Member
Joined
Aug 12, 2018
Messages
364
Trophies
0
Age
22
XP
633
Country
United States
Now that I see that link, I remembered that Soul Calibur 2 (at least Pal version) is one of those few games that don't get the filter taken away by forcing video modes.

I tried looking at the Start.dol file, editing the VFilters like I did with R: Racing Evolution, but with Soul Calibur 2 it makes no difference. Did we found how to remove the SetCopyFilter from GC dols? I'll look at previous pages...

I checked the USA version of Soul Calibur 2 just now and observe the same: it still has the vfilter even after forcing it off in Nintendont and patching all known GXRenderModeObjs and vfilters in Start.dol.

Its GXRenderModeObj for 480p is already set to 00001516150000, but the game is not using it.

Disabling GXSetCopyFilter gets rid of it though, and the menus feel a bit weird without the fade to black transition.

It's possible the game is using a lone vfilter we don't know about, albeit unlikely as I'm also doing a <find>:<replace> on this list of all potential vfilters.

Code:
00001516150000:00001516150000
00011416140100:00001516150000
00011514150100:00001516150000
00011612160100:00001516150000
00021316130200:00001516150000
00021414140200:00001516150000
00021512150200:00001516150000
00021610160200:00001516150000
00031216120300:00001516150000
00031314130300:00001516150000
00031412140300:00001516150000
00031510150300:00001516150000
0003160E160300:00001516150000
00041116110400:00001516150000
00041214120400:00001516150000
00041312130400:00001516150000
00041410140400:00001516150000
0004150E150400:00001516150000
0004160C160400:00001516150000
00051016100500:00001516150000
00051114110500:00001516150000
00051212120500:00001516150000
00051310130500:00001516150000
0005140E140500:00001516150000
0005150C150500:00001516150000
0005160A160500:00001516150000
00060F160F0600:00001516150000
00061014100600:00001516150000
00061112110600:00001516150000
00061210120600:00001516150000
0006130E130600:00001516150000
0006140C140600:00001516150000
0006150A150600:00001516150000
00061608160600:00001516150000
00070E160E0700:00001516150000
00070F140F0700:00001516150000
00071012100700:00001516150000
00071110110700:00001516150000
0007120E120700:00001516150000
0007130C130700:00001516150000
0007140A140700:00001516150000
00071508150700:00001516150000
00071606160700:00001516150000
00080D160D0800:00001516150000
00080E140E0800:00001516150000
00080F120F0800:00001516150000
00081010100800:00001516150000
0008110E110800:00001516150000
0008120C120800:00001516150000
0008130A130800:00001516150000
00081506150800:00001516150000
00081604160800:00001516150000
01001416140001:00001516150000
01001514150001:00001516150000
01001612160001:00001516150000
01011316130101:00001516150000
01011414140101:00001516150000
01011512150101:00001516150000
01011610160101:00001516150000
01021216120201:00001516150000
01021314130201:00001516150000
01021412140201:00001516150000
01021510150201:00001516150000
0102160E160201:00001516150000
01031116110301:00001516150000
01031214120301:00001516150000
01031312130301:00001516150000
01031410140301:00001516150000
0103150E150301:00001516150000
0103160C160301:00001516150000
01041016100401:00001516150000
01041114110401:00001516150000
01041212120401:00001516150000
01041310130401:00001516150000
0104140E140401:00001516150000
0104150C150401:00001516150000
0104160A160401:00001516150000
01050F160F0501:00001516150000
01051014100501:00001516150000
01051112110501:00001516150000
01051210120501:00001516150000
0105130E130501:00001516150000
0105140C140501:00001516150000
0105150A150501:00001516150000
01051608160501:00001516150000
01060E160E0601:00001516150000
01060F140F0601:00001516150000
01061012100601:00001516150000
01061110110601:00001516150000
0106120E120601:00001516150000
0106130C130601:00001516150000
0106140A140601:00001516150000
01061508150601:00001516150000
01070D160D0701:00001516150000
01070E140E0701:00001516150000
01070F120F0701:00001516150000
01071010100701:00001516150000
0107110E110701:00001516150000
0107120C120701:00001516150000
0107130A130701:00001516150000
01071408140701:00001516150000
01071506150701:00001516150000
01071604160701:00001516150000
01080C160C0801:00001516150000
01080D140D0801:00001516150000
01080E120E0801:00001516150000
01080F100F0801:00001516150000
0108100E100801:00001516150000
0108110C110801:00001516150000
0108120A120801:00001516150000
01081406140801:00001516150000
01081504150801:00001516150000
01081602160801:00001516150000
02001316130002:00001516150000
02001414140002:00001516150000
02001512150002:00001516150000
02001610160002:00001516150000
02011216120102:00001516150000
02011314130102:00001516150000
02011412140102:00001516150000
02011510150102:00001516150000
0201160E160102:00001516150000
02021116110202:00001516150000
02021214120202:00001516150000
02021312130202:00001516150000
02021410140202:00001516150000
0202150E150202:00001516150000
0202160C160202:00001516150000
02031016100302:00001516150000
02031114110302:00001516150000
02031212120302:00001516150000
02031310130302:00001516150000
0203140E140302:00001516150000
0203150C150302:00001516150000
0203160A160302:00001516150000
02040F160F0402:00001516150000
02041014100402:00001516150000
02041112110402:00001516150000
02041210120402:00001516150000
0204130E130402:00001516150000
0204140C140402:00001516150000
0204150A150402:00001516150000
02041608160402:00001516150000
02050E160E0502:00001516150000
02050F140F0502:00001516150000
02051012100502:00001516150000
02051110110502:00001516150000
0205120E120502:00001516150000
0205130C130502:00001516150000
0205140A140502:00001516150000
02051508150502:00001516150000
02051606160502:00001516150000
02060D160D0602:00001516150000
02060E140E0602:00001516150000
02060F120F0602:00001516150000
02061010100602:00001516150000
0206110E110602:00001516150000
0206120C120602:00001516150000
0206130A130602:00001516150000
02061408140602:00001516150000
02061604160602:00001516150000
02070C160C0702:00001516150000
02070D140D0702:00001516150000
02070E120E0702:00001516150000
02070F100F0702:00001516150000
0207100E100702:00001516150000
0207110C110702:00001516150000
0207120A120702:00001516150000
02071308130702:00001516150000
02071406140702:00001516150000
02071504150702:00001516150000
02071602160702:00001516150000
02080B160B0802:00001516150000
02080C140C0802:00001516150000
02080D120D0802:00001516150000
02080E100E0802:00001516150000
02080F0E0F0802:00001516150000
0208100C100802:00001516150000
0208110A110802:00001516150000
02081306130802:00001516150000
02081404140802:00001516150000
02081502150802:00001516150000
02081600160802:00001516150000
03001216120003:00001516150000
03001314130003:00001516150000
03001412140003:00001516150000
03001510150003:00001516150000
0300160E160003:00001516150000
03011116110103:00001516150000
03011214120103:00001516150000
03011312130103:00001516150000
03011410140103:00001516150000
0301150E150103:00001516150000
0301160C160103:00001516150000
03021016100203:00001516150000
03021114110203:00001516150000
03021212120203:00001516150000
03021310130203:00001516150000
0302140E140203:00001516150000
0302150C150203:00001516150000
0302160A160203:00001516150000
03030F160F0303:00001516150000
03031014100303:00001516150000
03031112110303:00001516150000
03031210120303:00001516150000
0303130E130303:00001516150000
0303140C140303:00001516150000
0303150A150303:00001516150000
03031608160303:00001516150000
03040E160E0403:00001516150000
03040F140F0403:00001516150000
03041012100403:00001516150000
03041110110403:00001516150000
0304120E120403:00001516150000
0304130C130403:00001516150000
0304140A140403:00001516150000
03041508150403:00001516150000
03041606160403:00001516150000
03050D160D0503:00001516150000
03050E140E0503:00001516150000
03050F120F0503:00001516150000
03051010100503:00001516150000
0305110E110503:00001516150000
0305120C120503:00001516150000
0305130A130503:00001516150000
03051408140503:00001516150000
03051506150503:00001516150000
03051604160503:00001516150000
03060C160C0603:00001516150000
03060D140D0603:00001516150000
03060E120E0603:00001516150000
03060F100F0603:00001516150000
0306100E100603:00001516150000
0306110C110603:00001516150000
0306120A120603:00001516150000
03061308130603:00001516150000
03061504150603:00001516150000
03061602160603:00001516150000
03070B160B0703:00001516150000
03070C140C0703:00001516150000
03070D120D0703:00001516150000
03070E100E0703:00001516150000
03070F0E0F0703:00001516150000
0307100C100703:00001516150000
0307110A110703:00001516150000
03071208120703:00001516150000
03071306130703:00001516150000
03071404140703:00001516150000
03071502150703:00001516150000
03071600160703:00001516150000
03080A160A0803:00001516150000
03080B140B0803:00001516150000
03080C120C0803:00001516150000
03080D100D0803:00001516150000
03080E0E0E0803:00001516150000
03080F0C0F0803:00001516150000
0308100A100803:00001516150000
03081206120803:00001516150000
03081304130803:00001516150000
03081402140803:00001516150000
03081500150803:00001516150000
04001116110004:00001516150000
04001214120004:00001516150000
04001312130004:00001516150000
04001410140004:00001516150000
0400150E150004:00001516150000
0400160C160004:00001516150000
04011016100104:00001516150000
04011114110104:00001516150000
04011212120104:00001516150000
04011310130104:00001516150000
0401140E140104:00001516150000
0401150C150104:00001516150000
0401160A160104:00001516150000
04020F160F0204:00001516150000
04021014100204:00001516150000
04021112110204:00001516150000
04021210120204:00001516150000
0402130E130204:00001516150000
0402140C140204:00001516150000
0402150A150204:00001516150000
04021608160204:00001516150000
04030E160E0304:00001516150000
04030F140F0304:00001516150000
04031012100304:00001516150000
04031110110304:00001516150000
0403120E120304:00001516150000
0403130C130304:00001516150000
0403140A140304:00001516150000
04031508150304:00001516150000
04031606160304:00001516150000
04040D160D0404:00001516150000
04040E140E0404:00001516150000
04040F120F0404:00001516150000
04041010100404:00001516150000
0404110E110404:00001516150000
0404120C120404:00001516150000
0404130A130404:00001516150000
04041408140404:00001516150000
04041506150404:00001516150000
04050C160C0504:00001516150000
04050D140D0504:00001516150000
04050E120E0504:00001516150000
04050F100F0504:00001516150000
0405100E100504:00001516150000
0405110C110504:00001516150000
0405120A120504:00001516150000
04051308130504:00001516150000
04051406140504:00001516150000
04051504150504:00001516150000
04051602160504:00001516150000
04060B160B0604:00001516150000
04060C140C0604:00001516150000
04060D120D0604:00001516150000
04060E100E0604:00001516150000
04060F0E0F0604:00001516150000
0406100C100604:00001516150000
0406110A110604:00001516150000
04061208120604:00001516150000
04061404140604:00001516150000
04061502150604:00001516150000
04061600160604:00001516150000
04070A160A0704:00001516150000
04070B140B0704:00001516150000
04070C120C0704:00001516150000
04070D100D0704:00001516150000
04070E0E0E0704:00001516150000
04070F0C0F0704:00001516150000
0407100A100704:00001516150000
04071108110704:00001516150000
04071206120704:00001516150000
04071304130704:00001516150000
04071402140704:00001516150000
04071500150704:00001516150000
04080916090804:00001516150000
04080A140A0804:00001516150000
04080B120B0804:00001516150000
04080C100C0804:00001516150000
04080D0E0D0804:00001516150000
04080E0C0E0804:00001516150000
04080F0A0F0804:00001516150000
04081106110804:00001516150000
04081204120804:00001516150000
04081302130804:00001516150000
04081400140804:00001516150000
05001016100005:00001516150000
05001114110005:00001516150000
05001212120005:00001516150000
05001310130005:00001516150000
0500140E140005:00001516150000
0500150C150005:00001516150000
0500160A160005:00001516150000
05010F160F0105:00001516150000
05011014100105:00001516150000
05011112110105:00001516150000
05011210120105:00001516150000
0501130E130105:00001516150000
0501140C140105:00001516150000
0501150A150105:00001516150000
05011608160105:00001516150000
05020E160E0205:00001516150000
05020F140F0205:00001516150000
05021012100205:00001516150000
05021110110205:00001516150000
0502120E120205:00001516150000
0502130C130205:00001516150000
0502140A140205:00001516150000
05021508150205:00001516150000
05021606160205:00001516150000
05030D160D0305:00001516150000
05030E140E0305:00001516150000
05030F120F0305:00001516150000
05031010100305:00001516150000
0503110E110305:00001516150000
0503120C120305:00001516150000
0503130A130305:00001516150000
05031408140305:00001516150000
05031506150305:00001516150000
05031604160305:00001516150000
05040C160C0405:00001516150000
05040D140D0405:00001516150000
05040E120E0405:00001516150000
05040F100F0405:00001516150000
0504100E100405:00001516150000
0504110C110405:00001516150000
0504120A120405:00001516150000
05041308130405:00001516150000
05041406140405:00001516150000
05041602160405:00001516150000
05050B160B0505:00001516150000
05050C140C0505:00001516150000
05050D120D0505:00001516150000
05050E100E0505:00001516150000
05050F0E0F0505:00001516150000
0505100C100505:00001516150000
0505110A110505:00001516150000
05051208120505:00001516150000
05051306130505:00001516150000
05051404140505:00001516150000
05051502150505:00001516150000
05051600160505:00001516150000
05060A160A0605:00001516150000
05060B140B0605:00001516150000
05060C120C0605:00001516150000
05060D100D0605:00001516150000
05060E0E0E0605:00001516150000
05060F0C0F0605:00001516150000
0506100A100605:00001516150000
05061108110605:00001516150000
05061304130605:00001516150000
05061402140605:00001516150000
05061500150605:00001516150000
05070916090705:00001516150000
05070A140A0705:00001516150000
05070B120B0705:00001516150000
05070C100C0705:00001516150000
05070D0E0D0705:00001516150000
05070E0C0E0705:00001516150000
05070F0A0F0705:00001516150000
05071008100705:00001516150000
05071106110705:00001516150000
05071204120705:00001516150000
05071302130705:00001516150000
05071400140705:00001516150000
05080816080805:00001516150000
05080914090805:00001516150000
05080A120A0805:00001516150000
05080B100B0805:00001516150000
05080C0E0C0805:00001516150000
05080D0C0D0805:00001516150000
05080E0A0E0805:00001516150000
05081006100805:00001516150000
05081104110805:00001516150000
05081202120805:00001516150000
05081300130805:00001516150000
06000F160F0006:00001516150000
06001014100006:00001516150000
06001112110006:00001516150000
06001210120006:00001516150000
0600130E130006:00001516150000
0600140C140006:00001516150000
0600150A150006:00001516150000
06001608160006:00001516150000
06010E160E0106:00001516150000
06010F140F0106:00001516150000
06011012100106:00001516150000
06011110110106:00001516150000
0601120E120106:00001516150000
0601130C130106:00001516150000
0601140A140106:00001516150000
06011508150106:00001516150000
06011606160106:00001516150000
06020D160D0206:00001516150000
06020E140E0206:00001516150000
06020F120F0206:00001516150000
06021010100206:00001516150000
0602110E110206:00001516150000
0602120C120206:00001516150000
0602130A130206:00001516150000
06021408140206:00001516150000
06021506150206:00001516150000
06021604160206:00001516150000
06030C160C0306:00001516150000
06030D140D0306:00001516150000
06030E120E0306:00001516150000
06030F100F0306:00001516150000
0603100E100306:00001516150000
0603110C110306:00001516150000
0603120A120306:00001516150000
06031308130306:00001516150000
06031406140306:00001516150000
06031504150306:00001516150000
06031602160306:00001516150000
06040B160B0406:00001516150000
06040C140C0406:00001516150000
06040D120D0406:00001516150000
06040E100E0406:00001516150000
06040F0E0F0406:00001516150000
0604100C100406:00001516150000
0604110A110406:00001516150000
06041208120406:00001516150000
06041306130406:00001516150000
06041502150406:00001516150000
06041600160406:00001516150000
06050A160A0506:00001516150000
06050B140B0506:00001516150000
06050C120C0506:00001516150000
06050D100D0506:00001516150000
06050E0E0E0506:00001516150000
06050F0C0F0506:00001516150000
0605100A100506:00001516150000
06051108110506:00001516150000
06051206120506:00001516150000
06051304130506:00001516150000
06051402140506:00001516150000
06051500150506:00001516150000
06060916090606:00001516150000
06060A140A0606:00001516150000
06060B120B0606:00001516150000
06060C100C0606:00001516150000
06060D0E0D0606:00001516150000
06060E0C0E0606:00001516150000
06060F0A0F0606:00001516150000
06061008100606:00001516150000
06061204120606:00001516150000
06061302130606:00001516150000
06061400140606:00001516150000
06070816080706:00001516150000
06070914090706:00001516150000
06070A120A0706:00001516150000
06070B100B0706:00001516150000
06070C0E0C0706:00001516150000
06070D0C0D0706:00001516150000
06070E0A0E0706:00001516150000
06070F080F0706:00001516150000
06071006100706:00001516150000
06071104110706:00001516150000
06071202120706:00001516150000
06071300130706:00001516150000
06080716070806:00001516150000
06080814080806:00001516150000
06080912090806:00001516150000
06080A100A0806:00001516150000
06080B0E0B0806:00001516150000
06080C0C0C0806:00001516150000
06080D0A0D0806:00001516150000
06080F060F0806:00001516150000
06081004100806:00001516150000
06081102110806:00001516150000
06081200120806:00001516150000
07000E160E0007:00001516150000
07000F140F0007:00001516150000
07001012100007:00001516150000
07001110110007:00001516150000
0700120E120007:00001516150000
0700130C130007:00001516150000
0700140A140007:00001516150000
07001508150007:00001516150000
07001606160007:00001516150000
07010D160D0107:00001516150000
07010E140E0107:00001516150000
07010F120F0107:00001516150000
07011010100107:00001516150000
0701110E110107:00001516150000
0701120C120107:00001516150000
0701130A130107:00001516150000
07011408140107:00001516150000
07011506150107:00001516150000
07011604160107:00001516150000
07020C160C0207:00001516150000
07020D140D0207:00001516150000
07020E120E0207:00001516150000
07020F100F0207:00001516150000
0702100E100207:00001516150000
0702110C110207:00001516150000
0702120A120207:00001516150000
07021308130207:00001516150000
07021406140207:00001516150000
07021504150207:00001516150000
07030B160B0307:00001516150000
07030C140C0307:00001516150000
07030D120D0307:00001516150000
07030E100E0307:00001516150000
07030F0E0F0307:00001516150000
0703100C100307:00001516150000
0703110A110307:00001516150000
07031208120307:00001516150000
07031306130307:00001516150000
07031404140307:00001516150000
07031502150307:00001516150000
07031600160307:00001516150000
07040A160A0407:00001516150000
07040B140B0407:00001516150000
07040C120C0407:00001516150000
07040D100D0407:00001516150000
07040E0E0E0407:00001516150000
07040F0C0F0407:00001516150000
0704100A100407:00001516150000
07041108110407:00001516150000
07041206120407:00001516150000
07041402140407:00001516150000
07041500150407:00001516150000
07050916090507:00001516150000
07050A140A0507:00001516150000
07050B120B0507:00001516150000
07050C100C0507:00001516150000
07050D0E0D0507:00001516150000
07050E0C0E0507:00001516150000
07050F0A0F0507:00001516150000
07051008100507:00001516150000
07051106110507:00001516150000
07051204120507:00001516150000
07051302130507:00001516150000
07051400140507:00001516150000
07060816080607:00001516150000
07060914090607:00001516150000
07060A120A0607:00001516150000
07060B100B0607:00001516150000
07060C0E0C0607:00001516150000
07060D0C0D0607:00001516150000
07060E0A0E0607:00001516150000
07060F080F0607:00001516150000
07061104110607:00001516150000
07061202120607:00001516150000
07061300130607:00001516150000
07070814080707:00001516150000
07070912090707:00001516150000
07070A100A0707:00001516150000
07070B0E0B0707:00001516150000
07070C0C0C0707:00001516150000
07070D0A0D0707:00001516150000
07070E080E0707:00001516150000
07070F060F0707:00001516150000
07071004100707:00001516150000
07071102110707:00001516150000
07071200120707:00001516150000
07080616060807:00001516150000
07080812080807:00001516150000
07080910090807:00001516150000
07080A0E0A0807:00001516150000
07080B0C0B0807:00001516150000
07080C0A0C0807:00001516150000
07080E060E0807:00001516150000
07080F040F0807:00001516150000
07081002100807:00001516150000
07081100110807:00001516150000
08000D160D0008:00001516150000
08000E140E0008:00001516150000
08000F120F0008:00001516150000
08001010100008:00001516150000
0800110E110008:00001516150000
0800120C120008:00001516150000
0800130A130008:00001516150000
08001408140008:00001516150000
08001506150008:00001516150000
08001604160008:00001516150000
08010C160C0108:00001516150000
08010D140D0108:00001516150000
08010E120E0108:00001516150000
08010F100F0108:00001516150000
0801100E100108:00001516150000
0801110C110108:00001516150000
0801120A120108:00001516150000
08011308130108:00001516150000
08011406140108:00001516150000
08011504150108:00001516150000
08011602160108:00001516150000
08020B160B0208:00001516150000
08020C140C0208:00001516150000
08020D120D0208:00001516150000
08020E100E0208:00001516150000
08020F0E0F0208:00001516150000
0802100C100208:00001516150000
0802110A110208:00001516150000
08021208120208:00001516150000
08021306130208:00001516150000
08021404140208:00001516150000
08021600160208:00001516150000
08030A160A0308:00001516150000
08030B140B0308:00001516150000
08030C120C0308:00001516150000
08030D100D0308:00001516150000
08030E0E0E0308:00001516150000
08030F0C0F0308:00001516150000
0803100A100308:00001516150000
08031108110308:00001516150000
08031206120308:00001516150000
08031304130308:00001516150000
08031402140308:00001516150000
08031500150308:00001516150000
08040916090408:00001516150000
08040A140A0408:00001516150000
08040B120B0408:00001516150000
08040C100C0408:00001516150000
08040D0E0D0408:00001516150000
08040E0C0E0408:00001516150000
08040F0A0F0408:00001516150000
08041008100408:00001516150000
08041106110408:00001516150000
08041302130408:00001516150000
08041400140408:00001516150000
08050914090508:00001516150000
08050A120A0508:00001516150000
08050B100B0508:00001516150000
08050C0E0C0508:00001516150000
08050D0C0D0508:00001516150000
08050E0A0E0508:00001516150000
08050F080F0508:00001516150000
08051006100508:00001516150000
08051104110508:00001516150000
08051202120508:00001516150000
08051300130508:00001516150000
08060716070608:00001516150000
08060912090608:00001516150000
08060A100A0608:00001516150000
08060B0E0B0608:00001516150000
08060C0C0C0608:00001516150000
08060D0A0D0608:00001516150000
08060E080E0608:00001516150000
08061004100608:00001516150000
08061102110608:00001516150000
08061200120608:00001516150000
08070616060708:00001516150000
08070714070708:00001516150000
08070910090708:00001516150000
08070A0E0A0708:00001516150000
08070B0C0B0708:00001516150000
08070C0A0C0708:00001516150000
08070D080D0708:00001516150000
08070E060E0708:00001516150000
08070F040F0708:00001516150000
08071002100708:00001516150000
08071100110708:00001516150000
08080516050808:00001516150000
08080614060808:00001516150000
08080712070808:00001516150000
0808090E090808:00001516150000
08080A0C0A0808:00001516150000
08080B0A0B0808:00001516150000
08080D060D0808:00001516150000
08080E040E0808:00001516150000
08080F020F0808:00001516150000
08081000100808:00001516150000

Last edited by NoobletCheese,

blackb0x

Well-Known Member
Member
Joined
Apr 22, 2019
Messages
399
Trophies
0
XP
1,569
Country
United Kingdom
That is disappointing to hear about blackb0x deciding against this. I guess your tool to manually edit games is going to be the best we can do at this time.
He jumped the gun and assumed that I was done, but I'm not. I'm just trying to find the most efficient way to patch things in memory, since the default settings needs to be fast and work for a lot of games without side effects.


XFlak

Wiitired but still kicking
Member
Joined
Sep 12, 2009
Messages
11,857
Trophies
2
Age
36
Location
Cyprus, originally from Toronto
Website
modmii.github.io
XP
5,358
Country
Cyprus
@blackb0x you will not make a thread of your own usbloaderGX fork ?
In other threads he expressed a preference for fixing lingering bugs/issues before even attempting something like this. The fact that there was a private build with deflicker functionality came as a surprise to me, but a good one! And to me it implies he is satisfied (for the most part) with the state of GX's current features to even be looking at adding new ones. For these reasons I anticipate that this (when ready) will be merged into blackb0x's main github, and not a separate fork

Edit: my bad, I mis-read what you were asking. I thought you were asking about a new deflicker fork on github separate from blackb0x's existing fork. A new thread on gbatemp may not be a bad idea. On a somewhat related note, I also think blackb0x should (re)consider formally publishing his releases/packages on his github, he mentioned once that doing so would allow gx to get updates from within the app itself.


He jumped the gun and assumed that I was done, but I'm not. I'm just trying to find the most efficient way to patch things in memory, since the default settings needs to be fast and work for a lot of games without side effects.
Props my dude! I'm very happy to hear you're still on the case!

Last edited by XFlak,

Maeson

Well-Known Member
Member
Joined
Apr 3, 2013
Messages
851
Trophies
0
Age
32
XP
2,070
Country
Hello.

The past week I bought a very cheap but actually rather acceptable capture card for the price, which I wanted to use for a variety of things, one of them being able to take snapshots of games I play.

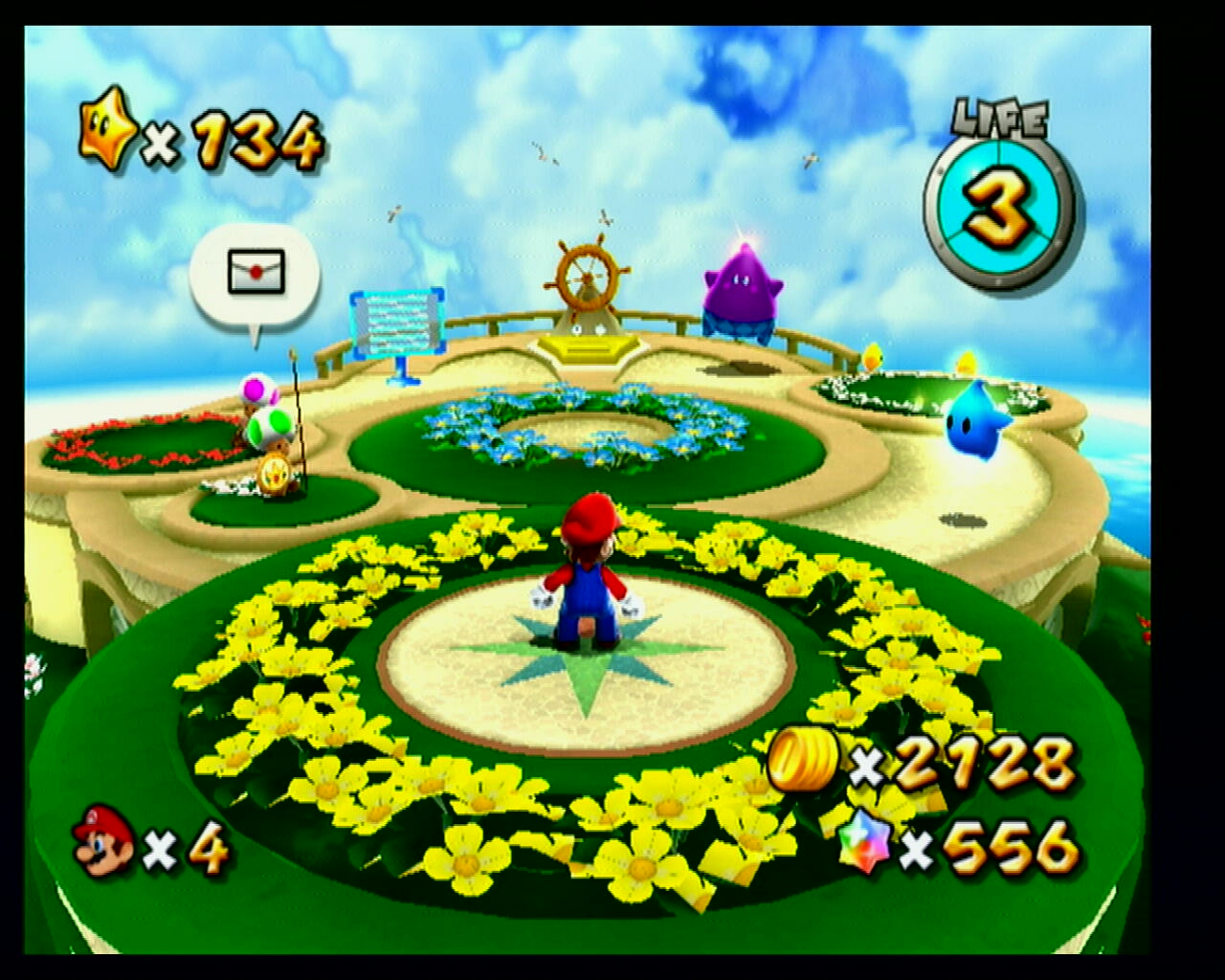

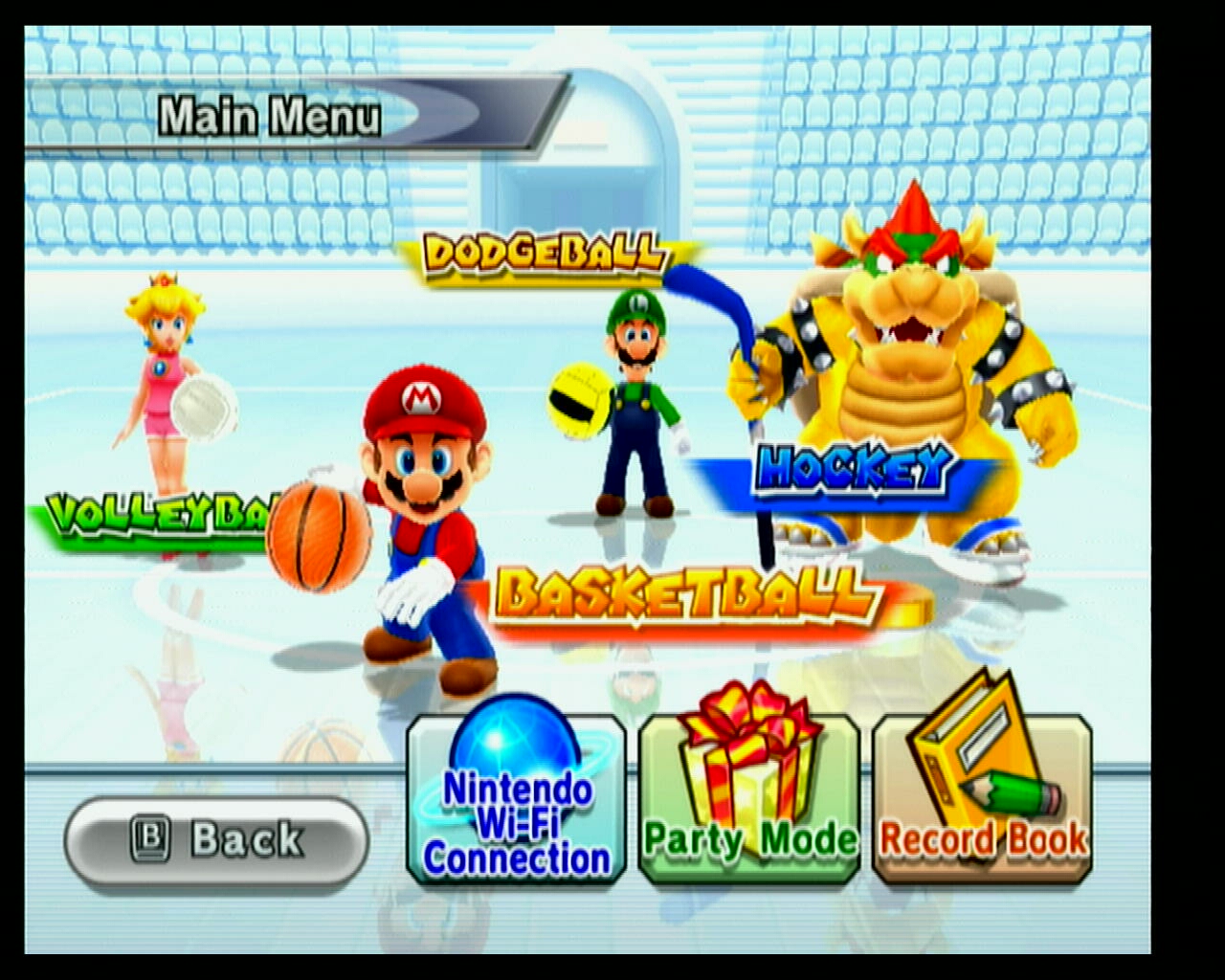

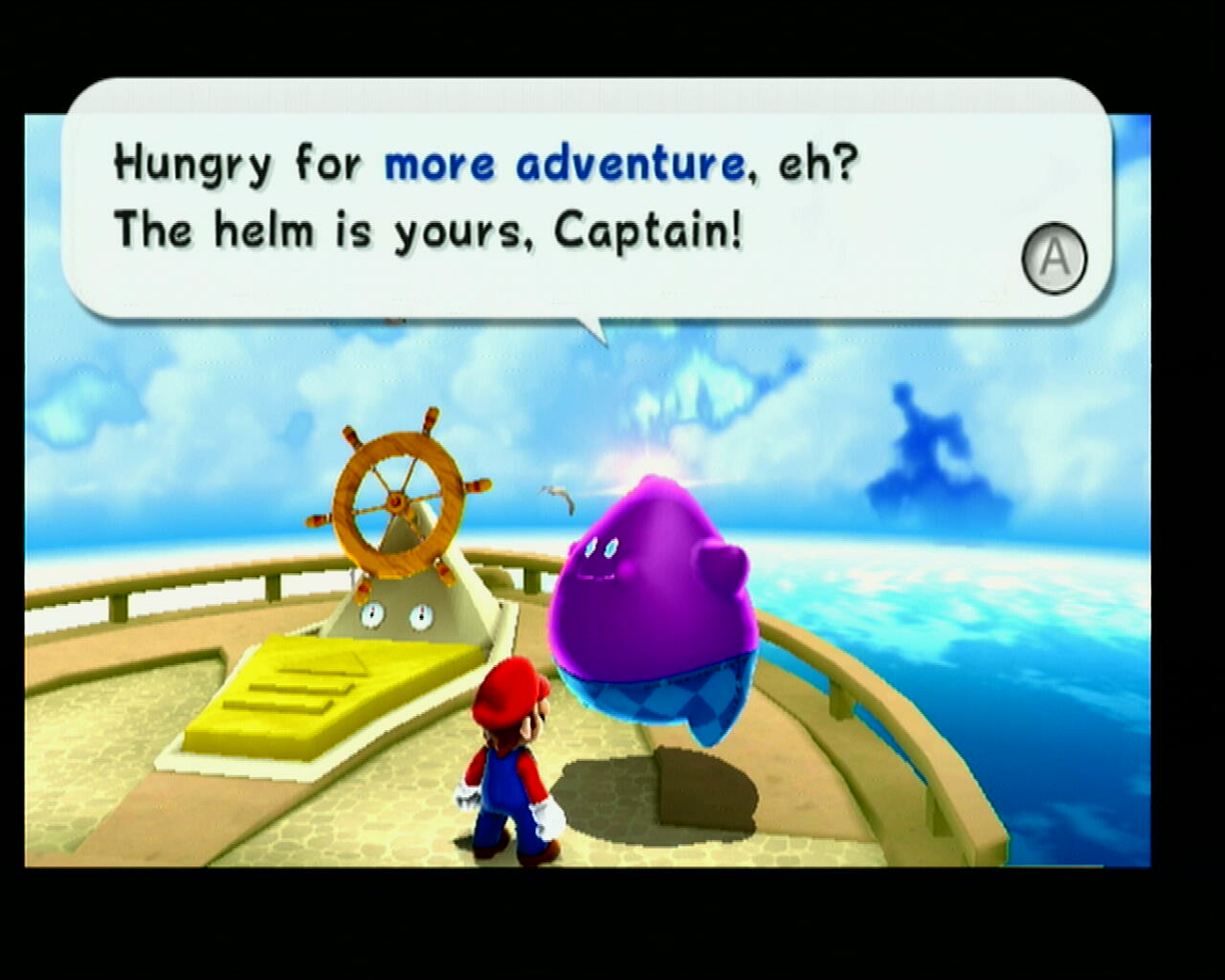

With all the work and research gone to this, I wanted to take a quick look at a handful of games and take some captures to compare between the usual, filtered picture most Wii software forces out, and how the real, unfiltered picture actually looks.

This is mostly to show how big of a difference between the usual filters (08 08 0A 0C 0A 08 08) and unfiltered can make, although games with more subtle filters (like Mario galaxy 2) is a bit tougher to differentiate through capture cards (but believe me, it does make a difference when playing).

If there's curiosity I could take more, and I'll get more for GC games to show how equally noticeable the difference is, but I think the few I got more than enough show the difference.

I wanted to show how filters affect both 2D and 3D elements, that's why looked for things with Icons, text, and 3D models all together. I tried to take shots of mostly static stuff so it was easier to compare, things I could reliably replicate, as to show the difference I need to reset the console, change settings and go back to the game.

Two warnings though:

This is a purely amateur thing. I have no professional equipment. The quality of the pictures could be higher, but all the apps I got to work only let me save them as JPEGs which are... Less than ideal. I still need to find a good android application for this, as my old laptop is way, way too old.

Second, these are captured with a Wii going through an OSSC, and are played on x2 mode, so what people call "960p".

It is recommended that you open the pictures on another tab, so you can quickly change between both versions and see the differences. I hope this can help people to understand the importance some of us give to disabling this annoying feature.

The last ones, the Sonic & The Black Knight, and the one from Fishing Resort are by far the easiest to see the difference. Beyond visuals, the effect it has on text it's also really important to me, without filters text reads so much better...

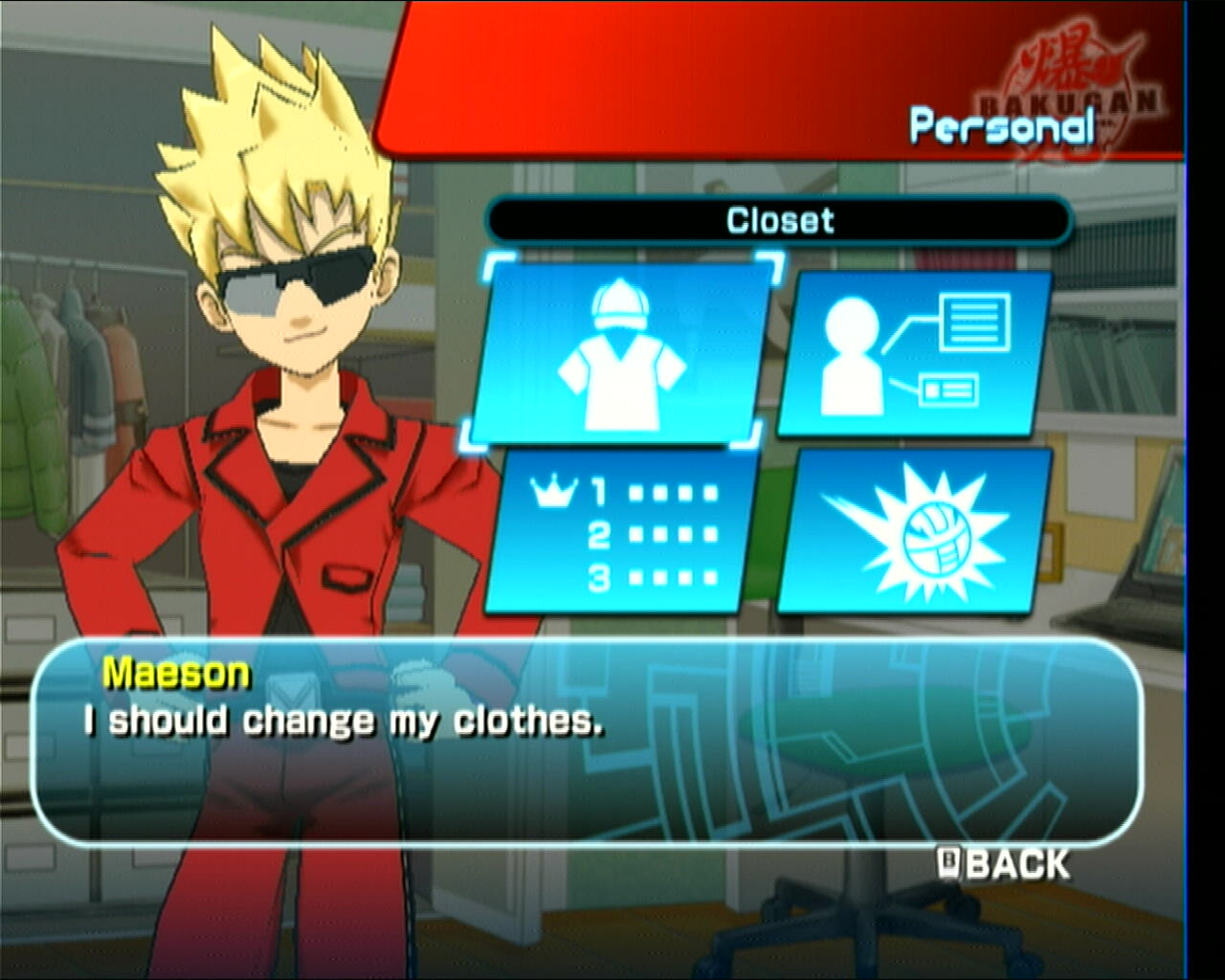

Bakugan Filter.jpg Bakugan Unfiltered.jpg Fishing Resort Filter.jpg Fishing Resort Unfiltered.jpg Galaxy 2 1 Filter.jpg Galaxy 2 1 Unfiltered.jpg Galaxy 2 2 Filter.jpg Galaxy 2 2 Unfiltered.jpg Galaxy 2 3 Filter.jpg Galaxy 2 3 Unfiltered.jpg IPC_2021-06-05.16.37.28.4900.jpg IPC_2021-06-05.16.38.59.8129.jpg Mario Mix 1 Filter.jpg Mario Mix 1 Unfiltered.jpg Mario Mix 2 Filter.jpg Mario Mix 2 Unfiltered.jpg Sonic Knight 1 Filter.jpg Sonic Knight 1 Unfiltered.jpg Sonic Knight 2 Filter.jpg Sonic Knight 2 Unfiltered.jpg

Last edited by Maeson,

Brand Newman

Well-Known Member
Member
Joined
Apr 29, 2014
Messages
325
Trophies
0
Age
40
Website
twitter.com
XP
1,780
Country
France
With all the work and research gone to this, I wanted to take a quick look at a handful of games and take some captures to compare between the usual, filtered picture most Wii software forces out, and how the real, unfiltered picture actually looks.

This is mostly to show how big of a difference between the usual filters (08 08 0A 0C 0A 08 08) and unfiltered can make, although games with more subtle filters (like Mario galaxy 2) is a bit tougher to differentiate through capture cards (but believe me, it does make a difference when playing).

Wow, I'm totally sold! :bow:

Looks like the Wii U output, but with less dithering, full use of the screen and much better colors!

But how are we suppose to move to the next generation when improvements like that make use want to replay all our previous games again?


Maeson

Well-Known Member
Member
Joined
Apr 3, 2013
Messages
851
Trophies
0
Age
32
XP
2,070
Country
Yeah, I imagine the Wii U, being HD, has no business using filters like these anymore. Wii shouldn't need them on Progressive Scan, but alas, the chose... poorly.

I stopped going forward generation-wise time ago myself, lol.

By the way, good avatar. You made me remember this gem from the past.

  • Like
Reactions: XFlak
General chit-chat
Help Users
    ClancyDaEnlightened @ ClancyDaEnlightened: https://www.youtube.com/watch?v=8f4knQVdBT0
