Thanks for the reply.
Now may I know why this happens?
The customer told me that it was working fine until it suddenly happened.
Is it a defect that concerns the resistance or is there simply no need for a resistance at that point?



[pbanj]

Nvm, found some to work for my needs. Keep an eye on my GitHub



[bf3itu]

jkyoho https://github.com/pbanj/Fet-1 finally finished. Made 2 different styles​

​

Also working on this https://github.com/pbanj/HB-PCB there is a discussion open on the repo. would love feedback and what not.​

My friend, THANK YOU SO MUCH.

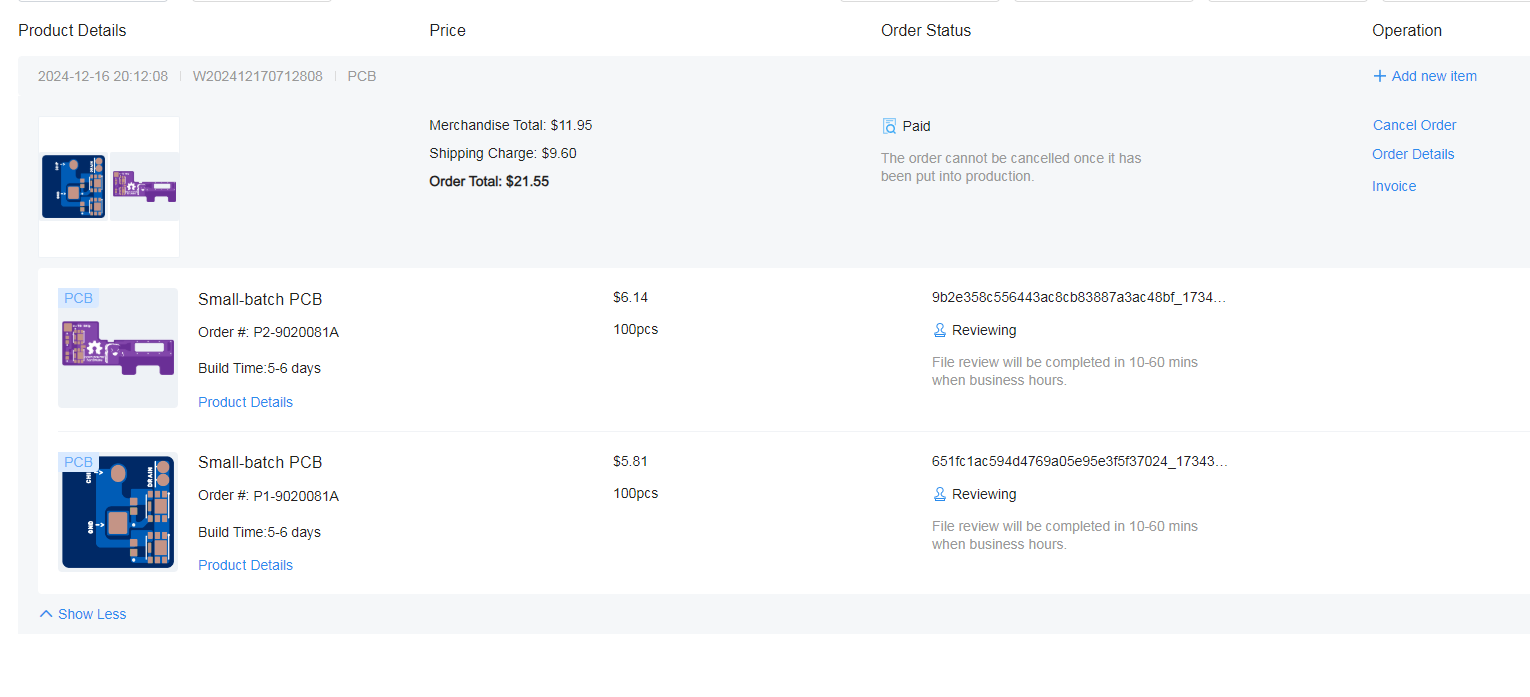

I ordered 200 pieces, 100 Boba Fet and 100 Jangofet.

THANK YOU SO MUCH, Merry Christmas to you and your family!

May 2025 be bright!

Post automatically merged: Dec 16, 2024



[pbanj]

My friend, THANK YOU SO MUCH.

I ordered 200 pieces, 100 Boba Fet and 100 Jangofet.

THANK YOU SO MUCH, Merry Christmas to you and your family!

May 2025 be bright!

Post automatically merged: Dec 16, 2024

View attachment 476189

for jango you may have to cut the copper side used for v2 to use it on v1. i thinned it out more recently to hopefully solve that. have some on the way to make sure.

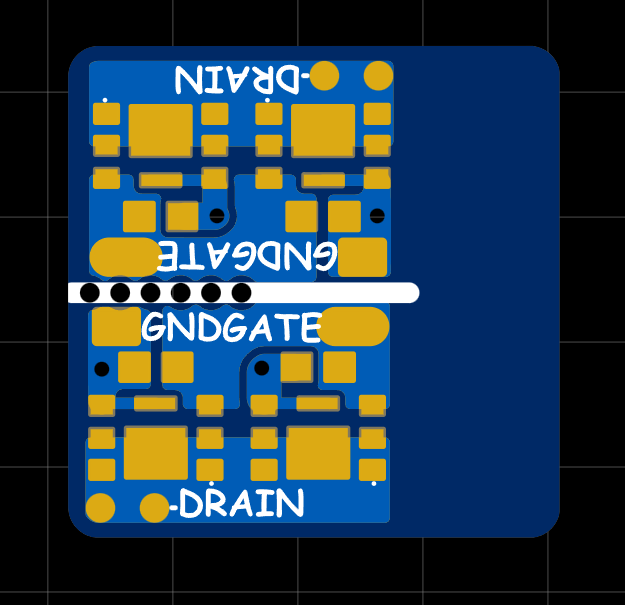

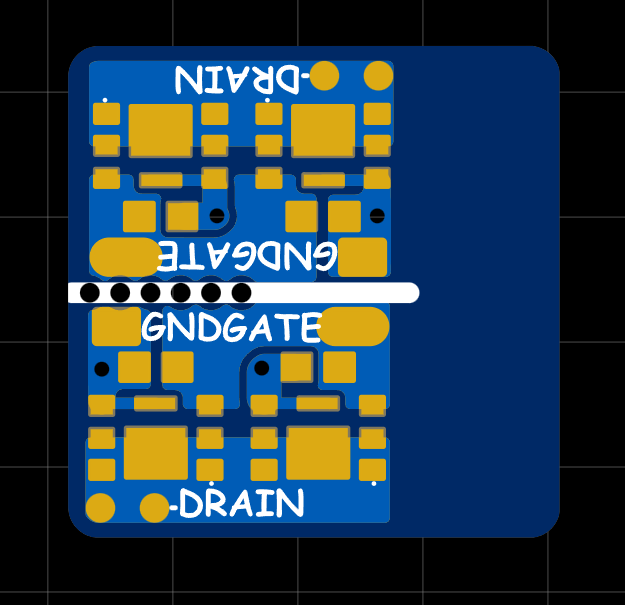

i also updated boba so each board is 2 boards. just have to cut them

also soon

View attachment 1734650107938.jpeg

Post automatically merged: Dec 20, 2024

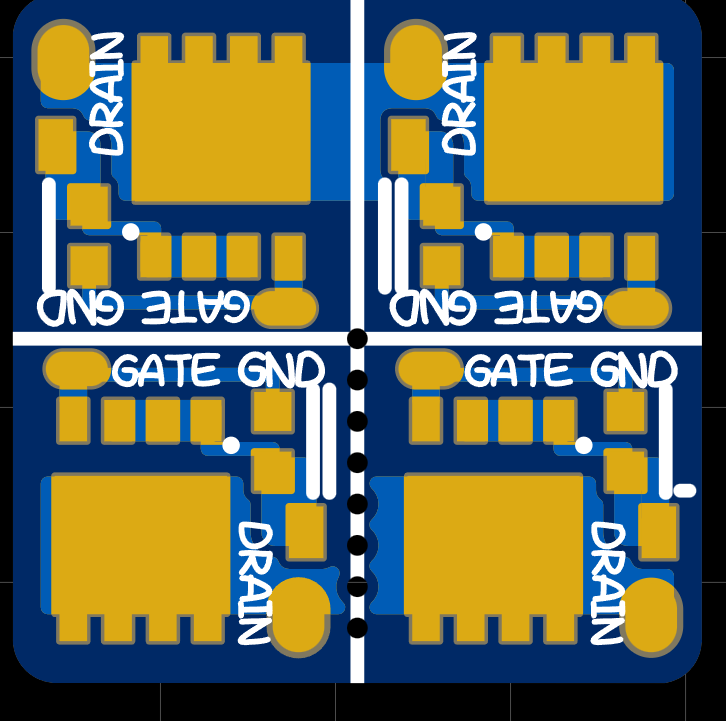

also working on this. waiting for the mosfet to come in. it should work with only one. which would allow for each board to become 4 after you cut it. jlc wont assemble under 10mm*10mm so im keeping all the different version within that range and just adding more to it if i can.



[pbanj]

mosfets came in today. they work great

have a shit gif

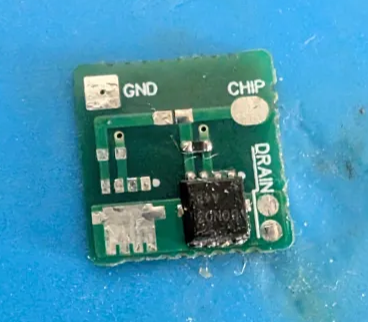

added a cable version for this mosfet. https://github.com/pbanj/Fet-1/tree/main/arlafet



[bf3itu]

mosfets came in today. they work great




View attachment 477418

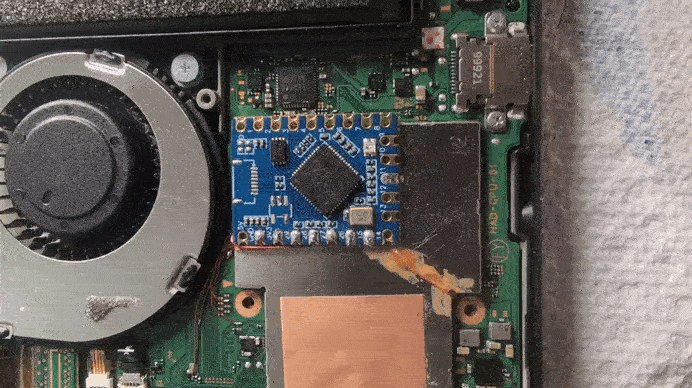

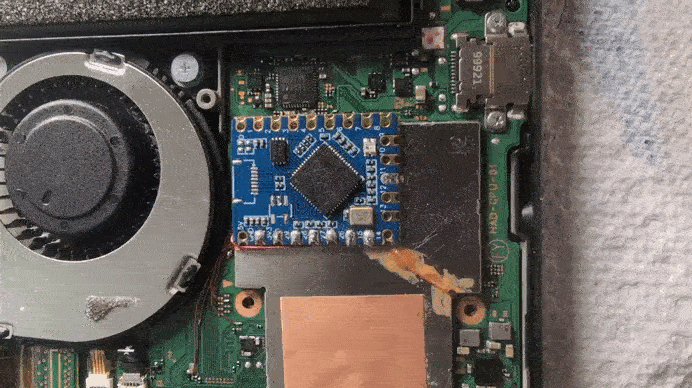

have a shit gif
View attachment 477419

added a cable version for this mosfet. https://github.com/pbanj/Fet-1/tree/main/arlafet

Please could you share the links of the components you are purchasing from.



[pbanj]

Please could you share the links of the components you are purchasing from.

i normally buy my components off lcsc. the TM80N03DF i got from a distributor on alibaba https://szdczy.en.alibaba.com/ even on lcsc they are really cheap too https://www.lcsc.com/product-detail/MOSFETs_Tritech-MOS-TM80N03DF_C7463225.html



[bf3itu]

i normally buy my components off lcsc. the TM80N03DF i got from a distributor on alibaba https://szdczy.en.alibaba.com/ even on lcsc they are really cheap too https://www.lcsc.com/product-detail/MOSFETs_Tritech-MOS-TM80N03DF_C7463225.html

And the IRFHS8342 PBF, where to find a good one?
I could give me the link where you buy.

Post automatically merged: Dec 31, 2024

i normally buy my components off lcsc. the TM80N03DF i got from a distributor on alibaba https://szdczy.en.alibaba.com/ even on lcsc they are really cheap too https://www.lcsc.com/product-detail/MOSFETs_Tritech-MOS-TM80N03DF_C7463225.html

One more question: is it possible for me to order the adapters already assembled with the components from JLCPCB?

Post automatically merged: Dec 31, 2024

for jango you may have to cut the copper side used for v2 to use it on v1. i thinned it out more recently to hopefully solve that. have some on the way to make sure.

i also updated boba so each board is 2 boards. just have to cut them
View attachment 476612

also soon

View attachment 476649


View attachment 476614

Post automatically merged: Dec 20, 2024

View attachment 476647


also working on this. waiting for the mosfet to come in. it should work with only one. which would allow for each board to become 4 after you cut it. jlc wont assemble under 10mm*10mm so im keeping all the different version within that range and just adding more to it if i can.

I would like to make a donation to help with the project. Do you have KO-FI?



[Sendpie]

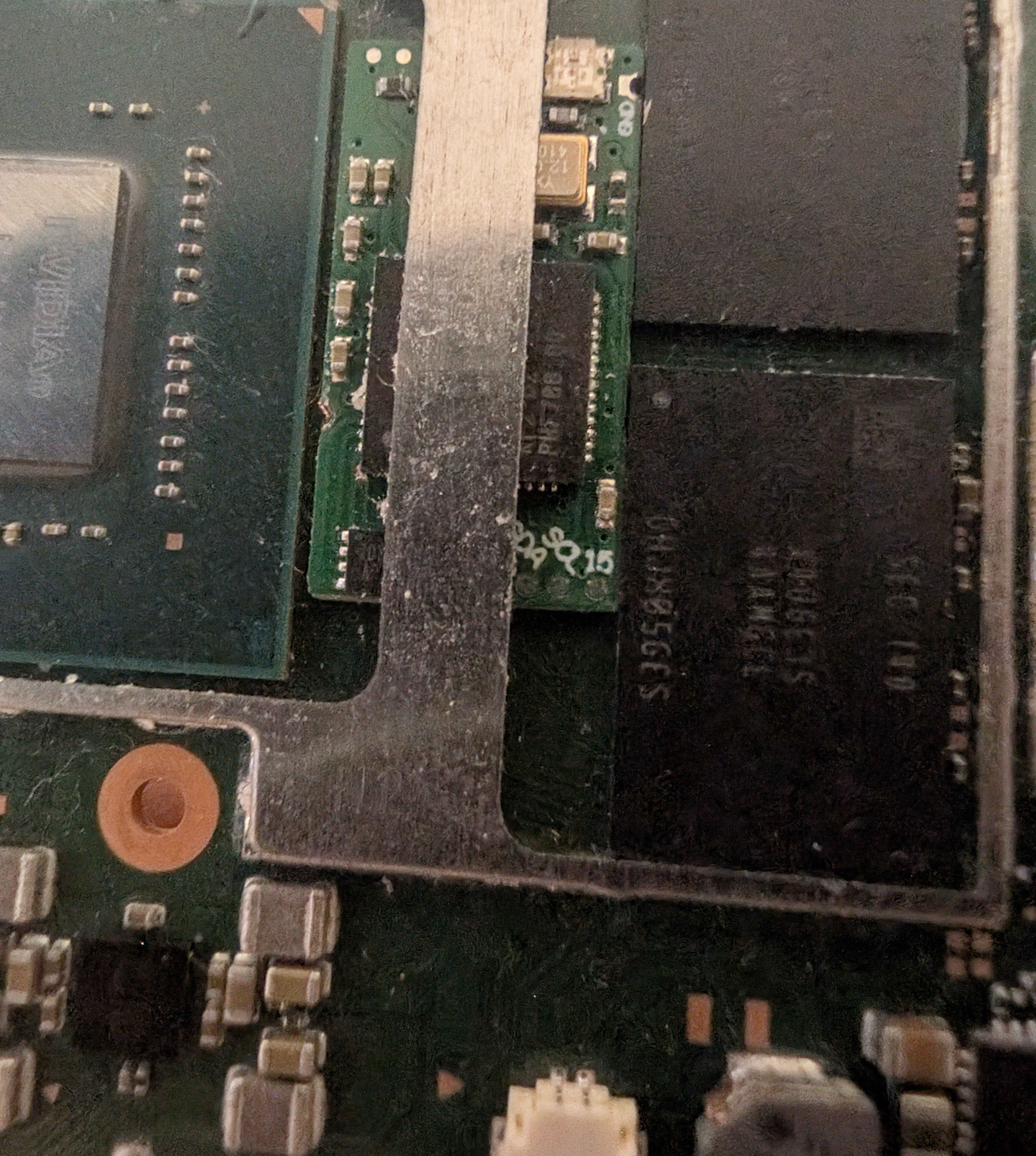

Having an issue, installed a picofly on a v1 switch, everything was smooth. Console shut down out of nowhere and now all i get is a single pulse blue light from the chip. Found that the ram got pretty toasty upon further inspection.

Any leads?



[pbanj]

And the IRFHS8342 PBF, where to find a good one?
I could give me the link where you buy.

i got the ones i have from some random sellers on aliexpress. but the supplier i got the TM80N03DF from also has the pbf

Post automatically merged: Dec 31, 2024

One more question: is it possible for me to order the adapters already assembled with the components from JLCPCB?

should be able to, it is just really expensive to get flex cables assembled. on the github i put some cost breakdowns. https://github.com/pbanj/Fet-1#price-breakdowns

the cables are super easy to assemble. just need to have a hot plate(these can be found for $20 on aliexpress), have a stencil made, and some decent low temp solder paste.

Post automatically merged: Dec 31, 2024

I would like to make a donation to help with the project. Do you have KO-FI?

on the github there's a few different things

https://github.com/pbanj/Fet-1#help-fund-current-and-future-projects




---------------------------------------------------------

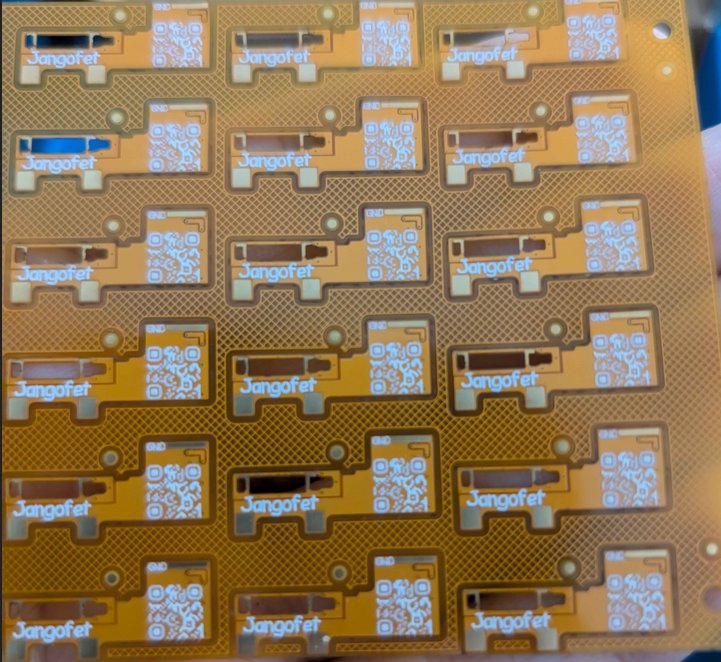

so i got in the updated jangofet in

no need to cut the vertical pad for it to fit the v1. i did have to shorten the "legs" as they were too long for the v1(can just cut them to fit}. also the default fpc thickness on jlc is extremely thin, make sure to up the thickness to 1.2.

Post automatically merged: Jan 3, 2025

Having an issue, installed a picofly on a v1 switch, everything was smooth. Console shut down out of nowhere and now all i get is a single pulse blue light from the chip. Found that the ram got pretty toasty upon further inspection.

Any leads?

post pics



[Sendpie]

pics

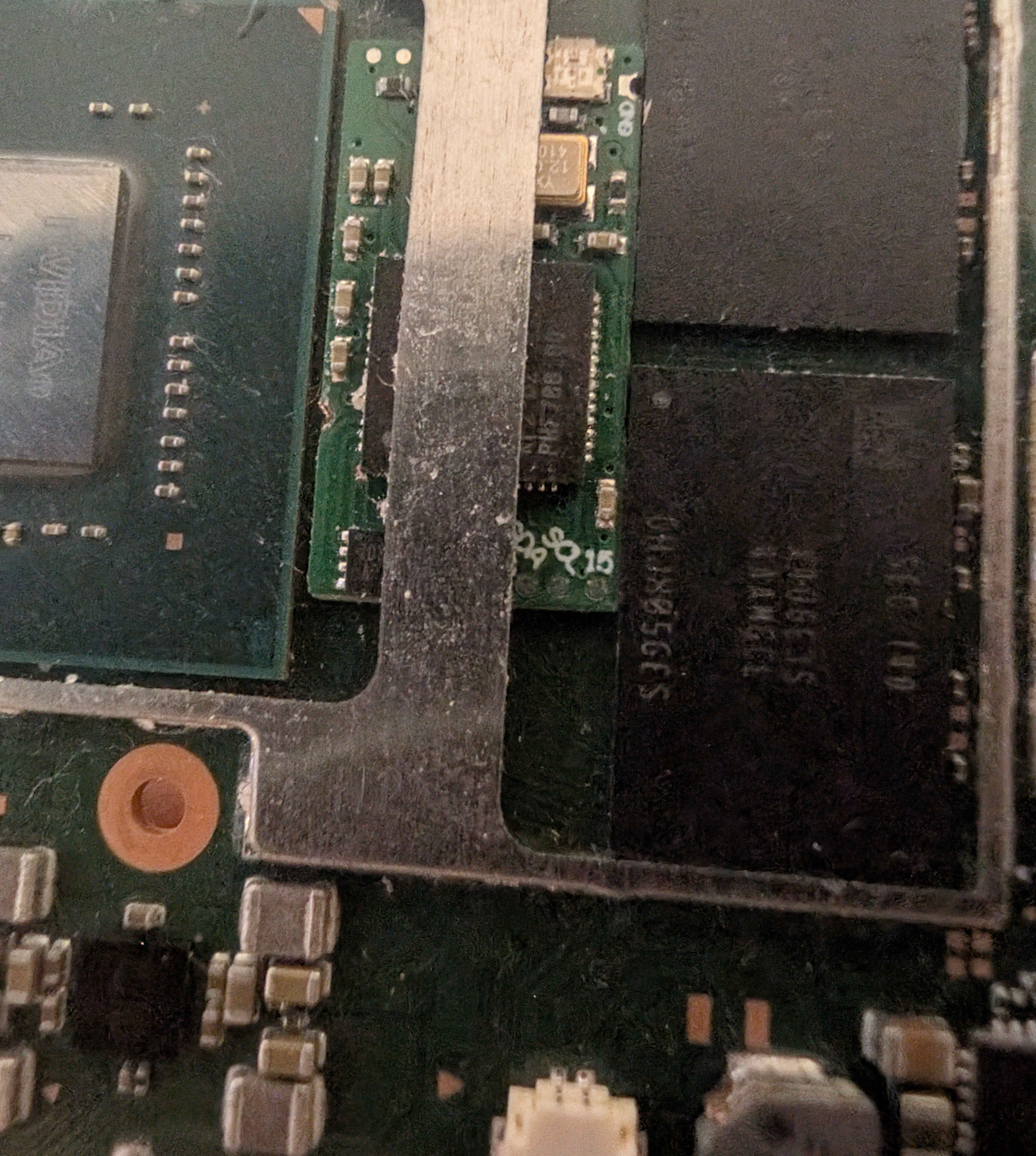

so i looked at it again today, the battery charged a little bit. but now im getting error 2101-0001 (0x265) on both emunand and OFW. there was some hissing sound coming from the apu. really weird considering i used the console for a good amount of time before it shut off.

Post automatically merged: Jan 3, 2025

Does anyone know the value of this resistor right next to the capacitor? And if i could pull it from an oled donor board?



[pbanj]

so i looked at it again today, the battery charged a little bit. but now im getting error 2101-0001 (0x265) on both emunand and OFW. there was some hissing sound coming from the apu. really weird considering i used the console for a good amount of time before it shut off.

Post automatically merged: Jan 3, 2025

Does anyone know the value of this resistor right next to the capacitor? And if i could pull it from an oled donor board?

yes you can pull the parts off a donor board.



[Sendpie]

yes you can pull the parts off a donor board.

got the switch working again after swapping m92 out and fumbling the 100k resistors like 5 times



[pbanj]

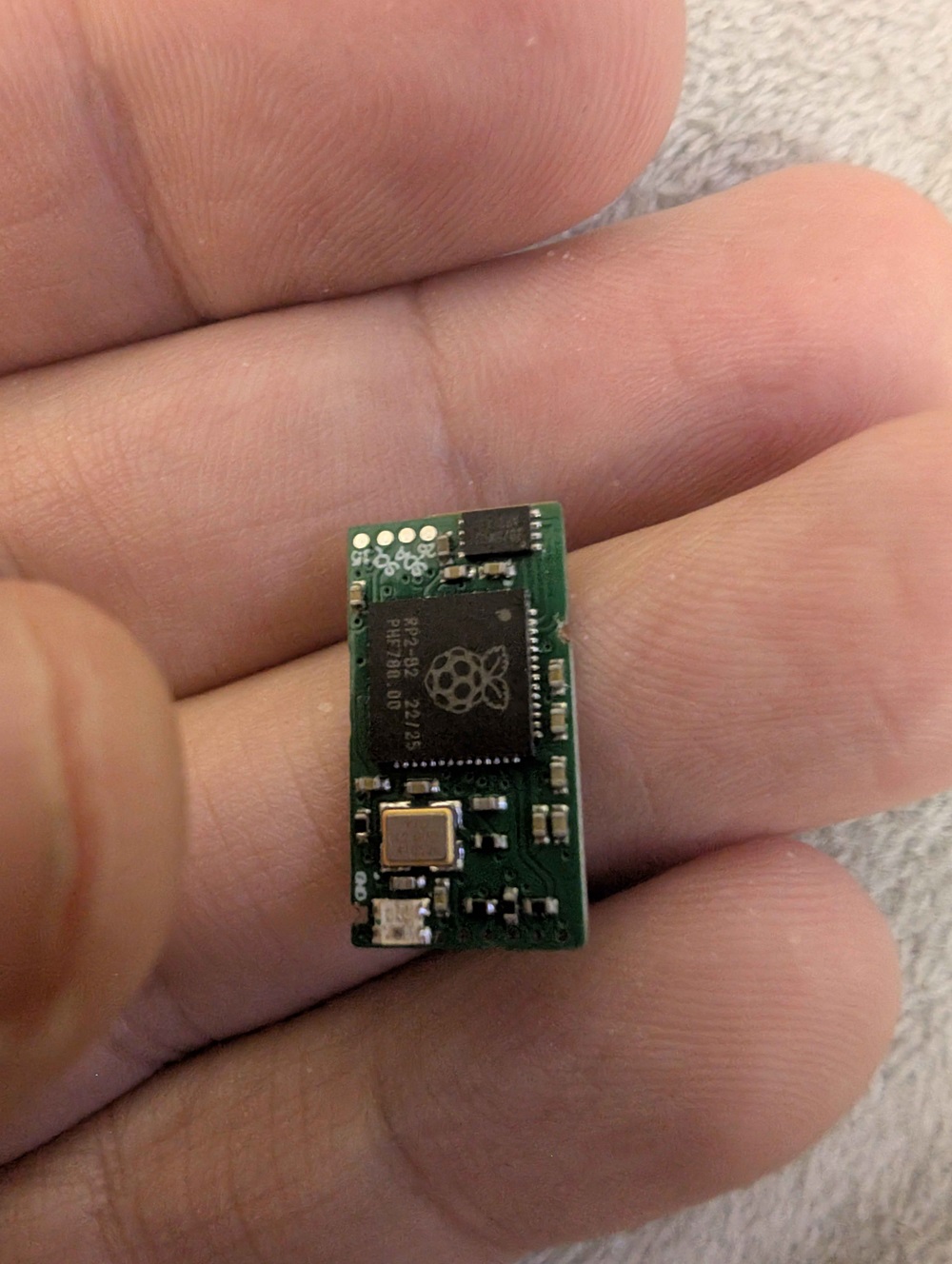

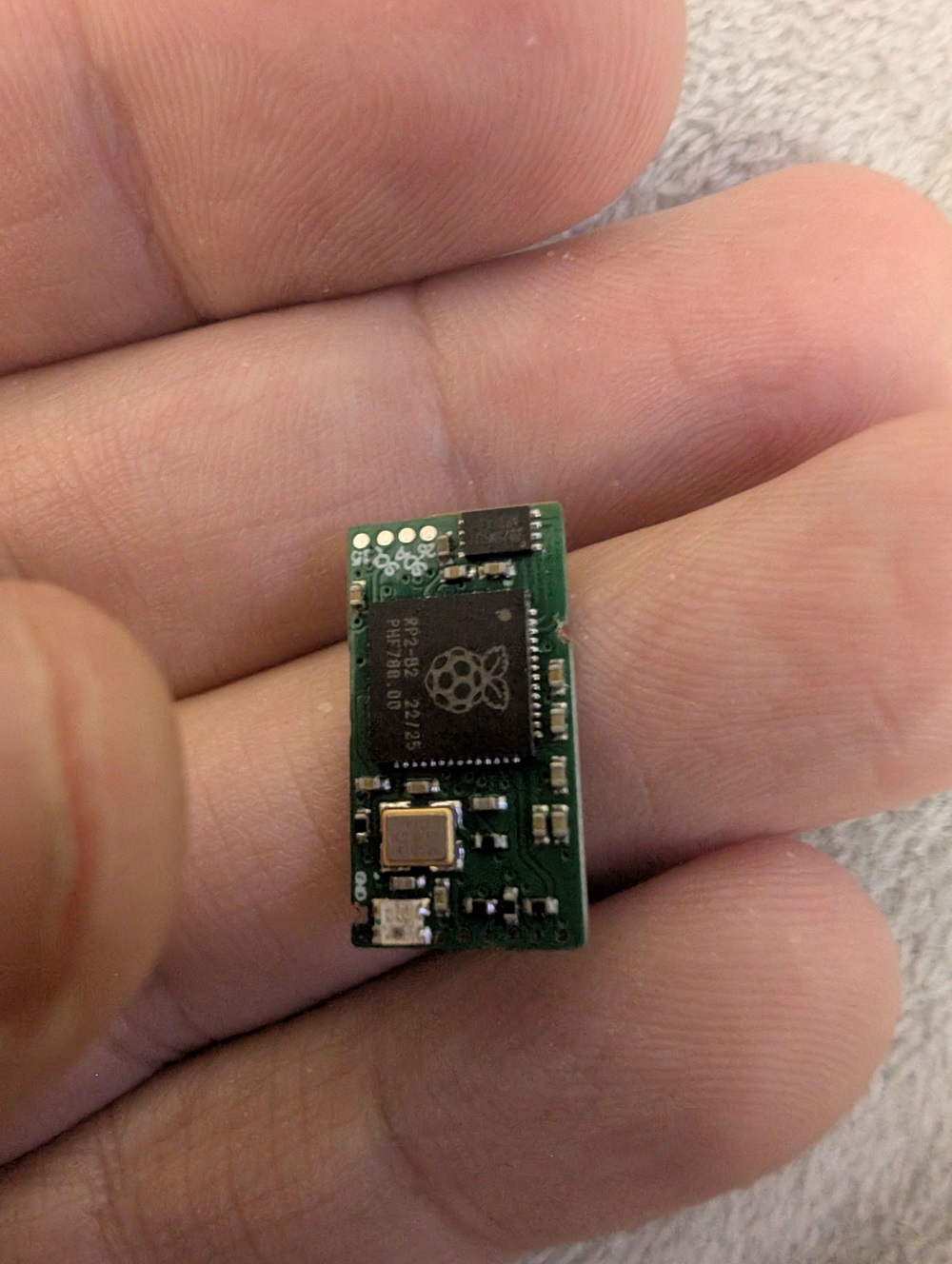

some updates on picochu for those who care. flasher design is finally done, now the software side needs to be done. the picocenter hat template is done. i have the hardware for the flasher on the way to me so the software side can be worked on. i was also able to shrink picochu down .8mm so it is now 10x18mm.


heres a crappy 3d render of the bottom of the flasher



[szczuru]

Is emunand necesarry? I've had v1 for years without emunand but now i can buy v2 with picofly already installed. From what i've checked it has emunand but i want to have more storage for games/other systems and i don't mind to be banned - can i safely remove emunand?



[SylverReZ]

Is emunand necesarry?

Yes. It's recommended to always be offline on your EmuNAND for running your backups and homebrew alone, Nintendo can otherwise flag your console as suspicious.

some updates on picochu for those who care. flasher design is finally done, now the software side needs to be done. the picocenter hat template is done. i have the hardware for the flasher on the way to me so the software side can be worked on. i was also able to shrink picochu down .8mm so it is now 10x18mm.

Dealing with RF frequencies you'll need plenty of grounding vias so that it wouldn't interfere and produce noise on the lines.



[szczuru]

Yes. It's recommended to always be offline on your EmuNAND for running your backups and homebrew alone, Nintendo can otherwise flag your console as suspicious.

I know that but as i said - i don't care being banned. So my question is - does v2 with picofly can work without emunand? Just like v1 few years ago with sysnand with atmosphere?



[SylverReZ]

Does v2 with picofly can work without emunand?

Yes - Atmosphere can boot in either Sys or EmuNAND.



[szczuru]

Ok thanks! Last question are there any special steps using v2 with chip to eg update atmosphere etc? Or can i do everything like i've done in v1? Eg booting payloads, installing android? What about with autorcm and fuses?



[pbanj]

Ok thanks! Last question are there any special steps using v2 with chip to eg update atmosphere etc? Or can i do everything like i've done in v1? Eg booting payloads, installing android? What about with autorcm and fuses?

Autorcm is useless with a chip. The chip loads whatever you have named "payload.bin"on the root of the sd card. Most use hekate. Everything else is the same as with a v1.
